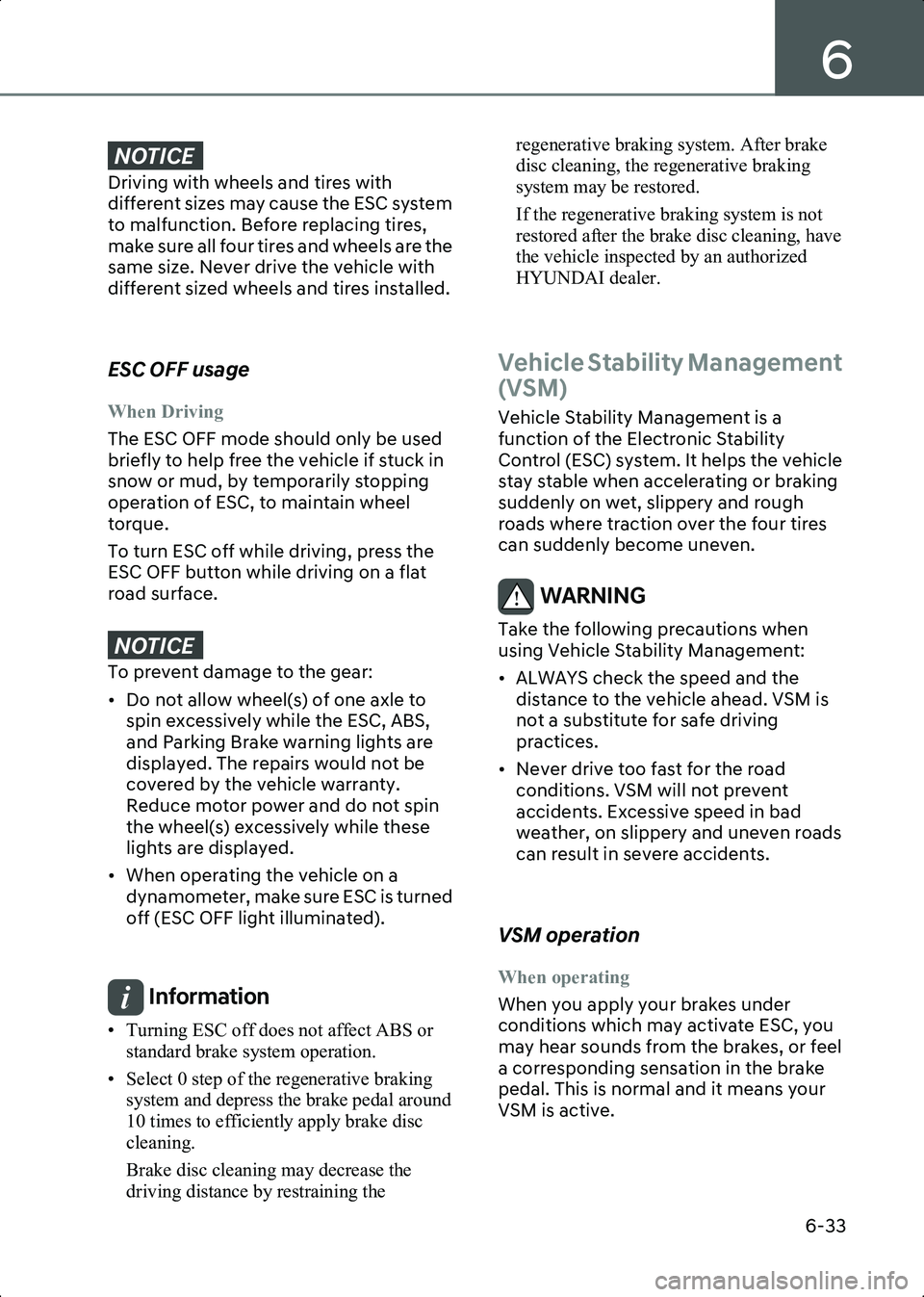

2023 HYUNDAI IONIQ 6 ESP

6
6-33
NOTICE'ULYLQJZLWKZKHHOVDQGWLUHVZLWK
GLIIHUHQWVL]HVPD\FDXVHWKH(6&V\VWHP
WRPDOIXQFWLRQ%HIRUHUHSODFLQJWLUHV
PDNHVXUHDOOIRXUWLUHVDQGZKHHOVDUHWKH
VDPHVL]H1HYHUGULYHWKHYHKLFOHZLWK
GLIIHUHQWVL]HGZKHHOVDQGWLUHVLQVWDOOHG

ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE7RSUHYHQWGDPDJHWRWKHJHDU

[ 'RQRWDOORZZKHHOV\fRIRQHD[OHWRVSLQH[FHVVLYHO\ZKLOHWKH(6&$%6
DQG3DUNLQJ%UDNHZDUQLQJOLJKWVDUH
GLVSOD\HG7KHUHSDLUVZRXOGQRWEH
FRYHUHGE\WKHYHKLFOHZDUUDQW\
5HGXFHPRWRUSRZHUDQGGRQRWVSLQ
WKHZKHHOV\fH[FHVVLYHO\ZKLOHWKHVH
OLJKWVDUHGLVSOD\HG

[ :KHQRSHUDWLQJWKHYHKLFOHRQD G\QDPRPHWHUPDNHVXUH(6&LVWXUQHG
RII(6&2))OLJKWLOOXPLQDWHG\f

Information • Turning ESC off does not affect ABS or standard brake system operation.
• Select 0 step of the regenerative braking system and depress the brake pedal around
10 times to efficiently apply brake disc
cleaning.
Brake disc cleaning may decrease the
driving distance by restraining the regenerative braking system. After brake
disc cleaning, the regenerative braking
system may be restored.
If the regenerative braking system is not
restored after the brake disc cleaning, have
the vehicle inspected by an authorized
HYUNDAI dealer.

Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING Take the following precautions when
using Vehicle Stability Management:
• ALWAYS check the speed and the distance to the vehicle ahead. VSM is
not a substitute for safe driving
practices.
• Never drive too fast for the road conditions. VSM will not prevent
accidents. Excessive speed in bad
weather, on slippery and uneven roads
can result in severe accidents.

VSM operation
When operating
When you apply your brakes under
conditions which may activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Hyundai_CE_en_US.book Page 33

Driving Your Vehicle
6-40
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by controlling
motors and gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/
Minimized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Hyundai_CE_en_US.book Page 40

6
6-41
Drive mode Integrated
if equipped
Control System (AWD)
Drive Mode
B6009701
Drive mode may be selected according to
the driver's preference or road condition.
B6009702
The mode changes whenever the driver
pushes the DRIVE mode button.
NORMAL mode
Normal mode is a driving that provides
comfortable driving with normal motor
response. The vehicle is driven mainly
with the rear wheels (2WD), and
automatically converts to AWD according
to the road and driving conditions.
ECO mode
ECO mode is a driving mode vehicles
could change the engagement status of the motor according to the situation
required. Auto changing the driving
mode(2WD/AWD)helps improve energy
efficiency.
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO
indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
- The shift pattern of the gear may change.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by fixing AWD
system and controlling gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
)PME
Hyundai_CE_en_US.book Page 41

6
6-45
if equipped
Active Sound Design
• Active Sound Design provides various virtual driving sounds based on the
driving mode, vehicle speed, and
accelerator pedal. You can adjust the
volume and change the settings for
acceleration pedal response and sound
style.
• To change the volume of the Active Sound Design in the infotainment
system, select: Setup > Vehicle >
Active Sound Design , or Setup >
Sound > Active Sound Design .
• The volume of the Active Sound Design is adjusted according to the drive mode
(Eco, Normal, Sport) selected.
• Any unauthorized replacement of the vehicle’s speaker and amplifier may
cause Active Sound Design to
malfunction.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Special Driving
Conditions
Hazardous Driving Conditions
When hazardous driving elements are
encountered such as water, snow, ice,
mud and sand, take the following
precautions:
• Drive cautiously and maintain a longer braking distance.
• Avoid abrupt braking or steering.
• When your vehicle is stuck in snow, mud, or sand, accelerate slowly to
avoid unnecessary wheel spin.
• Put sand, rock salt, tire chains or other non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow, or
mud.
WARNING Changing the tire speed suddenly could
cause the tires to skid while driving on
slippery surface. Be careful when driving
on slippery surfaces.

Hyundai_CE_en_US.book Page 45

Driving Your Vehicle
6-46

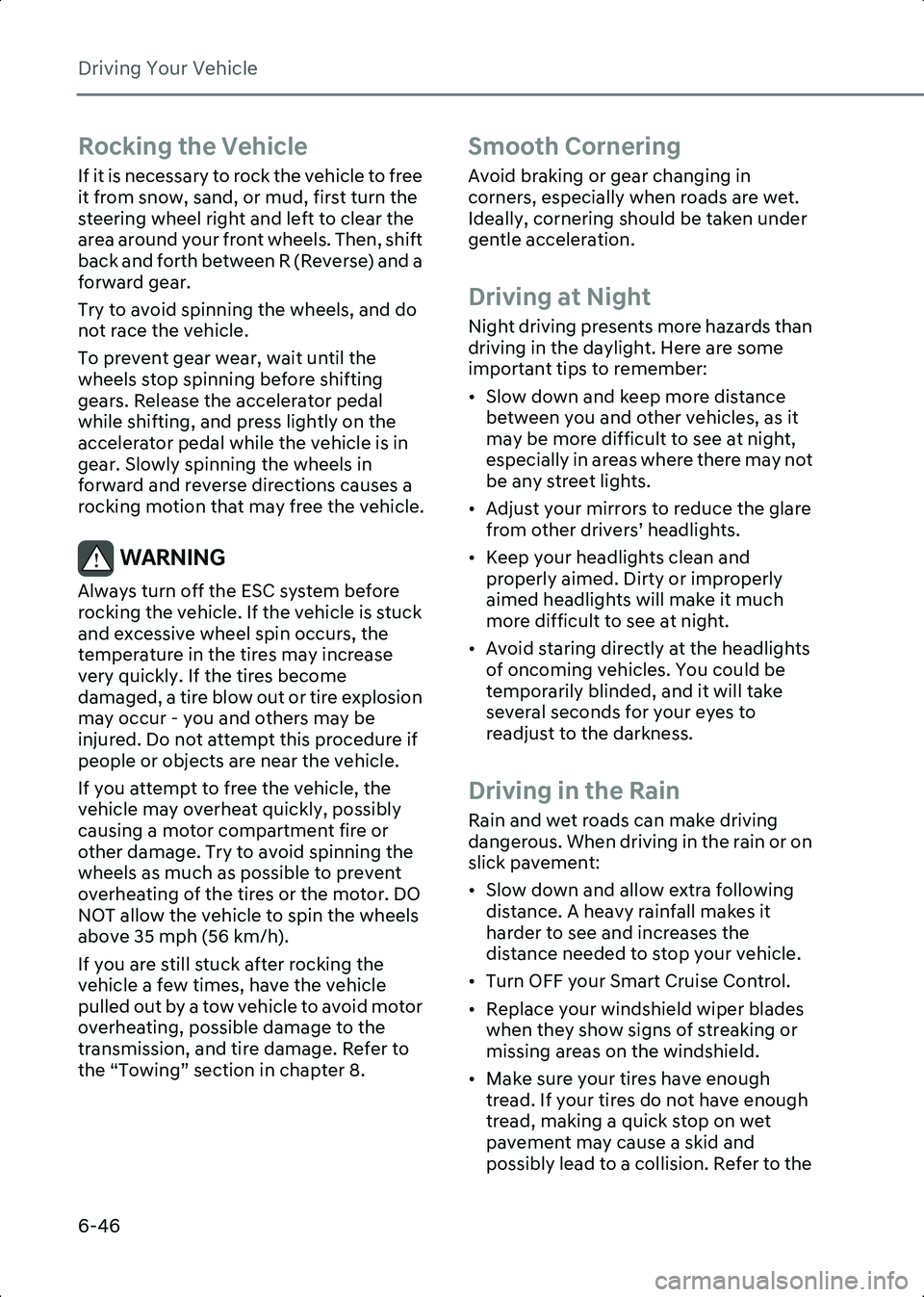

Rocking the Vehicle
If it is necessary to rock the vehicle to free
it from snow, sand, or mud, first turn the
steering wheel right and left to clear the
area around your front wheels. Then, shift
back and forth between R (Reverse) and a
forward gear.
Try to avoid spinning the wheels, and do
not race the vehicle.
To prevent gear wear, wait until the
wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the vehicle is in
gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING Always turn off the ESC system before
rocking the vehicle. If the vehicle is stuck
and excessive wheel spin occurs, the
temperature in the tires may increase
very quickly. If the tires become
damaged, a tire blow out or tire explosion
may occur - you and others may be
injured. Do not attempt this procedure if
people or objects are near the vehicle.
If you attempt to free the vehicle, the
vehicle may overheat quickly, possibly
causing a motor compartment fire or
other damage. Try to avoid spinning the
wheels as much as possible to prevent
overheating of the tires or the motor. DO
NOT allow the vehicle to spin the wheels
above 35 mph (56 km/h).
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid motor
overheating, possible damage to the
transmission, and tire damage. Refer to
the “Towing” section in chapter 8.

Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, cornering should be taken under
gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:
• Slow down and keep more distance between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may not
be any street lights.
• Adjust your mirrors to reduce the glare from other drivers’ headlights.
• Keep your headlights clean and properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.
• Avoid staring directly at the headlights of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. When driving in the rain or on
slick pavement:
• Slow down and allow extra following distance. A heavy rainfall makes it
harder to see and increases the
distance needed to stop your vehicle.
• Turn OFF your Smart Cruise Control.
• Replace your windshield wiper blades when they show signs of streaking or
missing areas on the windshield.
• Make sure your tires have enough tread. If your tires do not have enough
tread, making a quick stop on wet
pavement may cause a skid and
possibly lead to a collision. Refer to the
Hyundai_CE_en_US.book Page 46

7
7-9
if equipped
Forward Cross-Traffic Safety
B7000201_2
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward Cross-Traffic Safety
from the Settings menu to turn on
Junction crossing function and deselect
to turn off the function.
if equipped
Forward/Side Safety
B7000203
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward/Side Safety from the
Settings menu to turn on Lane-Change
Oncoming function, Lane-Change Side
function, Evasive Steering Assist function
and deselect to turn off the functions.
• If Forward/Side Safety is selected,
Forward Collision-Avoidance Assist will
warn the driver, steering wheel
vibration, a warning message, an
audible warning depending on the collision risk levels. Steering assist will
be applied depending on the collision
risk levels. If
Forward/Side Safety is
deselected, Forward/Side Safety will
turn off. The warning light ( ) will
illuminate on the instrument cluster.
WARNING When the vehicle is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, at all times, and
especially if Forward Safety is
deselected, the driver should always be
aware of the surroundings and drive
safely.

CAUTION • The setting for Forward Safety include ‘Basic function’ and ‘Junction Turning’,
and 'Direct Oncoming’.
• The setting for Forward-Cross Traffic Safety includes ‘Junction Crossing’.
• The setting for Forward/Side Safety includes ‘Lane Change Oncoming’,
‘Lane-Change Side’ and ‘Evasive
Steering Assist’ (if equipped).
• If Forward Safety is deselected,
Junction Crossing function will not
operate even when Forward
Cross-Traffic Safety and Forward/Side
Safety is selected. (if equipped)
• Steering wheel vibration can be turned on or off. Select or deselect Driver
Assistance > Warning Methods >
Haptic Warning from the Settings
menu.

Hyundai_CE_en_US.book Page 9

7
7-19

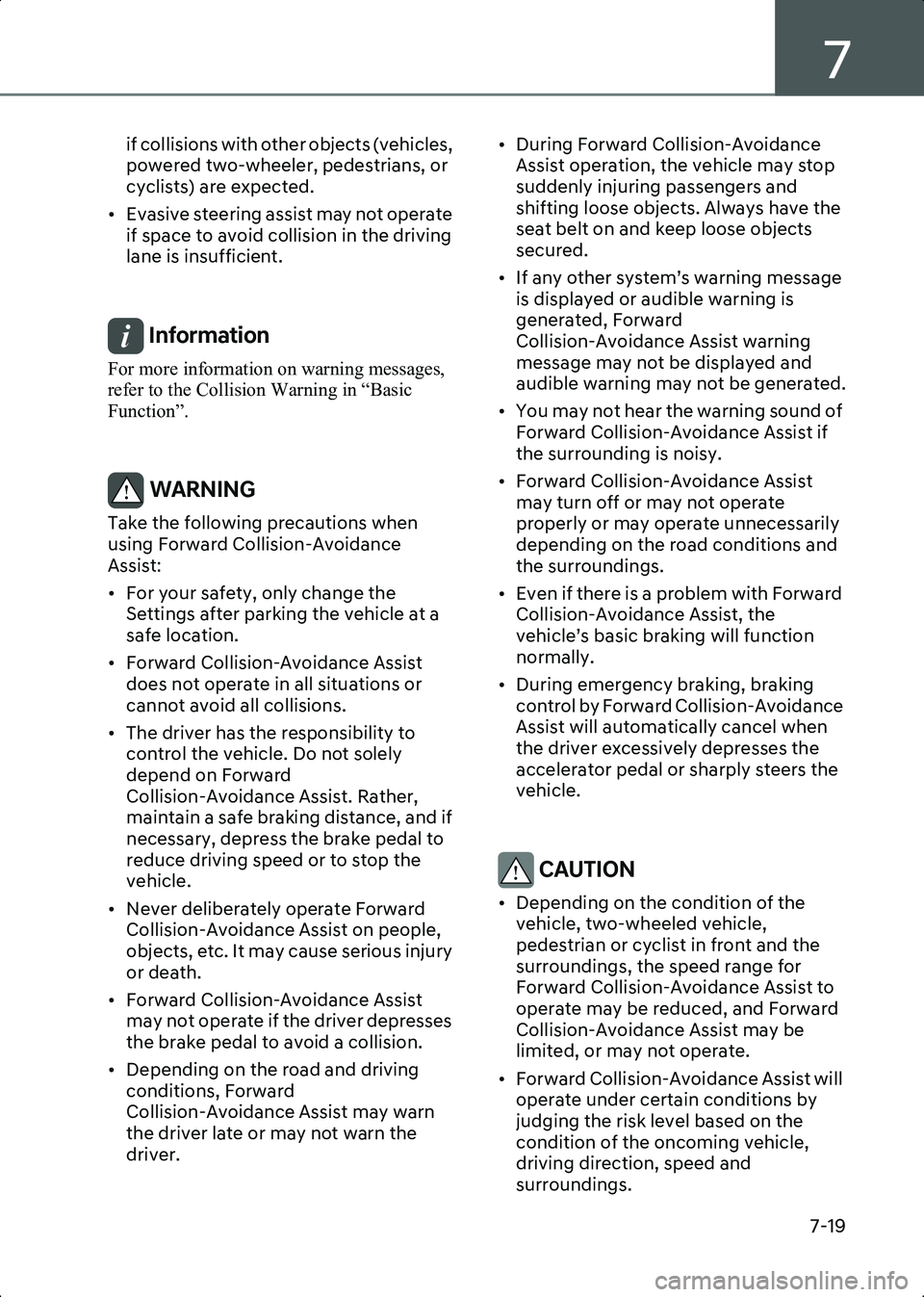

if collisions with other objects (vehicles,
powered two-wheeler, pedestrians, or
cyclists) are expected.
• Evasive steering assist may not operate if space to avoid collision in the driving
lane is insufficient.

Information For more information on warning messages,
refer to the Collision Warning in “Basic
Function”.

WARNING Take the following precautions when
using Forward Collision-Avoidance
Assist:
• For your safety, only change the Settings after parking the vehicle at a
safe location.
• Forward Collision-Avoidance Assist does not operate in all situations or
cannot avoid all collisions.
• The driver has the responsibility to control the vehicle. Do not solely
depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and if
necessary, depress the brake pedal to
reduce driving speed or to stop the
vehicle.
• Never deliberately operate Forward Collision-Avoidance Assist on people,
objects, etc. It may cause serious injury
or death.
• Forward Collision-Avoidance Assist may not operate if the driver depresses
the brake pedal to avoid a collision.
• Depending on the road and driving conditions, Forward
Collision-Avoidance Assist may warn
the driver late or may not warn the
driver. • During Forward Collision-Avoidance
Assist operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always have the
seat belt on and keep loose objects
secured.
• If any other system’s warning message is displayed or audible warning is
generated, Forward
Collision-Avoidance Assist warning
message may not be displayed and
audible warning may not be generated.
• You may not hear the warning sound of Forward Collision-Avoidance Assist if
the surrounding is noisy.
• Forward Collision-Avoidance Assist may turn off or may not operate
properly or may operate unnecessarily
depending on the road conditions and
the surroundings.
• Even if there is a problem with Forward Collision-Avoidance Assist, the
vehicle’s basic braking will function
normally.
• During emergency braking, braking control by Forward Collision-Avoidance
Assist will automatically cancel when
the driver excessively depresses the
accelerator pedal or sharply steers the
vehicle.

CAUTION • Depending on the condition of the vehicle, two-wheeled vehicle,
pedestrian or cyclist in front and the
surroundings, the speed range for
Forward Collision-Avoidance Assist to
operate may be reduced, and Forward
Collision-Avoidance Assist may be
limited, or may not operate.
• Forward Collision-Avoidance Assist will operate under certain conditions by
judging the risk level based on the
condition of the oncoming vehicle,
driving direction, speed and
surroundings.
Hyundai_CE_en_US.book Page 19

7
7-27

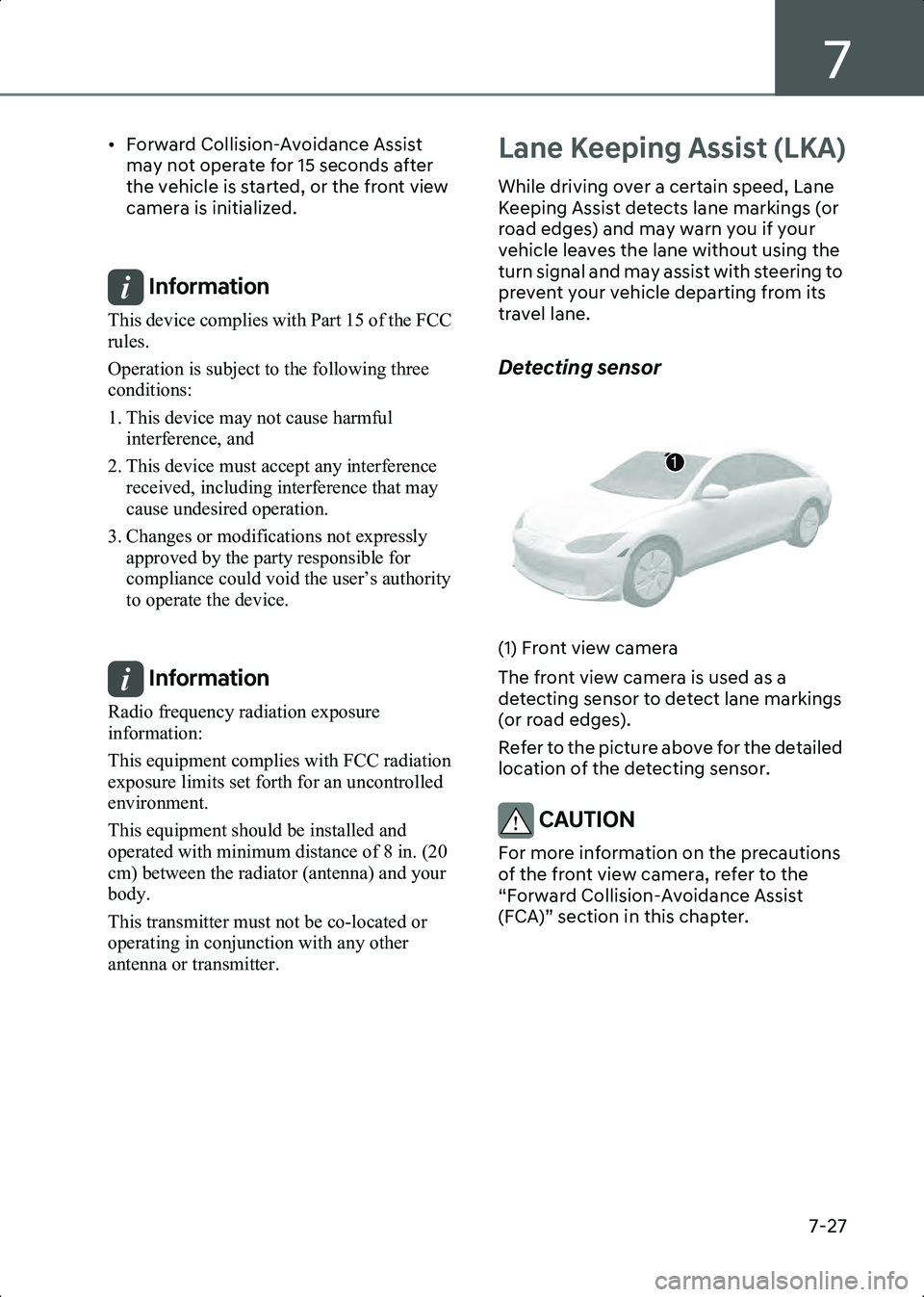

• Forward Collision-Avoidance Assist may not operate for 15 seconds after
the vehicle is started, or the front view
camera is initialized.

Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.

Information Radio frequency radiation exposure
information:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and
operated with minimum distance of 8 in. (20
cm) between the radiator (antenna) and your
body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Lane Keeping Assist (LKA)
While driving over a certain speed, Lane
Keeping Assist detects lane markings (or
road edges) and may warn you if your
vehicle leaves the lane without using the
turn signal and may assist with steering to
prevent your vehicle departing from its
travel lane.
Detecting sensor
B7000901(1) Front view camera
The front view camera is used as a
detecting sensor to detect lane markings
(or road edges).
Refer to the picture above for the detailed
location of the detecting sensor.
CAUTION For more information on the precautions
of the front view camera, refer to the
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter.

1
Hyundai_CE_en_US.book Page 27
