2023 HYUNDAI IONIQ 6 ESP
[x] Cancel search: ESPPage 167 of 582
4
4-17
Press START button with key
This message is displayed and the
immobilizer indicator blinks if you press
the Start/Stop button while the warning
message, “Key not detected” appears.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
Replace the fuse with a new one before
starting the vehicle.
If that is not possible, start the vehicle by
pressing the Start/Stop button for 10
seconds in the ACC position.
Shift to P to start vehicle
This message is displayed if you try to
start the vehicle in any other position
except P (Park).
Information For your safety, You start the vehicle with the
gear shifted to P (Park).
Check smart key system
This message is displayed when there is a
problem with the smart key system. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
Door, Hood, Trunk open indicator
B4000521
This warning is displayed if any door or
hood or trunk is left open. The warning
indicates which door is on the cluster
display.
CAUTION Before driving the vehicle, confirm the
door, hood, and trunk are fully closed.
Also, check there are no door, hood, and
trunk open warning lights or messages
displayed on the instrument cluster.
Low tire pressure
ONE1081021L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle illuminates.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
- P X U J S F Q S F T T V S F
- P X
- P X - P X
- P X
Hyundai_CE_en_US.book Page 17
Page 187 of 582
5
5-9
circuit of the smart key to malfunction
which may not be covered under
warranty.
• Avoid dropping or throwing the smart key.
• Protect the smart key from extreme temperatures.
Loss of a smart key
A maximum of three smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you should
immediately take the vehicle and
remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
• The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
• The smart key is near a mobile two way radio system or a mobile phone.
• Another vehicle’s smart key is being operated close to your vehicle.
• The smart key is near any normal electronic devices or credit cards.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such as
making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the same location such as pants or jacket
pocket in order to avoid interference
between the two devices.
Information Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment. If the keyless entry
system is inoperative due to changes or
modifications not expressly approved by the
party responsible for compliance, it will not be
covered by your manufacturer’s vehicle
warranty.
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.
NOTICE [ . H H S W K H V P D U W N H \ D Z D \ I U R P H O H F W U R P D J Q H W L F P D W H U L D O V W K D W E O R F N V
H O H F W U R P D J Q H W L F Z D Y H V W R W K H N H \
V X U I D F H
[ $ O Z D \ V K D Y H W K H V P D U W N H \ Z L W K \ R X Z K H Q O H D Y L Q J W K H Y H K L F O H , I W K H V P D U W
N H \ L V O H I W Q H D U W K H Y H K L F O H W K H Y H K L F O H
E D W W H U \ P D \ E H G L V F K D U J H G
Hyundai_CE_en_US.book Page 9
Page 189 of 582
5
5-11
If the system repeatedly does not
recognize the coding of the key, contact
an authorized HYUNDAI dealer.
Do not attempt to alter this system or add
other devices to it. Electrical problems
could result that may make your vehicle
inoperable.
WARNING In order to prevent theft of your vehicle,
do not leave spare keys anywhere in your
vehicle. Your immobilizer password is a
customer unique password and should be
kept confidential.
NOTICE 7 K H W U D Q V S R Q G H U L Q \ R X U N H \ L V D Q
L P S R U W D Q W S D U W R I W K H L P P R E L O L ] H U V \ V W H P
, W L V G H V L J Q H G W R J L Y H \ H D U V R I W U R X E O H I U H H
V H U Y L F H K R Z H Y H U \ R X V K R X O G D Y R L G
H [ S R V X U H W R P R L V W X U H V W D W L F H O H F W U L F L W \
D Q G U R X J K K D Q G O L Q J , P P R E L O L ] H U V \ V W H P
P D O I X Q F W L R Q F R X O G R F F X U
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device
if equipped
Hyundai Digital Key
Digital Key Application
To use HYUNDAI Digital Key mobile app,
install the HYUNDAI Digital Key app on
your smartphone.
Refer to the instructions in the digital key
app:
Menu > Application Info > Tutorial
Available smartphone models can be
found on smartphone manufactures'
website or HYUNDAI website.
How To Save/Delete The
Digital Key (Smartphone Key)
Setting digital key(smartphone key)
If the Near Field Communication (NFC)
setting is enabled on your phone and your
smartphone screen is unlocked, you can
use the Digital Key feature.
Saving digital key(smartphone key)
B5026401
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Register your digital key (smartphone key) in the infotainment system. From
the Settings menu, go to Setup >
Hyundai_CE_en_US.book Page 11
Page 220 of 582
Convenience Features
5-42
3. Release the buttons once the HomeLink indicator light (7) changes to
Green and flashes rapidly
4. Now all three HomeLink buttons (1), (2) and (3) are cleared of any programming
Information HomeLink® and the HomeLink® House logo
are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.
FCC (USA) and ISED (Canada)
This device complies with FCC rules part
15 and Innovation, Science, and
Economic Development Canada RSS-210.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference that may be
received including interference that may
cause undesired operation. WARNING:
The transmitter has been tested and
complies with FCC and ISED rules.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the device.
This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. End
Users must follow the specific operating
instructions for satisfying RF exposure
compliance. This transmitter must be at
least 20cm from the user and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
Cet appareil est conforme aux reglements
de la FCC, section 15, et au CNR-210
d’Innovation, Sciences et
Dhveloppement economique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes: (1) cet appareil ne
doit pas causer d’interferences nuisibles
et (2) cet appareil doit accepter toute
interference recue, y compris celle qui pourrait entrainer un dysfonctionnement.
MISE EN GARDE: L’emetteur a subi des
tests et est conforme aux reglements de
la FCC et d’ISDE. Les changements ou
modifications non approuves
explicitement par la partie responsable de
la conformite pourraient rendre caduque
l’autorisation de l’utilisateur de se servir
du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE etablies pour un environnement
non controle. Les utilisateurs finaux
doivent respecter les instructions
d’utilisation specifiques pour satisfaire
aux exigences de conformite aux
expositions de RF. L’emetteur doit se
trouver a 20 cm au minimum de
l’utilisateur et ne doit pas etre situe au
meme endroit que tout autre emetteur ou
antenne ni fonctionner avec un autre
emetteur ou antenne.
HomeLink 5 Programing Flow Chart
ODL3A040518
Hyundai_CE_en_US.book Page 42
Page 245 of 582
5
5-67
Lighting
Exterior Lights
Lighting control
To operate the lights, turn the knob at the
end of the control lever to one of the
following positions:
B5015601
1. OFF
2. AUTO headlight
3. Parking light
4. Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when :
• The headlights are ON.
• The parking brake is applied.
• The vehicle is turned off.
B5015602
AUTO headlight
The parking light and headlight will be
turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlight feature in
operation, it is recommended to manually
turn ON the headlights when driving at
night or in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.
NOTICE [ ' R Q R W F R Y H U R U V S L O O D Q \ W K L Q J R Q W K H V H Q V R U \f O R F D W H G D W W K H X S S H U H Q G R I
W K H Z L Q G V K L H O G J O D V V
[ ' R Q R W F O H D Q W K H V H Q V R U X V L Q J D Z L Q G R Z F O H D Q H U W K H F O H D Q V H U P D \ O H D Y H D O L J K W
I L O P Z K L F K F R X O G L Q W H U I H U H Z L W K V H Q V R U
R S H U D W L R Q
[ , I \ R X U Y H K L F O H Z L Q G R Z L V W L Q W H G R U R W K H U W \ S H V R I P H W D O O L F F R D W L Q J D U H R Q W K H
I U R Q W Z L Q G V K L H O G W K H $ 8 7 2 K H D G O L J K W
V \ V W H P P D \ Q R W Z R U N S U R S H U O \
AUTO
1
Hyundai_CE_en_US.book Page 67
Page 253 of 582
5
5-75
and High Beam Assist will be
enabled.
- When High Beam Assist is enabled, high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15 mph
(25 km/h), high beam will turn off and
the High Beam Assist ( ) indicator
will be displayed in white on the
instrument cluster.
- The High Beam ( ) indicator light will illuminate on the instrument cluster
when high beam is on.
• When High Beam Assist is operating, if the headlight lever or switch is used,
High Beam Assist operates as follow:
- If the headlight lever is pulled towards you when the high beam is
off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlight
lever, the lever will move to the
middle and the high beam will turn
off.
- If the headlight lever is pulled towards you when the high beam is
on by High Beam Assist, low beam
will turn on and the function will turn
off.
- If the headlight switch is placed from AUTO to another position
(headlight/position/off), High Beam
Assist will turn off and the
corresponding light will turn on.
• When High Beam Assist is operating, high beam switches to low beam if any
of the following conditions occur:
- When the headlight of an oncoming vehicle is detected.
- When the tail light of a vehicle in front is detected.
- When the headlight or tail light of a motorcycle or a bicycle is detected.
- When the surrounding ambient light is bright enough that high beams are
not required. - When streetlights or other lights are
detected.
Information The images and colors in the instrument
cluster may differ depending on the cluster
type or theme selected from the settings menu.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OJK050059L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
system’ warning message will appear and
warning light will illuminate on the
instrument cluster. Have the function
inspected by an authorized HYUNDAI
dealer.
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:
• Light from an oncoming or front vehicle is not detected because of light
damage, or because it is hidden from
sight, etc.
• Headlight of an oncoming or front vehicle is covered with dust, snow or
water.
• A front vehicle’s headlights are off, but the fog lights are on, etc.
$ I F D L
) J H I # F B N " T T J T U T Z T U F N
Hyundai_CE_en_US.book Page 75
Page 254 of 582
Convenience Features
5-76
• There is a light that has a similar shape as a vehicle’s light.
• Headlights have been damaged or not repaired properly.
• Headlights are not aimed properly.
• Driving on a narrow curved road, rough road, uphill or downhill.
• Vehicle in front is partially visible on a crossroad or curved road.
• There is a traffic light, reflecting sign, flashing sign or mirror ahead.
• There is a temporary reflector or flash ahead (construction area).
• The road conditions are bad such as being wet, iced or covered with snow.
• A vehicle suddenly appears from a curve.
• The vehicle is tilted from a flat tire or is being towed.
• Light from an oncoming or front vehicle is not detected due to obstacles in the
air such as exhaust fume, smoke, fog,
snow, or water spay or blizzard on the
road, or fogging in the light, etc.
Information For more information on the limitations of the
Front View Camera, refer to the “Forward
Collision-Avoidance Assist (FCA)” section in
chapter 7.
WARNING • At times, High Beam Assist may not work properly. High Beam Assist is for
your convenience only. It is the
responsibility of the driver for safe
driving practices and always check the
road conditions for your safety.
• When High Beam Assist does not operate properly, change the headlight
position manually between high beam
and low beam.
• When starting up or initializing the front camera (rebooting, etc.), the High
Beam Assist function may not work for
about 15 seconds.
Hyundai_CE_en_US.book Page 76

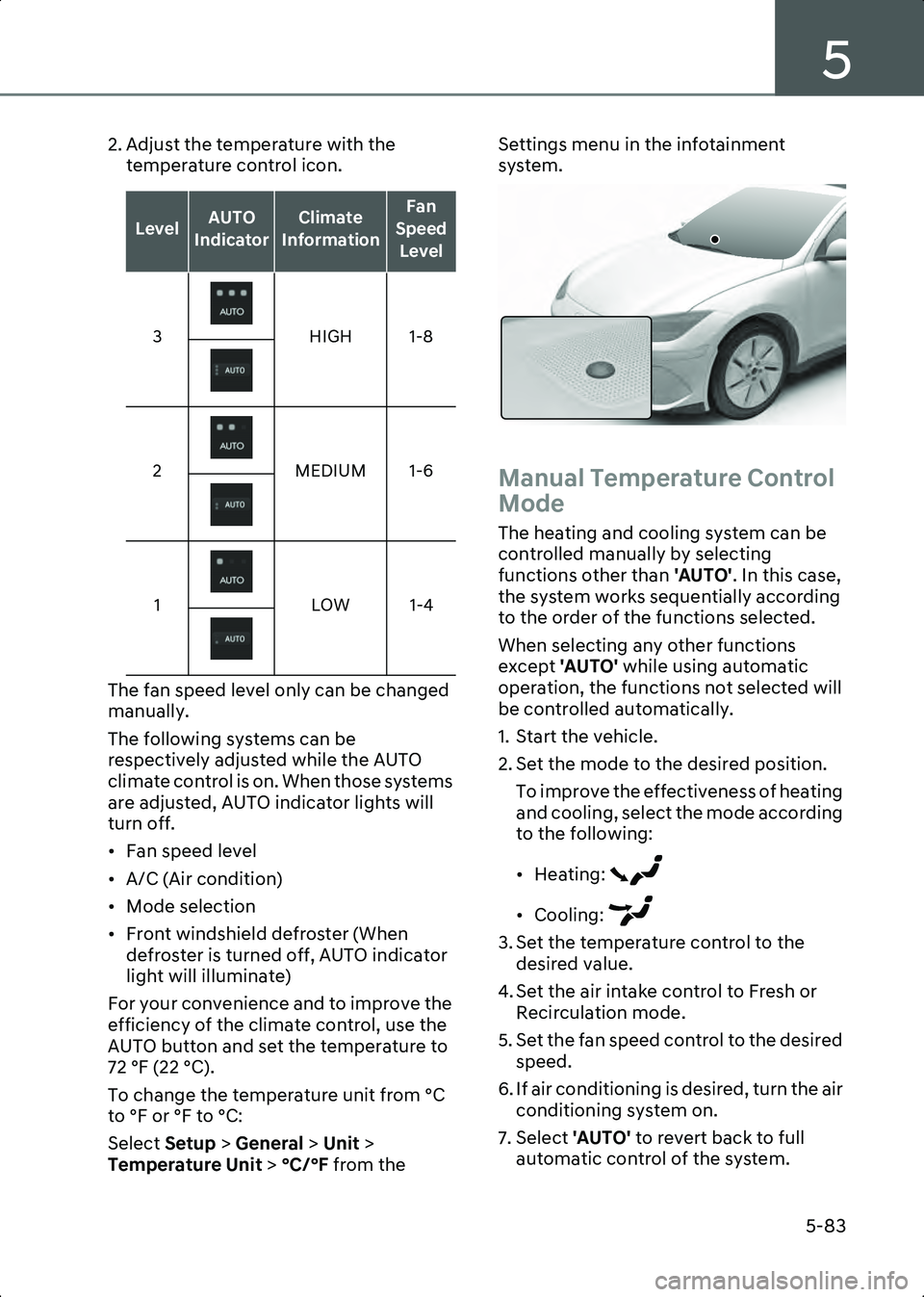

Page 261 of 582
5
5-83
2. Adjust the temperature with the temperature control icon.
The fan speed level only can be changed
manually.
The following systems can be
respectively adjusted while the AUTO
climate control is on. When those systems
are adjusted, AUTO indicator lights will
turn off.
• Fan speed level
• A/C (Air condition)
• Mode selection
• Front windshield defroster (When defroster is turned off, AUTO indicator
light will illuminate)
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72 °F (22 °C).
To change the temperature unit from °C
to °F or °F to °C:
Select Setup > General > Unit >
Temperature Unit > °C/°F from the Settings menu in the infotainment
system.
B5019903
Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by selecting
functions other than
'AUTO'. In this case,
the system works sequentially according
to the order of the functions selected.
When selecting any other functions
except 'AUTO' while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the vehicle.
2. Set the mode to the desired position.
To improve the effectiveness of heating
and cooling, select the mode according
to the following:
• Heating:
• Cooling:
3. Set the temperature control to the desired value.
4. Set the air intake control to Fresh or Recirculation mode.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
7. Select 'AUTO' to revert back to full
automatic control of the system.
LevelAUTO
IndicatorClimate
InformationFan
Speed Level
3 HIGH 1-8
2 MEDIUM 1-6
1 LOW 1-4
Hyundai_CE_en_US.book Page 83
