9
9-9

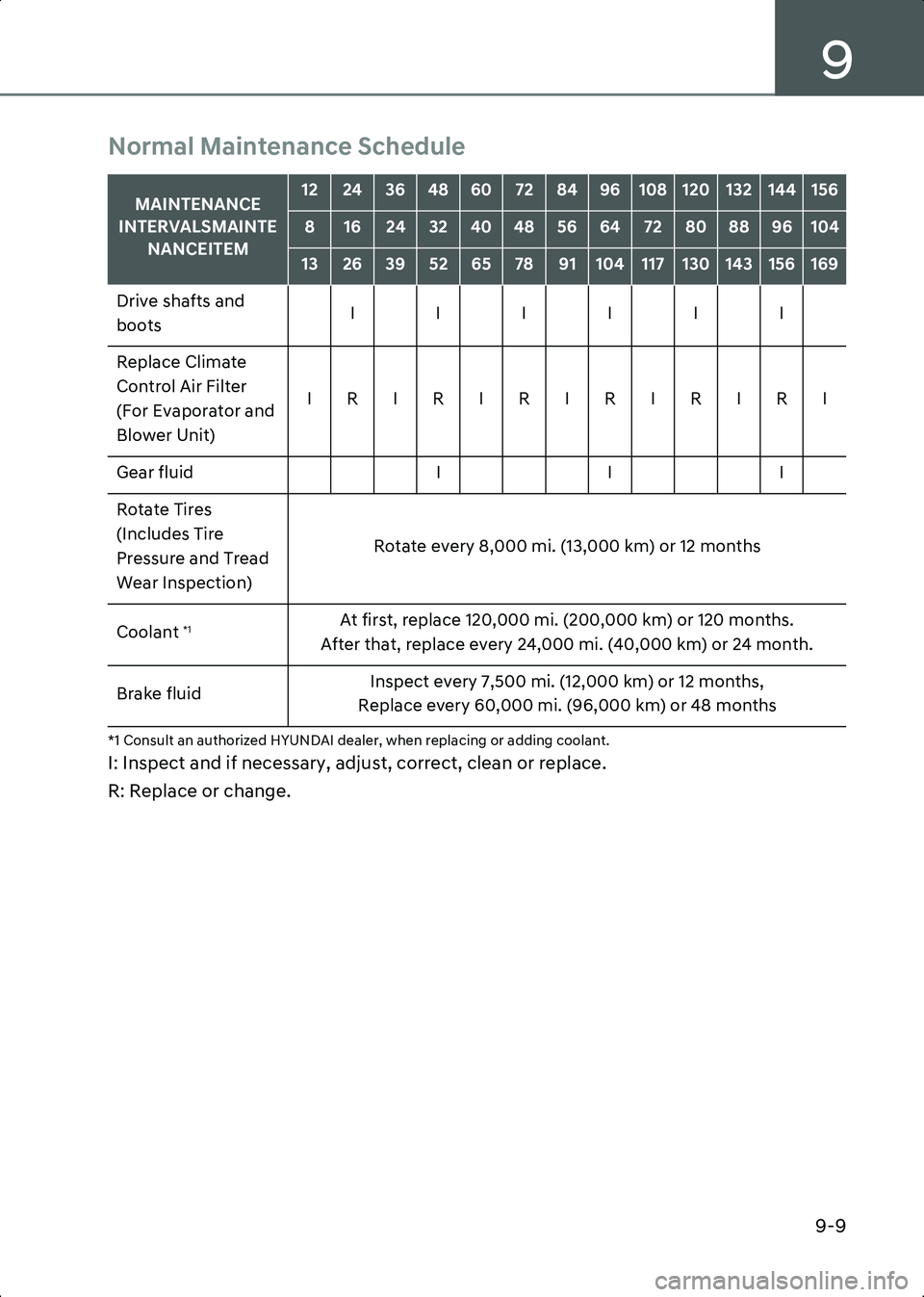

Normal Maintenance Schedule
*1 Consult an authorized HYUNDAI dealer, when replacing or adding coolant.
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
MAINTENANCE
INTERVALSMAINTE NANCEITEM1224364860728496108120132144156
81624324048566472808896104
13263952657891104117130143156169
Drive shafts and
boots I I I I I I
Replace Climate
Control Air Filter
(For Evaporator and
Blower Unit) I R I R I R I R I R I R I
Gear fluid III
Rotate Tires
(Includes Tire
Pressure and Tread
Wear Inspection) Rotate every 8,000 mi. (13,000 km) or 12 months
Coolant
*1At first, replace 120,000 mi. (200,000 km) or 120 months.
After that, replace every 24,000 mi. (40,000 km) or 24 month.
Brake fluid Inspect every 7,500 mi. (12,000 km) or 12 months,
Replace every 60,000 mi. (96,000 km) or 48 months
Hyundai_CE_en_US.book Page 9
Page 526 of 582
Maintenance
9-10

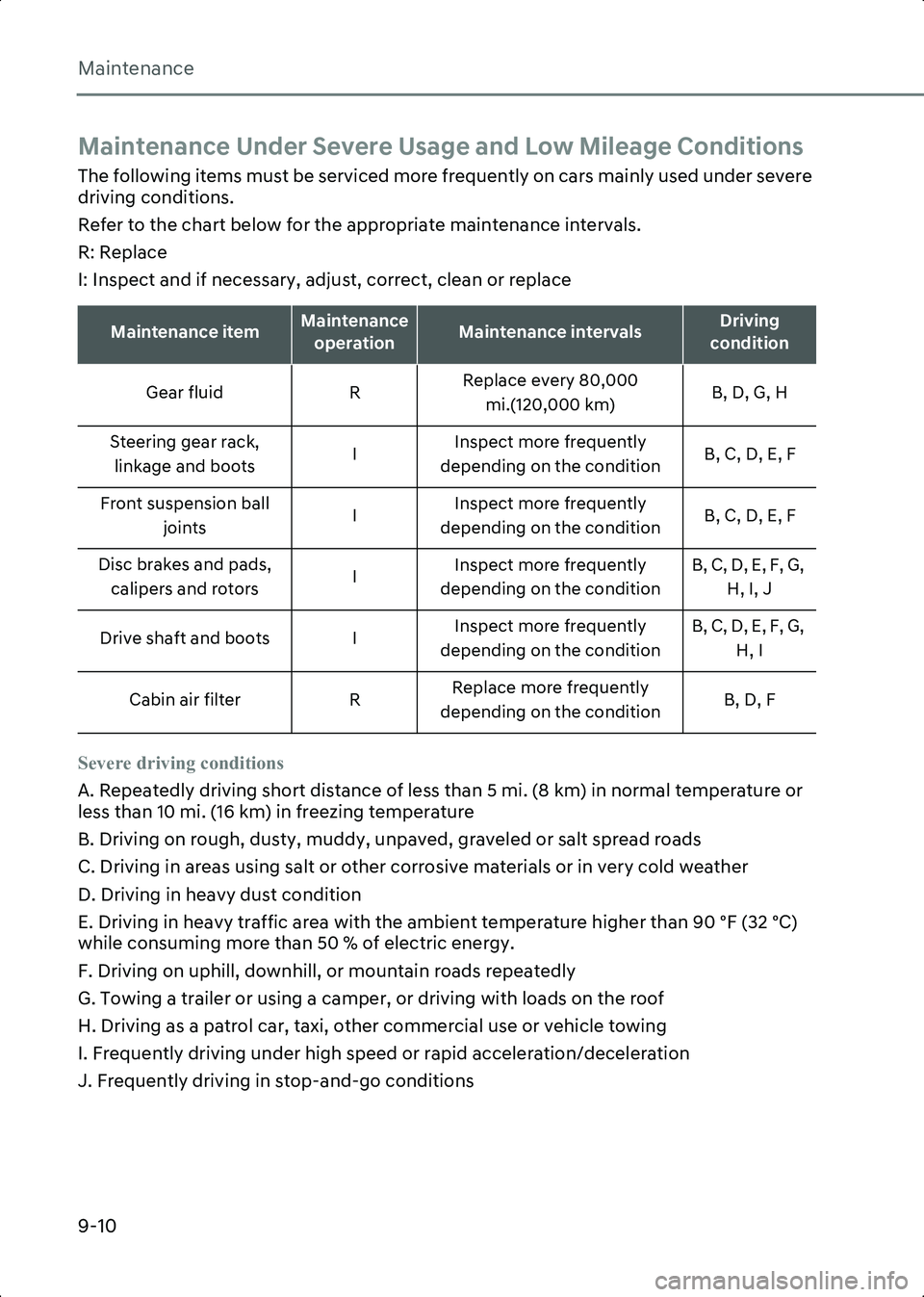

Maintenance Under Severe Usage and Low Mileage Conditions
The following items must be serviced more frequently on cars mainly used under severe
driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R: Replace
I: Inspect and if necessary, adjust, correct, clean or replace
Severe driving conditions
A. Repeatedly driving short distance of less than 5 mi. (8 km) in normal temperature or
less than 10 mi. (16 km) in freezing temperature
B. Driving on rough, dusty, muddy, unpaved, graveled or salt spread roads
C. Driving in areas using salt or other corrosive materials or in very cold weather
D. Driving in heavy dust condition
E. Driving in heavy traffic area with the ambient temperature higher than 90 ºF (32 ºC)
while consuming more than 50 % of electric energy.
F. Driving on uphill, downhill, or mountain roads repeatedly
G. Towing a trailer or using a camper, or driving with loads on the roof
H. Driving as a patrol car, taxi, other commercial use or vehicle towing
I. Frequently driving under high speed or rapid acceleration/deceleration
J. Frequently driving in stop-and-go conditions
Maintenance itemMaintenance operationMaintenance intervalsDriving
condition
Gear fluid RReplace every 80,000
mi.(120,000 km) B, D, G, H
Steering gear rack, linkage and boots IInspect more frequently
depending on the condition B, C, D, E, F
Front suspension ball joints IInspect more frequently
depending on the condition B, C, D, E, F
Disc brakes and pads, calipers and rotors IInspect more frequently
depending on the condition B, C, D, E, F, G,
H, I, J
Drive shaft and boots I Inspect more frequently
depending on the condition B, C, D, E, F, G,
H, I
Cabin air filter RReplace more frequently
depending on the condition B, D, F
Hyundai_CE_en_US.book Page 10
Page 527 of 582
9
9-11
Explanation of Scheduled
Maintenance Items
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Gear Fluid
The gear fluid should be inspected and
replaced according to the intervals
specified in the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks on
the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT 4
specification.
Brake Discs, Pads, Calipers
and Rotors
Check the pads, the discs, and the rotors
for any excessive wear-out. Inspect
calipers for any fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the vehicle
off, check for excessive free-play in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks, or
damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
Hyundai_CE_en_US.book Page 11
Page 528 of 582
Maintenance
9-12
Coolant
B9001901
Check the condition and connections of
all cooling system hoses and heater
hoses. Replace any swollen or
deteriorated hoses.
The coolant level should be filled between
the MAX or F and the MIN or L marks on
the side of the coolant reservoir when the
parts in the motor compartment is cool.
If the coolant level is low, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
Keep hands, clothing, and tools away
from the rotating fan blades of the
cooling fan. The cooling fan may continue
to operate even though the vehicle is
turned off and can cause serious injury.
The electric motor for the cooling fan is
controlled by vehicle coolant
temperature, refrigerant pressure and
vehicle speed. As the vehicle coolant
temperature decreases, the electric
motor will automatically shut off.
Recommended coolant
• When adding coolant, use only deionized water, distilled water, or soft
water for your vehicle and never mix
hard water in the coolant filled at the
factory.
• An incorrect coolant mixture may result in severe malfunction or motor
damage.
• Do not use alcohol or methanol coolant or mix them with the specified coolant.
• Do not use a solution that contains more than 60% antifreeze or less than
35% antifreeze, which could reduce the
effectiveness of the solution.
For mixing percentage, refer to the
following table:
Information If in doubt about the mix ratio, a 50 % water
and 50 % antifreeze mix is the easiest to mix
together because it is the same quantity for
each.
Ambient
TemperatureMixture Percentage (volume)
AntifreezeWater
5 °F (-15 °C) 35 65
-13 °F (-25 °C) 40 60
-31 °F (-35 °C) 50 50
-49 °F (-45 °C) 60 40
Hyundai_CE_en_US.book Page 12
Page 529 of 582
9
9-13
Changing Coolant
Have the coolant changed by an
authorized HYUNDAI dealer according to
the Maintenance Schedule.
NOTICE 7 R S U H Y H Q W G D P D J H W R P R W R U S D U W V S X W D
W K L F N W R Z H O D U R X Q G W K H F R R O D Q W F D S E H I R U H
U H I L O O L Q J W K H F R R O D Q W W R S U H Y H Q W W K H
F R R O D Q W I U R P R Y H U I O R Z L Q J L Q W R P R W R U
S D U W V
Brake Fluid
Checking the Brake Fluid
Level
B9002301
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.
If the level is low, add the specified brake
fluid to the MAX level. If the fluid level is
excessively low or frequent additions are
required have the brake system inspected
by an authorized HYUNDAI dealer.
WARNING If brake fluid comes in contact with your
eyes, flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE [ ' R Q R W D O O R Z E U D N H I O X L G W R F R Q W D F W W K H Y H K L F O HT V E R G \ S D L Q W E H F D X V H S D L Q W
G D P D J H P D \ R F F X U
[ 1 H Y H U X V H E U D N H I O X L G W K D W K D V E H H Q H [ S R V H G W R R S H Q D L U I R U D Q H [ W H Q G H G
W L P H D Q G G L V S R V H R I L W S U R S H U O \
[ ' R Q R W X V H W K H Z U R Q J W \ S H R I E U D N H I O X L G $ I H Z G U R S V R I P L Q H U D O E D V H G R L O
V X F K D V H Q J L Q H R L O L Q \ R X U E U D N H V \ V W H P
P D \ G D P D J H W K H E U D N H V \ V W H P S D U W V
Information Use only the brake fluid specified in the
"Recommended Lubricants and Capacities"
section in chapter 2.
Gear Fluid
There is no gear fluid level gauge in the
vehicle. Check the gear fluid every 32,000
mi. (52,000 km) regularly. If the vehicle is
driven under severe condition, check the
maintenance under severe usage
condition and consult an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 13
Page 530 of 582
Maintenance
9-14
Washer Fluid
Checking the Washer Fluid
Level
B9002701
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold
climates to prevent freezing.
WARNING To prevent serious injury or death, take
the following safety precautions when
using washer fluid:
• Do not use coolant or antifreeze in the washer fluid reservoir. Coolant can
severely obscure visibility when
sprayed on the windshield and may
cause loss of vehicle control resulting in
an accident or damage to paint and
body trim.
• Do not allow sparks or flame to contact the washer fluid or the washer fluid
reservoir. Washer fluid may contain
alcohol and can be flammable.
• Do not drink washer fluid and avoid contact with skin. Washer fluid is
harmful to humans and animals.
• Keep washer fluid away from children and animals.
Cabin Air Filter
Filter Inspection
The cabin air filter must be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely
air-polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
1. Open the hood.
2. Lift up the front trunk cover while depressing the front trunk lever (1).
B9003602
3. Press and hold the lock (2) on the left side of the cover (3).
B9003603
4. Replace the cabin air filter.
Hyundai_CE_en_US.book Page 14
Page 532 of 582
Maintenance
9-16
Front windshield wiper blade
replacement
B9003901
Within 20 seconds of turning off the
vehicle, lift up and hold the wiper lever to
the MIST position for about 2 seconds
until the wipers move to the top wipe
position.
Lift the wipers off the windshield.
Type A
B9003902
B9003903
1. Lift up the wiper blade clip. Then lift up the wiper blade.
2. While pushing the lock (1), pull down the wiper blade (2).
B9003904
3. Remove the wiper blade from the wiper arm.
4. Install a new wiper blade assembly in the reverse order of removal.
5. Turn the wipers to any ON position to return the wiper arms to the bottom
resting position.
Type B
B9003905
1. Lift up the wiper blade clip (1). Then lift up the wiper blade.
MIST
OFF
Hyundai_CE_en_US.book Page 16
Page 534 of 582
Maintenance
9-18
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing.
If acid gets into your eyes, flush your eyes
with clean water for at least 15 minutes
and get immediate medical attention. If
acid gets on your skin, thoroughly wash
the area. If you feel pain or a burning
sensation, get medical attention
immediately.
• Lift a battery with a battery carrier or with your hands on opposite corners.
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
• The electrical ignition switch works with high voltage. NEVER touch these
components with the Start/Stop button
in the ON or START position.
WARNING CALIFORNIA PROPOSITION 65 WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer, birth
defects and reproductive harm. Batteries
also contain other chemicals known to
the State of California to cause cancer.
Wash hands after handling.
NOTICE 7 R S U H Y H Q W E D W W H U \ G D P D J H
[ : K H Q \ R X G R Q R W X V H W K H Y H K L F O H I R U D
O R Q J W L P H L Q D O R Z W H P S H U D W X U H D U H D
G L V F R Q Q H F W W K H E D W W H U \ D Q G N H H S L W
L Q G R R U V
[ $ O Z D \ V I X O O \ F K D U J H W K H E D W W H U \ W R S U H Y H Q W E D W W H U \ F D V H G D P D J H L Q O R Z
W H P S H U D W X U H D U H D V
[ 3 U H Y H Q W O L T X L G I U R P Z H W W L Q J W K H E D W W H U \ W H U P L Q D O V
[ ' R Q R W W L O W W K H E D W W H U \
[ 1 H Y H U F R Q Q H F W X Q D X W K R U L ] H G G H Y L F H V W R W K H E D W W H U \
For Best Battery Service
B9004101
• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections clean, tight, and coated with petroleum
jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution of
water and baking soda.
Hyundai_CE_en_US.book Page 18
