Maintenance
9-32

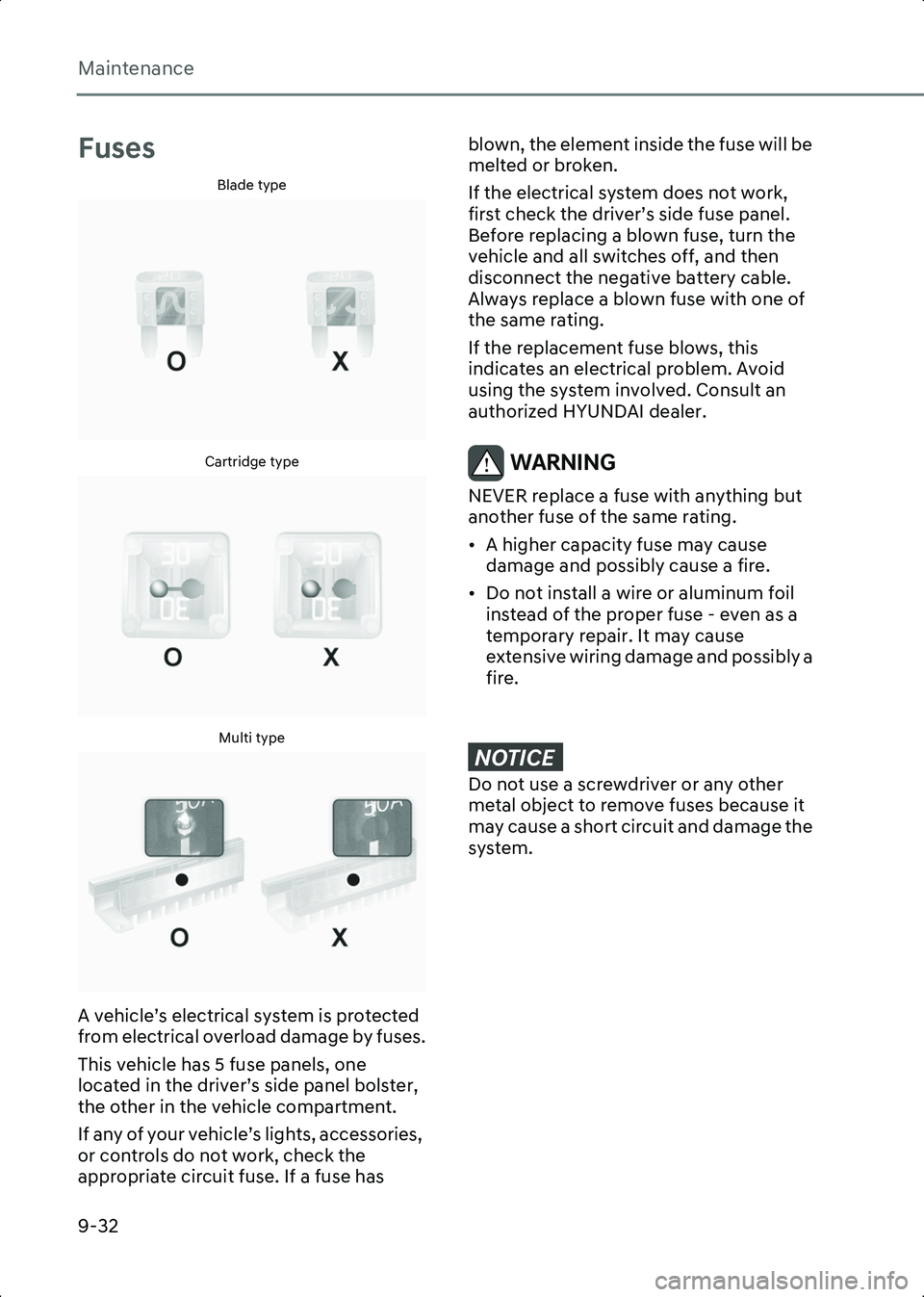

Fuses
Blade type
B9005601Cartridge type
B9005602Multi type
B9005603
A vehicle’s electrical system is protected
from electrical overload damage by fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights, accessories,
or controls do not work, check the
appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be
melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized HYUNDAI dealer.
WARNING NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse may cause
damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a
temporary repair. It may cause
extensive wiring damage and possibly a
fire.

NOTICE'RQRWXVHDVFUHZGULYHURUDQ\RWKHU
PHWDOREMHFWWRUHPRYHIXVHVEHFDXVHLW
PD\FDXVHDVKRUWFLUFXLWDQGGDPDJHWKH
V\VWHP

Hyundai_CE_en_US.book Page 32

Maintenance
9-34

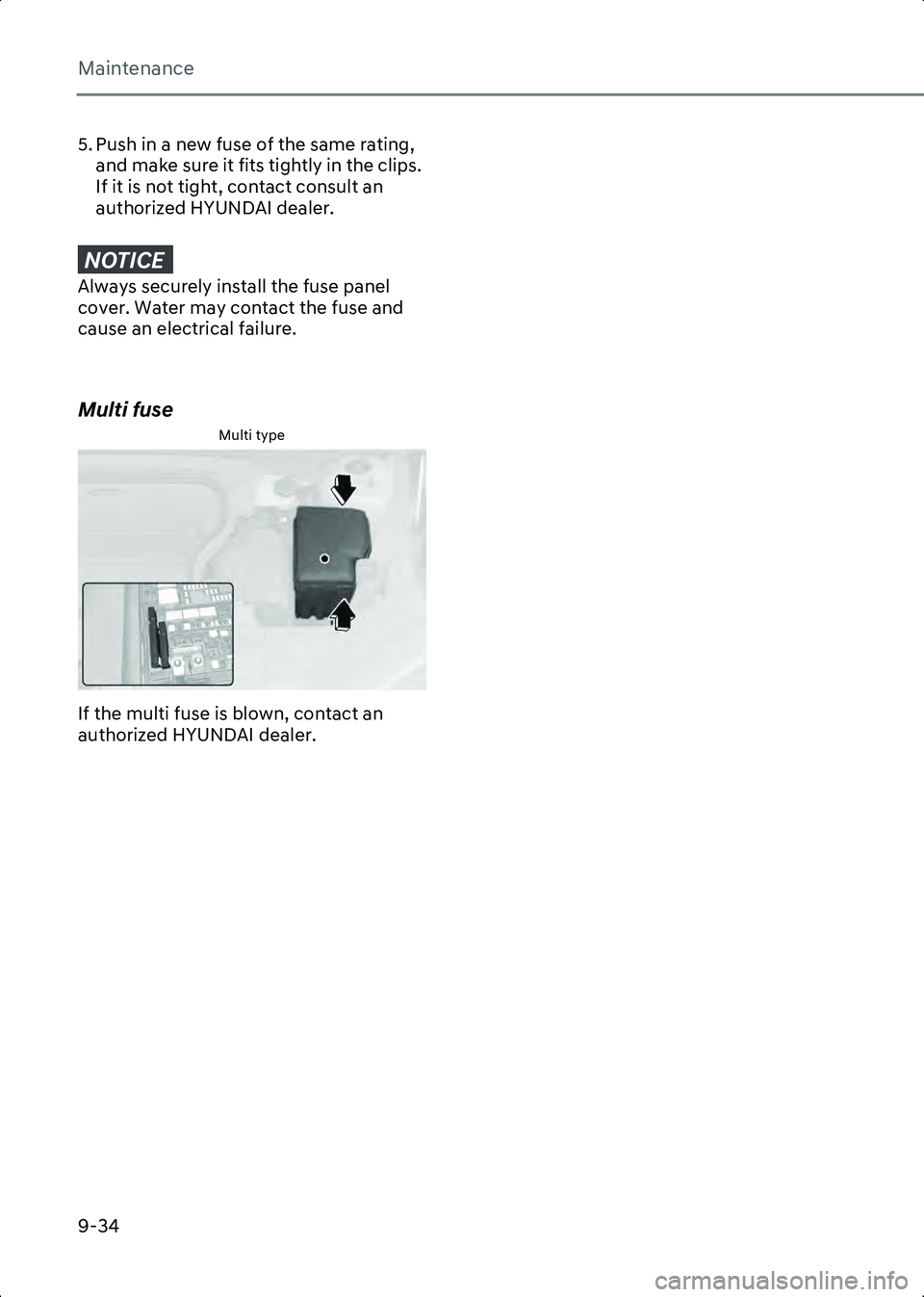

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it is not tight, contact consult an
authorized HYUNDAI dealer.
NOTICE$OZD\VVHFXUHO\LQVWDOOWKHIXVHSDQHO
FRYHU:DWHUPD\FRQWDFWWKHIXVHDQG
FDXVHDQHOHFWULFDOIDLOXUH

Multi fuse
Multi type
B9005903
If the multi fuse is blown, contact an
authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 34

Maintenance
9-36
Instrument panel fuse panel
Fuse NameFuse RatingCircuit Protected
AFCU 10 A Driver/Passenger Door Outside Handle
EPCU3 10 A Rear Inverter
START 7.5 A IBU, VCU
IG3 8 10 AIn-car Temperature Sensor, A/C Control Module, A/C
PTC Heater, Instrument Cluster, CCU, AVNT Head Unit
MEMORY 2 10 A Instrument Cluster, ADAS Unit (Parking)
MULTIMEDIA 15 A AVNT Head Unit
AIRBAG2 10 A SRS Control Module
P/SEAT PASS 30 A Passenger Power Seat Switch, Passenger Seat Unit ADAS DRV 10 A Not Used
CLUSTER 7.5 A Instrument Cluster, Head-Up Display
MODULE5 10 A Data Link Connector, Electro Chromic Mirror, AVNT
Head Unit, IFS Unit, Wireless Charger Unit, Head Light LH/RH, AMP, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Passenger Seat Unit, Rear Seat Warmer
Control Module, ADP Unit (Acoustic Design Processor)
IG3 11 10 A Electronic A/C Compressor
IG3 9 10 A Rear Inverter, BMU
wireless DCU1 10 A Not Used
CCU 10 A CCU
MODULE1 10 A Data Link Connector, Hazard Switch, Multifunction
Switch, Rain Sensor, Driver Power Window Switch,
Dashboard Mood Light, A/C Control Module, Outside
Mirror Switch, UIP Sensor, UIP Siren, Power Trunk Unit, Driver/Passenger Door Mood Light #1/#2, Rear Door Mood Light LH/RH #1/#2
SBCM DRV 20 A Driver Side Body Control Module
S/HEATER FRT 25 A Front Air Ventilation Seat Control Module,Front Seat
Warmer Control Module
Hyundai_CE_en_US.book Page 36

Maintenance
9-38
MODULE3 7.5 AStop Light Switch, Driver Power Window Switch, IAU
(Identity Authentication Unit)
CCU2 10 A CCU, DCU
SUNROOF 25 A Sunroof Glass Motor, Sunroof Blind Motor
CHARGER 10 A VCMS, ICCU, Charger Connector Lock/Unlock Relay
MODULE9 10 A CCU
TRUNK OPEN 15 A Not Used
PTL 30 A Power trunk Unit
P/WINDOW RH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
IBU2 7.5 A IBU
BMS 10 A BMU
BRAKE
SWITCH 10 A
Stop Light Switch, IBU
P/SEAT DRV 30 A Driver Power Seat Switch, Driver IMS Module
Fuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 38

Maintenance
9-40
Motor compartment fuse panel
TypeFuse NameFuse RatingCircuit Protected
MULTI
FUSE-1 LDC1 200 A
ICCU (LDC), P/R Junction Block
(Fuse : POWER OUTLET1, EOP1, EOP2, LDC2)
MDPS1 100 A MDPS Unit
MULTI
FUSE-2 COOLING
FAN 80 A
Cooling Fan Motor
B+5 50 A PCB Block (Main Relay,
Fuse : VCU2, EPCU1, WIPER1, B/A HORN, HORN)
B+2 50 A ICU Junction Block (Fuse : IPS5, IPS7, IPS8,
IPS9)
MULTI
FUSE-3 RR HTD 60 A
P/R Junction Block (RLY. 10)
IEB1 60 A IEB Unit
IEB2 50 A IEB Unit
B+1 50 A ICU Junction Block (Fuse : IPS1, IPS2, IPS3,
IPS4, IPS6)
BLOWER 50 A P/R Junction Block (RLY. 9)
B+3 60 A ICU Junction Block (Fuse : F1, F2, F12, F13, F23,
F24, F34, F35, F43, F44, F49, F50, F55)
IG1 40 A P/R Junction Block (RLY. 1, RLY. 3)
IG2 40 A P/R Junction Block (RLY. 2)
Hyundai_CE_en_US.book Page 40

Maintenance
9-42
Fuse NameFuse RatingCircuit Protected
IG3 1 20 A ICU Junction Block (Fuse: F7, F18, F19, F30)
IG3 2 15 A Front Inverter (AWD)
IG3 3 15 A Electronic Water Pump
IG3 4 10 A VCU
IG3 5 10 A A/C Coolant Valve, Electronic Water Pump Batt #1, #2
IG3 6 10 A BMS Coolant 3Way Valve
IG3 7 10 A Cooling Fan Motor, Front Electronic Oil Pump (AWD)
EPCU1 10 A Front Inverter (AWD)
EPCU2 10 A Front Inverter (AWD)
VCU2 10 A VCU
VCU3 10 A VCU
WIPER1 30 A PCB Block (Wiper Main Relay)
WIPER2 7.5 A IBU
HORN 10 A PCB Block (Horn Relay)
IEB3 10 A IEB Unit
MDPS2 10 A MDPS Unit
Hyundai_CE_en_US.book Page 42

Maintenance
9-44

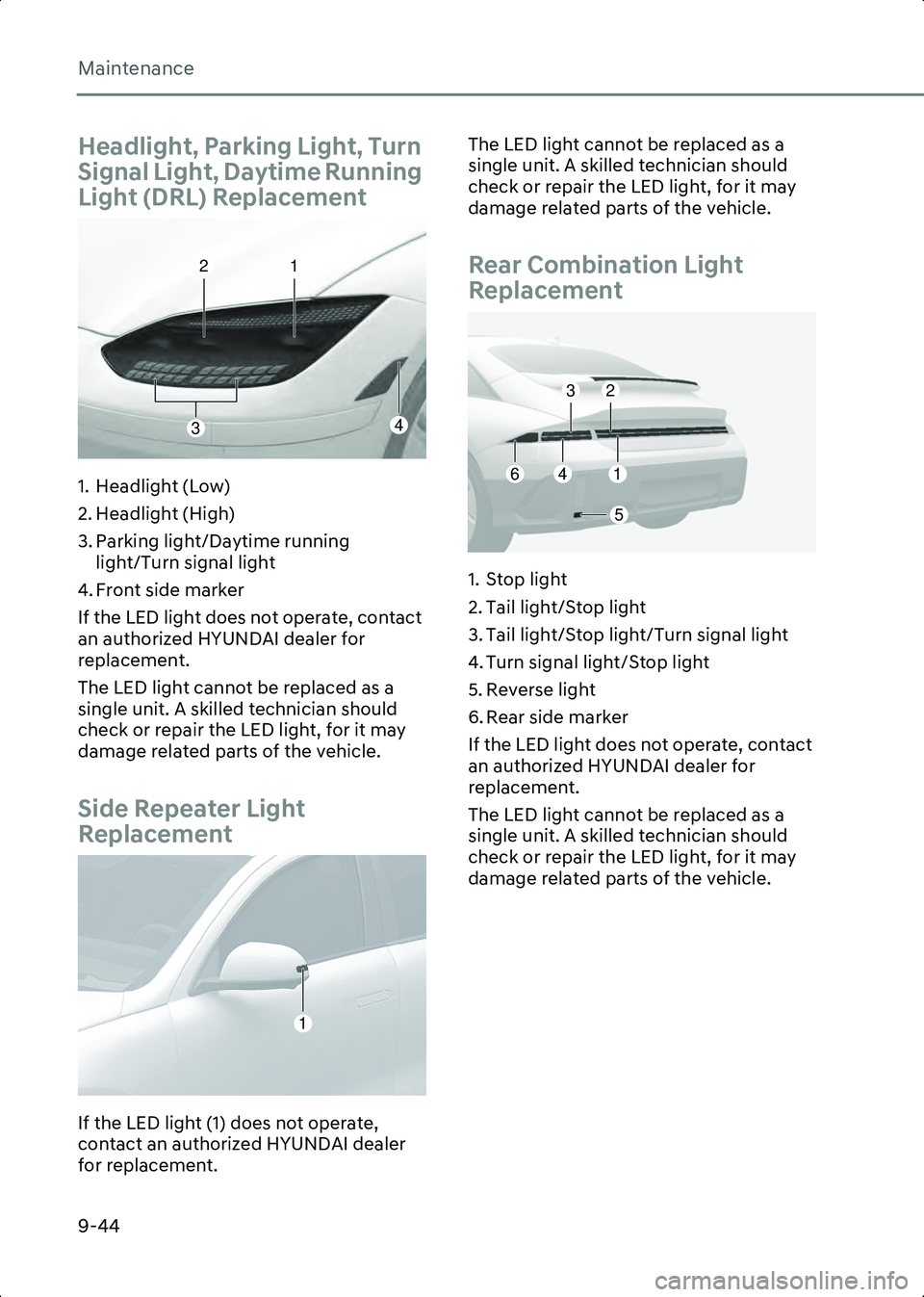

Headlight, Parking Light, Turn
Signal Light, Daytime Running
Light (DRL) Replacement
B9006202
1. Headlight (Low)
2. Headlight (High)
3. Parking light/Daytime running light/Turn signal light
4. Front side marker
If the LED light does not operate, contact
an authorized HYUNDAI dealer for
replacement.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
Side Repeater Light
Replacement
B9006301
If the LED light (1) does not operate,
contact an authorized HYUNDAI dealer
for replacement. The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
Rear Combination Light
Replacement
B9006501
1. Stop light
2. Tail light/Stop light
3. Tail light/Stop light/Turn signal light
4. Turn signal light/Stop light
5. Reverse light
6. Rear side marker
If the LED light does not operate, contact
an authorized HYUNDAI dealer for
replacement.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
21
34
1
23
461
5
Hyundai_CE_en_US.book Page 44

Maintenance
9-46

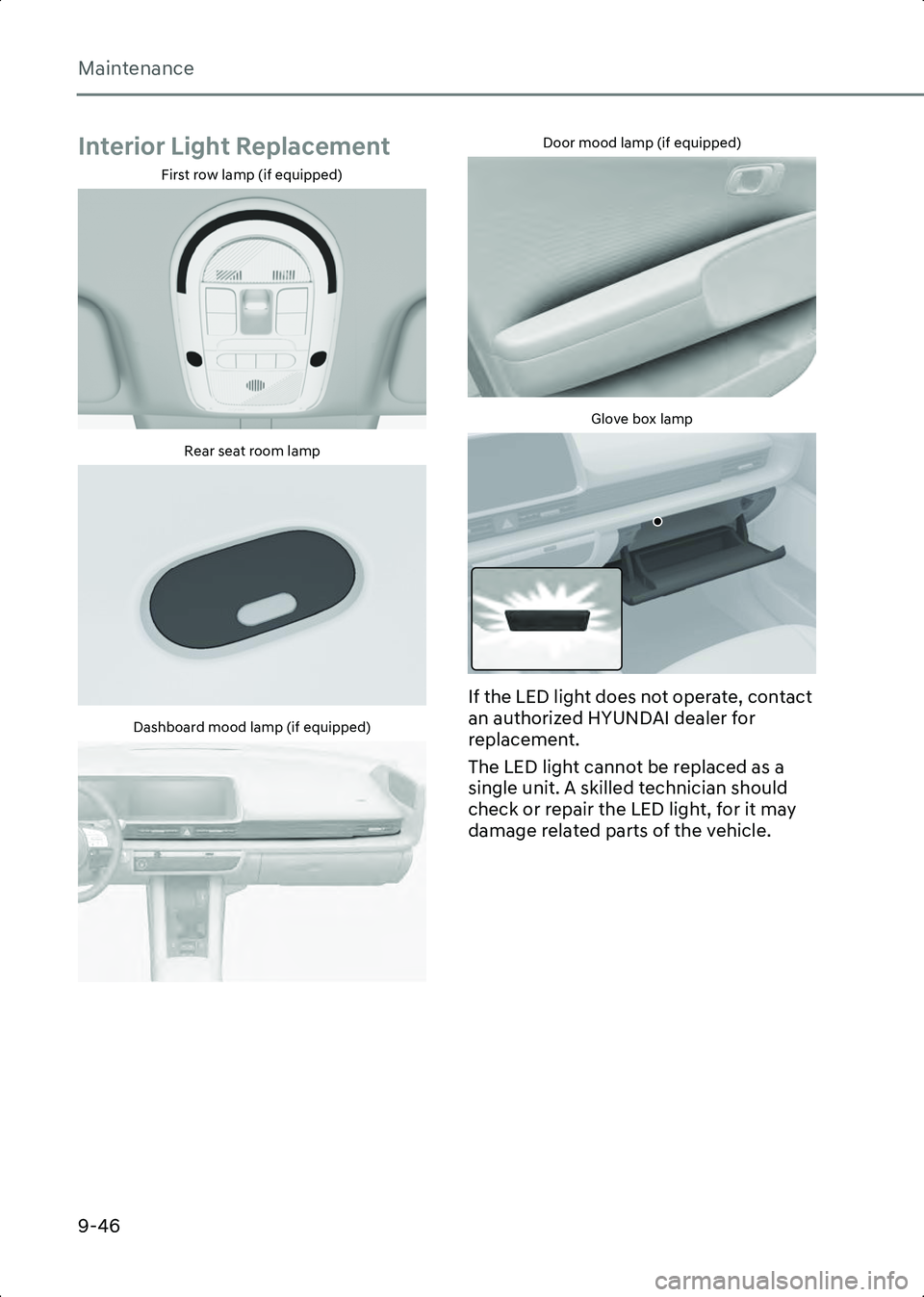

Interior Light Replacement
First row lamp (if equipped)
B9006901Rear seat room lamp
B9006902Dashboard mood lamp (if equipped)
B9006904
Door mood lamp (if equipped)
B9006905Glove box lamp
B9006903
If the LED light does not operate, contact
an authorized HYUNDAI dealer for
replacement.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
