2023 GENESIS G70 Owners Manual

05
5-81
Battery saver function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlight switch is turned to the
position lamp or AUTO (if equipped)
position after the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlight switch on
the steering column after the engine is
turned off.
Headlight delay function
If the Engine Start/Stop button is in the
ACC parking or the OFF position with
the headlights ON, the headlights (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or parking lamps) are turned off after 15
seconds.
The headlights (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
IXQFWLRQE\VHOHFWLQJ
S6HWXS

Convenience Features5-82
Headlight moisture removal
function
When moisture fogs up inside of the
headlight with the headlight on for a
certain period of time, the fan circulates
air inside the headlight to remove
moisture. If moisture is not removed,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Puddle Lamp (if equipped)
OIK050045
Welcome light
When all doors (and trunk) are closed
and locked, the puddle lamp will turn on
for 15 seconds if the door is unlocked by
the smart key or when you put your hand
in the outside door handle with the smart
key in possession.
For more details, refer to “Welcome
System” in this chapter.
Escort light
When the Engine Start/Stop button is in
the OFF position and the driver’s door is
opened, the puddle lamp will turn on for
30 seconds. If the driver’s door is closed
within the 30 second period, the puddle
lamp will turn off after 15 seconds. If the
driver’s door is closed and locked, the
puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn
on only the first time the driver’s door is
opened after the engine is turned off.

05
5-83
Welcome System
OIK052038N
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Puddle lamp and door handle lamp
When all the doors (and trunk) are
closed and locked, the puddle lamp
and door handle lamp will turn on for
approximately 15 seconds if any of the
below is performed. - When the door unlock button is pressed on the smart key.
- When you put your hand in the outside door handle with the smart
key in possession.
- ,I
S6HWXS

Convenience Features5-84

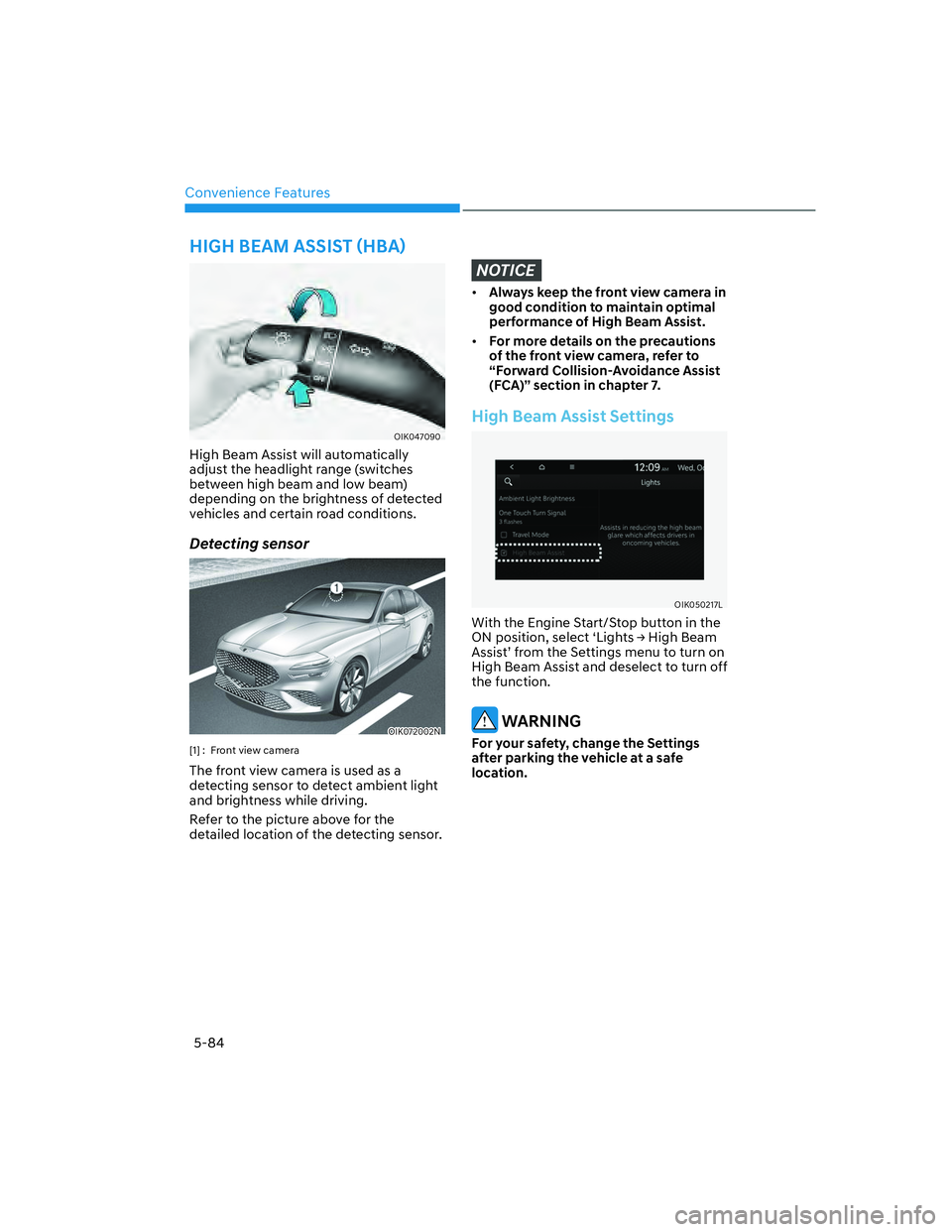

+,*+%($0$66,67

05
5-85
High Beam Assist Operation
Display and control

[After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
- Place the headlight switch in the AUTO position and push the
headlight switch towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and High
Beam Assist will be enabled.
- When High Beam Assist is enabled, high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15
mph (25 km/h), high beam will turn
off.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.

[ When High Beam Assist is operating, if
the headlight switch or switch is High
Beam Assist operates as follow:
- If the headlight switch is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlight
switch, the switch will move to the
middle and the high beam will turn
off.
- If the headlight switch is pulled towards you when the high beam is
on by High Beam Assist, low beam
will turn on and High Beam Assist
will turn off.
- If the headlight switch is placed from AUTO to another position
(headlight/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.
[
When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlight of an oncoming vehicle is detected.
- When the tail lamp of a vehicle in front is detected.
- When the headlight or tail lamp of a motorcycle or a bicycle is detected.
- When the surrounding ambient light is bright enough that high beams
are not required.
- When streetlights or other lights are detected.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OIK050227L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message will
appear and
light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

Convenience Features5-86
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:

[ Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[ Headlight of an oncoming or front
vehicle is covered with dust, snow or
water.

[ A front vehicle’s headlights are off, but
the fog lamps are on, etc.

[ There is a lamp that has a similar
shape as a vehicle’s lamp.

[ Headlights have been damaged or not
repaired properly.

[ Headlights are not aimed properly.

[ Driving on a narrow-curved road,
rough road, uphill or downhill.

[ Vehicle in front is partially visible on a
crossroad or curved road.

[ There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[ There is a temporary reflector or flash
ahead (construction area).

[ The road conditions are bad such as
being wet, iced or covered with snow.

[ A vehicle suddenly appears from a
curve.

[ The vehicle is tilted from a flat tire or
is being towed.

[ Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc. Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .
WARNING

[At times, High Beam Assist may
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ When High Beam Assist does not
operate normally, change the
headlight position manually between
high beam and low beam.

05
5-87
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OIK050239N
Front map lamp ():
Touch either icons to turn the map lamp
on or o
ff. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp (
)
The front or rear room lamps come on
when the fr
ont or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Engine
Start/Stop button is in the ON position
or all doors are locked, the front and rear
lamps will turn off. If a door is opened
with the Engine Start/Stop button in
the ACC position or the OFF position,
the front and rear lamps will stay on for
about 20 minutes.
Room lamp (
()
Press the button to turn ON the room
lamp f
or the front/rear seats.
INTERIOR LIGHTS

Convenience Features5-88
Rear Lamps
„Room lamp
OIK050081
Rear room lamp ( )
Press this button to turn the room lamp
on or off.
Rear map lamp ( )
Press either of these buttons to turn
either side of the rear lamp on or off.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
Vanity Mirror Lamp
OHI048428
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.
