2023 GENESIS G70 Owners Manual

07
7-95
5($5&5266

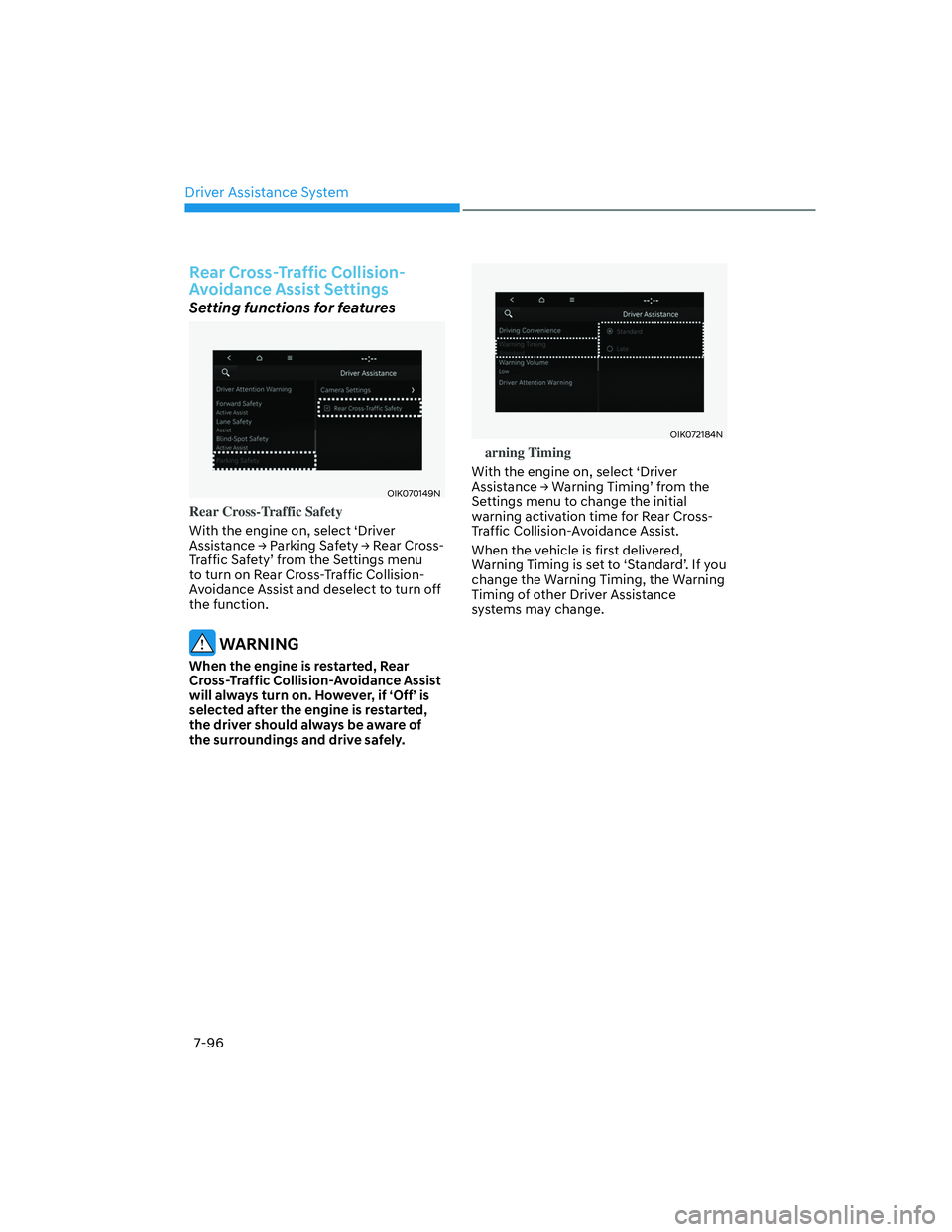

Driver Assistance System7-96
Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting functions for features
OIK070149N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-97
OIK072147N
arning olume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-98

[ Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km h).
OHY059005OIK070076L
OIK070075
Emergency Braking

[ T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.

07
7-99

[Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)

[ Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
- The approaching vehicle is out of the
detecting range
- The approaching vehicle passes
behind your vehicle
- The approaching vehicle does not
drive toward your vehicle
- The approaching vehicle speed slows
down
- The driver depresses the brake pedal
with sufficient power
OIK070077L
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.

[ For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[ During emergency braking, braking
control by Rear Cross-Traffic Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the brake pedal.

Driver Assistance System7-100
WARNING
Take the following precautions when
using Rear Cross-Traffic Collision-
Avoidance Assist:

[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Collision-Avoidance Assist
warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning sound
of Rear Cross-Traffic Collision-
Avoidance Assist if the surrounding
is noisy.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate if
the driver applies the brake pedal to
avoid collision.

[ During Rear Cross-Traffic Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Rear
Cross-Traffic Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate properly.

[ When Rear Cross-Traffic Collision-
Avoidance Assist is operating,
braking control by the function
will automatically cancel when the
driver excessively depresses the
accelerator pedal.

[ Rear Cross-Traffic Collision-
Avoidance Assist does not operate
in all situations or cannot avoid all
collisions.

[ Rear Cross-Traffic Collision-
Avoidance Assist may warn the
driver late or may not warn the driver
depending on the road and driving
conditions.
[
The driver has the responsibility to
control the vehicle. Do not solely
depend on Rear Cross-Traffic
Collision-Avoidance Assist. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[ Never deliberately operate Rear
Cross-Traffic Collision-Avoidance
Assist on people, animal, objects,
etc. It may cause serious injury or
death.
CAUTION
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
Information
If braking is assisted by Rear Cross-
Traffic Collision-Avoidance Assist, the
driver check vehicle surroundings.
- Brake control will end when the
driver depresses the brake pedal with
sufficient power.
- After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.

07
7-101
Rear Cross-Traffic Collision-
Avoidance Assist Malfunction
and Limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
OTM070125N
When Rear Cross-Traffic Collision-
Avoidance Assist is not working properly,
the ‘Check Rear Cross-Traffic Safety
V\VWHP
T ZDUQLQJ PHVVDJH ZLOO DSSHDU RQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. Have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGH YLHZ PLUURU ZDUQLQJ OLJKW
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\ V\VWHP GLVDEOHG 5DGDU EORFNHG
T
warning message will appear on the
cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when
such foreign material or trailer, etc., is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate properly after it
is removed, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

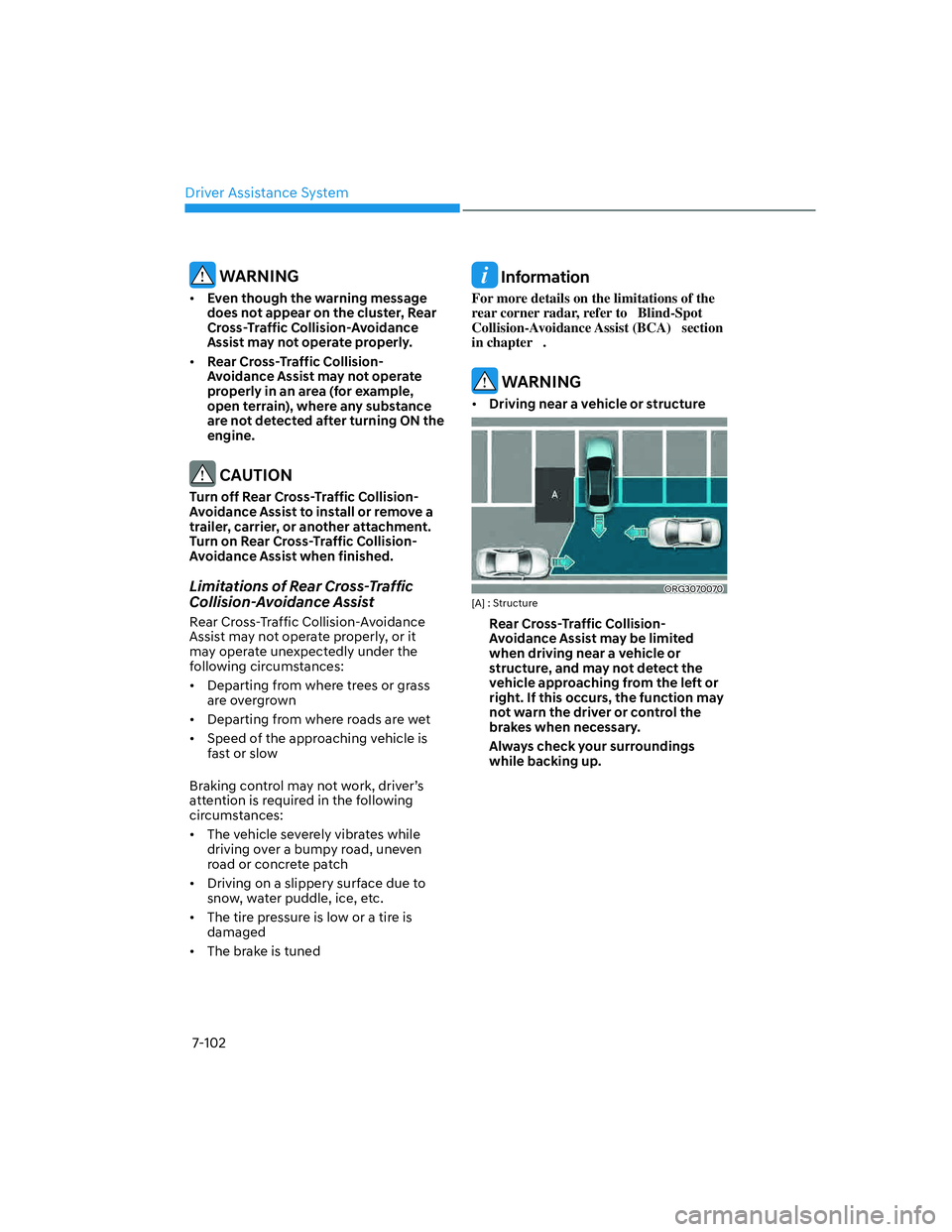

Driver Assistance System7-102
WARNING

[ Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Collision-Avoidance
Assist may not operate properly.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly in an area (for example,
open terrain), where any substance
are not detected after turning ON the
engine.
CAUTION
Turn off Rear Cross-Traffic Collision-
Avoidance Assist to install or remove a
trailer, carrier, or another attachment.
Turn on Rear Cross-Traffic Collision-
Avoidance Assist when finished.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate properly, or it
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[ Departing from where roads are wet

[ Speed of the approaching vehicle is
fast or slow
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The brake is tuned
Information
For more details on the limitations of the
rear corner radar, refer to Blind-Spot
Collision-Avoidance Assist (BCA) section
in chapter .
WARNING

[Driving near a vehicle or structure
ORG3070070[A] : Structure
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
when driving near a vehicle or
structure, and may not detect the
vehicle approaching from the left or
right. If this occurs, the function may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
while backing up.
