2023 GENESIS G70 Owners Manual

07
7-111

[When ‘Parking Distance Warning Auto
2Q
TLVGHVHOHFWHGDQGWKHYHKLFOH
TV
forward speed is above 12 mph (20
km/h), the Parking Safety (
) button
indicator will turn off. Although you
drive below 6 mph (10 km/h), Forward
Parking Distance Warning will not turn
on.
Distance
from object Warning
indicator when
driving
forward Warning
sound
24~40 in.
(

60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more frequently
12 in. (within 30 cm)
Beeps
continuously

[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning

[Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).

[ Reverse Parking Distance Warning
helps detect a person, animal or
REMHFWLQWKHUHDUZKHQWKHYHKLFOH
TV
rearward speed is below 6 mph (10
km/h).

[ :KHQWKHYHKLFOH
TVUHDUZDUGVSHHGLV
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will help
detect objects. However, the front
ultrasonic sensors can help detect a
person, animal or object when it is
within 24 in. (60 cm) from the sensors.
Distance
from object Warning
indicator when
driving
backward Warning
sound
24~48 in.
(

60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more frequently
12 in. (within 30 cm)
Beeps
continuously

[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.

Driver Assistance System7-112
Forward/Reverse Parking
Distance Warning Malfunction
and Limitations
Forward/Reverse Parking Distance
Warning malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.

[ The audible warning does not sound.

[ The buzzer sounds intermittently.

[ 7KH
S3DUNLQJVHQVRUHUURURUEORFNDJH
T
warning message appears on the
cluster.
OIK070085L
WARNING

[
Forward/Reverse Parking Distance
Warning is a supplemental function.
The operation of Forward/Reverse
Parking Distance Warning can be
affected by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the front and rear views before
and while parking.

[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Forward/Reverse Parking Distance
Warning.

[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.

07
7-113
Limitations of Forward/Reverse
Parking Distance Warning

[Forward/Reverse Parking Distance
Warning may not operate properly
when:
- Moisture is frozen to the sensor
- Sensor is covered with substance, such as snow or water (Forward/
Reverse Parking Distance Warning
will operate properly when such
substance is removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or hit with a hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer

[ Forward/Reverse Parking Distance
Warning may malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- $IIHFWHGE\DQRWKHUYHKLFOH
TV
sensors
- The sensor is covered with snow or ice
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- License plate is installed in a different spot from the original
location
- The vehicle bumper height or ultrasonic sensor installation has
been modified
- Attaching equipment or accessories next to the ultrasonic sensors
[
The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors

[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[ If Forward/Reverse Parking Distance
Warning needs repair, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.

Driver Assistance System7-114
The radio frequency components complies:
Front Radar

„ For USA
OANATEL125

„ For Canada
OANATEL126
'(&/$5$7,212)&21)250,7<

07
7-115

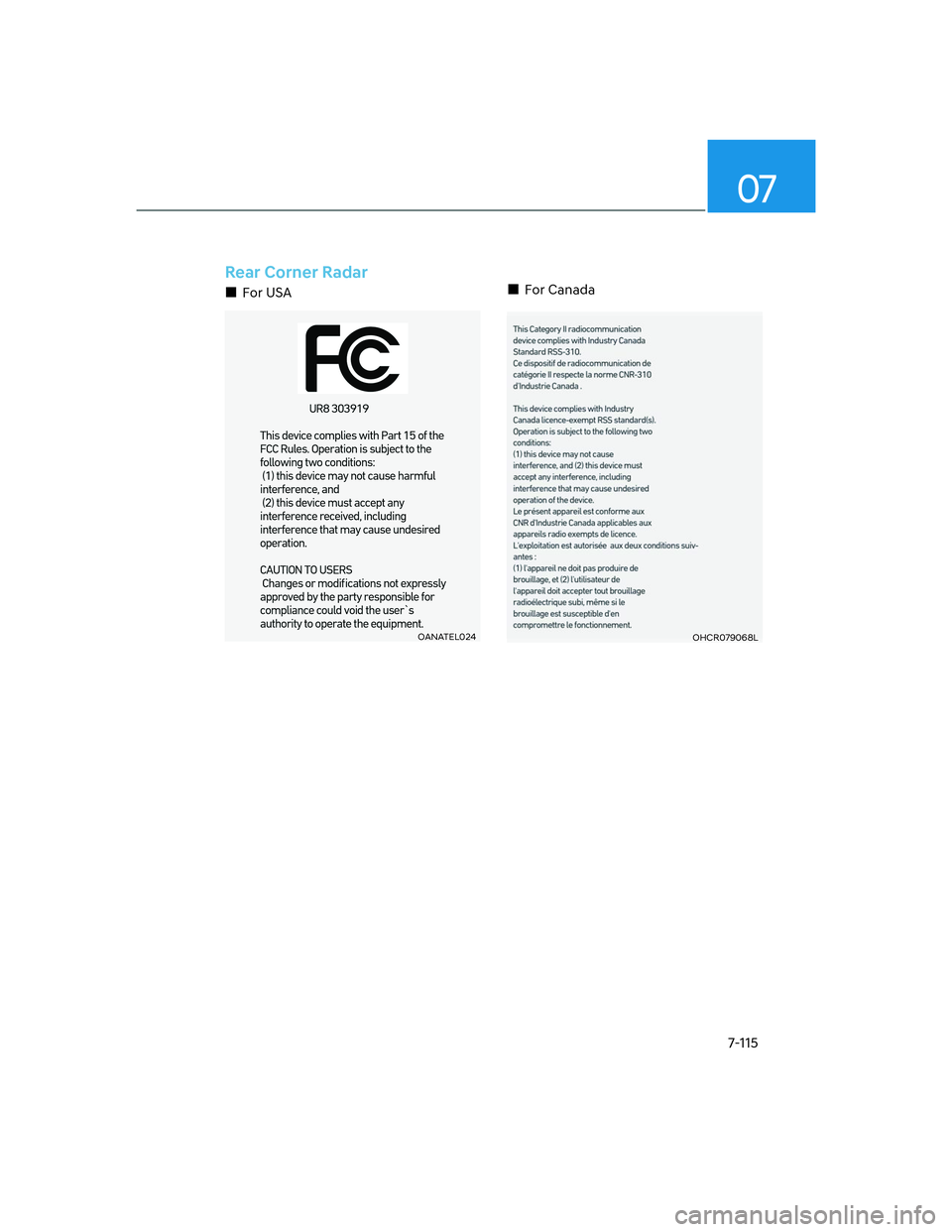

Rear Corner Radar

„ For USA
OANATEL024

„ For Canada
OHCR079068L

8
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency while Driving........................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
........ 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving .......................................................................\
....8-3
If the Engine will not Start ........................................................................\
........ 8-3
Jump Starting .......................................................................\
............................ 8-4
If the Engine Overheats .......................................................................\
..............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-8
Check Tire Pressure ........................................................................\
............................. 8-8
Tire Pressure Monitoring System .......................................................................\
........ 8-9
Low Tire Pressure Warning Light .......................................................................\
........ 8-10
Low Tire Pressure Position and Tire Pressure Telltale .............................................. 8-10
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ............................. 8-11
Changing a Tire with TPMS .......................................................................\
................. 8-11
If you have a Flat Tire (with Spare Tire) .......................................................... 8-13
Jack and Tools ........................................................................\
.................................... 8-13
Changing Tires .......................................................................\
..................................... 8-14
Jack Label .......................................................................\
............................................ 8-18
If you have a Flat Tire (with Tire Mobility Kit) .................................................8-19Introduction ...............................................................\
................................................. 8- 19
Notes on the Safe use of the Tire Mobility Kit ......................................................... 8-20
Components of the Tire Mobility Kit .......................................................................\
. 8-21
Using the Tire Mobility Kit When a Tire is Flat .......................................................... 8-22
How to Adjust Tire Pressure ........................................................................\
.............. 8-25
Towing ...................................................................\
.......................................... 8-26
Towing Service ........................................................................\
...................................8-26
Removable Towing Hook .......................................................................\
.................... 8-27
Emergency Towing .......................................................................\
..............................8-28
8. Emergency Situations

Emergency Situations8-2
OIK080001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flasher
button with the Engine Start/Stop button
in any position. The hazard warning
flasher button is located in the center
fascia panel. All turn signal lights will
flash simultaneously.

[ The hazard warning flasher operates
regardless of whether your vehicle is
running or not.

[ The turn signals do not work when the
hazard flasher is on.
If the Engine Stalls While Driving

[Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[ Turn on your hazard warning flasher.

[ Try to start the engine again. If your
vehicle will not start, we recommend
that you contact an authorized retailer
of Genesis Branded products or seek
other qualified assistance.
If the Engine Stalls at a Crossroad
or Crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, shift the gear to
N (Neutral) and then push the vehicle to
a safe location.
HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY
WHILE DRIVING

08
8-3
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[ When the vehicle is stopped, press
the hazard warning flasher button,
shift the vehicle to P (Park), apply the
parking brake, and press the Engine
Start/Stop button to the OFF position.

[ Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[ When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE ENGINE WILL NOT
START

[Be sure to shift the vehicle to P (Park)
if it is an automatic transmission
vehicle. The engine starts only when
the vehicle is in P (Park).

[ Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
See instructions for “Jump Starting”
provided in this chapter.

[ Check the fuel level and add fuel if
necessary.
If the vehicle still does not start, call an
authorized retailer of Genesis Branded
products for assistance.
NOTICE
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.
