2023 GENESIS G70 Owners Manual

06
6-13
WARNING

[Do not shift into gear unless your
foot is firmly on the brake pedal. Use
the P (Park) position to idle a vehicle
for an extended period of time. The
wheels and the transmission are not
engaged. While parking the vehicle
with the engine running, depress
the brake pedal or apply the parking
brake.

[ Do not drive with the shift lever in N
(Neutral). Doing so may result in an
accident because of a loss of engine
braking and the transmission could
be damaged.
D (Drive)
This is the normal driving position. The
tr
ansmission will automatically shift
through an 8-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator pedal further until you feel
the transmission downshift to a lower
gear.
„R (Reverse)
Ÿ D (Drive)\
R

D
Unlock Button
OIK060005
„P (Park), N (Neutral)
Ÿ D (Drive)
P/N
D
Unlock Button
OIK060006
To shift into D (Drive), depress the brake
pedal and press the [UNLOCK] button
on the shift lever. Move the shift lever
rearward.
To shift into D (Drive) from N (Neutral),
you must depress the brake pedal.
NOTICE
Always come to a complete stop before
shifting into D (Drive).

Driving Your Vehicle6-14
Shift-lock system
For your safety, the automatic
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) or D (Drive)
unless the [UNLOCK] button is pressed
while depressing the brake pedal.
To shift from P (Park) into R (Reverse) or
D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine or place the Engine Start/Stop button in the ON position.
3. Move the shift lever to R (Reverse) or D (Drive) while pressing the [UNLOCK]
button.
When the battery is discharged:
OIK060007L
You cannot move the shift lever, when
the battery is discharged.
In emergencies, do the following to
move the shift lever to N (Neutral) on a
level ground.
1. Connect the battery cables from another vehicle or from a another
battery to the jump-starting terminals
inside the engine compartment.
For more information refer to "Jump
Starting" in chapter 8.
2. Release the parking brake with the Engine Start/Stop button in the ON
position.
3. Press the Engine Start/Stop button to the OFF position.
4. Remove the cap-cover (1) and press the P release button (2) while
depressing the brake pedal. Then, the
gear will change to the N (Neutral)
position. The button (2) operates only
for 20 seconds to change the gear
between P (Park) and N (Neutral) from
the time when the button (2) is first
pressed.
Information

[In situations when the gear needs to be
shifted from P (Park) to N (Neutral)
when the Engine Start Stop button is in
the OFF position, refer to step .

[ hile the gear shifts to N (Neutral) or P
(Park), you may hear mechanical noise
which is a normal operating noise.

06
6-15
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Shift the vehicle into the P (Park)
position, apply the parking brake, and
place the Engine Start/Stop button in
the OFF position. Take the Key with you
when exiting the vehicle.
WARNING

[When you stay in the vehicle with
the engine running, be careful not
to depress the accelerator pedal for
a long period of time. The engine or
exhaust system may overheat and
start a fire.

[ The exhaust gas and the exhaust
system are very hot. Keep away from
the exhaust system components.

[ Do not stop or park over flammable
materials, such as dry grass, paper
or leaves. They may ignite and cause
a fire.
Paddle Shifter
(Manual shift mode)
OIK060018
The paddle shifter is available when the
shift lever is in the D (Drive) position.
Pull the [+] or [-] paddle shifter once to
shift up or down one gear and the system
changes from automatic shift mode to
manual shift mode.
To change back to the automatic shift
mode from manual shift mode, do one of
the following:

[Move the shift lever down toward the
D (Drive) position.

[ Gently depress the accelerator pedal
for more than 6 seconds.
However, if SPORT, SPORT +, or
CUSTOM Mode is selected, the paddle
shifter will not change to automatic
shift mode from manual shift mode.

[ Drive the vehicle under 4mph (7
km/h).

[ Pull and hold the right side paddle
shifter.
Information
If the and - paddle shifters are pulled
at the same time, gear shift may not occur.

Driving Your Vehicle6-16
LCD Display Messages
Shifter system malfunction
OIK060008L
The message appears on the LCD display
when the transmission or the shift lever
does not properly operate in the P (Park)
position.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Check shift lever
OIK060009L
The message appears on the LCD display
when there is a malfunction with one of
the key transmission shifter components.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Shifting conditions not met
OIK060010L
The message appears on the LCD display
when engine RPM is too high, or when
driving speed is too fast to shift the gear.
Decrease the vehicle speed or slow down
before shifting the gear.
Press brake pedal to change gear
OIK060011L
The message appears on the LCD display
when the brake pedal is not depressed
while shifting the gear.
Depress the brake pedal and then shift
the gear.

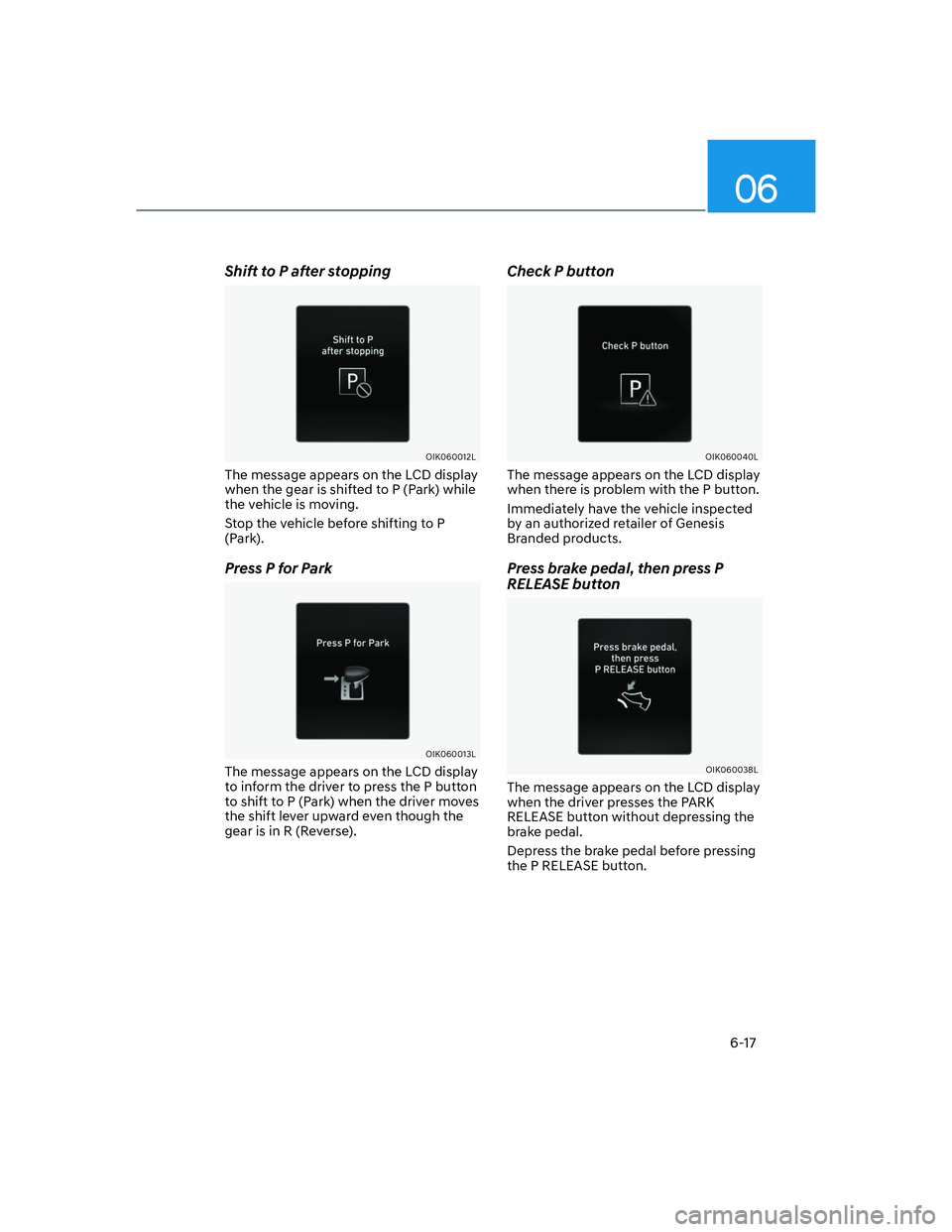

06
6-17
Shift to P after stopping
OIK060012L
The message appears on the LCD display
when the gear is shifted to P (Park) while
the vehicle is moving.
Stop the vehicle before shifting to P
(Park).
Press P for Park
OIK060013L
The message appears on the LCD display
to inform the driver to press the P button
to shift to P (Park) when the driver moves
the shift lever upward even though the
gear is in R (Reverse).
Check P button
OIK060040L
The message appears on the LCD display
when there is problem with the P button.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Press brake pedal, then press P
RELEASE button
OIK060038L
The message appears on the LCD display
when the driver presses the PARK
RELEASE button without depressing the
brake pedal.
Depress the brake pedal before pressing
the P RELEASE button.

Driving Your Vehicle6-18
Check P RELEASE button
OIK060039L
The message appears on the LCD
display when there is problem with the P
RELEASE button.
Immediately have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Press UNLOCK to change gear
OIK060014L
The message appears on the LCD
display when the [UNLOCK] button is not
pressed while shifting the gear.
Press the [UNLOCK] button and then
shift the gear.
PARK engaged
OIK060016L
The message appears on the LCD display
when the P (Park) position is engaged.
NEUTRAL engaged
OIK060017L
The message appears on the LCD
display when the N (Neutral) position is
engaged.

06
6-19
Vehicle Power limited due to high
transmission temperature
OIK060065L
This message is displayed when the
transmission oil temperature is high.
Drive at steady speed or stop the vehicle
at a safe place with the engine on. When
the oil temperature returns to normal,
the message will disappear.
Good Driving Practices

[Never shift the gear from P (Park) or
N (Neutral) to any other position with
the accelerator pedal depressed.

[ Never shift the gear into P (Park) when
the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[ Do not shift the gear to N (Neutral)
when driving. If the gear is shifted to
N (Neutral) while driving, the vehicle
loses the ability to provide engine
braking. Doing so may increase the
risk of an accident.
Also, shifting the gear back to
D (Drive) while the vehicle is
moving may severely damage the
transmission.

[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If
the vehicle moves in the opposite
direction of the selected gear, the
engine may turn off and affect braking
performance that may lead to a
serious accident.

[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

Driving Your Vehicle6-20

[ Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident

[ Optimum vehicle performance
and fuel economy is obtained by
smoothly depressing and releasing
the accelerator. WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ Genesis Branded Vehicle
recommends you to follow all posted
speed limits.
NOTICE
ickdown mechanism
se the kickdown mechanism for
maximum acceleration. Depress the
accelerator pedal beyond the pressure
point. The automatic transmission will
shift to a lower gear depending on the
engine speed.
