2023 GENESIS G70 Owners Manual

07
7-31
WARNING
Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist :

[For your safety, only change the
Settings after parking the vehicle at a
safe location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Blind-Spot Collision-Avoidance
Assist if the surrounding is noisy.

[ Blind-Spot Collision-Avoidance
Assist may not operate if the driver
applies the brake pedal to avoid
collision.

[ When Blind-Spot Collision-Avoidance
Assist is operating, braking control
by the function will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[ During Blind-Spot Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Blind-
Spot Collision-Avoidance Assist, the
vehicle’s basic braking performance
will operate properly.

[ Blind-Spot Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.
[
Blind-Spot Collision-Avoidance
Assist may warn the driver late or
may not warn the driver depending
on the road and driving conditions.

[ Driver should maintain control of the
vehicle at all times. Do not depend
on Blind-Spot Collision-Avoidance
Assist. Maintain a safe braking
distance, and if necessary, depress
the brake pedal to reduce driving
speed or to stop the vehicle.

[ Never operate Blind-Spot Collision-
Avoidance Assist on people, animal,
objects, etc. It may cause serious
injury or death.
WARNING
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function

Driver Assistance System7-32
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099N
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
%OLQG6SRW 6DIHW\ V\VWHP
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. Have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGH YLHZ PLUURU ZDUQLQJ OLJKW
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
V\VWHP GLVDEOHG 5DGDU EORFNHG
T ZDUQLQJ
message will appear on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc., is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate normally after it is
removed, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
WARNING

[ Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.

[ Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the
engine is turned on.

07
7-33
CAUTION
Turn off Blind-Spot Collision-Avoidance
Assist to install or remove a trailer,
carrier, or another attachment. Turn on
Blind-Spot Collision-Avoidance Assist
when finished.
Limitations of Blind-Spot Collision-
Avoidance Assist
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly under the
following circumstances:

[There is inclement weather such as
heavy snow, heavy rain, etc.

[ The rear corner radar is covered with
snow, rain, dirt, etc.

[ The temperature around the rear
corner radar is high or low

[ Driving on a highway (or motorway)
ramp

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (for example, possibly
due to subway construction)

[ There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ Driving through a narrow road where
trees or grass are overgrown

[ Driving on a wet road surface, such as
a puddle on the road

[ The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity
[
The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[ Your vehicle passes by the other
vehicle

[ Your vehicle changes lane

[ Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[ The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[ A trailer, carrier or other attachment is
installed around the rear corner radar

[ The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[ The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly when the
following objects are detected:

[ A motorcycle or bicycle is detected

[ A vehicle such as a flat trailer is
detected

[ A big vehicle such as a bus or truck is
detected

[ A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[ A vehicle with low height such as a
sports car is detected

Driver Assistance System7-34
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The brake is tuned

[ The vehicle makes abrupt lane
changes
Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) and
ane eeping Assist ( A) section in
chapter .
WARNING

[ Driving on a curved road
ORG3070028
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a curved road. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions while driving.
ORG3070029
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a curved road. The
function may recognize a vehicle in
the same lane.
Always pay attention to road and
driving conditions while driving.

07
7-35

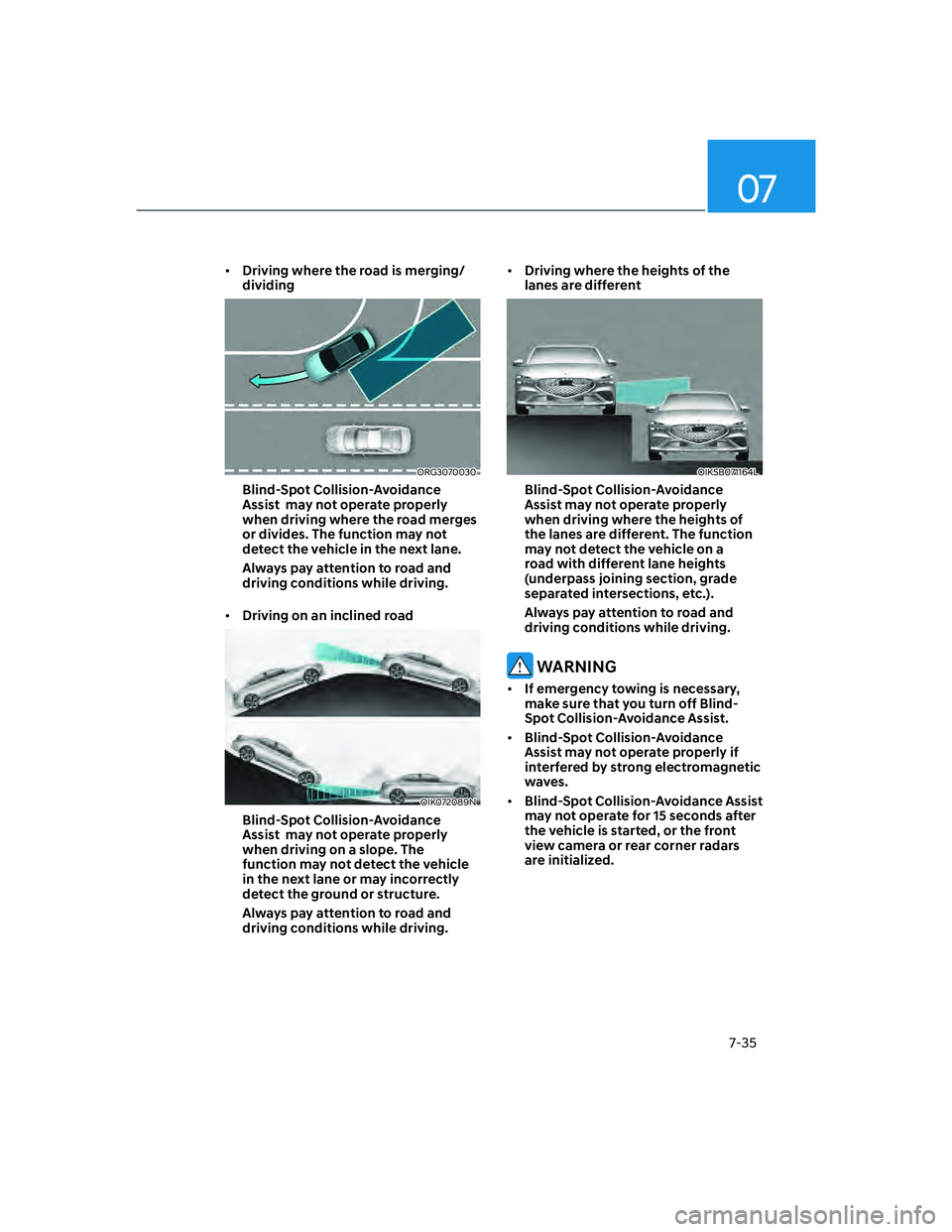

[Driving where the road is merging/
dividing
ORG3070030
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the road merges
or divides. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OIK072089N
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a slope. The
function may not detect the vehicle
in the next lane or may incorrectly
detect the ground or structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
OIKSB071164L
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the heights of
the lanes are different. The function
may not detect the vehicle on a
road with different lane heights
(underpass joining section, grade
separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[If emergency towing is necessary,
make sure that you turn off Blind-
Spot Collision-Avoidance Assist.

[ Blind-Spot Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Blind-Spot Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera or rear corner radars
are initialized.

Driver Assistance System7-36
Information
This device complies with Part 15 of the
FCC rules.
Operation is sub ect to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user s
authority to operate the device.
Information
Radio fre uency radiation exposure
information:
This e uipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This e uipment should be installed and
operated with minimum distance of in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in con unction with any other
antenna or transmitter.

07
7-37
6$)((;,7:$51,1*

Driver Assistance System7-38
Safe Exit Warning Settings
Setting features
OIK070126L
Safe Exit arning
With the engine on, select ‘Driver
$VVLV
WDQFH
