2023 FORD MUSTANG Owners Manual

1.Push the release button and pull thekey blade out.
2.Twist a thin coin under the tab hiddenbehind the key blade head to removethe battery cover.
61
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingKeys and Remote ControlsE307694 E303824

3.Insert a suitable tool, for example ascrewdriver, in the position shown andcarefully remove the battery.
Note:Refer to local regulations whendisposing of remote control batteries.
Note:Do not wipe off any grease on thebattery terminals or on the back surface ofthe circuit board.
Note: Replacing the battery does not erasethe programmed key from your vehicle. Theremote control should operate normally.
4.Install a new battery with the + facingupward.
5.Reinstall the battery cover and the keyblade.
Car Finder
Press the button twice withinthree seconds. The horn soundsand the direction indicatorsflash. We recommend you use this methodto locate your vehicle, rather than usingthe panic alarm.
Sounding the Panic Alarm
Press the button to sound thepanic alarm. Press the buttonagain or switch the ignition on toturn it off.
Note:The panic alarm only operates whenthe ignition is off.
Memory Feature
You can program your intelligent accesskey to recall memory positions. SeeMemory Function (page 136).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls canbe purchased from an authorized dealer.Authorized dealers can program remotecontrols for your vehicle.
62
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingKeys and Remote ControlsE218402 E138623 E138624

WHAT IS MYKEY
MyKey allows you to program keys withrestricted driving modes to promote gooddriving habits.
MYKEY SETTINGS
NON-CONFIGURABLE MYKEYSETTINGS
Seatbelt Reminder or Belt-Minder™
MyKey mutes the audio system until thedrivers, and in some instances, passengers,fasten their seatbelts.
Note:If your vehicle includes an AM/FMradio or a very basic audio system, then theradio may not mute.
Satellite Radio (If Equipped)
Satellite radio adult content restrictions.
Early Low Fuel
The low fuel level warning lamp turns onearlier.
Driving and Parking Aids
Parking aids, blind spot information systemand cross traffic alert turn on when youstart the engine and cannot be switchedoff with a MyKey.
Pre-collision assist and lane keeping alertturn on when you start the engine, but canbe switched off with a MyKey.
A new destination in the navigation systemcan only be set using voice commandswhen using a MyKey, and with your vehiclemoving.
Note:MyKey drivers may be able to turnthe lane departure warning feature off, butthis feature turns back on automaticallywith every new key cycle.
CONFIGURABLE MYKEYSETTINGS
You can configure the following settingsafter creating a MyKey. See Creating aMyKey (page 64).
Speed Limit
WARNING: Do not set MyKeymaximum speed limit to a limit that willprevent the driver from maintaining asafe speed considering posted speedlimits and prevailing road conditions. Thedriver is always responsible to drive inaccordance with local laws andprevailing conditions. Failure to do socould result in accident or injury.
You can set a speed limit for your vehicle.Warning messages appear in theinformation display and a tone sounds ifyour vehicle reaches the set speed. Youcannot override the set speed when usinga MyKey.
Speed Reminder
You can set a speed reminder for yourvehicle. Warning messages appear in theinformation display and a tone sounds ifyour vehicle exceeds the set speed.
Audio System Volume Limit
The audio system maximum volume isreduced. A message appears in theinformation display if you attempt toexceed the volume limit. Automaticvolume control turns off.
63
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMyKey™

Emergency Assistance
If you set emergency assistance to alwayson, you cannot switch it off with a MyKey.
Do Not Disturb
If you set do not disturb to always on, youcannot switch it off with a MyKey.
Note:If a phone is connected using AppleCarPlay or Android Auto while driving witha MyKey, the driver can receive phone callsand text messages even if the do not disturbrestriction is on. If the vehicle comes withsatellite radio, the adult content is notrestricted.
Traction Control
If you set traction control to always on, youcannot switch it off with a MyKey.
CREATING A MYKEY
1.Remove the rubber covering (A) in thecupholder.
2.Place the remote control in the backupslot (B) with the buttons facing up andthe key ring toward the front of yourvehicle.
3.Switch the ignition on.
4.Using your touchscreen, press Menu.
5.Press Settings.
6.Press Vehicle.
7.Press MyKey.
8.Press Create MyKey.
9.Press Yes if you want to create the keyas MyKey. A confirmation messageappears on the screen.
10.Switch the ignition off.
Note:We recommend that you label thiskey.
PROGRAMMING A MYKEY
You can only program each MyKey to thesame settings.
1.Switch the ignition on using an adminkey.
2.Select Settings and press the menubutton.
3.Select Settings.
4.Select MyKey.
5.Select a setting and press the OKbutton.
6.Configure the setting.
7.Switch the ignition off.
CLEARING ALL MYKEYS
When you clear all MyKeys, you remove allrestrictions and return all MyKeys to theiroriginal admin key status.
1.Switch the ignition on using an adminkey.
2.Using your touchscreen, press Menu.
3.Press Settings.
4.Press Vehicle.
5.Press MyKey.
6.Press Clearing All MyKeys.
7.Press Yes to clear all MyKeys from yourvehicle.
64
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMyKey™E174956

CHECKING MYKEY SYSTEM
STATUS
You can find information about thedistance traveled using a MyKey, and thenumber of admin keys and MyKeys createdfor your vehicle.
1.Switch the ignition on.
2.Press Settings on the touchscreen.
3.Press Vehicle Settings.
4.Press MyKey.
5.Press MyKey Information.
6.Switch the ignition off.
USING MYKEY WITH REMOTE
START SYSTEMS
MyKey is not compatible with unapproved,aftermarket remote start systems. If youchoose to install a remote start system,see an authorized dealer for an approvedremote start system.
MYKEY – TROUBLESHOOTING
MYKEY – INFORMATION MESSAGES - VEHICLES WITH: PUSH BUTTONSTART
DescriptionMessage
Displays when trying to create a MyKey and there is no adminkey in the backup position. See Creating a MyKey (page64).
Place Key in BackupLocation
Displays when trying to create a MyKey with a key alreadydesignated as a MyKey.Key is Already a MyKey
Displays to confirm that you have a restricted key after youswitch the ignition off.This Key restricted atNext Key Cycle. LabelKey as MyKey
65
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMyKey™

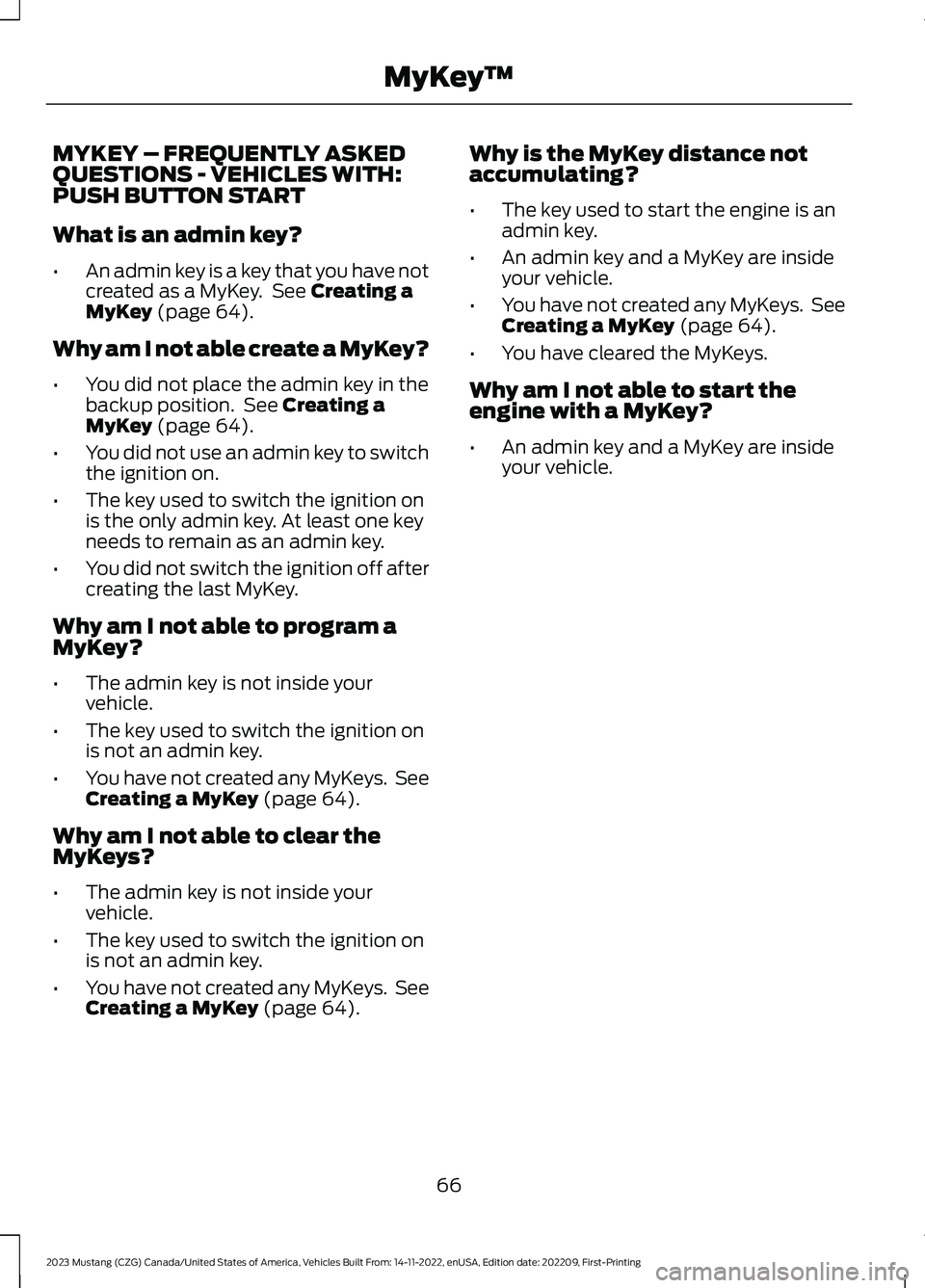

MYKEY – FREQUENTLY ASKEDQUESTIONS - VEHICLES WITH:PUSH BUTTON START
What is an admin key?
•An admin key is a key that you have notcreated as a MyKey. See Creating aMyKey (page 64).
Why am I not able create a MyKey?
•You did not place the admin key in thebackup position. See Creating aMyKey (page 64).
•You did not use an admin key to switchthe ignition on.
•The key used to switch the ignition onis the only admin key. At least one keyneeds to remain as an admin key.
•You did not switch the ignition off aftercreating the last MyKey.
Why am I not able to program aMyKey?
•The admin key is not inside yourvehicle.
•The key used to switch the ignition onis not an admin key.
•You have not created any MyKeys. SeeCreating a MyKey (page 64).
Why am I not able to clear theMyKeys?
•The admin key is not inside yourvehicle.
•The key used to switch the ignition onis not an admin key.
•You have not created any MyKeys. SeeCreating a MyKey (page 64).
Why is the MyKey distance notaccumulating?
•The key used to start the engine is anadmin key.
•An admin key and a MyKey are insideyour vehicle.
•You have not created any MyKeys. SeeCreating a MyKey (page 64).
•You have cleared the MyKeys.
Why am I not able to start theengine with a MyKey?
•An admin key and a MyKey are insideyour vehicle.
66
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMyKey™

LOCKING AND UNLOCKING
You can use the power door lock controlor the remote control to lock and unlockyour vehicle.
Note:Do not use the door latch assemblyto attach any accessory, such as handles orsteps, as this can cause damage to yourvehicle.
Power Door Locks
The power door lock control is on the driverand front passenger door panels.
Unlock.A
Lock.B
Door Lock Indicator
An LED on each door window trimilluminates when you lock the door. Itremains on for up to 10 minutes after youswitch the ignition off.
Door Lock Switch Inhibitor
When you electronically lock your vehicle,the power door lock switch no longeroperates after 20 seconds. You mustunlock your vehicle with the remotecontrol, or switch the ignition on, to restorefunction to these switches. You can switchthis feature on or off in the informationdisplay. See General Information (page102).
Remote Control
You can use the remote control at anytime. The luggage compartment releasebutton only works when your vehicle speedis less than 5 mph (8 km/h).
Unlocking the Doors
Press the button to unlock thedriver door. Press the buttonagain within three seconds tounlock all doors. The direction indicatorsflash.
Note:You can unlock the driver door withthe key blade if the remote control is notfunctioning. See Replacing a Lost Key orRemote Control (page 62).
Note:When you leave your vehicleunattended for several weeks, remoteunlocking turns off. Unlock your vehicleusing the key blade, then start your vehicleto restore the remote unlocking function.
Reprogramming the UnlockingFunction
You can reprogram the unlocking functionso that all doors unlock.
Press and hold both the lock and unlockbuttons on the remote control for threeseconds to change between driver door orall doors unlock mode. The directionindicators flash twice to confirm thechange. Driver door mode only unlocks thedriver door when you press the unlock
67
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDoors and LocksE332156 E138629

button once. All door mode unlocks alldoors when you press the unlock buttononce. The unlocking mode applies to theremote control and intelligent access. Youcan also change between the unlockingmodes using the information display. SeeGeneral Information (page 102).
Locking the Doors
Press the button to lock alldoors. The direction indicatorsflash. Press the button againwithin three seconds to confirm that allthe doors are closed. The doors lock again,the horn sounds and the directionindicators flash if all the doors and theluggage compartment are closed.
Mislock
If any door or the luggage compartment isopen, or if the hood is open on vehicleswith an anti-theft alarm or remote start,the horn will sound twice and the directionindicators do not flash. You can switchthis feature on or off in the informationdisplay. See General Information (page102).
Opening the Luggage Compartment
Press twice within three secondsto open the luggagecompartment.
Make sure to close and latch the luggagecompartment before driving your vehicle.Objects may fall from an unlatchedluggage compartment. An unlatchedluggage compartment may block your rearview.
Activating Intelligent Access
General Information
You can unlock and lock the vehiclewithout taking the keys out of your pocketor purse when your intelligent access keyis within 3 ft (1 m) of your vehicle.Intelligent access uses a sensor on theback of the door handle for unlocking anda separate sensor on the face of each doorhandle for locking.
The system does not function if:
•Your vehicle battery has no charge.
•The key battery has no charge.
•The key frequencies are jammed.
Note:The system may not function if thekey is close to metal objects or electronicdevices, for example keys or a cell phone.
Note:If the system does not function, usethe key blade to lock and unlock yourvehicle. See Remote Control (page 58).
Unlocking Using Intelligent Access
With your intelligent access key within 3 ft(1 m) of your vehicle, touch the unlocksensor on the back of the door handle fora brief period and then pull on the doorhandle to unlock, being careful to nottouch the lock sensor at the same time orpulling the door handle too quickly. Theintelligent access system requires a briefdelay to authenticate your intelligentaccess key fob.
68
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDoors and LocksE138623 E138630 E248553
