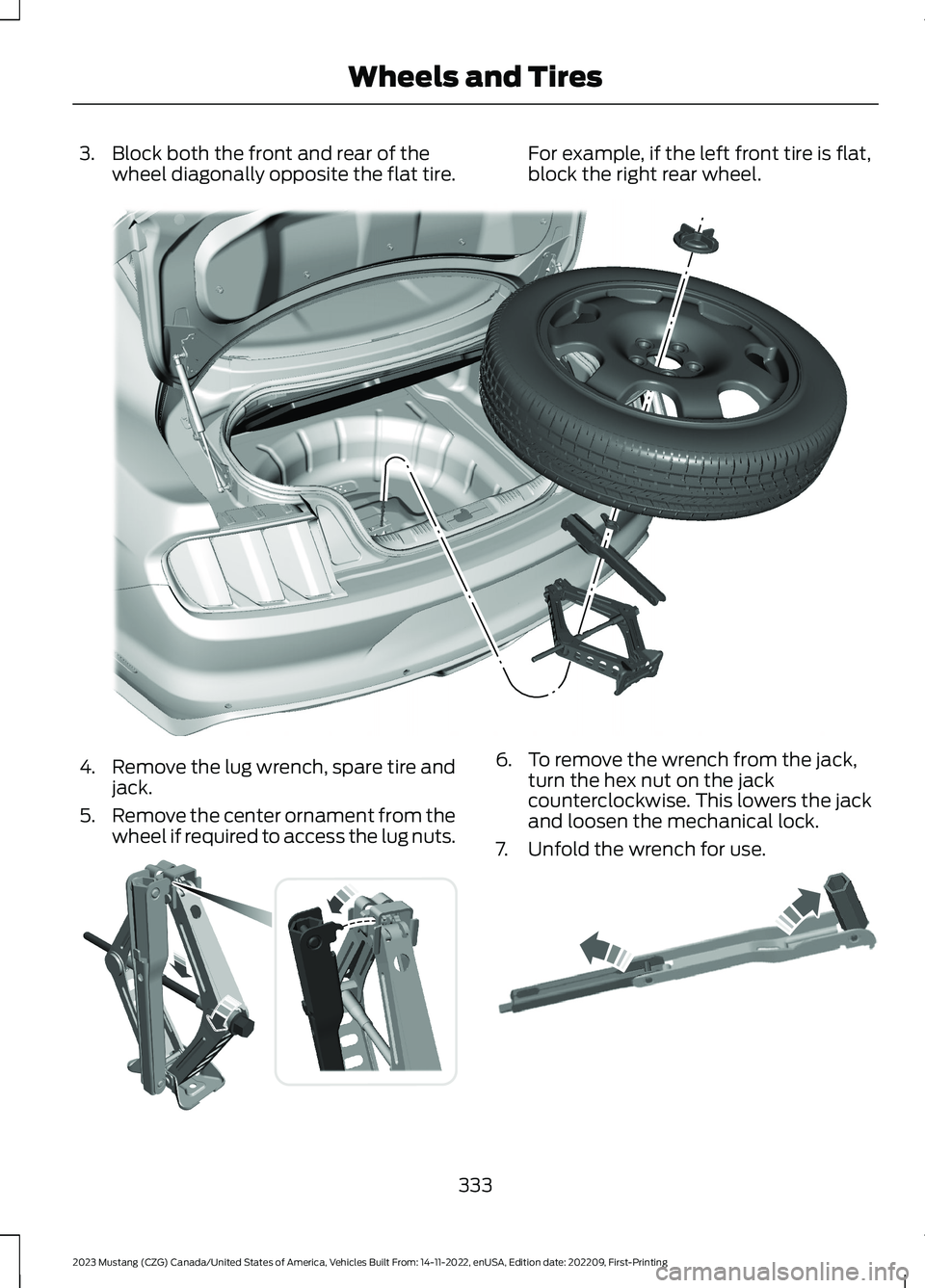

3.Block both the front and rear of thewheel diagonally opposite the flat tire.For example, if the left front tire is flat,block the right rear wheel.
4.Remove the lug wrench, spare tire andjack.
5.Remove the center ornament from thewheel if required to access the lug nuts.
6.To remove the wrench from the jack,turn the hex nut on the jackcounterclockwise. This lowers the jackand loosen the mechanical lock.
7.Unfold the wrench for use.
333
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE174938 E175694 E181744

8.Loosen each wheel lug nut one-halfturn counterclockwise but do notremove them until the wheel is raisedoff the ground.
Note:Jack at the specified locations toavoid damage to the vehicle.
9.The vehicle jacking points are shownhere, and can be identified by thetriangle markings on the vehicle. Detailsare depicted on the warning label onthe jack.
10.Place the jack at the jacking pointnext to the tire you are changing. Turnthe jack handle clockwise until thewheel is completely off the ground.
11.Remove the lug nuts with the lugwrench.
12.Replace the flat tire with the sparetire, making sure the valve stem isfacing outward. Reinstall lug nutsuntil the wheel is snug against thehub. Do not fully tighten the lug nutsuntil the wheel has been lowered.
13.Lower the wheel by turning the jackhandle counterclockwise.
14.Remove the jack and fully tighten thelug nuts in the order shown. SeeTechnical Specifications (page336).
15.To store the folded wrench on thejack, engage the bracket of the jackbase on the wrench feature as shown.Swing the wrench upwards andadjust the height of the jack until thepin engages the hole. Tighten the hexnut clockwise by hand until secure.
334
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE176084 E174939 12345E306781

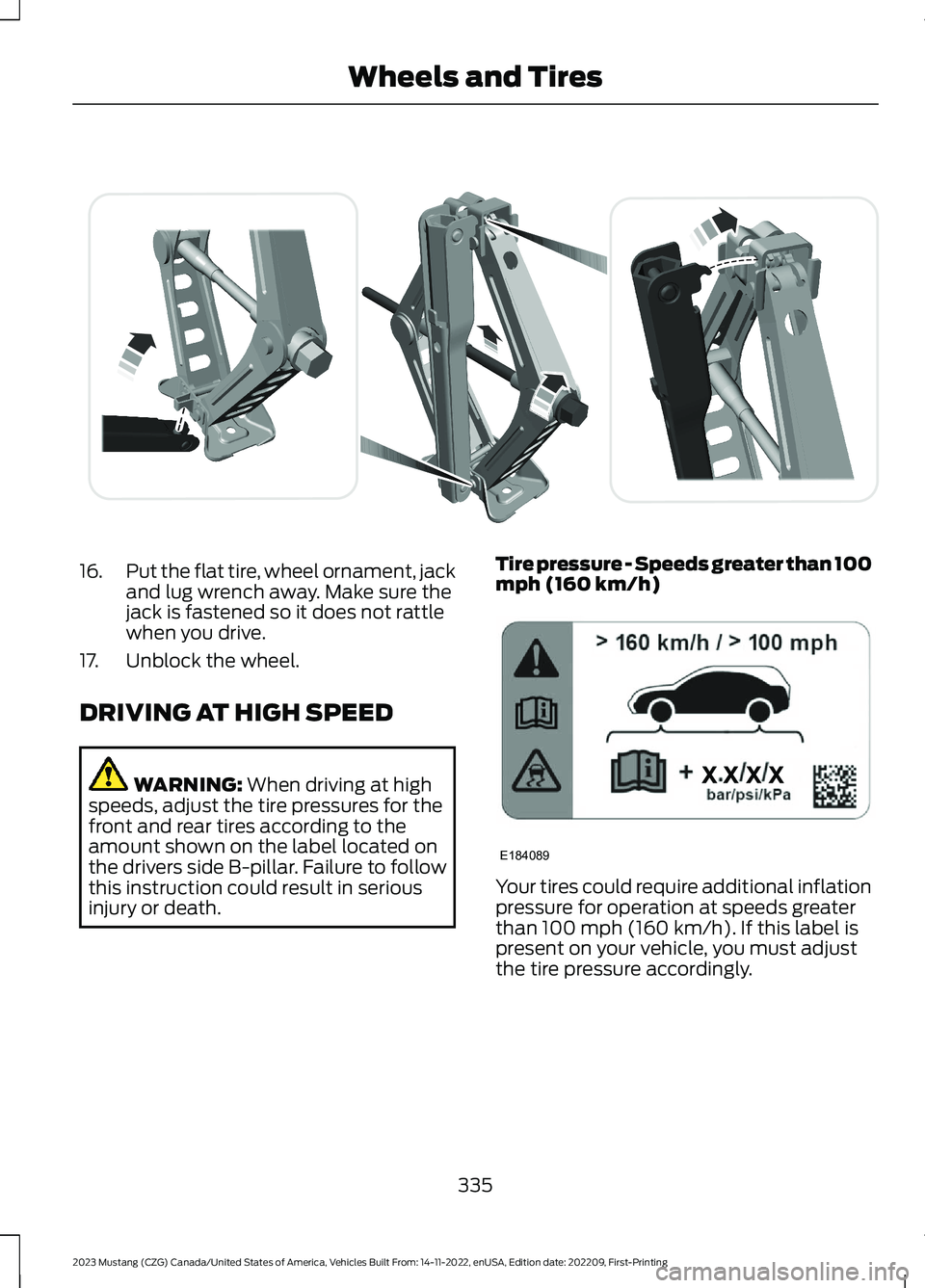

16.Put the flat tire, wheel ornament, jackand lug wrench away. Make sure thejack is fastened so it does not rattlewhen you drive.
17.Unblock the wheel.
DRIVING AT HIGH SPEED
WARNING: When driving at highspeeds, adjust the tire pressures for thefront and rear tires according to theamount shown on the label located onthe drivers side B-pillar. Failure to followthis instruction could result in seriousinjury or death.
Tire pressure - Speeds greater than 100mph (160 km/h)
Your tires could require additional inflationpressure for operation at speeds greaterthan 100 mph (160 km/h). If this label ispresent on your vehicle, you must adjustthe tire pressure accordingly.
335
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE176165 E184089

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreignmaterials present on the mounting surfaces of the wheel or the surface of the wheelhub, brake drum or brake disc that contacts the wheel. Make sure to secure any fastenersthat attach the rotor to the hub so they do not interfere with the mounting surfaces ofthe wheel. Installing wheels without correct metal-to-metal contact at the wheelmounting surfaces can cause the wheel nuts to loosen and the wheel to come off whileyour vehicle is in motion, resulting in loss of vehicle control, personal injury or death.
lb.ft (Nm)Bolt Size
150 (204)M14 X 1.5
1 Torque specifications are for nut and bolt threads free of dirt and rust. Use only Fordrecommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheeldisturbance (such as tire rotation, changing a flat tire, wheel removal).
Wheel pilot boreA
Inspect the wheel pilot bore andmounting surface prior to installation.Remove any visible corrosion or looseparticles.
336
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE145950

ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
SpecificationMeasurement
138 in³ (2,261 cm³)Engine Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
9.5:1Compression ratio - Base.
9.37:1Compression ratio - High Output.
Drivebelt Routing
ENGINE SPECIFICATIONS - 5.0L, MACH 1
DescriptionItem
90 degree V8.Configuration.
3.66 in (93 mm) bore x 3.65 in (92.7 mm)stroke.Bore x stroke.
307 in³ (5,038 cm³)Displacement.
12.0:1Compression ratio.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
470 hp (350 kW) @ 7000 RPMHorsepower.
337
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE170434

DescriptionItem
415 lb.ft (563 Nm) @ 4600 RPMTorque.
7500 RPMRedline.
168 mph (270 km/h)Top speed with manual transmissionwithout gurney flap.
155 mph (249 km/h) Electronically limited.Top speed with automatic transmission.
Dual overhead cams - roller fingerfollowers.Valvetrain.
Coil on plug.Ignition.
3.4 in (87 mm)Throttle body.
Cast aluminum.Pistons.
Forged steel cross-plane.Crankshaft.
Forged steel.Connecting rods.
Naturally aspirated cold air induction.Induction.
High-flow dual exhaust with H-pipe andactive valve mufflers.Exhaust system.

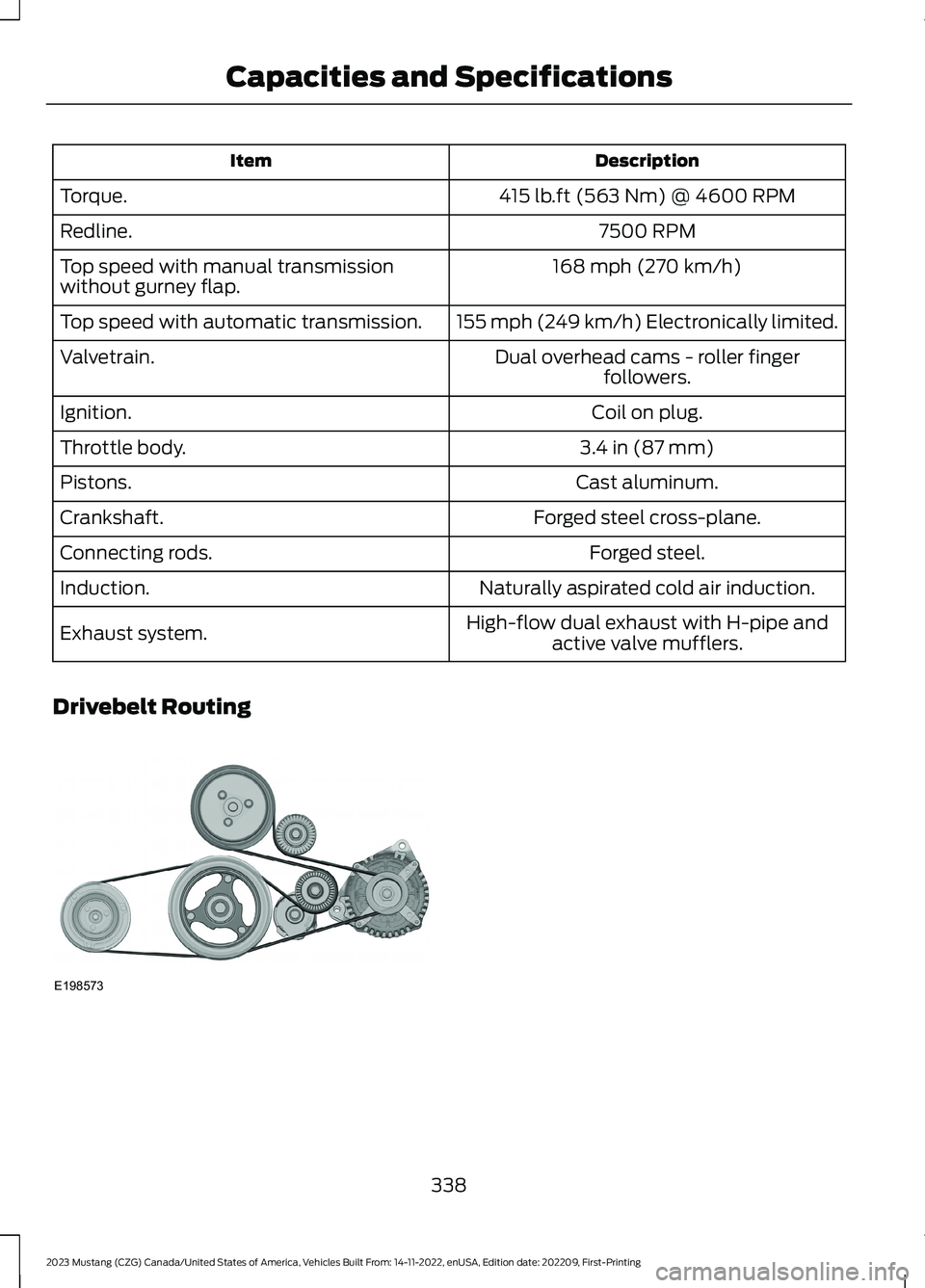

Drivebelt Routing
338
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE198573

ENGINE SPECIFICATIONS - 5.0L
SpecificationMeasurement
307 in³ (5,038 cm³)Engine displacement.
1-5-4-8-6-3-7-2Firing order.
Coil on plugIgnition system.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
12.0:1Compression ratio.
Drivebelt Routing
BRAKE SYSTEM SPECIFICATIONS - MACH 1
Front
SpecificationDescription
14.96 in (380 mm)Rotor diameter.
1.34 in (34 mm)Rotor width.
81.18 in² (523.76 cm²)Rotor swept area.
1.42 in (36 mm)Caliper piston diameter.
339
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE198573

Rear
SpecificationDescription
12.99 in (330 mm)Rotor diameter.
0.98 in (25 mm)Rotor width.
56.04 in² (361.55 cm²)Rotor swept area.
1.77 in (45 mm)Caliper piston diameter.
340
