2023 FORD MUSTANG Owners Manual

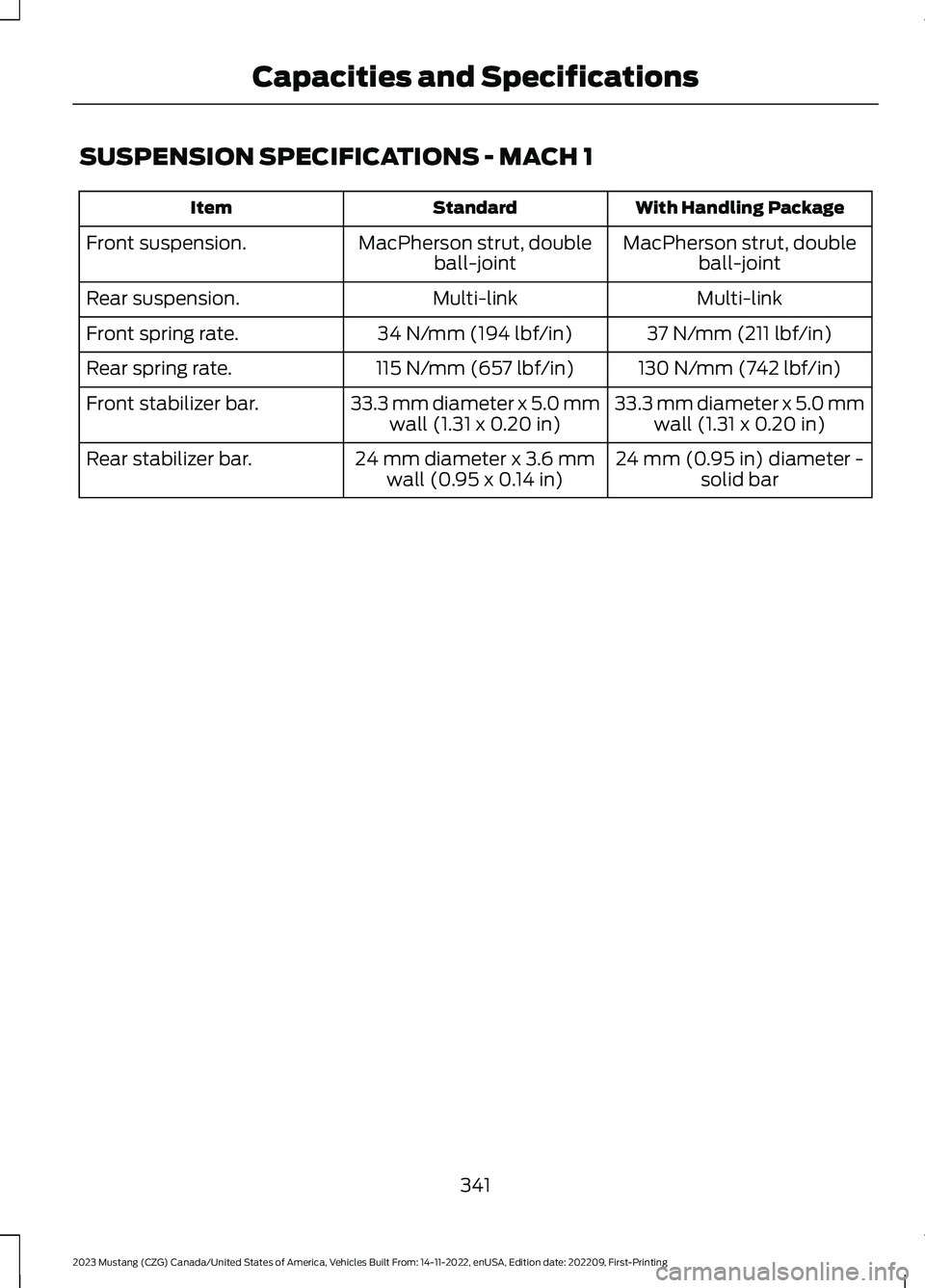

SUSPENSION SPECIFICATIONS - MACH 1
With Handling PackageStandardItem
MacPherson strut, doubleball-jointMacPherson strut, doubleball-jointFront suspension.
Multi-linkMulti-linkRear suspension.
37 N/mm (211 lbf/in)34 N/mm (194 lbf/in)Front spring rate.
130 N/mm (742 lbf/in)115 N/mm (657 lbf/in)Rear spring rate.
33.3 mm diameter x 5.0 mmwall (1.31 x 0.20 in)33.3 mm diameter x 5.0 mmwall (1.31 x 0.20 in)Front stabilizer bar.
24 mm (0.95 in) diameter -solid bar24 mm diameter x 3.6 mmwall (0.95 x 0.14 in)Rear stabilizer bar.
341
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

MOTORCRAFT PARTS - 2.3L ECOBOOST™
Part NumberComponent
FA-1918Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-910-SOil filter.1
SP-550Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
342
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

MOTORCRAFT PARTS - 5.0L
Part NumberComponent
FA-1918Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-500-SOil filter.1
SP-589Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
343
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

MOTORCRAFT PARTS - 5.0L, MACH 1
Part NumberComponent
FA-1922Air filter element.
BXT-96R-590Battery.
FP-78Cabin air filter.
FL-500-SOil filter.1
SP-589Spark plugs.
WW-1964 (passenger side)Windshield wiper blade.WW-2160 (driver side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
344
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number islocated on the left-hand side of theinstrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
CAPACITIES AND
SPECIFICATIONS - 2.3L
ECOBOOST™
Use oil and fluid that meets the definedspecification and viscosity grade.
If you do not use oil and fluid that meetsthe defined specification and viscositygrade, it could result in:
•Component damage not covered bythe vehicle warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
345
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142476 E142477

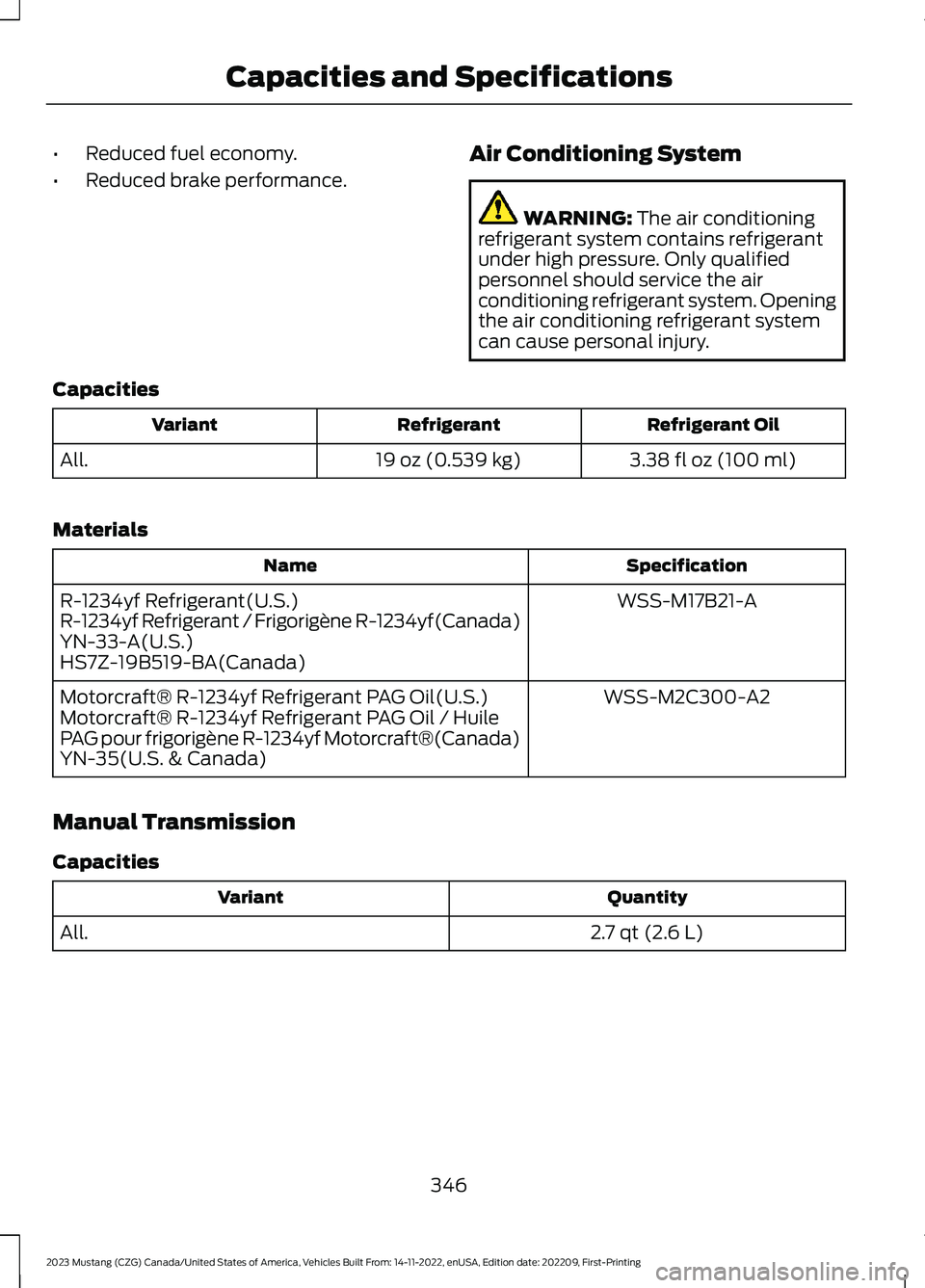

•Reduced fuel economy.
•Reduced brake performance.
Air Conditioning System
WARNING: The air conditioningrefrigerant system contains refrigerantunder high pressure. Only qualifiedpersonnel should service the airconditioning refrigerant system. Openingthe air conditioning refrigerant systemcan cause personal injury.
Capacities
Refrigerant OilRefrigerantVariant
3.38 fl oz (100 ml)19 oz (0.539 kg)All.
Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / HuilePAG pour frigorigène R-1234yf Motorcraft®(Canada)YN-35(U.S. & Canada)
Manual Transmission
Capacities
QuantityVariant
2.7 qt (2.6 L)All.
346
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications

Materials
SpecificationName
WSS-M2C200-D2Motorcraft® Dual Clutch Transmission Fluid(U.S.)Motorcraft® Dual Clutch Transmission Fluid / Huilepour boîtes embrayage double Motor-craft®(Canada)XT-11-QDC(U.S. & Canada)
Engine Coolant
Capacities
QuantityVariant
9.5 qt (8.96 L)All.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant/ Antigel/liquide de refroidissement prédilué jauneMotorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
Engine Oil 2.3L EcoBoost BaseAn oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage notcovered by your vehicle warranty.
347
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142732

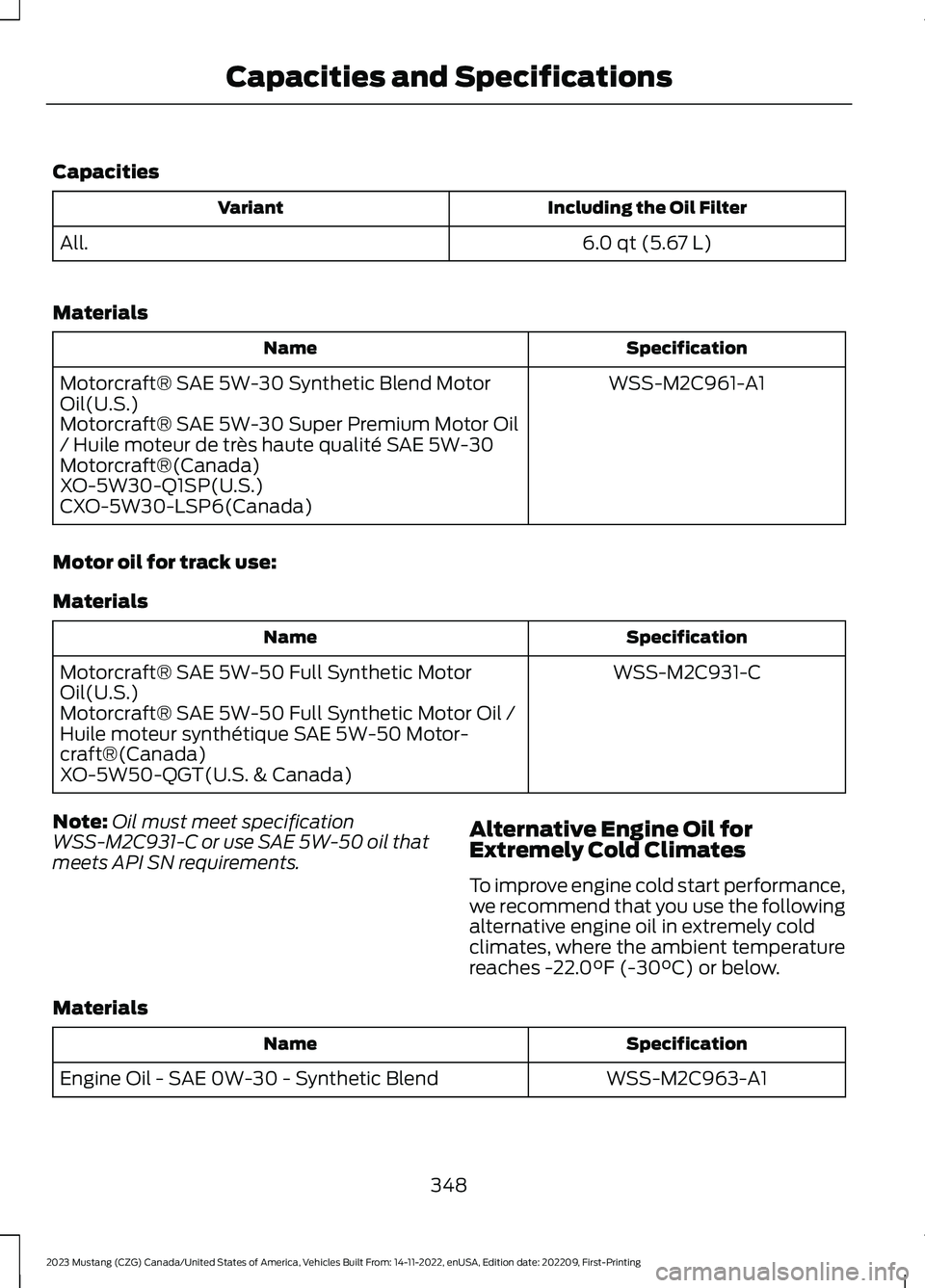

Capacities
Including the Oil FilterVariant
6.0 qt (5.67 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
Motor oil for track use:
Materials
SpecificationName
WSS-M2C931-CMotorcraft® SAE 5W-50 Full Synthetic MotorOil(U.S.)Motorcraft® SAE 5W-50 Full Synthetic Motor Oil /Huile moteur synthétique SAE 5W-50 Motor-craft®(Canada)XO-5W50-QGT(U.S. & Canada)
Note:Oil must meet specificationWSS-M2C931-C or use SAE 5W-50 oil thatmeets API SN requirements.
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
348
