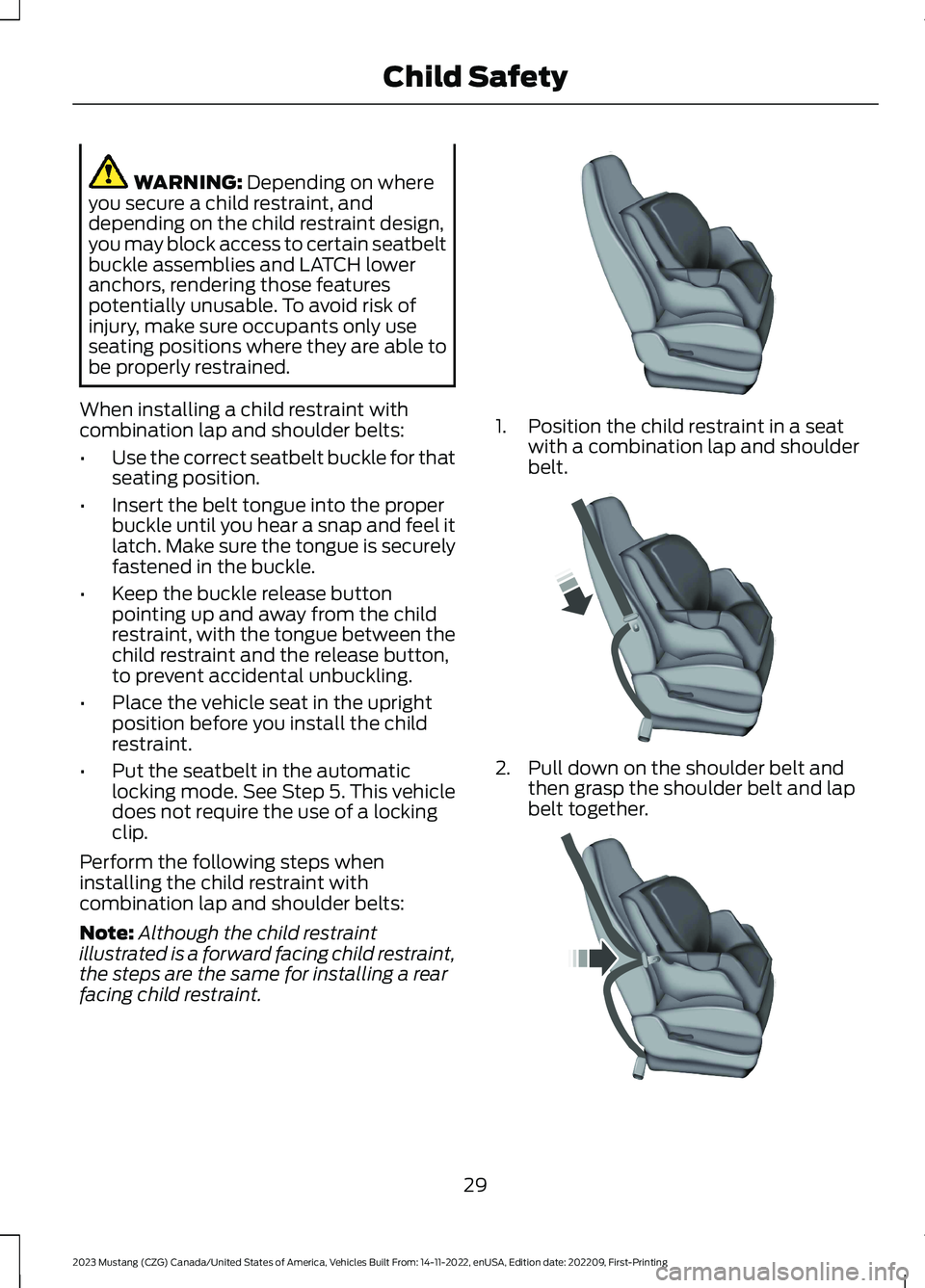

WARNING: Depending on whereyou secure a child restraint, anddepending on the child restraint design,you may block access to certain seatbeltbuckle assemblies and LATCH loweranchors, rendering those featurespotentially unusable. To avoid risk ofinjury, make sure occupants only useseating positions where they are able tobe properly restrained.
When installing a child restraint withcombination lap and shoulder belts:
•Use the correct seatbelt buckle for thatseating position.
•Insert the belt tongue into the properbuckle until you hear a snap and feel itlatch. Make sure the tongue is securelyfastened in the buckle.
•Keep the buckle release buttonpointing up and away from the childrestraint, with the tongue between thechild restraint and the release button,to prevent accidental unbuckling.
•Place the vehicle seat in the uprightposition before you install the childrestraint.
•Put the seatbelt in the automaticlocking mode. See Step 5. This vehicledoes not require the use of a lockingclip.
Perform the following steps wheninstalling the child restraint withcombination lap and shoulder belts:
Note:Although the child restraintillustrated is a forward facing child restraint,the steps are the same for installing a rearfacing child restraint.
1.Position the child restraint in a seatwith a combination lap and shoulderbelt.
2.Pull down on the shoulder belt andthen grasp the shoulder belt and lapbelt together.
29
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingChild SafetyE142528 E142529 E142530

3.While holding the shoulder and lap beltportions together, route the tonguethrough the child restraint accordingto the child restraint manufacturer'sinstructions. Make sure that you havenot twisted the belt webbing.
4.Insert the belt tongue into the properbuckle (the buckle closest to thedirection the tongue is coming from)for that seating position until you heara snap and feel the latch engage. Makesure the tongue is latched securely bypulling on it.
5.To put the retractor in the automaticlocking mode, grasp the shoulderportion of the belt and pull downwarduntil all of the belt is pulled out.
Note:The automatic locking mode isavailable on the front passenger and rearseats. This vehicle does not require the useof a locking clip.
6.Allow the belt to retract to removeslack. The belt will click as it retractsto indicate it is in the automatic lockingmode.
7.Try to pull the belt out of the retractorto make sure the retractor is in theautomatic locking mode. You shouldnot be able to pull more belt out. If theretractor does not lock, unbuckle thebelt and repeat Steps 5 and 6.
8.Remove remaining slack from the belt.Force the seat down with extra weight,for example, by pressing down orkneeling on the child restraint whilepulling up on the shoulder belt in orderto force slack from the belt. This isnecessary to remove the remainingslack that exists once you add the extraweight of the child to the child restraint.It also helps to achieve the propersnugness of the child restraint to yourvehicle. Sometimes, a slight leantoward the buckle will additionally helpto remove remaining slack from thebelt.
9.If the child restraint has a tether strap,attach it.
30
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingChild SafetyE142531 E142875 E142533

All safety restraints in the vehicle arecombination lap and shoulder belts andhave vehicle sensitive locking mode. Inaddition, the front outboard passenger andrear seat seatbelts have the automaticlocking mode.
Vehicle Sensitive Mode
This is the normal retractor mode, whichallows free shoulder belt lengthadjustment to your movements andlocking in response to vehicle movement.For example, if the driver brakes suddenlyor turns a corner sharply, or the vehiclereceives an impact of about 5 mph(8 km/h) or more, the seatbelts lock tohelp reduce forward movement of thedriver and passengers.
In addition, the retractor is designed to lockif you pull the webbing out too quickly. Ifthe seatbelt retractor locks, slowly lowerthe height adjuster to allow the seatbeltto retract. If the retractor does not unlock,pull the seatbelt out slowly then feed asmall length of webbing back toward thestowed position. For rear seatbelts, reclinethe rear seat backrest or push the seatbackrest cushion away from the seatbelt.Feed a small length of webbing backtoward the stowed position.
Automatic Locking Mode
In this mode, the shoulder beltautomatically pre-locks. The belt stillretracts to remove any slack in theshoulder belt. The automatic locking modeis not available on the driver seatbelt.
When to Use the Automatic LockingMode
Use this mode any time a child restraint,except a booster, is installed in passengerfront or rear seating positions. Properlyrestrain children 12 years old and under ina rear seating position whenever possible.See Child Safety (page 25).
How to Disengage the AutomaticLocking Mode
Unbuckle the lap and shoulder belt andallow it to retract completely to disengagethe automatic locking mode and activatethe vehicle sensitive (emergency) lockingmode.
SEATBELT WARNING LAMP
AND INDICATOR CHIME
This lamp illuminates and anindicator chime will sound if thedriver seatbelt has not beenfastened when the vehicle's ignition isturned on.
43
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSeatbeltsE71880

Autounlock
Autounlock unlocks all the doors when:
•The ignition is on, you have closed allthe doors, and your vehicle has beenmoving at a speed greater than 12 mph(20 km/h).
•Your vehicle comes to a stop and youswitch the ignition off or to theaccessory position.
•You open the driver door within 10minutes of switching the ignition off orto accessory.
Note:The doors do not autounlock if youelectronically lock your vehicle after youswitch the ignition off and before you openthe driver door.
Enabling or Disabling Autounlock
You can enable or disable the autounlockfeature in the information display or anauthorized dealer can do it for you. SeeGeneral Information (page 102).
Locking and Unlocking the Doorswith the Key Blade
Turn the top of the key toward the front ofyour vehicle once to lock all doors.
Turn the top of the key toward the rear ofyour vehicle once to unlock the driver dooronly. See Remote Control (page 58).
Locking the Doors Individually
If the central locking function does notoperate, lock the doors individually usingthe key in the position shown.
Left-Hand Side
Turn clockwise to lock.
Right-Hand Side
Turn counterclockwise to lock.
Unlocking the Doors
If the central locking function does notoperate, unlock the driver door and thenunlock all other doors individually bypulling the interior door handles.
70
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDoors and LocksE180643

Use air conditioning with recirculated airto improve cooling performance andefficiency.
Note:In certain conditions such asmaximum defrost, the air conditioningcompressor may continue to operate eventhough you switch off the air conditioning.
Switching the Climate Control Onand Off
Press and release the button.
Switching Maximum AirConditioning On and Off
Turn the temperature controlcounterclockwise to the lowestsetting.
Note: Recirculated air flows through theinstrument panel air vents, air conditioningturns on and the blower motor adjusts tothe highest speed.
Switching Maximum Defrost Onand Off
Turn the temperature controlclockwise to the highest setting.
Note: Air flows through the windshield airvents, and the blower motor adjusts to thehighest speed.
You can also use this setting to defog andclear the windshield of a thin covering ofice. The heated rear window also turns onwhen you select maximum defrost.
Note:To prevent window fogging, youcannot select recirculated air whenmaximum defrost is on.
Switching Recirculated Air On andOff
Press and release the button toswitch between outside air andrecirculated air.
The air currently in the passengercompartment recirculates. This mayreduce the time needed to cool the interior,when used with A/C, and reduce unwantedodors from entering your vehicle.
Note:Recirculated air may turn off, orprevent you from switching on, in all air flowmodes except MAX A/C to reduce the riskof fogging. Recirculation may also turn onand off in various air distribution controlcombinations during hot weather to improvecooling efficiency.
AUTOMATIC CLIMATE
CONTROL (IF EQUIPPED)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Note:You can switch temperature unitsbetween Fahrenheit and Celsius.
Note:You can control some of the climatefeatures through the touchscreen.
Setting the Blower Motor Speed
Press and release + or - to adjustthe volume of air circulated inthe vehicle.
127
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingClimate Control E287205

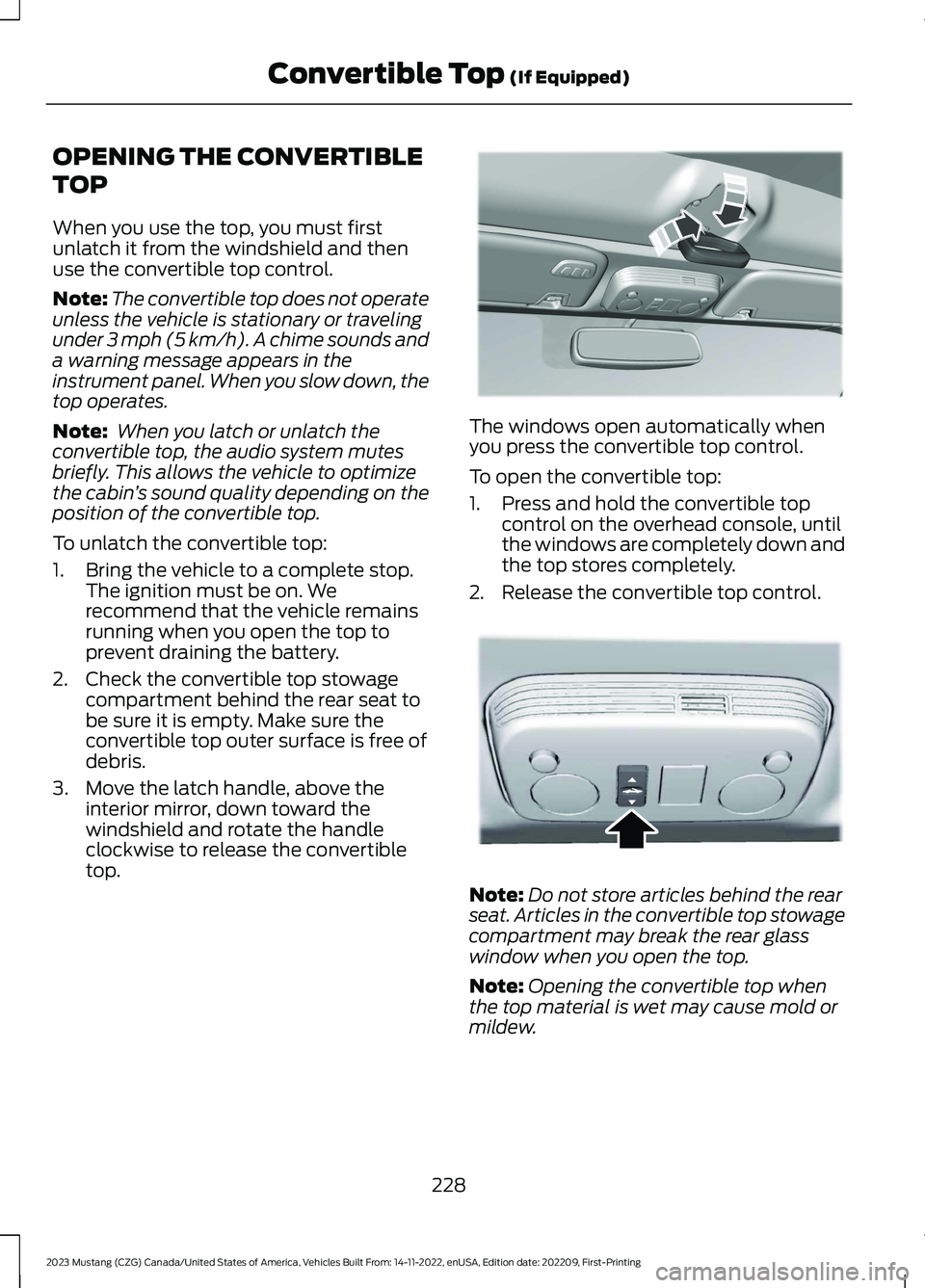

OPENING THE CONVERTIBLE
TOP
When you use the top, you must firstunlatch it from the windshield and thenuse the convertible top control.
Note:The convertible top does not operateunless the vehicle is stationary or travelingunder 3 mph (5 km/h). A chime sounds anda warning message appears in theinstrument panel. When you slow down, thetop operates.
Note: When you latch or unlatch theconvertible top, the audio system mutesbriefly. This allows the vehicle to optimizethe cabin’s sound quality depending on theposition of the convertible top.
To unlatch the convertible top:
1.Bring the vehicle to a complete stop.The ignition must be on. Werecommend that the vehicle remainsrunning when you open the top toprevent draining the battery.
2.Check the convertible top stowagecompartment behind the rear seat tobe sure it is empty. Make sure theconvertible top outer surface is free ofdebris.
3.Move the latch handle, above theinterior mirror, down toward thewindshield and rotate the handleclockwise to release the convertibletop.
The windows open automatically whenyou press the convertible top control.
To open the convertible top:
1.Press and hold the convertible topcontrol on the overhead console, untilthe windows are completely down andthe top stores completely.
2.Release the convertible top control.
Note:Do not store articles behind the rearseat. Articles in the convertible top stowagecompartment may break the rear glasswindow when you open the top.
Note:Opening the convertible top whenthe top material is wet may cause mold ormildew.
228
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingConvertible Top (If Equipped)E174571 E174568

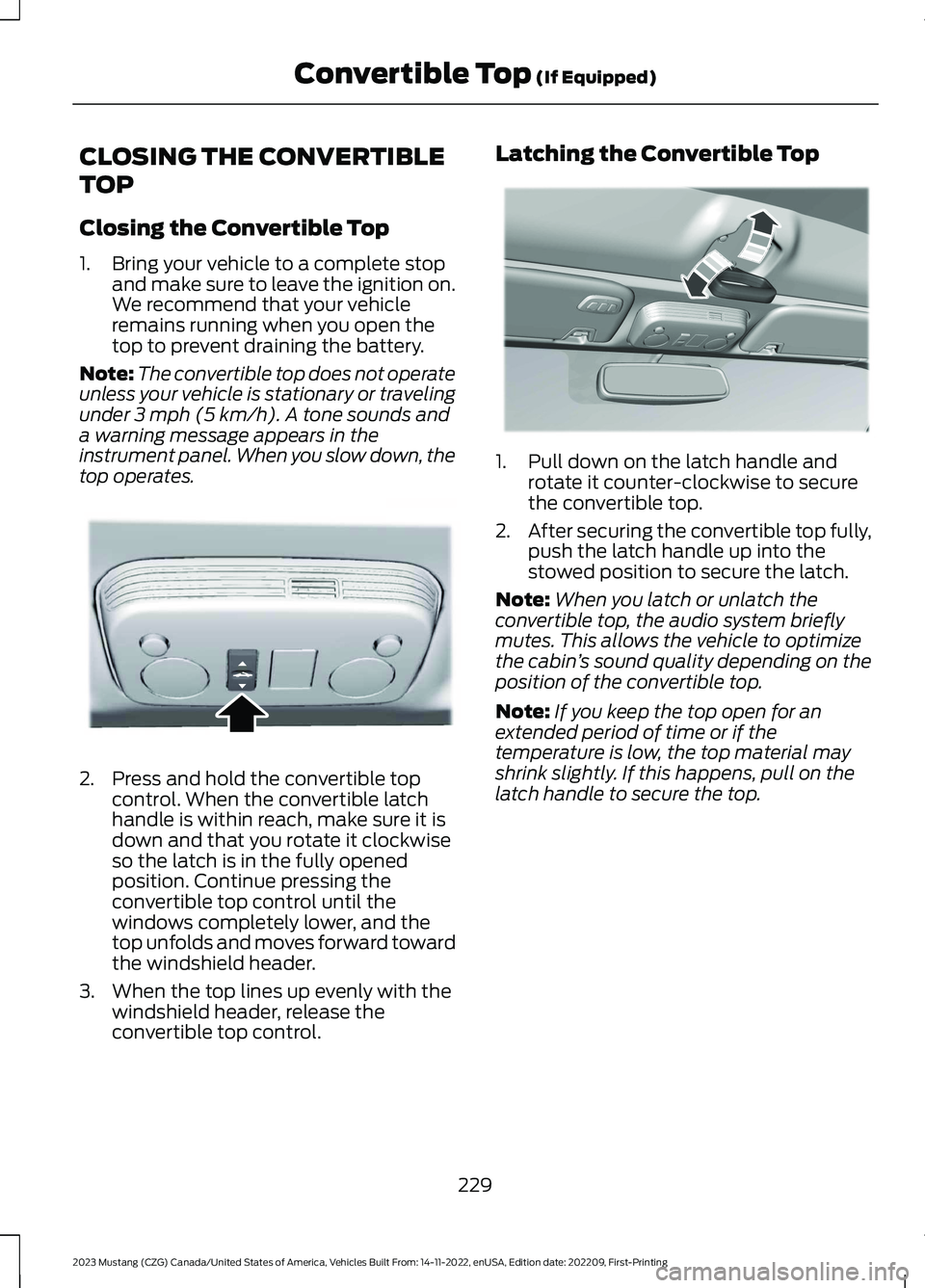

CLOSING THE CONVERTIBLE
TOP
Closing the Convertible Top
1.Bring your vehicle to a complete stopand make sure to leave the ignition on.We recommend that your vehicleremains running when you open thetop to prevent draining the battery.
Note:The convertible top does not operateunless your vehicle is stationary or travelingunder 3 mph (5 km/h). A tone sounds anda warning message appears in theinstrument panel. When you slow down, thetop operates.
2.Press and hold the convertible topcontrol. When the convertible latchhandle is within reach, make sure it isdown and that you rotate it clockwiseso the latch is in the fully openedposition. Continue pressing theconvertible top control until thewindows completely lower, and thetop unfolds and moves forward towardthe windshield header.
3.When the top lines up evenly with thewindshield header, release theconvertible top control.
Latching the Convertible Top
1.Pull down on the latch handle androtate it counter-clockwise to securethe convertible top.
2.After securing the convertible top fully,push the latch handle up into thestowed position to secure the latch.
Note:When you latch or unlatch theconvertible top, the audio system brieflymutes. This allows the vehicle to optimizethe cabin’s sound quality depending on theposition of the convertible top.
Note:If you keep the top open for anextended period of time or if thetemperature is low, the top material mayshrink slightly. If this happens, pull on thelatch handle to secure the top.
229
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingConvertible Top (If Equipped)E174568 E178453

ENGINE OIL DIPSTICK
Minimum.A
Nominal.B
Maximum.C
ENGINE OIL CHECK
1.Make sure that your vehicle is on levelground.
2.Check the oil level before starting theengine, or switch the engine off afterwarm up and wait 15 minutes for theoil to drain into the oil pan.
Note:Checking the oil level too soon couldresult in an inaccurate reading.
3.Remove the dipstick and wipe it witha clean, lint-free cloth.
4.Reinstall the dipstick and make sure itis fully seated.
5.Remove the dipstick again to check theoil level.
Note: If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
6.If the oil level is at the minimum mark,immediately add oil.
7.Reinstall the dipstick. Make sure it isfully seated.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
Note:Increases in oil level can occur fromfrequent short trips that do not allow theengine to get to operating temperature, aswell as frequent idling or low speed drivingfor long periods of time.
Note:If oil levels are continuously notedabove the maximum mark, schedule a visitto your authorized dealer.
Adding Engine Oil
WARNING: Do not add engine oilwhen the engine is hot. Failure to followthis instruction could result in personalinjury.
WARNING: Do not remove the fillercap when the engine is running.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that thevehicle warranty may not cover.
1.Clean the area surrounding the engineoil filler cap before you remove it.
2.Remove the engine oil filler cap.
3.Add engine oil that meets ourspecifications. See Capacities andSpecifications (page 337).
4.Reinstall the engine oil filler cap. Turnit clockwise until you feel a strongresistance.
Note: Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Immediately soak up any oil spillagewith an absorbent cloth.
262
