2023 FORD F150 Owners Manual

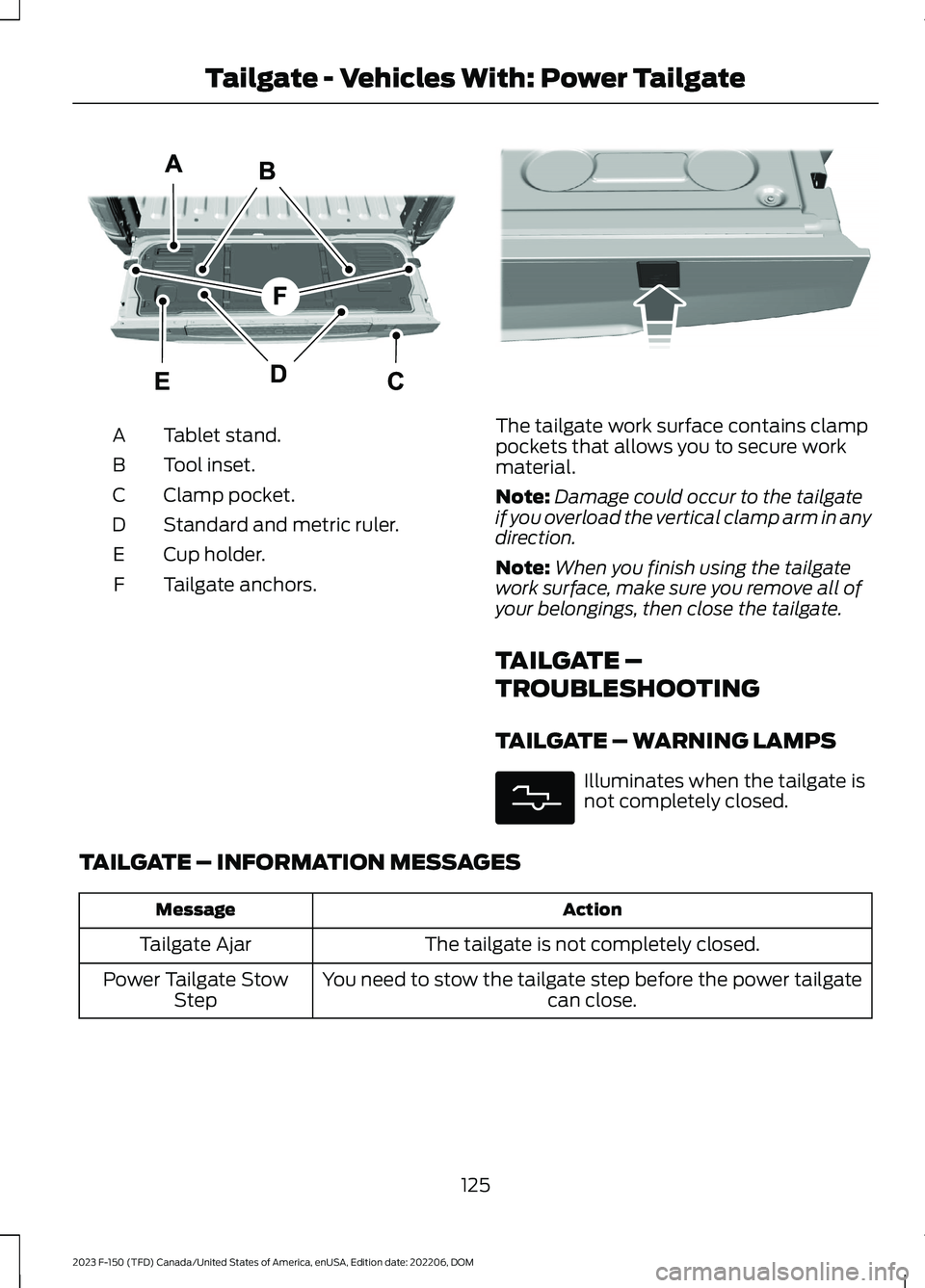

Tablet stand.A
Tool inset.B
Clamp pocket.C
Standard and metric ruler.D
Cup holder.E
Tailgate anchors.F
The tailgate work surface contains clamppockets that allows you to secure workmaterial.
Note:Damage could occur to the tailgateif you overload the vertical clamp arm in anydirection.
Note:When you finish using the tailgatework surface, make sure you remove all ofyour belongings, then close the tailgate.
TAILGATE –
TROUBLESHOOTING
TAILGATE – WARNING LAMPS
Illuminates when the tailgate isnot completely closed.
TAILGATE – INFORMATION MESSAGES
ActionMessage
The tailgate is not completely closed.Tailgate Ajar
You need to stow the tailgate step before the power tailgatecan close.Power Tailgate StowStep
125
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Power TailgateE308677 E336605 E311338

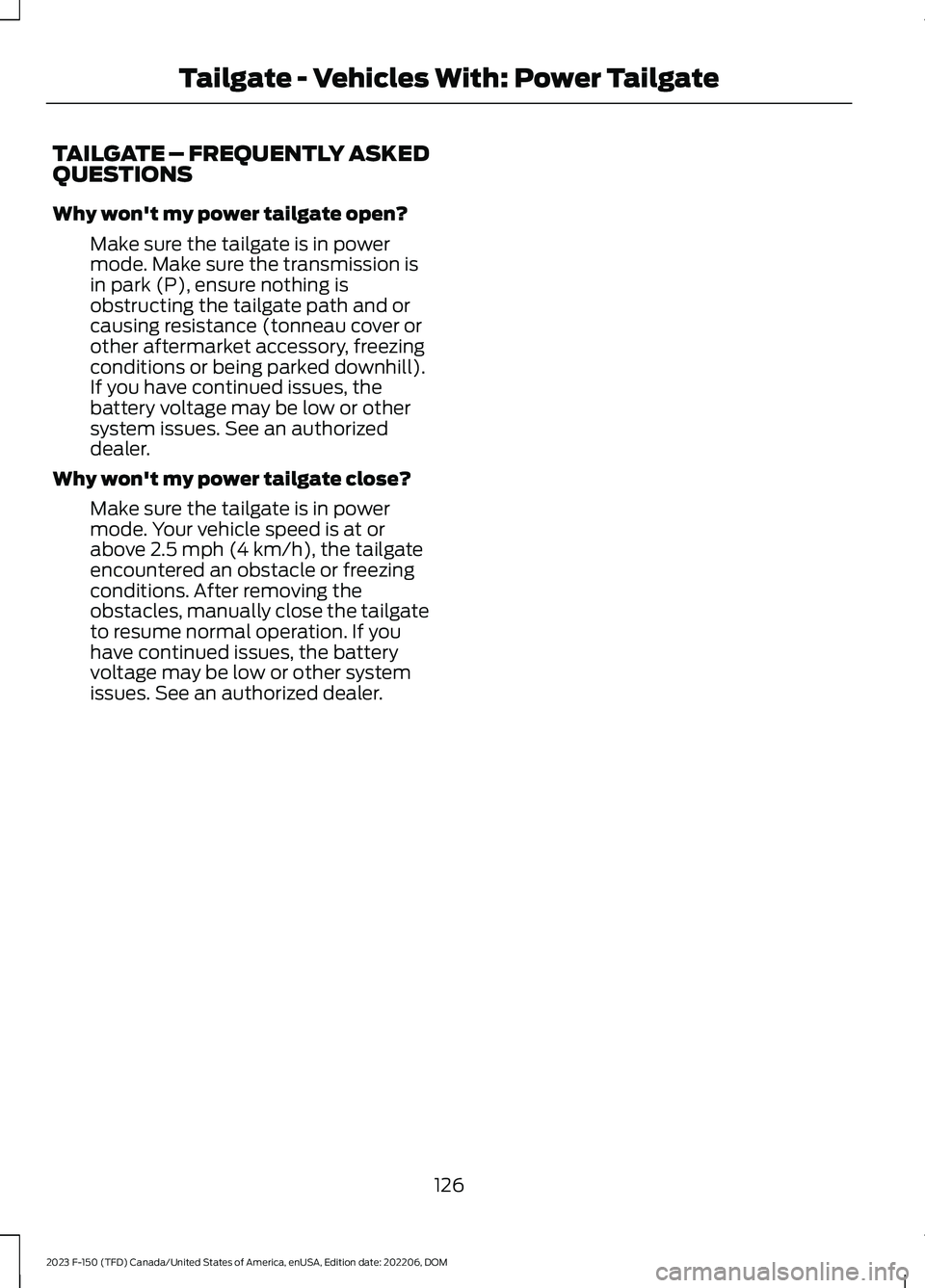

TAILGATE – FREQUENTLY ASKEDQUESTIONS
Why won't my power tailgate open?
Make sure the tailgate is in powermode. Make sure the transmission isin park (P), ensure nothing isobstructing the tailgate path and orcausing resistance (tonneau cover orother aftermarket accessory, freezingconditions or being parked downhill).If you have continued issues, thebattery voltage may be low or othersystem issues. See an authorizeddealer.
Why won't my power tailgate close?
Make sure the tailgate is in powermode. Your vehicle speed is at orabove 2.5 mph (4 km/h), the tailgateencountered an obstacle or freezingconditions. After removing theobstacles, manually close the tailgateto resume normal operation. If youhave continued issues, the batteryvoltage may be low or other systemissues. See an authorized dealer.
126
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Power Tailgate

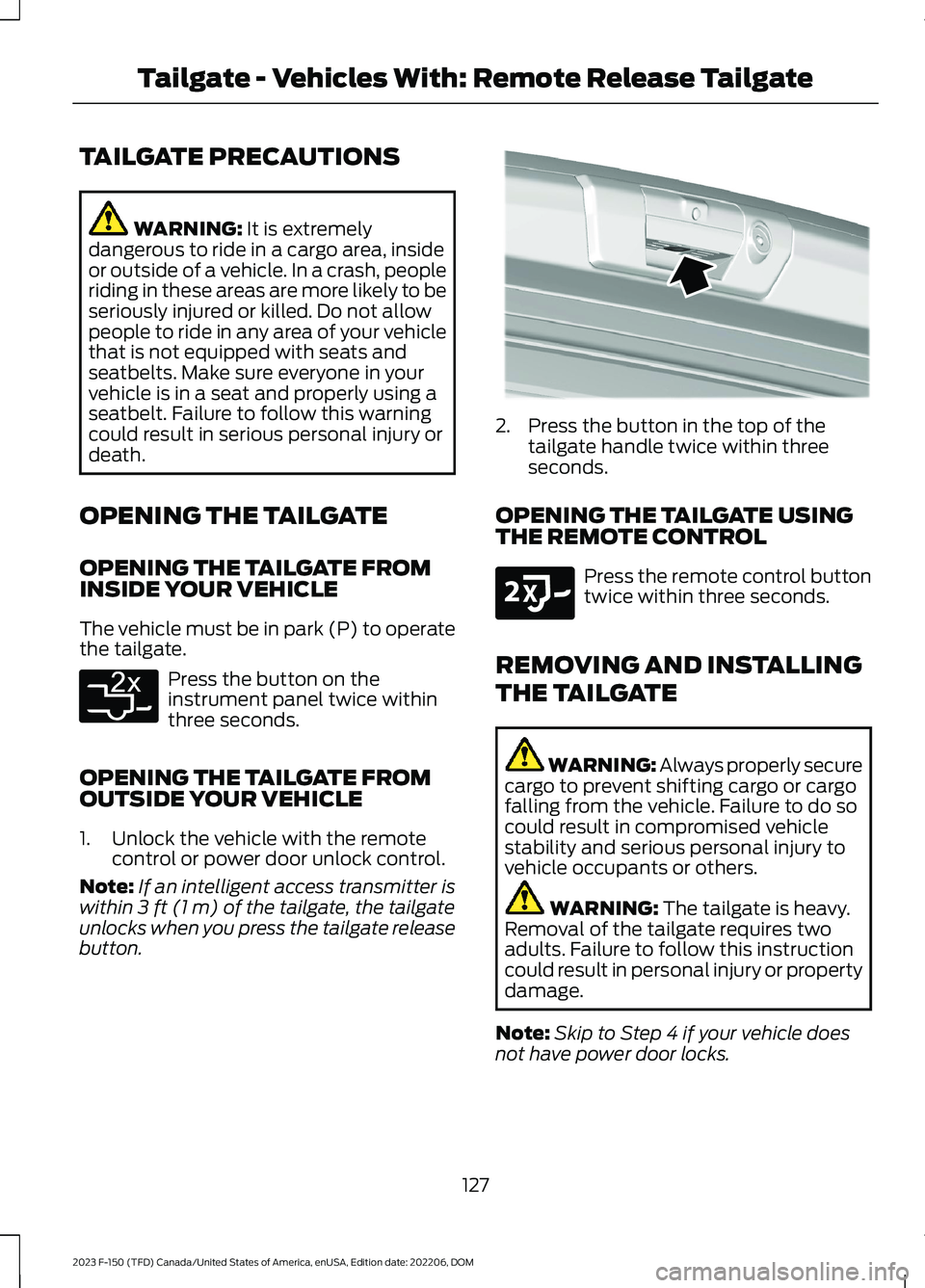

TAILGATE PRECAUTIONS
WARNING: It is extremelydangerous to ride in a cargo area, insideor outside of a vehicle. In a crash, peopleriding in these areas are more likely to beseriously injured or killed. Do not allowpeople to ride in any area of your vehiclethat is not equipped with seats andseatbelts. Make sure everyone in yourvehicle is in a seat and properly using aseatbelt. Failure to follow this warningcould result in serious personal injury ordeath.
OPENING THE TAILGATE
OPENING THE TAILGATE FROMINSIDE YOUR VEHICLE
The vehicle must be in park (P) to operatethe tailgate.
Press the button on theinstrument panel twice withinthree seconds.
OPENING THE TAILGATE FROMOUTSIDE YOUR VEHICLE
1.Unlock the vehicle with the remotecontrol or power door unlock control.
Note:If an intelligent access transmitter iswithin 3 ft (1 m) of the tailgate, the tailgateunlocks when you press the tailgate releasebutton.
2.Press the button in the top of thetailgate handle twice within threeseconds.
OPENING THE TAILGATE USINGTHE REMOTE CONTROL
Press the remote control buttontwice within three seconds.
REMOVING AND INSTALLING
THE TAILGATE
WARNING: Always properly securecargo to prevent shifting cargo or cargofalling from the vehicle. Failure to do socould result in compromised vehiclestability and serious personal injury tovehicle occupants or others.
WARNING: The tailgate is heavy.Removal of the tailgate requires twoadults. Failure to follow this instructioncould result in personal injury or propertydamage.
Note:Skip to Step 4 if your vehicle doesnot have power door locks.
127
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE369056 E346998 E191530

1.Unlatch the tailgate.
2.Disconnect the power door locks in-lineconnector. It is under the pickup boxon the right-hand side of the vehiclenear the spare tire.
3.Install a protective cap on the in-lineconnector portion that remains underthe pickup box.
Note: A protective cap should be in theglove compartment.
4.Partially lower the tailgate. Carefullyfeed the tailgate harness up throughthe gap between the pickup box andthe bumper and place it out of the wayunder the pickup box.
5.Lower the tailgate.
6.Use a screwdriver to gently pry thespring clip on each connector past thehead of the support screw. Disconnectthe cable.
7.Disconnect the other cable.
8.Lift the tailgate to 45 degrees from thehorizontal position.
9.Lift the right-hand side off its hinge.
10.Lift the tailgate to 80 degrees fromthe horizontal position.
11.Remove the tailgate from theleft-hand side hinge by sliding it tothe right.
12.Install the tailgate in reverse order.
TAILGATE STEP (IF EQUIPPED)
ACCESSING THE TAILGATE STEP
Integrated Tailgate Step
1.Lower the tailgate.
2.Push the button in the center of thestep molding. The step pops outslightly.
3.Pull the step out fully. Lower the stepto its lowest position.
128
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE189556 E311529 E187718

4.Pull the yellow handle stop backwardout of the tailgate until it fully extends.
5.To lock the handle in place, rotate thehandle up from the horizontal to thevertical position until you hear a click.
Note:Do not tow with the step or grabhandle.
Replace the slip resistance tape or grabhandle molding if it appears as worn ordamaged.
To reduce the risk of falling:
•Only operate the step when yourvehicle is on a level surface.
•Only operate the step in areas withsufficient lighting.
•Make sure you use the grab handlewhen climbing on the step.
•Do not use the step with bare feet.
•Make sure the step is clean before use.
•Keep the step load below the totalmaximum load of 350 lb (159 kg).
STOWING THE TAILGATE STEP
1.Press the yellow button on the handleto lower and then press the yellowlever at the bottom of the handle tounlock. Rotate the handle down fromthe vertical to the horizontal positionand push it into the tailgate.
2.Rotate the step up until it is horizontal,then push it back into the tailgate untilthe step is secure.
Note:Make sure to close and fully latch thestep before moving your vehicle. Do notdrive with the step or grab handle open.
Note:The power tailgate cannot close ifthe step is open. A warning messageappears and a tone sounds. After stowingthe step the power close function isrestored.
BED EXTENDER (IF EQUIPPED)
BED EXTENDER PRECAUTIONS
Note:Do not use the bed extender whendriving off road.
Note:Make sure to engage the locking pinsand knobs fully before driving your vehicle.
Note:Make sure to secure all cargo.
Note:Do not exceed 150 lb (68 kg) on thetailgate when your vehicle is moving.
Note:Do not keep the bed extender in thetailgate mode when you are not using it forrestraining cargo. Always keep the bedextender in the grocery mode or the stowedposition with the tailgate closed.
129
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE189557

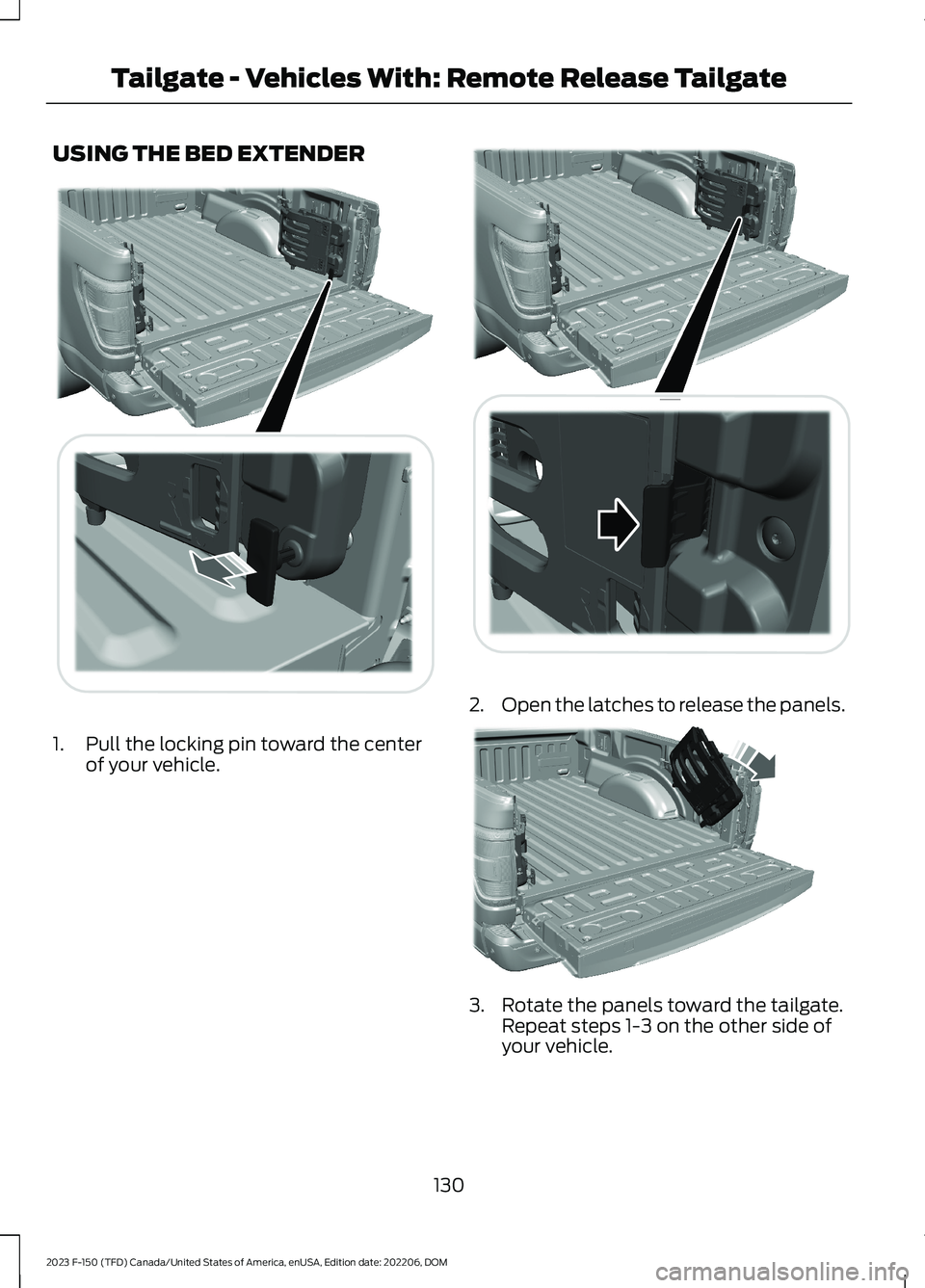

USING THE BED EXTENDER
1.Pull the locking pin toward the centerof your vehicle.
2.Open the latches to release the panels.
3.Rotate the panels toward the tailgate.Repeat steps 1-3 on the other side ofyour vehicle.
130
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE311521 E311522 ABA12203AA E311523

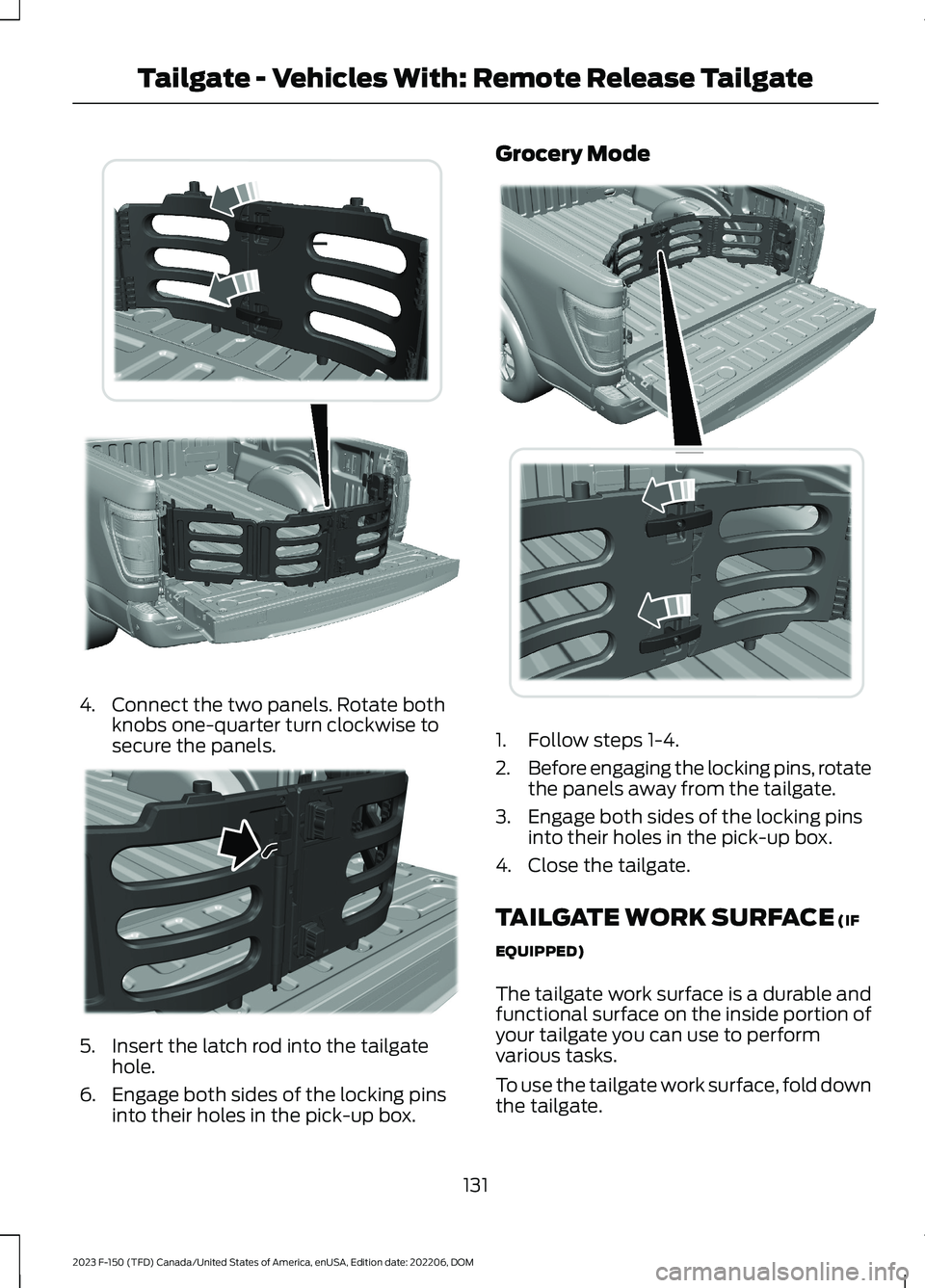

4.Connect the two panels. Rotate bothknobs one-quarter turn clockwise tosecure the panels.
5.Insert the latch rod into the tailgatehole.
6.Engage both sides of the locking pinsinto their holes in the pick-up box.
Grocery Mode
1.Follow steps 1-4.
2.Before engaging the locking pins, rotatethe panels away from the tailgate.
3.Engage both sides of the locking pinsinto their holes in the pick-up box.
4.Close the tailgate.
TAILGATE WORK SURFACE (IF
EQUIPPED)
The tailgate work surface is a durable andfunctional surface on the inside portion ofyour tailgate you can use to performvarious tasks.
To use the tailgate work surface, fold downthe tailgate.
131
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE311524 E311520 E311519

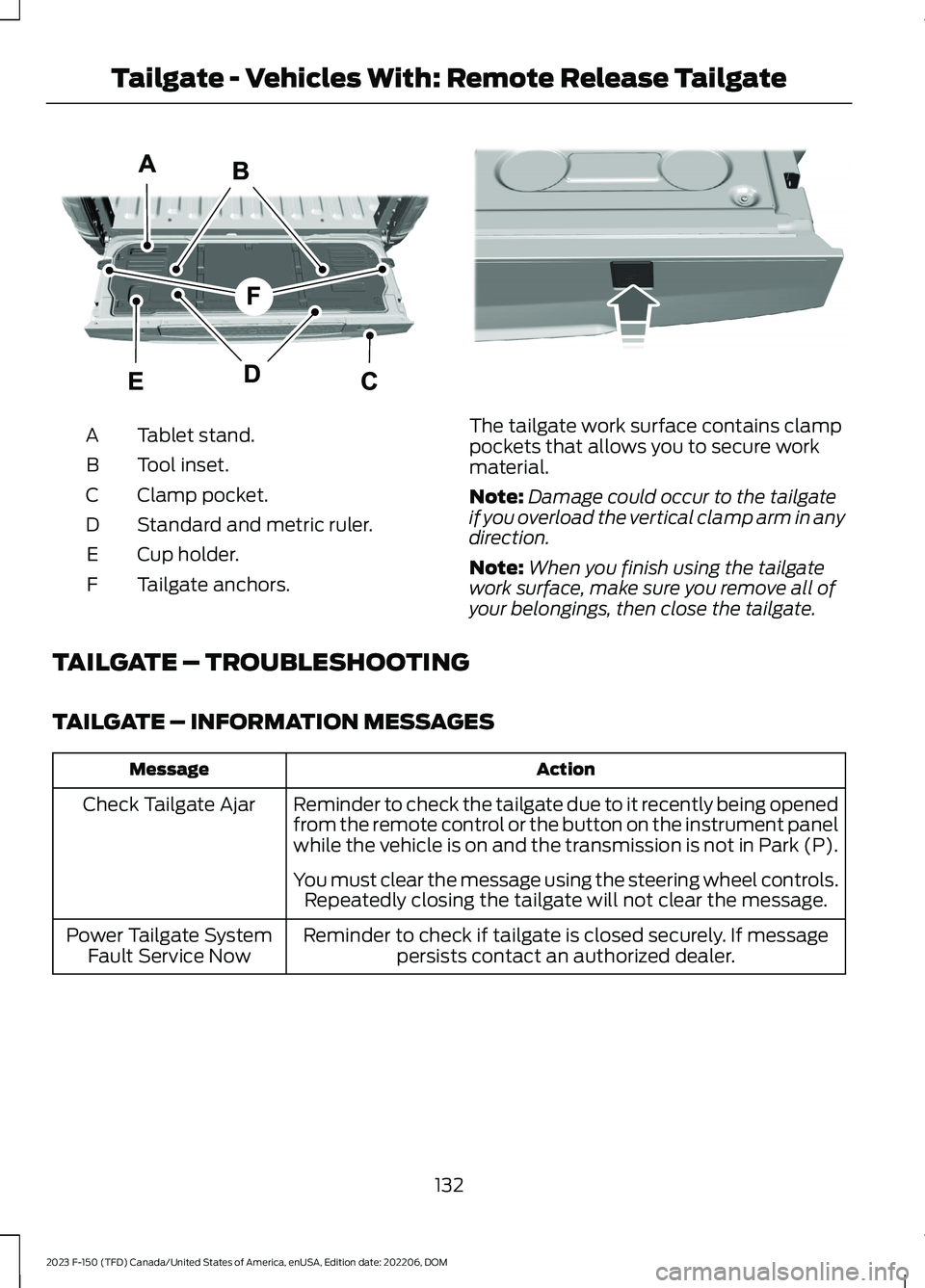

Tablet stand.A
Tool inset.B
Clamp pocket.C
Standard and metric ruler.D
Cup holder.E
Tailgate anchors.F
The tailgate work surface contains clamppockets that allows you to secure workmaterial.
Note:Damage could occur to the tailgateif you overload the vertical clamp arm in anydirection.
Note:When you finish using the tailgatework surface, make sure you remove all ofyour belongings, then close the tailgate.
TAILGATE – TROUBLESHOOTING
TAILGATE – INFORMATION MESSAGES
ActionMessage
Reminder to check the tailgate due to it recently being openedfrom the remote control or the button on the instrument panelwhile the vehicle is on and the transmission is not in Park (P).
Check Tailgate Ajar
You must clear the message using the steering wheel controls.Repeatedly closing the tailgate will not clear the message.
Reminder to check if tailgate is closed securely. If messagepersists contact an authorized dealer.Power Tailgate SystemFault Service Now
132
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTailgate - Vehicles With: Remote Release TailgateE308677 E336605
