2023 ACURA TLX Owners Manual

599
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

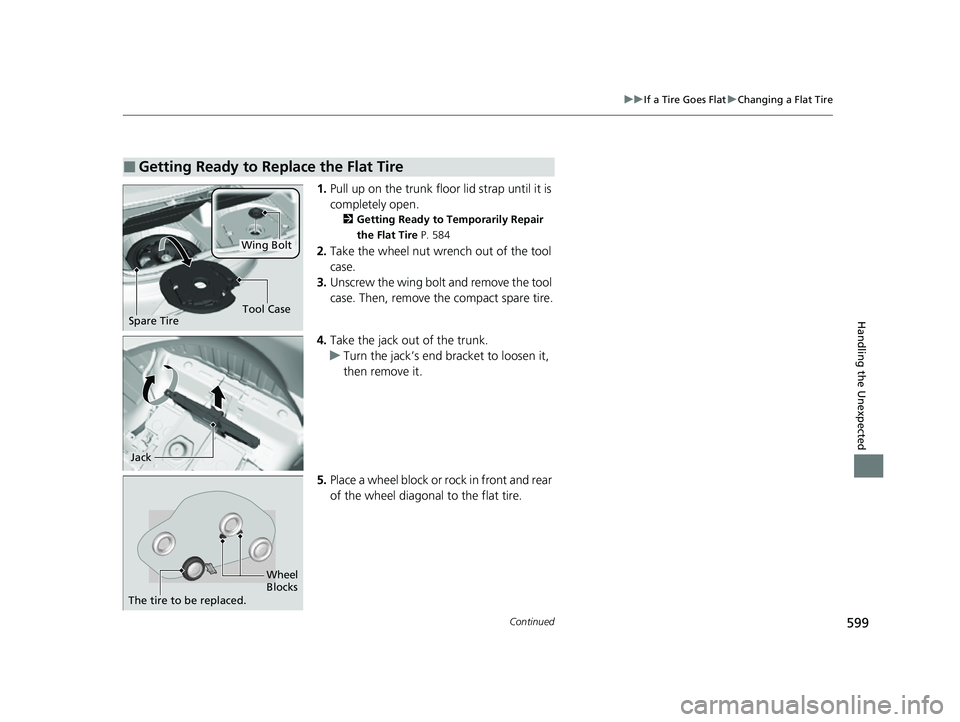

1. Pull up on the trunk floor lid strap until it is
completely open.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 584
2.Take the wheel nut wrench out of the tool
case.
3. Unscrew the wing bolt and remove the tool
case. Then, remove the compact spare tire.
4. Take the jack out of the trunk.
u Turn the jack’s end bracket to loosen it,
then remove it.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Tool CaseSpare Tire
Wing Bolt
Jack
Wheel
Blocks
The tire to be replaced.
23 ACURA TLX-31TGV6200.book 599 ページ ２０２２年８月４日　木曜日　午後１時５９分

600
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

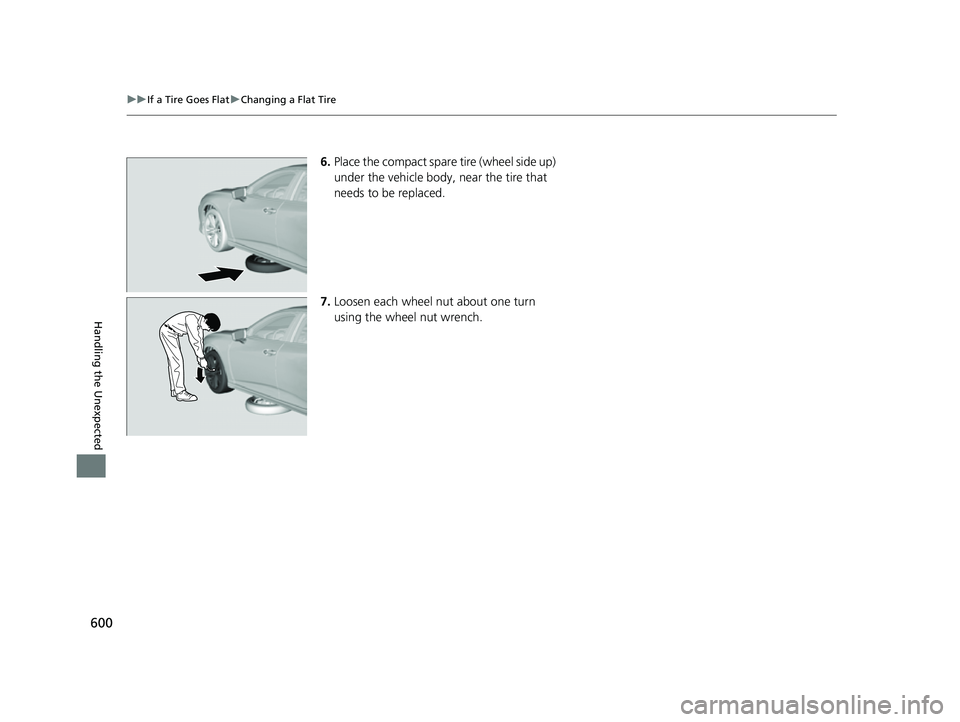

6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
23 ACURA TLX-31TGV6200.book 600 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued601
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
23 ACURA TLX-31TGV6200.book 601 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uChanging a Flat Tire
602
Handling the Unexpected
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
■Replacing the Flat Tire1 Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 ACURA TLX-31TGV6200.book 602 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued603
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around
tightening the nuts tw o to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
1. Put the flat tire in the storage bag provided
with your vehicle.
u The storage bag is in the spare tire tub.
2. Knot the top of the storage bag.
3. Securely put the wheel nut wrench and jack
handle bar back in the tool case. Store the
case and jack in the trunk.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
23 ACURA TLX-31TGV6200.book 603 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uChanging a Flat Tire
604
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor System Problem. Ch eck Tire Pressure. See Your Dealer. will
appear on the multi-information display an d the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■TPMS and the Compact Spare Tire1 TPMS and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the tire valve stem.
23 ACURA TLX-31TGV6200.book 604 ページ ２０２２年８月４日　木曜日　午後１時５９分

605
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
If you cannot start the engine after checking all the items in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an assisting vehicle or booster battery to jump start it.
2If the Battery Is Dead P. 608
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 606
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 146
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 628
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 374
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 139
2 Immobilizer System Indicator P. 91
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 97
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 628
If the problem continues:
2Emergency Towing P. 629
23 ACURA TLX-31TGV6200.book 605 ページ ２０２２年８月４日　木曜日　午後１時５９分

606
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing.
The buttons on the keyless remote should
be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACURA TLX-31TGV6200.book 606 ページ ２０２２年８月４日　木曜日　午後１時５９分
