2023 ACURA TLX navigation

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.acura.com
(U.S.) or acura.ca (Canada). If you are the firs t registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.acura.com. In
Canada, please request a copy from your Acura dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 77
Indicators P. 78 Gauges and Displays P. 97
2Controls P. 117
Clock P. 118 Locking and Unlocking the Doors P. 120
Windows P. 142 Moonroof P. 145
Seats P. 168 Interior Convenience Items P. 180
2Features P. 203
Audio System P. 204 Audio System Basic Operation P. 210
Customized Features P. 302 HomeLink® Universal Transceiver P. 326
2 Driving P. 367
Before Driving P. 368 Towing a Trailer P. 373
Parking Your Vehicle P. 494 Multi-View Rear Camera* P. 505
Turbo Engine Vehicle P. 519
2 Maintenance P. 521
Before Performing Maintenance P. 522 Maintenance MinderTM P. 525
Checking and Maintaining Wiper Blades P. 552
Climate Control System Maintenance P. 570
2Handling the Unexpected P. 581
Tools P. 582 If a Tire Goes Flat P. 583
Indicator, Coming On/Blinking P. 614 Fuses P. 622
If You Cannot Open the Trunk P. 631
2Information P. 633
Specifications P. 634 Identification Numbers P. 636
Emissions Testing P. 639 Warranty Coverages P. 642
23 ACURA TLX-31TGV6200.book 4 ページ ２０２２年８月４日　木曜日　午後１時５９分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚System Indicators
(P78)
❚Gauges (P97)
❚Multi-Information
Display
(P98)
❚Navigation System*
() See the Navigation System Manual
❚Audio/Information Screen (P214)
❚ (Vehicle Stability AssistTM (VSA ®) System
OFF) Button
(P405)
❚Parking Sensor System Button* (P497)
❚Safety Support Switch (P414, 423, 472)
❚Heated Windshield Button* (P161)
❚Brightness Control (P159)
❚Head-Up Display Buttons* (P112, 160)
❚Hazard Warning Button
❚Rear Defogger/Heated Door Mirror Button
(P161)
❚Climate Control System (P197)
❚True Touchpad Interface (P211)
❚ENGINE START/STOP Button (P146)
❚Steering Wheel Adjustments (P164)
❚Electric Parking Brake Switch (P484)
❚Trunk Opener (P136)
❚Auto Idle Stop OFF Button (P399)
❚Automatic Brake Hold Button (P489)
❚Front Seat Heater Buttons (P194)
❚Front Seat Ventilator Buttons* (P194)
23 ACURA TLX-31TGV6200.book 6 ページ ２０２２年８月４日　木曜日　午後１時５９分

7
Quick Reference Guide
❚Wipers/Washers (P157)
❚Headlights/Turn Signals (P149, 150)
❚Paddle Shifter (Shift down) (P389)
❚Paddle Shifter (Shift up) (P389)
❚Navigation System Voice Control Buttons
() See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System
Voice Control Buttons
(P 329)
❚Lane Keeping Assist System (LKAS)
Button
(P451)
❚Heated Steering Wheel Button* (P196)
❚Audio Remote Controls (P208)
❚Fog Lights* (P153)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P430)
❚Interval Button (P441)
❚Right Selector Wheel (P214, 302)
❚Horn (Press an area around .)
❚Camera Button* (P507)
* Not available on all models
23 ACURA TLX-31TGV6200.book 7 ページ ２０２２年８月４日　木曜日　午後１時５９分

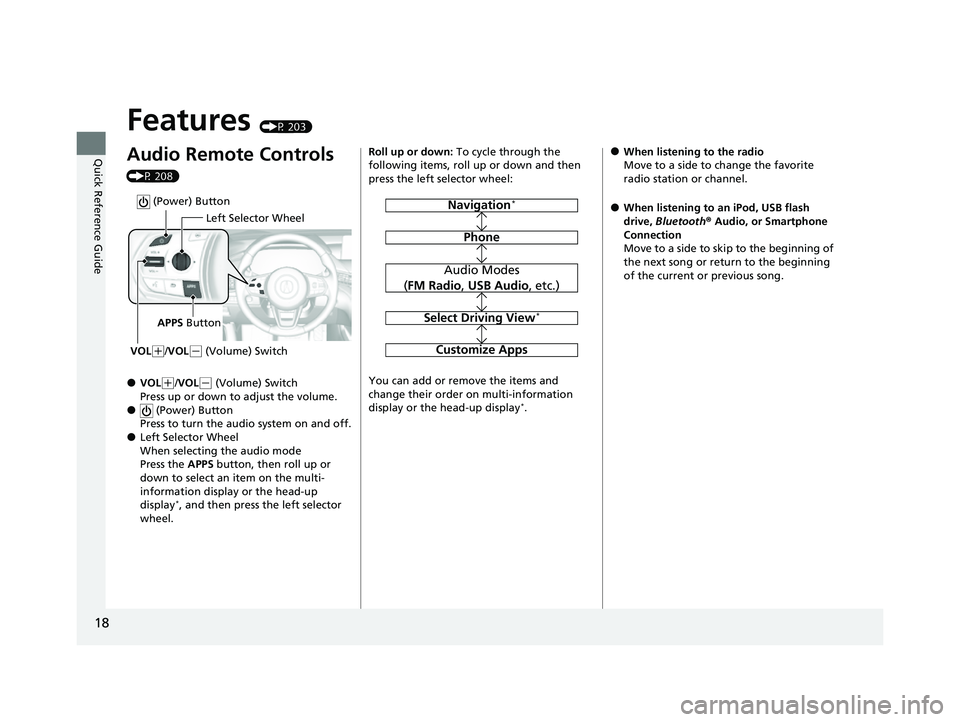

18
Quick Reference Guide
Features (P 203)
Audio Remote Controls
(P 208)
●VOL(+/VOL(- (Volume) Switch
Press up or down to adjust the volume.
● (Power) Button
Press to turn the audio system on and off.
●Left Selector Wheel
When selecting the audio mode
Press the APPS button, then roll up or
down to select an item on the multi-
information display or the head-up
display
*, and then press the left selector
wheel.
Left Selector Wheel
APPS Button
VOL
( +/VOL(- (Volume) Switch
(Power) Button
Roll up or down: To cycle through the
following items, roll up or down and then
press the left selector wheel:
You can add or remove the items and
change their order on multi-information
display or the head-up display
*.
Navigation*
Phone
Select Driving View*
Customize Apps
Audio Modes
(FM Radio , USB Audio , etc.)
●When listening to the radio
Move to a side to change the favorite
radio station or channel.
●When listening to an iPod, USB flash
drive, Bluetooth® Audio, or Smartphone
Connection
Move to a side to skip to the beginning of
the next song or retu rn to the beginning
of the current or previous song.
23 ACURA TLX-31TGV6200.book 18 ページ ２０２２年８月４日　木曜日　午後１時５９分

19
Quick Reference Guide
Audio System (P 210)
(Home) Button (Cards List) Button
(Back) Button
Audio/Information Screen
For navigation system operation
() See the Navigation System Manual
A-Zone Touchpad VOL
(Volume/Power) Knob
B-Zone Touchpad/ (Seek/Skip) Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 19 ページ ２０２２年８月４日　木曜日　午後１時５９分

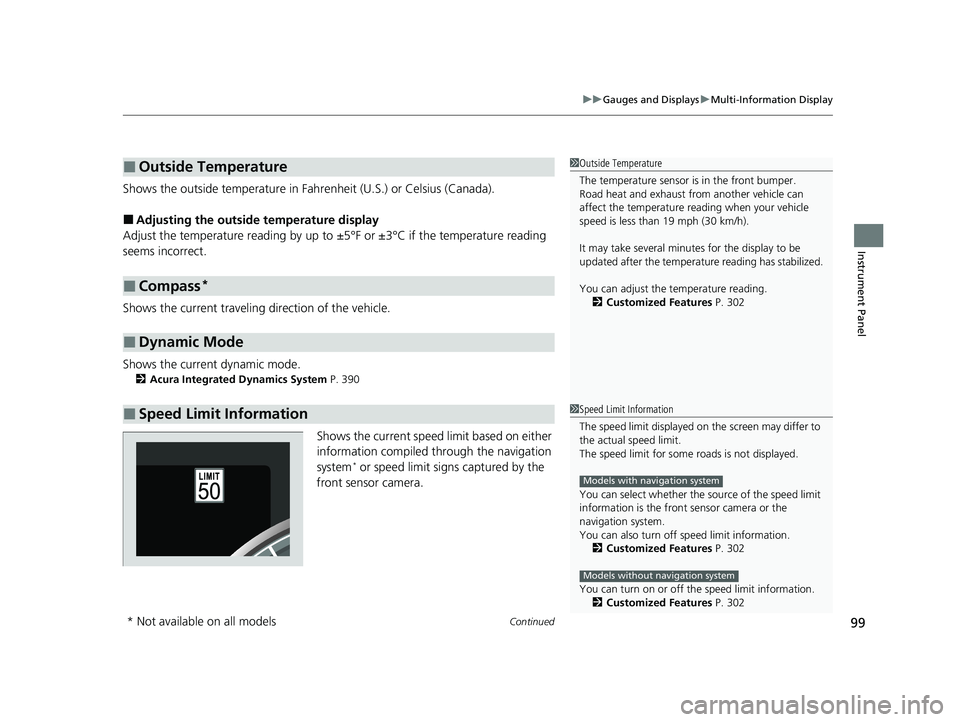

Continued99
uuGauges and Displays uMulti-Information Display
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows the current traveling direction of the vehicle.
Shows the current dynamic mode.
2 Acura Integrated Dynamics System P. 390
Shows the current speed limit based on either
information compiled through the navigation
system
* or speed limit signs captured by the
front sensor camera.
■Outside Temperature
■Compass*
■Dynamic Mode
■Speed Limit Information
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading. 2 Customized Features P. 302
1Speed Limit Information
The speed limit displayed on the screen may differ to
the actual speed limit.
The speed limit for some roads is not displayed.
You can select whether the source of the speed limit
information is the front sensor camera or the
navigation system.
You can also turn off speed limit information. 2 Customized Features P. 302
You can turn on or off th e speed limit information.
2 Customized Features P. 302
Models with navigation system
Models without navigation system
* Not available on all models
23 ACURA TLX-31TGV6200.book 99 ページ ２０２２年８月４日　木曜日　午後１時５９分

101
uuGauges and Displays uMulti-Information Display
Continued
Instrument Panel
Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
If a warning initially appear s, you can - after reading
it - press the right sele ctor wheel to proceed
immediately to the cont ent or to any other
warning(s).
Right Selector Wheel Warning Messages Trip Computer
Sport Gauge
Settings Maintenance
Navigation/
Compass
*Current Speed
Integrated Safety
Switch Driver Attention
Monitor
Minimal
Speed/Distance
Units Tire Pressure for
Each Tire
SH-AWD®
*
* Not available on all models
23 ACURA TLX-31TGV6200.book 101 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued103
uuGauges and Displays uMulti-Information Display
Instrument Panel
■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 272
■Navigation
1Average fuel economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 302
1Range
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
1 Navigation
You can cancel the drivin g guidance by pressing and
holding the right selector wheel.
A confirmation screen appe ars when Apple CarPlay
navigation route is active.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 302
2 To Change Head-Up Display Content P. 114
Turn-by-turn directions may not be available for all
apps.
* Not available on all models
23 ACURA TLX-31TGV6200.book 103 ページ ２０２２年８月４日　木曜日　午後１時５９分
