2023 ACURA TLX Owners Manual

Continued127
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds, and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicl e without using the auto lock
function.
• With the keyless remote on you, move out
of the auto lock function operation range.
• Open any door.1Locking the doors and trunk (Walk away auto lock ®)
The auto lock function does not operate when any of
the following conditions are met.
•The keyless remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and close the doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless remote is put inside the vehicle through
a window.
•You are located too close to the vehicle.
•The keyless remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
23 ACURA TLX-31TGV6200.book 127 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
128
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors,
fuel fill door and trunk lock, and the
security system sets.
Twice (within five se conds after the first
push): u Some exterior lights flash and the beeper
sounds and verifies the security system is
set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door and fuel fill door unlocks.
Twice: u Some exterior lights flash twice, and the
remaining doors and trunk unlock.
*1:
Checking Door Lock Status* P. 131
■Using the Remote Transmitter1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors, fuel fill door and trunk will automatically
relock.
You can change the relock timer setting. 2 Customized Features P. 302
You can lock or unlock doors, fuel fill door and trunk
using the remote transmitter only when the power
mode is in VEHICLE OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Remote Battery P. 568
You can customize the door unlock mode setting. 2 Customized Features P. 302
LED
Unlock
Button Lock
Button
LED*1
Unlock
Button
Lock
Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 128 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued129
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the lock or unlock button of the key less remote does not work, use the key
instead. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors, fuel fill door and trunk lock at the same
time. When unlocking, the dr iver’s door and fuel fill
door unlock first. Turn the key a second time within a
few seconds to unlock the remaining doors and
trunk.
You can customize the door unlock mode setting.
2 Customized Features P. 302
Lock
Unlock
23 ACURA TLX-31TGV6200.book 129 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
130
Controls
If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the keyless remote is inside the vehicle.
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors,
fuel fill door and trunk lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
23 ACURA TLX-31TGV6200.book 130 ページ ２０２２年８月４日　木曜日　午後１時５９分

131
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless remote from extended distances.
Press the lock button, the Amber (LEFT) LED blinks once. After th ree seconds, one of
the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the tr unk and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
remote.
When checking the door lock status, you can also
start or stop the engine.
2 Remote Engine Start
* P. 376
Red
Green
Amber
Lock Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 131 ページ ２０２２年８月４日　木曜日　午後１時５９分

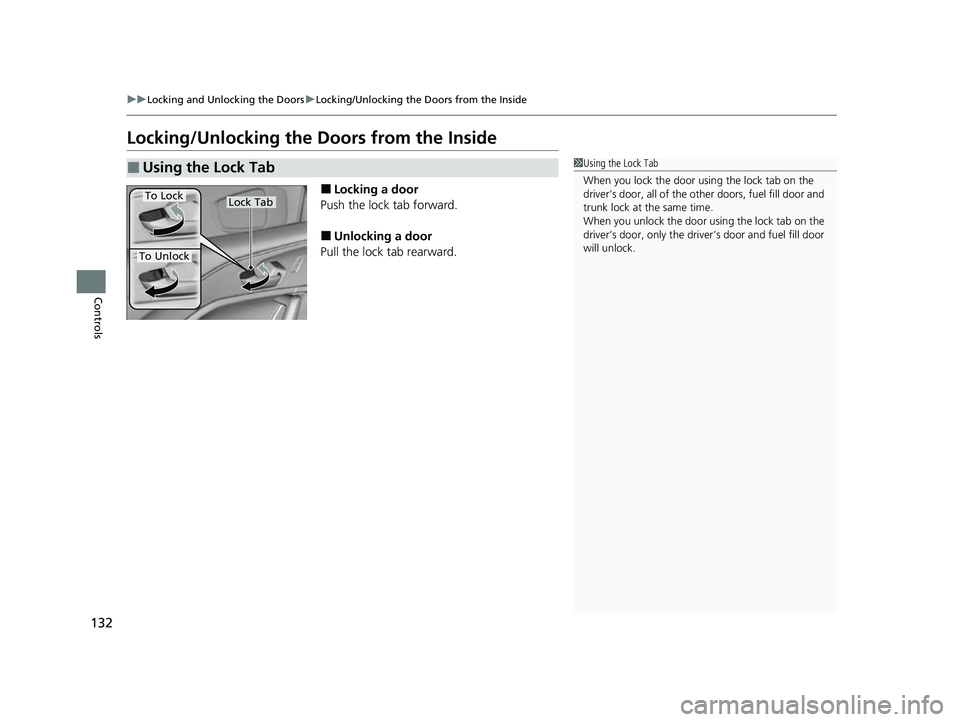

132
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the othe r doors, fuel fill door and
trunk lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driver ’s door and fuel fill door
will unlock.
To Unlock
To LockLock Tab
23 ACURA TLX-31TGV6200.book 132 ページ ２０２２年８月４日　木曜日　午後１時５９分

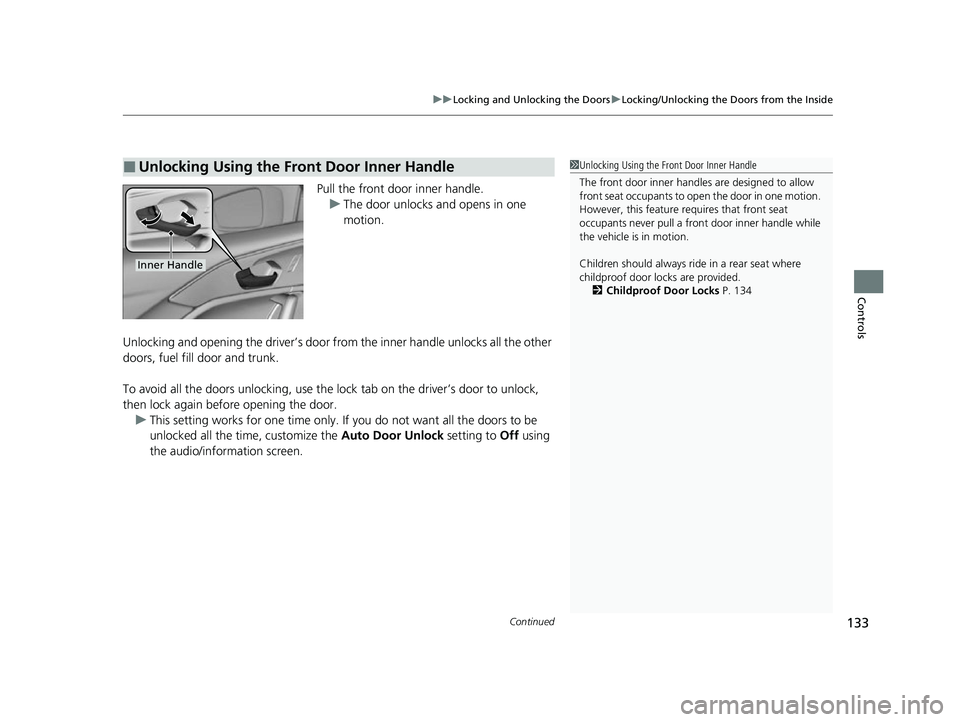

Continued133
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors, fuel fill door and trunk.
To avoid all the doors unlocking, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 134
Inner Handle
23 ACURA TLX-31TGV6200.book 133 ページ ２０２２年８月４日　木曜日　午後１時５９分

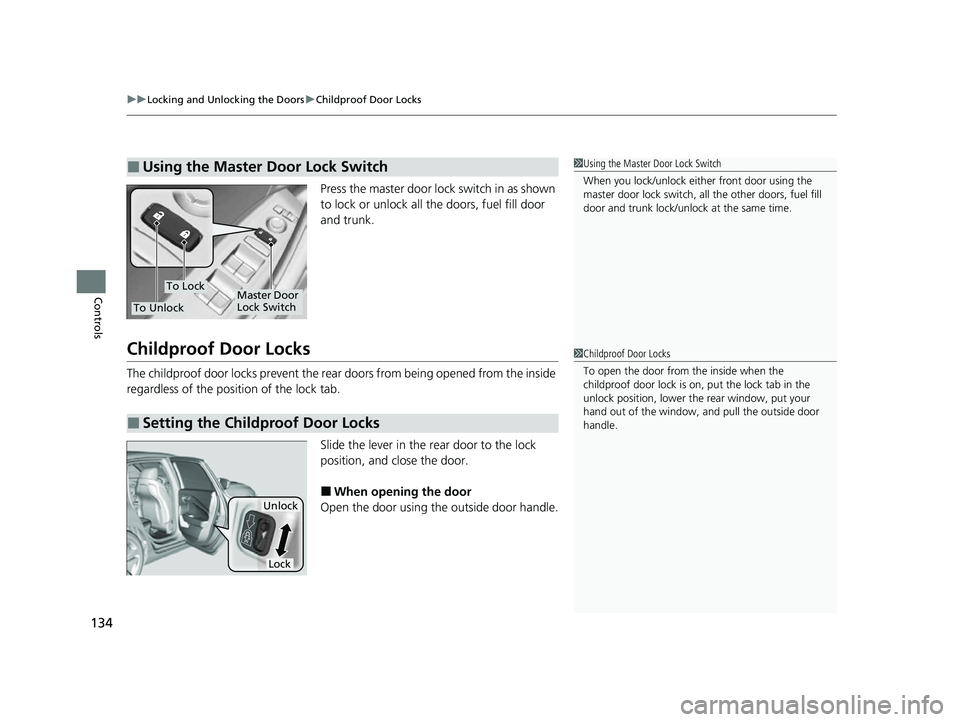

uuLocking and Unlocking the Doors uChildproof Door Locks
134
Controls
Press the master door lock switch in as shown
to lock or unlock all the doors, fuel fill door
and trunk.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors, fuel fill
door and trunk lock/unlock at the same time.
To Unlock
To LockMaster Door
Lock Switch
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
23 ACURA TLX-31TGV6200.book 134 ページ ２０２２年８月４日　木曜日　午後１時５９分
