2023 ACURA TLX Owners Manual

Continued463
uuAcuraWatchTMuTraffic Jam Assist
Driving
■When no vehicle is traveling ahead
If the vehicle detected ahead disappears from
the travel path of your vehicle (for example, it
changes lanes), Traffic Jam Assist will be
deactivated temporarily and your vehicle will
gradually accelerate until it reaches the set
speed, after which it will maintain that speed.1 How Traffic Jam Assist Works
If the vehicle detected ahead suddenly slows down,
or if another vehicle is de tected cutting in front of
yours, a warning buzzer will sound, and a warning in
the multi-information disp lay and head-up warning
*
will appear.
Depress the brake pedal and take direct control of
steering.
Beep
Head-up Warning*
The lane outlines and a vehicle
icon with a dotted-line contour
appear on the multi-
information display.
* Not available on all models
23 ACURA TLX-31TGV6200.book 463 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuAcuraWatchTMuTraffic Jam Assist
464
Driving

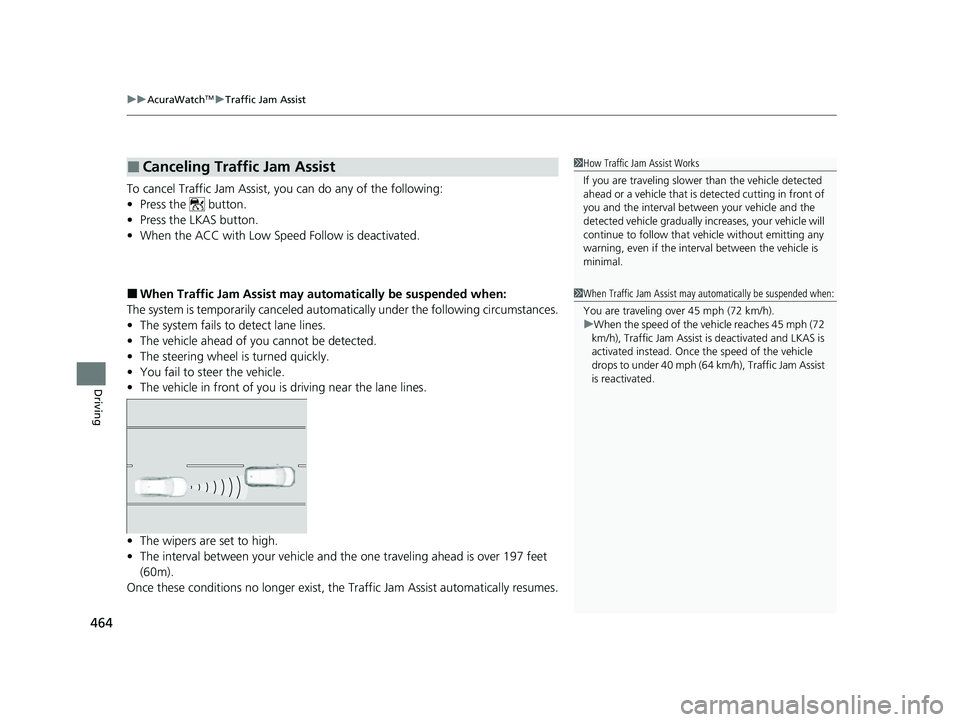

To cancel Traffic Jam Assist, yo u can do any of the following:
• Press the button.
• Press the LKAS button.
• When the ACC with Low Speed Follow is deactivated.
■When Traffic Jam Assist may au tomatically be suspended when:
The system is temporarily canceled automatically under the following circumstances.
• The system fails to detect lane lines.
• The vehicle ahead of you cannot be detected.
• The steering wheel is turned quickly.
• You fail to steer the vehicle.
• The vehicle in front of you is driving near the lane lines.
• The wipers are set to high.
• The interval between your vehicle and th e one traveling ahead is over 197 feet
(60m).
Once these conditions no longer exist, the Traffic Jam Assist automatically resumes.
■Canceling Traffic Jam Assist1How Traffic Jam Assist Works
If you are traveling slower than the vehicle detected
ahead or a vehicle that is de tected cutting in front of
you and the interval betw een your vehicle and the
detected vehicle gradually increases, your vehicle will
continue to follow that vehicle without emitting any
warning, even if the interv al between the vehicle is
minimal.
1 When Traffic Jam Assist may automatically be suspended when:
You are traveling over 45 mph (72 km/h).
u When the speed of the vehicle reaches 45 mph (72
km/h), Traffic Jam Assist is deactivated and LKAS is
activated instead. Once the speed of the vehicle
drops to under 40 mph (64 km/h), Traffic Jam Assist
is reactivated.
23 ACURA TLX-31TGV6200.book 464 ページ ２０２２年８月４日　木曜日　午後１時５９分

465
uuAcuraWatchTMuTraffic Jam Assist
Continued
Driving
■When Traffic Jam Assist may au tomatically be canceled when:
It is possible that under any of the following circumstances, broken lines
representing traffic lane lines will appear in the multi-information display, a buzzer
will sound, and Traffic Jam Assist will be canceled.
• The temperature of the camera is too high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, is dirty.
Under the following circumst ances, some features of Traffic Jam Assist may not
work.
■Vehicle conditions
• The front grille is dirty.
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the wind shield is fogged up.
• Your vehicle is fitted with tires or wheels of differing size, type, or structure, or the
tires are not properly inflated.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The interval between your vehicle and th e detected vehicle ahead of you is too
short.
• Snow chains are inst alled on the tires.
■Traffic Jam Assist: Conditions and limitations
23 ACURA TLX-31TGV6200.book 465 ページ ２０２２年８月４日　木曜日　午後１時５９分

466
uuAcuraWatchTMuTraffic Jam Assist
Driving

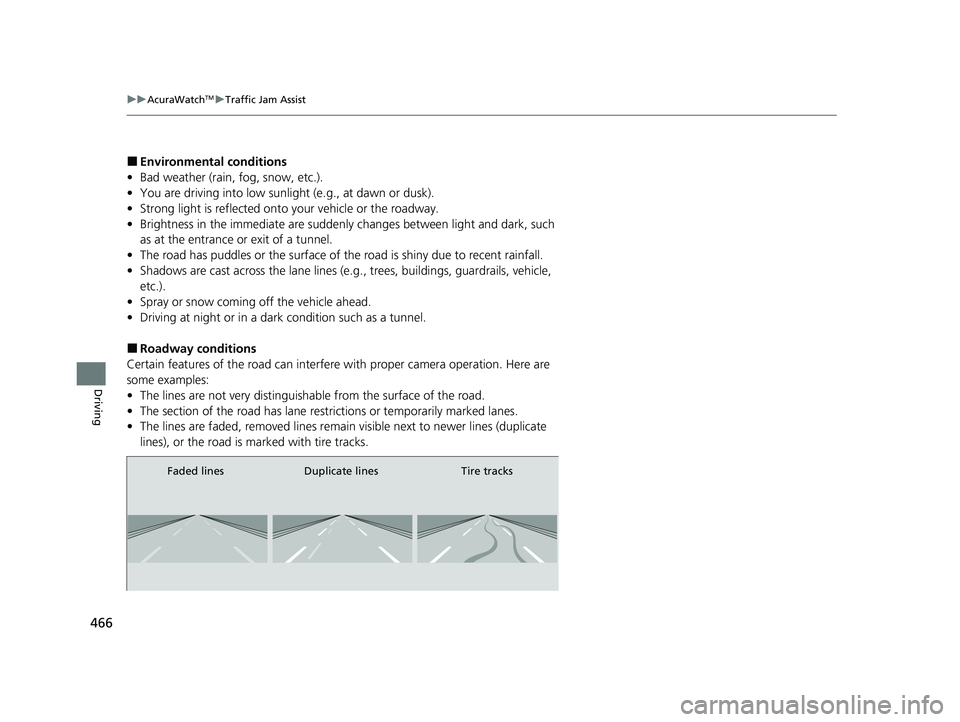

■Environmental conditions
• Bad weather (rain, fog, snow, etc.).
• You are driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto your vehicle or the roadway.
• Brightness in the immediate are suddenly changes between light and dark, such
as at the entrance or exit of a tunnel.
• The road has puddles or the surface of th e road is shiny due to recent rainfall.
• Shadows are cast across the lane lines (e .g., trees, buildings, guardrails, vehicle,
etc.).
• Spray or snow coming off the vehicle ahead.
• Driving at night or in a dark condition such as a tunnel.
■Roadway conditions
Certain features of the road can interfere with proper camera operation. Here are
some examples:
• The lines are not very distinguishable from the surface of the road.
• The section of the road has lane rest rictions or temporarily marked lanes.
• The lines are faded, removed lines remain visible next to newer lines (duplicate
lines), or the road is marked with tire tracks.
Faded lines Duplicate lines Tire tracks
23 ACURA TLX-31TGV6200.book 466 ページ ２０２２年８月４日　木曜日　午後１時５９分

467
uuAcuraWatchTMuTraffic Jam Assist
Continued
Driving
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narr ow, wide, or of inconsistent width.
• The lane lines are partly concealed by your vehicle or another vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• The vehicle is shaking cons iderably because of an uneven road surface, etc.
• Objects on the road (curb, guard rail, py lons, etc.) are recognized as white (or
yellow) lines.
• The lines appear distorted or they briefly disappear out of the camera detection
range due to an uneven road surface.
• The road is unpaved, or has a rough or bumpy surface.
• The roads has double lines.
• The surface of the road is slippery due to icy or snowy conditions.
• Sections of the paved road are obscured by puddles or snow.
• The road has ruts.
Very wide or narrow traffic lane
23 ACURA TLX-31TGV6200.book 467 ページ ２０２２年８月４日　木曜日　午後１時５９分

468
uuAcuraWatchTMuTraffic Jam Assist
Driving
• The section of the road branches off or merges with another road.
■Certain features of the road can in terfere with proper radar sensor
operation. Here are some examples:
• The road has curves, undulations, slopes, etc.
• The radar beam is reflecting off multiple items that are within close proximity of
your vehicle. This can happen when you ar e driving, for example, across a narrow
truss bridge.
Lane void of lines at exit
or interchange
23 ACURA TLX-31TGV6200.book 468 ページ ２０２２年８月４日　木曜日　午後１時５９分

469
uuAcuraWatchTMuTraffic Jam Assist
Driving
■Detection limitations
• The vehicle ahead su ddenly accelerates.
• The vehicle ahead is a panel truck or a vehicle whose shape is not of standard
dimensions.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• The ground clearance of the ve hicle ahead is unusually high.
• A vehicle suddenly cuts in front of yours.
Sensor detects upper
section of an empty
carrier truck. Panel truck,
tanker truck,
etc.
23 ACURA TLX-31TGV6200.book 469 ページ ２０２２年８月４日　木曜日　午後１時５９分

470
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
Road Departure Mitigation System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane.
2 Customized Features P. 302
As a visual alert, the Lane Departure
message appears on the multi-information
display.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking. u Braking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation System
Important Safety Reminder
Like all assistance systems, the Road Departure
Mitigation system has limitations.
Overreliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the ve hicle within your driving
lane.
The Road Departure Mitigation system only alerts you
when lane drift is detected without a turn signal in
use. The Road Departure Mitigation system may not
detect all lane markings or lane or roadway
departures; accuracy will vary based on weather,
speed and lane marker condi tion. It is always your
responsibility to sa fely operate the vehicle and avoid
collisions.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 481
The Road Departure Mitigati on system may not work
properly or may work im properly under the certain
conditions:
2 Road Departure Mitigation Conditions and
Limitations P. 473
There are times when you may not notice the Road
Departure Mitigation functions due to your operation
of the vehicle, or road surface conditions.
