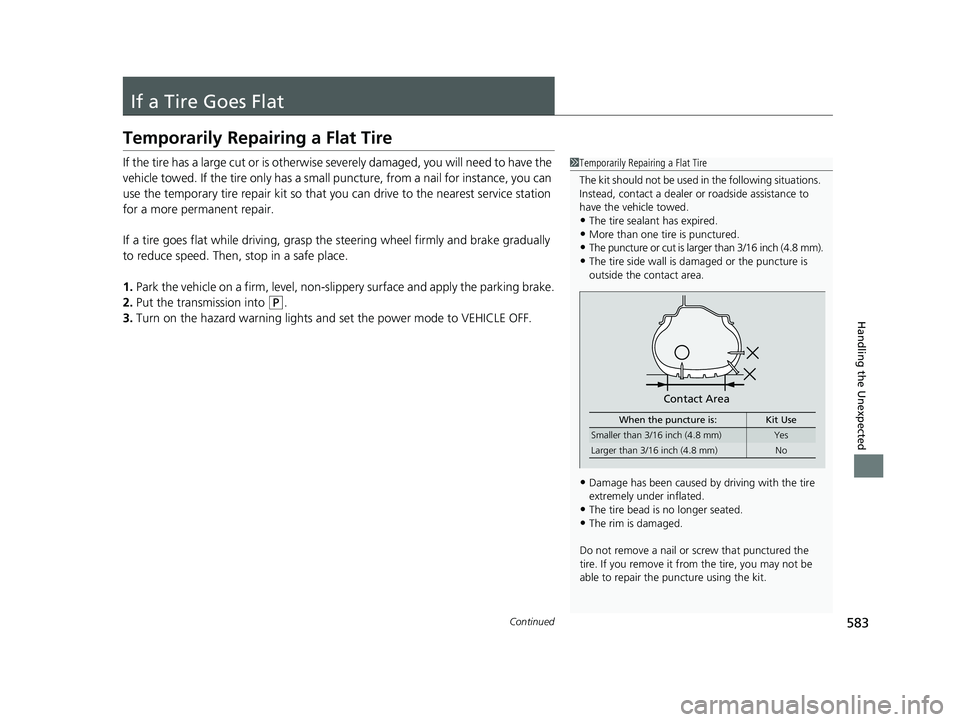

2023 ACURA TLX Owners Manual

583Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp th e steering wheel firmly and brake gradually
to reduce speed. Then, stop in a safe place.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4.8 mm).
•The tire side wall is damaged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is: Kit Use
Smaller than 3/16 inch (4.8 mm)Yes
Larger than 3/16 inch (4.8 mm) No
Contact Area
23 ACURA TLX-31TGV6200.book 583 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
584
Handling the Unexpected
*1: U.S. models
*2: Canadian models
■Getting Ready to Temporarily Repair the Flat Tire1Temporarily Repairing a Flat Tire
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
1 Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of th e temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Instruction Manual
Speed Restriction Label
Repair Notification Label Pressure Relief Button Inflator Switch
Selector Knob
REPAIR
*1,
SEALANT/AIR*2,
PRODUIT ANTIFUITE/AIR*2
Sealant/Air Hose
AIR
*1, AIR ONLY*2,
AIR SEULEMENT*2
Power Plug
Pressure Gauge
U.S. Canada
U.S. Canada
23 ACURA TLX-31TGV6200.book 584 ページ ２０２２年８月４日　木曜日　午後１時５９分

585
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

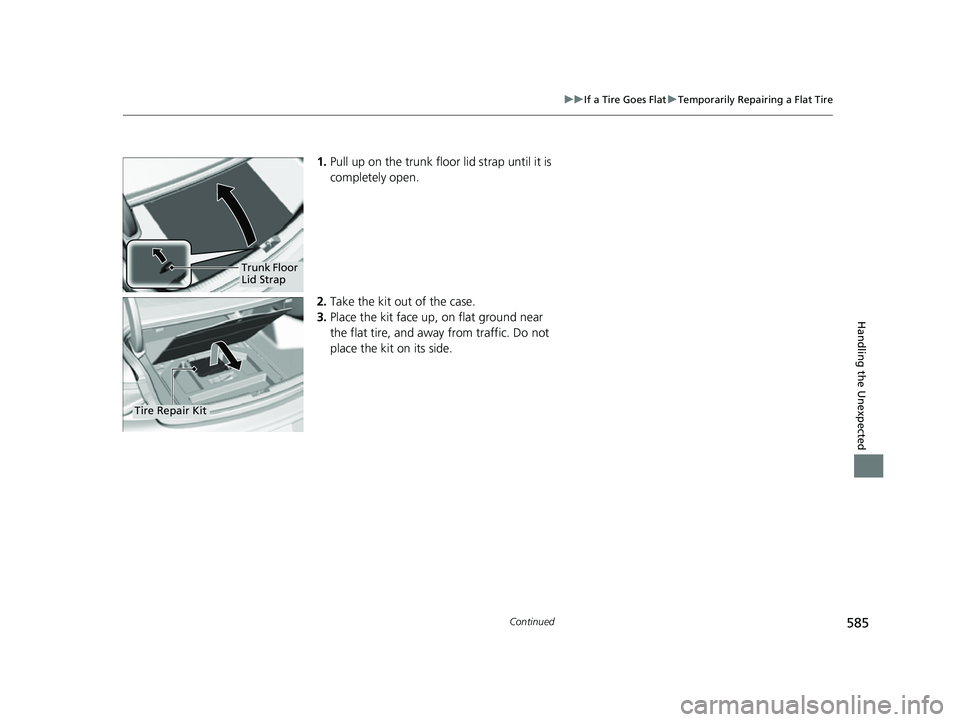

1. Pull up on the trunk floor lid strap until it is
completely open.
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Trunk Floor
Lid Strap
Tire Repair Kit
23 ACURA TLX-31TGV6200.book 585 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
586
Handling the Unexpected

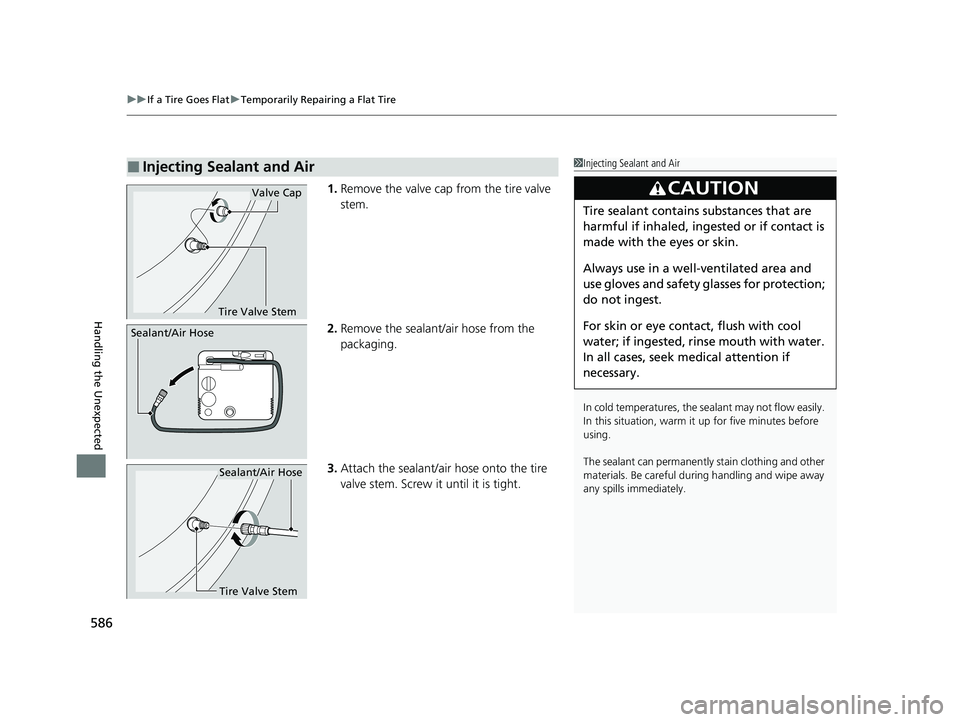

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3CAUTION
Tire sealant contains substances that are
harmful if inhaled, ingested or if contact is
made with the eyes or skin.
Always use in a well-ventilated area and
use gloves and safety glasses for protection;
do not ingest.
For skin or eye contact, flush with cool
water; if ingested, rinse mouth with water.
In all cases, seek medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/Air Hose
Tire Valve Stem
Sealant/Air Hose
23 ACURA TLX-31TGV6200.book 586 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued587
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

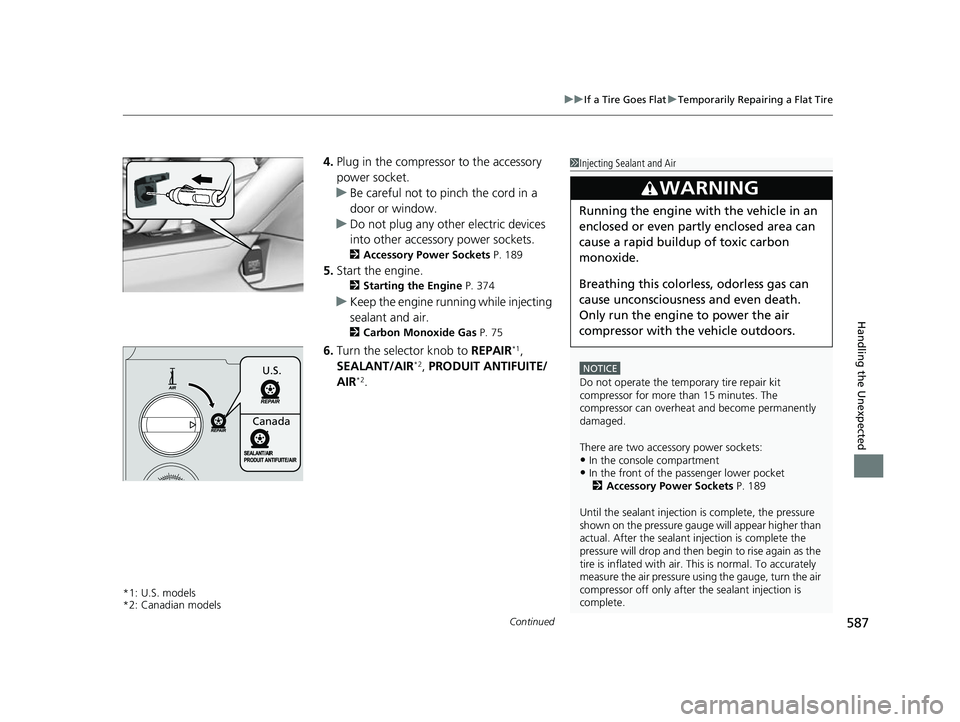

4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electric devices
into other accessory power sockets.
2 Accessory Power Sockets P. 189
5.Start the engine.
2 Starting the Engine P. 374
uKeep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 75
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the console compartment•In the front of the passenger lower pocket 2 Accessory Power Sockets P. 189
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
23 ACURA TLX-31TGV6200.book 587 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
588
Handling the Unexpected

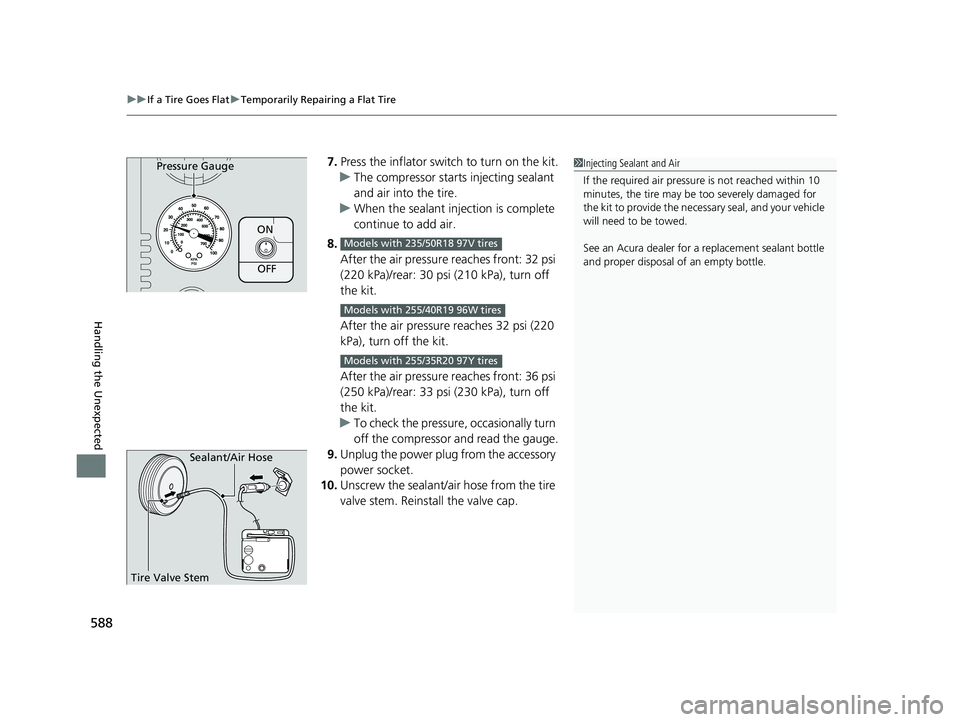

7. Press the inflator swit ch to turn on the kit.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete
continue to add air.
8. After the air pressure reaches front: 32 psi
(220 kPa)/rear: 30 psi (210 kPa), turn off
the kit.
After the air pressure reaches 32 psi (220
kPa), turn off the kit.
After the air pressure reaches front: 36 psi
(250 kPa)/rear: 33 psi (230 kPa), turn off
the kit.
u To check the pressure, occasionally turn
off the compressor and read the gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.Pressure Gauge
ON
OFF
Models with 235/50R18 97V tires
Models with 255/40R19 96W tires
Models with 255/35R20 97Y tires
1Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See an Acura dealer for a replacement sealant bottle
and proper disposal of an empty bottle.
Sealant/Air Hose
Tire Valve Stem
23 ACURA TLX-31TGV6200.book 588 ページ ２０２２年８月４日　木曜日　午後１時５９分

589
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

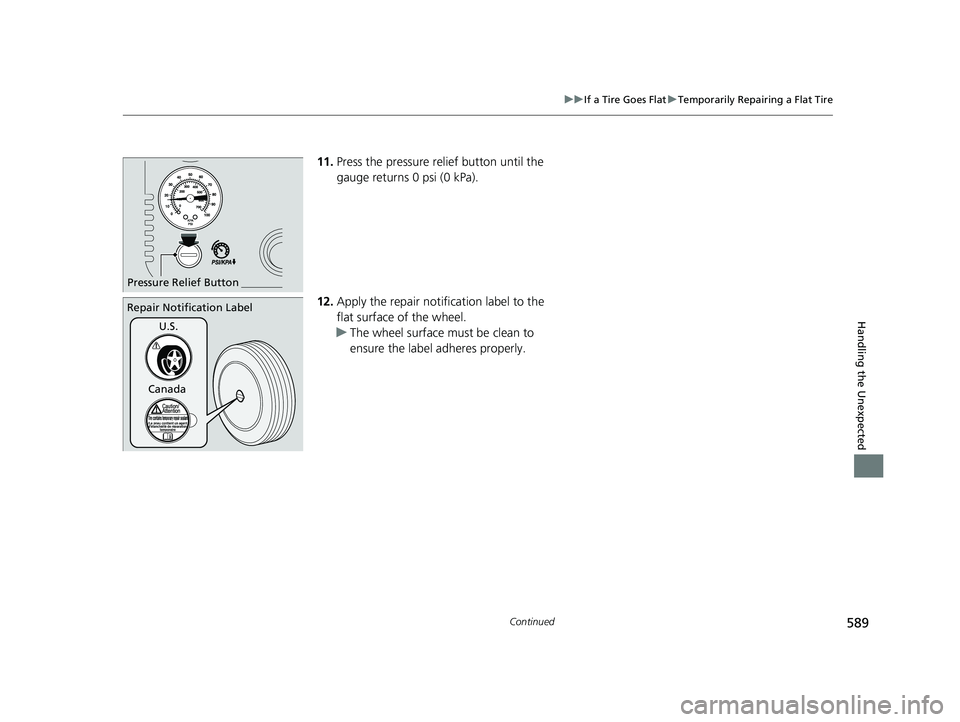

11. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
Pressure Relief Button
Repair Notification Label
U.S.
Canada
23 ACURA TLX-31TGV6200.book 589 ページ ２０２２年８月４日　木曜日　午後１時５９分

590
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

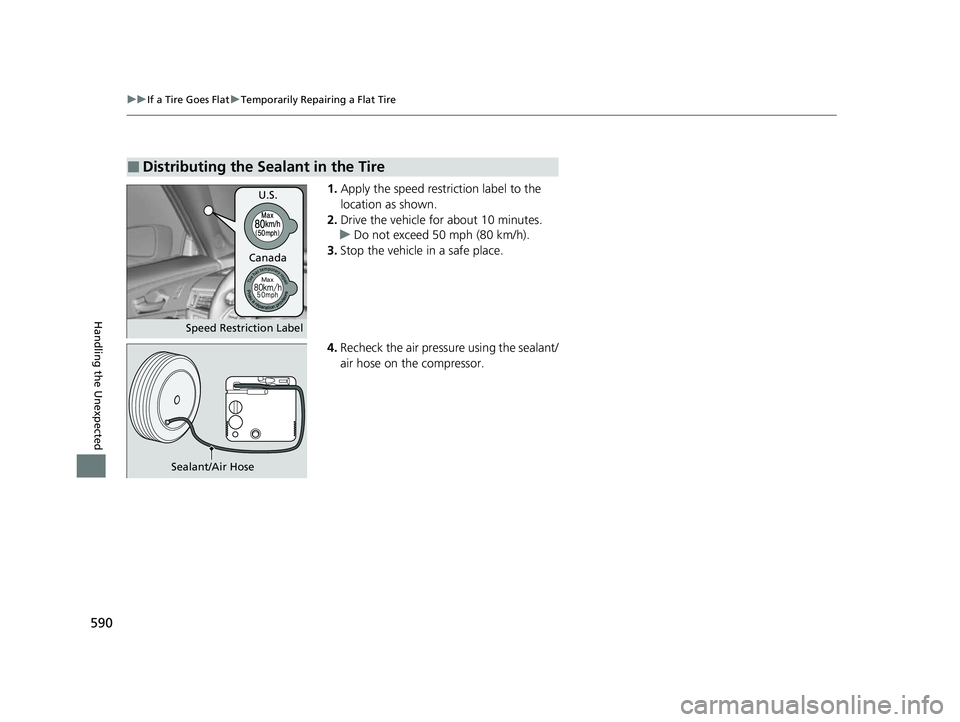

1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
4. Recheck the air pressure using the sealant/
air hose on the compressor.
■Distributing the Sealant in the Tire
Speed Restriction Label U.S.
Canada
Sealant/Air Hose
