2023 ACURA TLX Owners Manual

79
uuIndicators u
Continued
Instrument Panel
M (sequential mode)
Indicator/Gear
Selection Indicator P. 83
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada Automatic Brake
Hold System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
 P. 80*1
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
(Amber)
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator
Maintenance Minder
Indicator
System Message Indicator
Super Handling-All Wheel
DriveTM (SH-AWD
®)
System Indicator*
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist System
(LKAS) Indicator (Amber)
Safety Support Indicator
(Green/Gray)
 P. 82
 P. 82
 P. 82
 P. 83
 P. 83*1 *1

P. 89
*1
*1
Shift Position Indicator P. 83
Transmission System
Indicator P. 84
Auto Idle Stop System
Indicator (Amber)
 P. 85
 P. 87
 P. 87 
P. 88
 P. 88
 P. 90

P. 89
*1
*1
*1
 P. 89
*1 P. 88
 P. 93
*1
 P. 90
 P. 92

P. 90
Immobilizer System
Indicator P. 91
Security System Alarm
Indicator P. 91
 P. 92 
P. 92
 P. 93
 P. 96
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (White/
Green) P. 93
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) P. 93
*1 *1
*1 *1
Safety Support Indicator
(Amber)
P. 95
*1
Cruise Mode Indicator
(White/Green) P. 94
Auto Idle Stop OFF
Indicator P. 85
Auto Idle Stop Suspend
Indicator P. 86
*1
*1
Auto Idle Stop Indicator
(Green)
 P. 85
*1
*1
High Beam Indicator P. 90
Fog Light Indicator* P. 90
* Not available on all models
23 ACURA TLX-31TGV6200.book 79 ページ ２０２２年８月４日　木曜日　午後１時５９分

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on when the parking brake is
applied, and goes off wh en it is released.●The beeper sounds and th e indicator comes on if
you drive with the parking brake applied.
●Comes on for about 30 seconds when you apply
the electric parking brake while the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.
●Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.
●Comes on when the brake fluid level is low.●Comes on while driving - Make sure the parking
brake is released. Stop in a safe place and check the
brake fluid level.
2 What to do when th e indicator comes on
while driving P. 617
U.S.
Canada
(Red)
23 ACURA TLX-31TGV6200.book 80 ページ ２０２２年８月４日　木曜日　午後１時５９分

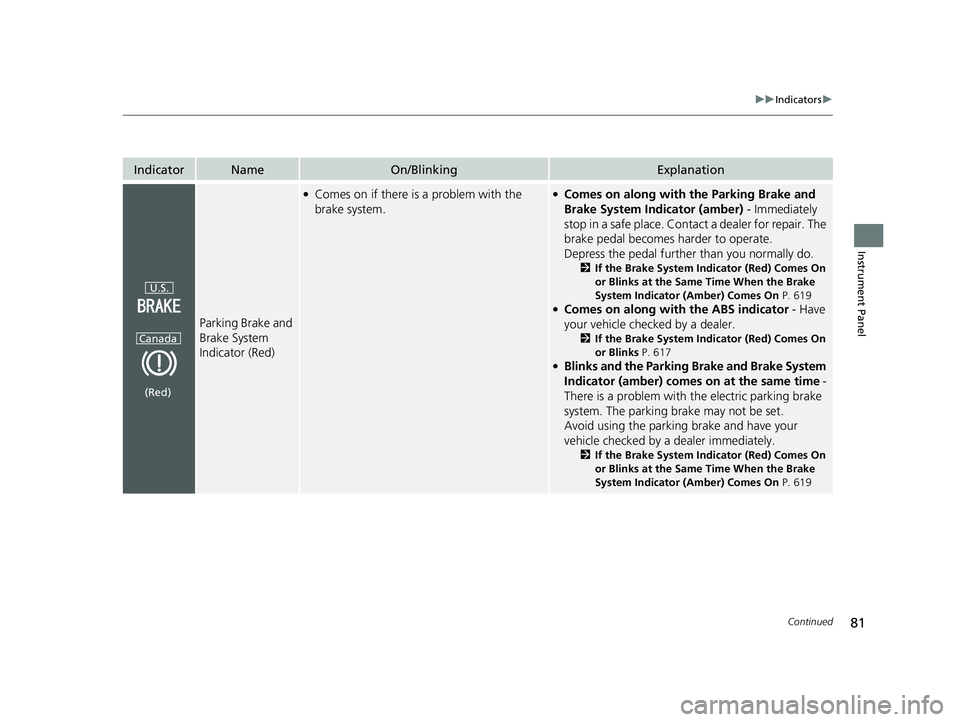

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on if there is a problem with the
brake system.●Comes on along with the Parking Brake and
Brake System Indicator (amber) - Immediately
stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally do.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 619
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator (Red) Comes On
or Blinks P. 617
●Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time -
There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parki ng brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On P. 619
U.S.
Canada
(Red)
23 ACURA TLX-31TGV6200.book 81 ページ ２０２２年８月４日　木曜日　午後１時５９分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Amber)
●Comes on if there is a problem with a system
related to braking other than the
conventional brake system.●Comes on while driving - Avoid high speeds and
sudden braking. Take the vehicle to a dealer
immediately.
●Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.●Stays on constantly - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
●Comes on if there is a problem with the
radar sensor.
●Indicator may come on temporarily when the
Maximum Load Limi t is exceeded.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 371●Stays on constantly - Have your vehicle checked
by a dealer.
Automatic Brake
Hold System
Indicator●Comes on when the automatic brake hold
system is on.
2 Automatic Brake Hold P. 489
Automatic Brake
Hold Indicator
●Comes on when the auto matic brake hold is
activated.
2 Automatic Brake Hold P. 489
U.S.
Canada
(Amber)
U.S.
Canada
23 ACURA TLX-31TGV6200.book 82 ページ ２０２２年８月４日　木曜日　午後１時５９分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
•After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will blink
five times and then go off.•Readiness codes are part of the on-board
diagnostics for the emissions control systems.
2 Testing of Readiness Codes P. 639
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine’s
cylinders is detected.
2If the Malfunction Indicator Lamp Comes On
or Blinks P. 616
Charging System
Indicator
•Comes on when there is a problem with the
charging system.•Stop in a safe place and contact a dealer
immediately.
2 Checking the Battery P. 564
2 If the Charging System Indicator Comes On
P. 615
Shift Position
Indicator• Indicates the current gear selection.
2 Shifting P. 381
M (sequential
mode) Indicator/
Gear Selection
Indicator• Comes on when the sequential mode is
applied.
2 Sequential Mode P. 388
23 ACURA TLX-31TGV6200.book 83 ページ ２０２２年８月４日　木曜日　午後１時５９分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Transmission
System Indicator
•The current gear selection blinks if the
transmission system has a problem.•Blinks while driving - Performance may be
reduced. Avoid sudden starts and acceleration and
have your vehicle checked by a dealer immediately.
• The indicated current gear selection blinks if
you cannot put the transmission into
(R due
to a transmission system failure.
• The indicated current gear selection blinks if
the transmission system has a problem and
the performance of the vehicle is reduced.
•Avoid sudden starts, sudden acceleration and high
speed, and have your vehicle checked by a dealer
immediately.
•The indicated current gear selection blinks if
the transmission system has a problem and
the paddle shifters cannot be used.•Have your vehicle checked by a dealer immediately.
•The current gear position or all the gear
positions blink if there is a problem with the
transmission and the vehicle is no longer
able to run.•Immediately park your car in a safe place.
2 Emergency Towing P. 629
•Have your vehicle checked by a dealer.
•The current gear position or all the gear
positions blink if there is a problem with the
transmission and it is not possible to select
(P.
•Depending on the circumstances, you can set the
power mode to ON as an emergency measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 621
•While the vehicle is stop ped, apply the parking
brake.
• Have your vehicle checked by a dealer immediately.
23 ACURA TLX-31TGV6200.book 84 ページ ２０２２年８月４日　木曜日　午後１時５９分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2Auto Idle Stop P. 397
Auto Idle Stop
OFF Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
system OFF button.
2Auto Idle Stop System ON/OFF P. 399
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto Idle
Stop system.●Blinks - Have your vehicle checked by a dealer.
23 ACURA TLX-31TGV6200.book 85 ページ ２０２２年８月４日　木曜日　午後１時５９分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator
●Comes on while Auto Idle Stop is temporarily
suspended in the following situations.—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2Auto Idle Stop P. 397-System charging is prioritized
-Climate control system is prioritized
-Engine coolant temperature is not in
operating range
-The Integrated Dynamics System mode is in
SPORT , SPORT+* or INDIVIDUAL mode
(when the Auto Idle Stop setting is set to
Disable ).2Auto Idle Stop P. 397
2 Customizing the INDIVIDUAL Settings P. 395
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
2 Auto Idle Stop P. 397
—
●If you press and hold the Auto Idle Stop OFF
button, you can select whether to display the status
messages or not.
* Not available on all models
