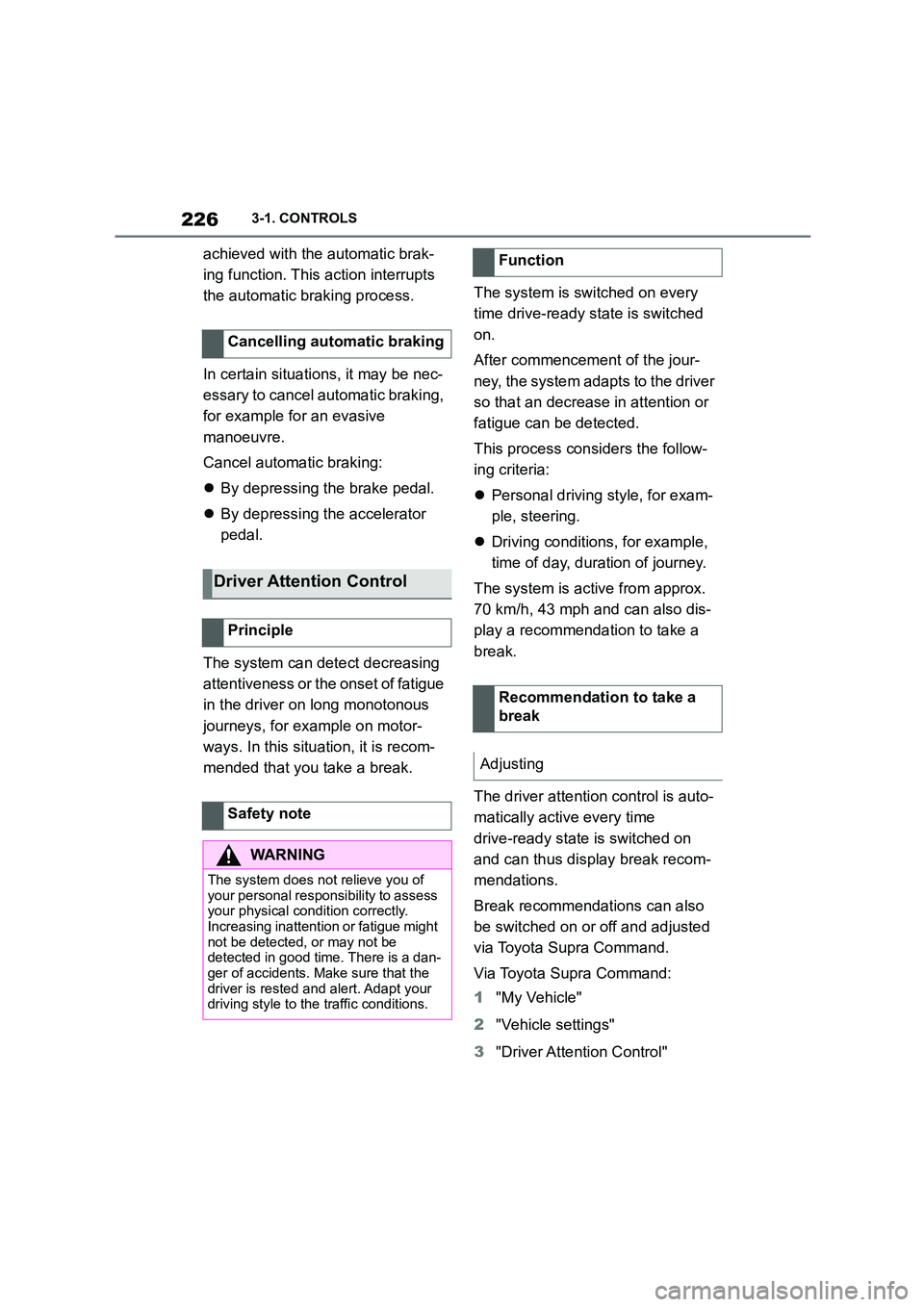

2263-1. CONTROLS
achieved with the automatic brak-
ing function. This action interrupts
the automatic braking process.
In certain situations, it may be nec-
essary to cancel automatic braking,
for example for an evasive
manoeuvre.
Cancel automatic braking:
 By depressing the brake pedal.
 By depressing the accelerator
pedal.
The system can det ect decreasing
attentiveness or the onset of fatigue
in the driver on long monotonous
journeys, for example on motor-
ways. In this situation, it is recom-
mended that you take a break.
The system is switched on every
time drive-ready state is switched
on.
After commencement of the jour-
ney, the system adapts to the driver
so that an decrease in attention or
fatigue can be detected.
This process considers the follow-
ing criteria:
 Personal driving style, for exam-
ple, steering.
 Driving conditions, for example,
time of day, duration of journey.
The system is active from approx.
70 km/h, 43 mph and can also dis-
play a recommendation to take a
break.
The driver attention control is auto-
matically active every time
drive-ready state is switched on
and can thus display break recom-
mendations.
Break recommendations can also
be switched on or off and adjusted
via Toyota Supra Command.
Via Toyota Supra Command:
1 "My Vehicle"
2 "Vehicle settings"
3 "Driver Attention Control"
Cancelling automatic braking
Driver Attention Control
Principle
Safety note
WA R N I N G
The system does not relieve you of
your personal responsibility to assess your physical condition correctly.
Increasing inattention or fatigue might
not be detected, or may not be detected in good time. There is a dan-
ger of accidents. Make sure that the
driver is rested and alert. Adapt your driving style to the traffic conditions.
Function
Recommendation to take a
break
Adjusting

227
3
3-1. CONTROLS
CONTROLS
4 Select the desired setting:
 “Off”: no break recommendation
is given.
 “Standard”: the break recom-
mendation is given with a
defined value.
 “Sensitive”: the break recom-
mendation is given earlier.
If the driver shows signs of
decreasing attention or of fatigue, a
message is shown on the Control
Display with the recommendation to
take a break.
The following settings can be
selected during the display:
 "Do not ask again"
 "Places to stop"
 "Remind me later"
The break recommendation is repeated
after 20 minutes.
After a break, another break recom-
mendation cannot be displayed
until after approximately 45 minutes
at the earliest.
The system may have limited func-
tionality in situations such as the
following and an incorrect warning,
or no warning at all, may be output:
 If the time is set incorrectly.
 When the speed is predomi-
nantly below approx. 70 km/h, 43
mph.
 If a sporty driving style is
adopted, for example sharp
acceleration or fast cornering.
 In active driving situations, for
example frequent lane changes.
 In poor road conditions.
 In strong crosswinds.
The system is reset approximately
45 minutes after the vehicle is
stopped, for example when taking a
break during a long motorway jour-
ney.
Display
System limits

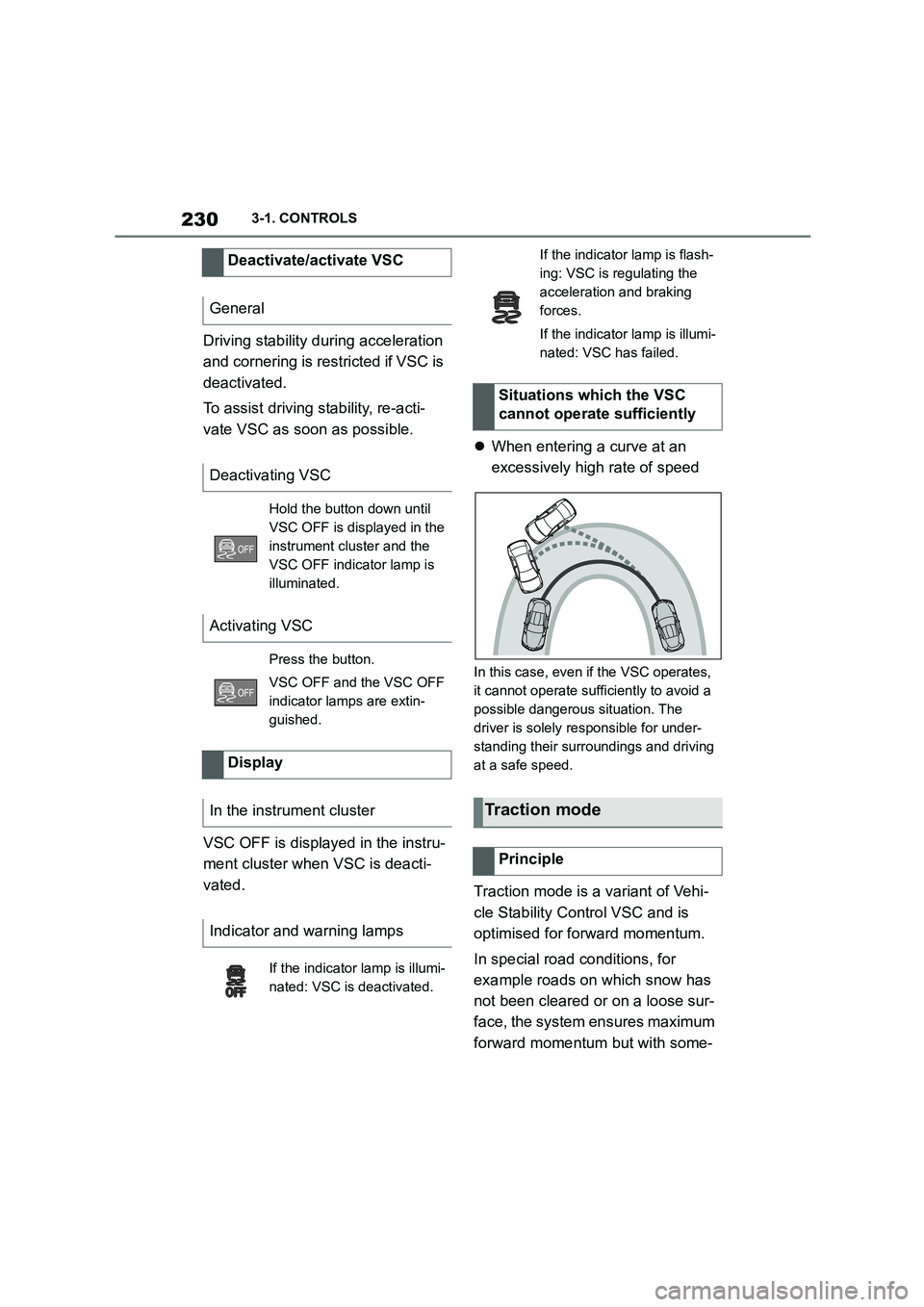

2303-1. CONTROLS
Driving stability during acceleration
and cornering is rest ricted if VSC is
deactivated.
To assist driving stability, re-acti-
vate VSC as soon as possible.
VSC OFF is displayed in the instru-
ment cluster when VSC is deacti-
vated.
 When entering a curve at an
excessively high rate of speed
In this case, even if the VSC operates,
it cannot operate sufficiently to avoid a
possible dangerous situation. The
driver is solely responsible for under-
standing their surroundings and driving
at a safe speed.
Traction mode is a variant of Vehi-
cle Stability Control VSC and is
optimised for forward momentum.
In special road conditions, for
example roads on which snow has
not been cleared or on a loose sur-
face, the system ensures maximum
forward momentum but with some-
Deactivate/activate VSC
General
Deactivating VSC
Hold the button down until
VSC OFF is displayed in the
instrument cluster and the
VSC OFF indicator lamp is
illuminated.
Activating VSC
Press the button.
VSC OFF and the VSC OFF
indicator lamps are extin-
guished.
Display
In the instrument cluster
Indicator and warning lamps
If the indicator lamp is illumi-
nated: VSC is deactivated.
If the indicator lamp is flash-
ing: VSC is regulating the
acceleration and braking
forces.
If the indicator lamp is illumi-
nated: VSC has failed.
Situations which the VSC
cannot operate sufficiently
Traction mode
Principle

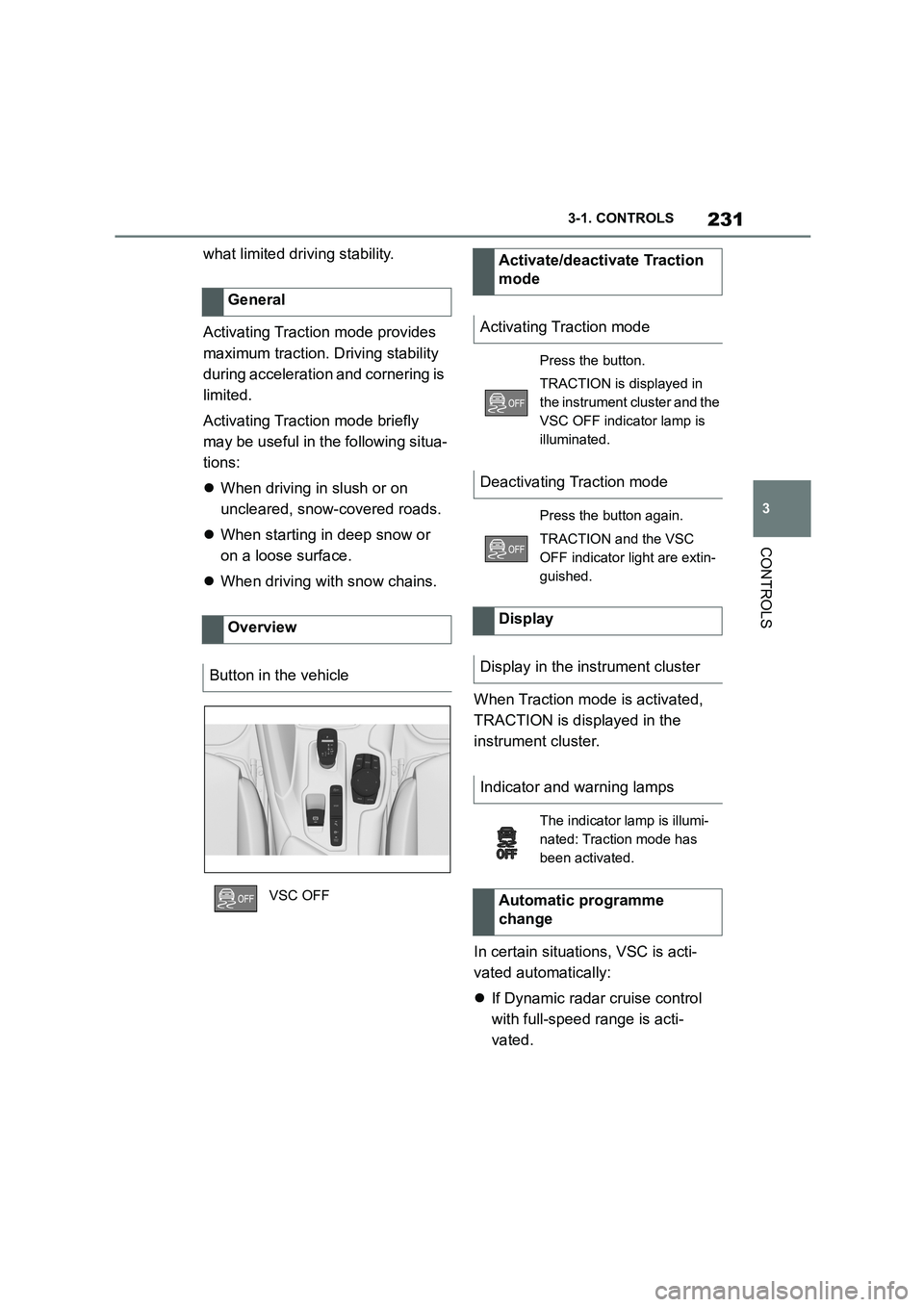

231
3
3-1. CONTROLS
CONTROLS
what limited driving stability.
Activating Traction mode provides
maximum traction. Driving stability
during acceleration and cornering is
limited.
Activating Traction mode briefly
may be useful in the following situa-
tions:
 When driving in slush or on
uncleared, snow-covered roads.
 When starting in deep snow or
on a loose surface.
 When driving with snow chains.
When Traction mode is activated,
TRACTION is displayed in the
instrument cluster.
In certain situations, VSC is acti-
vated automatically:
 If Dynamic radar cruise control
with full-speed range is acti-
vated.
General
Overview
Button in the vehicle
VSC OFF
Activate/deactivate Traction
mode
Activating Traction mode
Press the button.
TRACTION is displayed in
the instrument cluster and the
VSC OFF indicator lamp is
illuminated.
Deactivating Traction mode
Press the button again.
TRACTION and the VSC
OFF indicator light are extin-
guished.
Display
Display in the instrument cluster
Indicator and warning lamps
The indicator lamp is illumi-
nated: Traction mode has
been activated.
Automatic programme
change

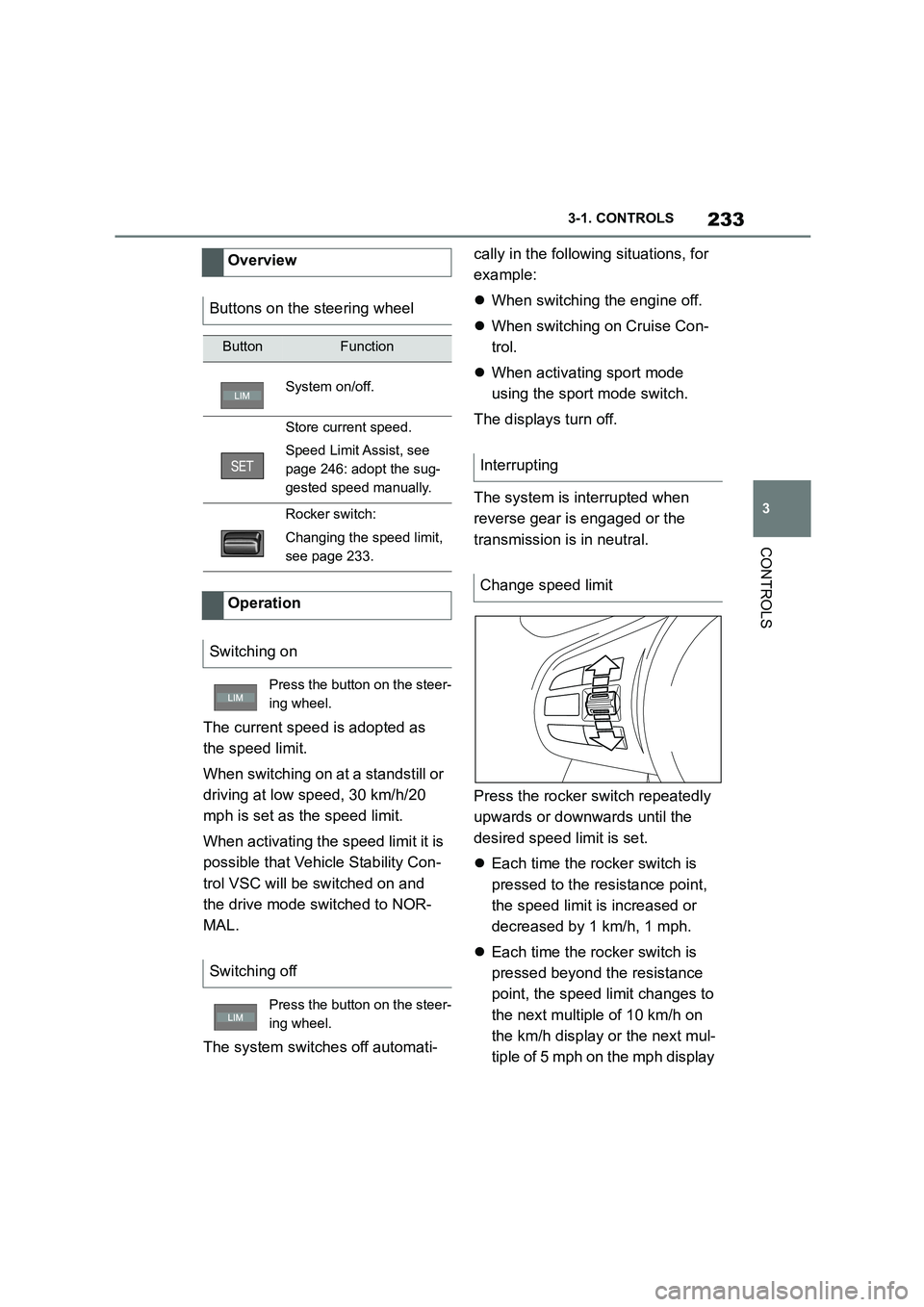

233
3
3-1. CONTROLS
CONTROLS
The current speed is adopted as
the speed limit.
When switching on at a standstill or
driving at low speed, 30 km/h/20
mph is set as the speed limit.
When activating the speed limit it is
possible that Vehicle Stability Con-
trol VSC will be switched on and
the drive mode switched to NOR-
MAL.
The system switches off automati-
cally in the followi ng situations, for
example:
 When switching the engine off.
 When switching on Cruise Con-
trol.
 When activating sport mode
using the sport mode switch.
The displays turn off.
The system is interrupted when
reverse gear is engaged or the
transmission is in neutral.
Press the rocker switch repeatedly
upwards or downwards until the
desired speed limit is set.
 Each time the rocker switch is
pressed to the resistance point,
the speed limit is increased or
decreased by 1 km/h, 1 mph.
 Each time the rocker switch is
pressed beyond the resistance
point, the speed limit changes to
the next multiple of 10 km/h on
the km/h display or the next mul-
tiple of 5 mph on the mph display
Overview
Buttons on the steering wheel
ButtonFunction
System on/off.
Store current speed.
Speed Limit Assist, see
page 246: adopt the sug-
gested speed manually.
Rocker switch:
Changing the speed limit,
see page 233.
Operation
Switching on
Press the button on the steer-
ing wheel.
Switching off
Press the button on the steer-
ing wheel.
Interrupting
Change speed limit

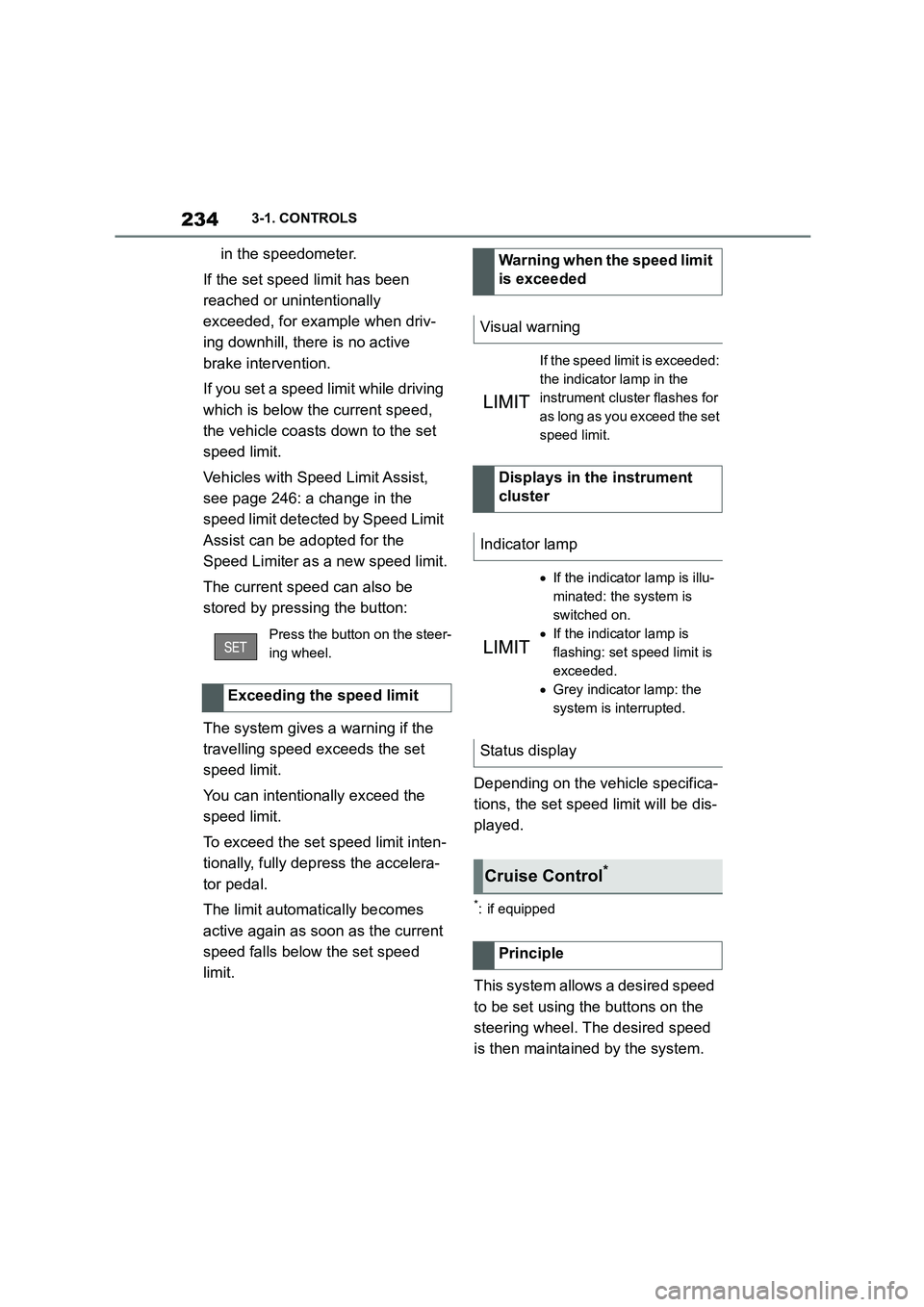

2343-1. CONTROLS
in the speedometer.
If the set speed limit has been
reached or unintentionally
exceeded, for example when driv-
ing downhill, ther e is no active
brake intervention.
If you set a speed limit while driving
which is below the current speed,
the vehicle coasts down to the set
speed limit.
Vehicles with Speed Limit Assist,
see page 246: a change in the
speed limit detected by Speed Limit
Assist can be adopted for the
Speed Limiter as a new speed limit.
The current speed can also be
stored by pressing the button:
The system gives a warning if the
travelling speed exceeds the set
speed limit.
You can intentionally exceed the
speed limit.
To exceed the set speed limit inten-
tionally, fully depress the accelera-
tor pedal.
The limit automatically becomes
active again as soon as the current
speed falls below the set speed
limit.
Depending on the vehicle specifica-
tions, the set speed limit will be dis-
played.
*: if equipped
This system allows a desired speed
to be set using the buttons on the
steering wheel. The desired speed
is then maintained by the system.
Press the button on the steer-
ing wheel.
Exceeding the speed limit
Warning when the speed limit
is exceeded
Visual warning
If the speed limit is exceeded:
the indicator lamp in the
instrument cluster flashes for
as long as you exceed the set
speed limit.
Displays in the instrument
cluster
Indicator lamp
 If the indicator lamp is illu-
minated: the system is
switched on.
 If the indicator lamp is
flashing: set speed limit is
exceeded.
 Grey indicator lamp: the
system is interrupted.
Status display
Cruise Control*
Principle

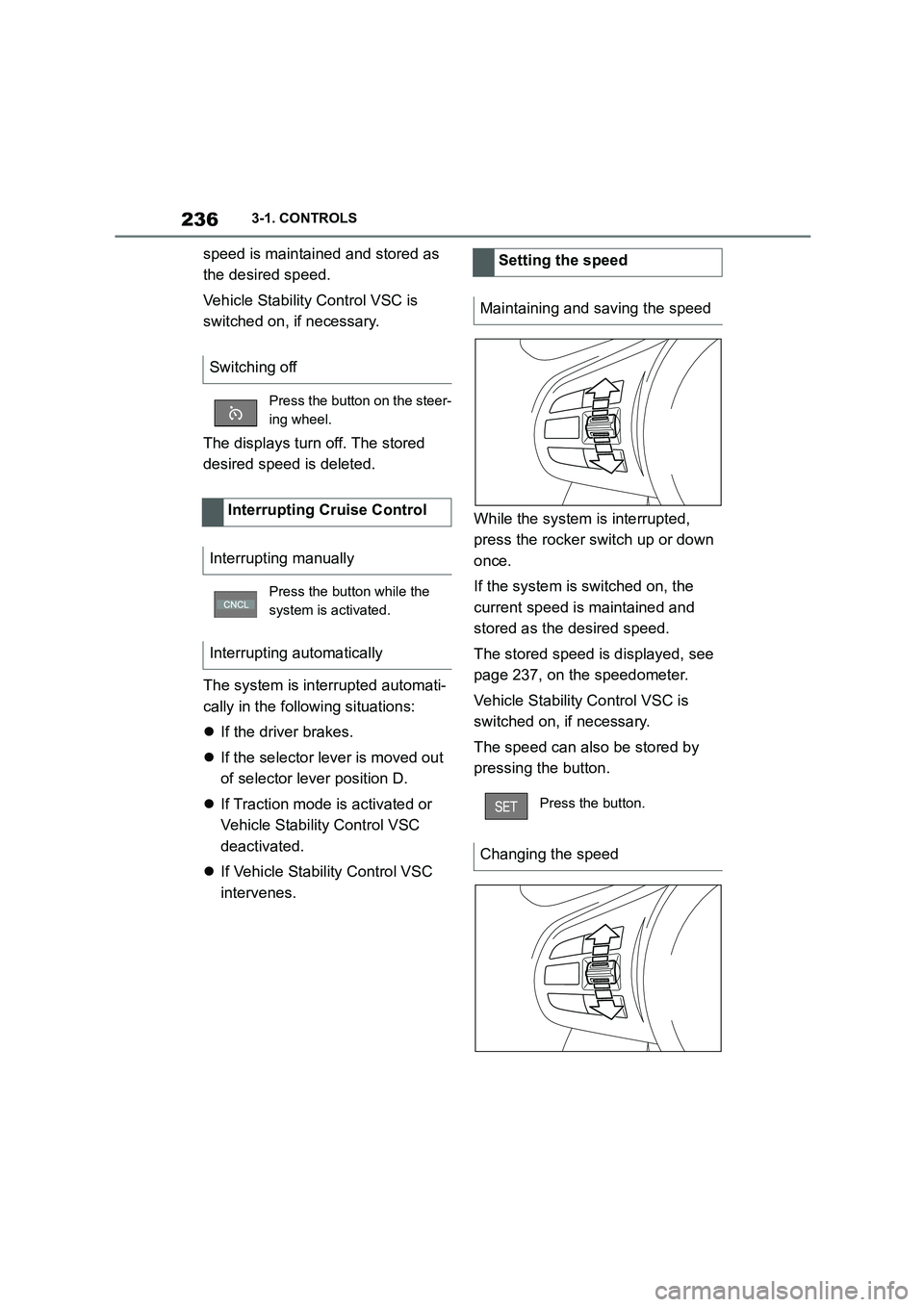

2363-1. CONTROLS
speed is maintained and stored as
the desired speed.
Vehicle Stability Control VSC is
switched on, if necessary.
The displays turn off. The stored
desired speed is deleted.
The system is interrupted automati-
cally in the following situations:
 If the driver brakes.
 If the selector lever is moved out
of selector lever position D.
 If Traction mode is activated or
Vehicle Stability Control VSC
deactivated.
 If Vehicle Stability Control VSC
intervenes.
While the system is interrupted,
press the rocker swit ch up or down
once.
If the system is switched on, the
current speed is maintained and
stored as the desired speed.
The stored speed is displayed, see
page 237, on the speedometer.
Vehicle Stability Control VSC is
switched on, if necessary.
The speed can also be stored by
pressing the button.
Switching off
Press the button on the steer-
ing wheel.
Interrupting Cruise Control
Interrupting manually
Press the button while the
system is activated.
Interrupting automatically
Setting the speed
Maintaining and saving the speed
Press the button.
Changing the speed

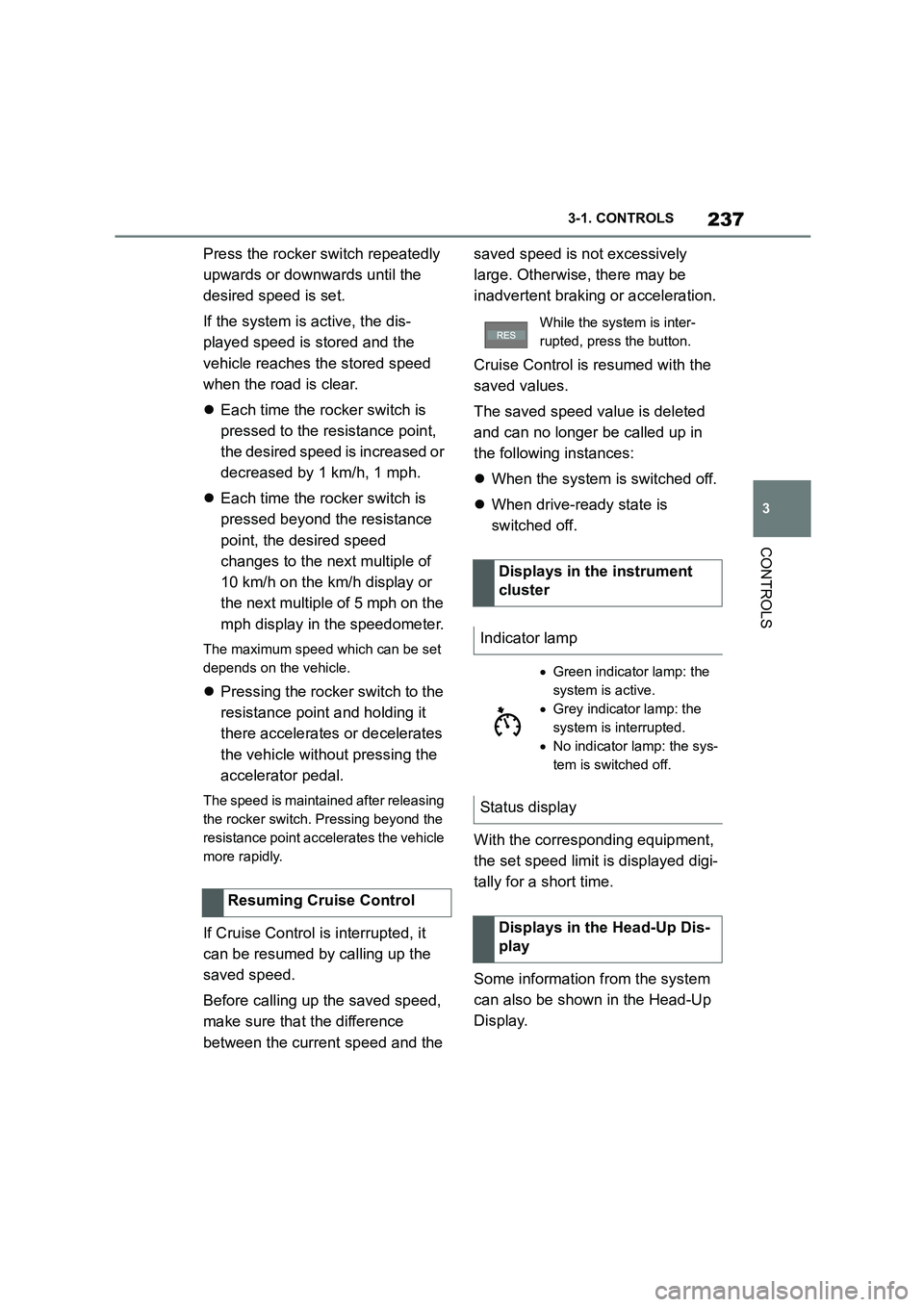

237
3
3-1. CONTROLS
CONTROLS
Press the rocker switch repeatedly
upwards or downwards until the
desired speed is set.
If the system is active, the dis-
played speed is stored and the
vehicle reaches the stored speed
when the road is clear.
 Each time the rocker switch is
pressed to the resistance point,
the desired speed is increased or
decreased by 1 km/h, 1 mph.
 Each time the rocker switch is
pressed beyond the resistance
point, the desired speed
changes to the next multiple of
10 km/h on the km/h display or
the next multiple of 5 mph on the
mph display in the speedometer.
The maximum speed which can be set
depends on the vehicle.
 Pressing the rocker switch to the
resistance point and holding it
there accelerates or decelerates
the vehicle without pressing the
accelerator pedal.
The speed is maintained after releasing
the rocker switch. Pressing beyond the
resistance point acce lerates the vehicle
more rapidly.
If Cruise Control is interrupted, it
can be resumed by calling up the
saved speed.
Before calling up the saved speed,
make sure that the difference
between the current speed and the
saved speed is not excessively
large. Otherwise, there may be
inadvertent braking or acceleration.
Cruise Control is resumed with the
saved values.
The saved speed value is deleted
and can no longer be called up in
the following instances:
 When the system is switched off.
 When drive-ready state is
switched off.
With the corresponding equipment,
the set speed limit is displayed digi-
tally for a short time.
Some information from the system
can also be shown in the Head-Up
Display.
Resuming Cruise Control
While the system is inter-
rupted, press the button.
Displays in the instrument
cluster
Indicator lamp
 Green indicator lamp: the
system is active.
 Grey indicator lamp: the
system is interrupted.
 No indicator lamp: the sys-
tem is switched off.
Status display
Displays in the Head-Up Dis-
play
