2723-1. CONTROLS
The mobile telephone must sup-
port and be compatible with the
required Qi standard.
 Standby state is switched on.
 Note the maximum dimensions
of the mobile telephone.
 Only use protective sleeves and
covers up to a maximum thick-
ness of 2 mm, 0.07 in, otherwise,
charging function may be
impaired.
 The mobile telephone to be
charged is located in the middle
of the dock.
1 LED
2 Storage area
Place the mobile telephone in the
centre of the tray with the display
facing upwards.
The maximum size for the mobile
phone is approximately 154.5 x 80 x 18
mm, 6.06 x 3.1 x 0.7 in.
NOTICE
The dock is designed for mobile tele-
phones up to a certain size. Using
excessive force when inserting the mobile telephone may damage the
dock or the mobile telephone. There
is a risk of material damage. Observe the maximum dimensions for the
mobile telephone. Do not force the
mobile telephone into the dock.
Operating requirements
Operation
Overview
Inserting the mobile telephone
LED displays
ColorMeaning
Blue
The mobile telephone is
charging.
Depending on the model
and vehicle, the blue LED is
no longer illuminated once
the inserted Qi-compatible
mobile telephone is fully
charged.
Orange
The mobile telephone is not
charging.
The mobile phone may be
exposed to excessively high
temperatures or there may
be foreign bodies in the
charging dock.
Red
The mobile telephone is not
charging.
Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.

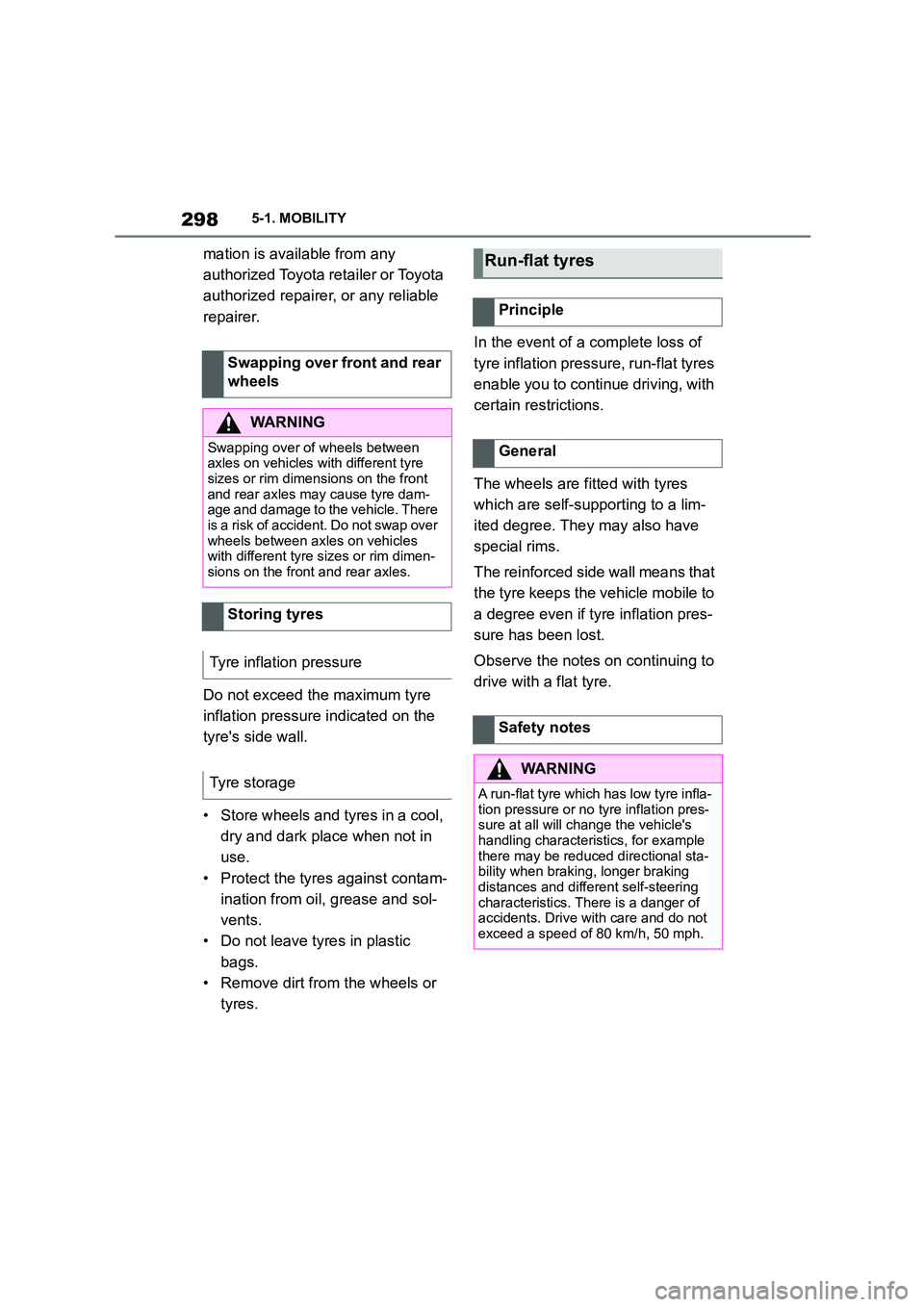

2985-1. MOBILITY
mation is available from any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
Do not exceed the maximum tyre
inflation pressure indicated on the
tyre's side wall.
• Store wheels and tyres in a cool,
dry and dark place when not in
use.
• Protect the tyres against contam-
ination from oil, grease and sol-
vents.
• Do not leave tyres in plastic
bags.
• Remove dirt from the wheels or
tyres.
In the event of a complete loss of
tyre inflation pressure, run-flat tyres
enable you to continue driving, with
certain restrictions.
The wheels are fitted with tyres
which are self-supporting to a lim-
ited degree. They may also have
special rims.
The reinforced side wall means that
the tyre keeps the vehicle mobile to
a degree even if tyre inflation pres-
sure has been lost.
Observe the notes on continuing to
drive with a flat tyre.
Swapping over front and rear
wheels
WA R N I N G
Swapping over of wheels between
axles on vehicles with different tyre
sizes or rim dimensions on the front and rear axles may cause tyre dam-
age and damage to the vehicle. There
is a risk of accident. Do not swap over wheels between axles on vehicles
with different tyre sizes or rim dimen-
sions on the front and rear axles.
Storing tyres
Tyre inflation pressure
Tyre storage
Run-flat tyres
Principle
General
Safety notes
WA R N I N G
A run-flat tyre which has low tyre infla-
tion pressure or no tyre inflation pres- sure at all will change the vehicle's
handling characteristics, for example
there may be reduced directional sta- bility when braking, longer braking
distances and different self-steering
characteristics. There is a danger of accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.

3185-1. MOBILITY
*: if equipped
In case of a flat tyre, the emergency
wheel can be used as a replace-
ment for the defective tyre. The
emergency wheel is intended for
short-term use until the defective
wheel has been replaced.
Only fit one emergency wheel at
most.
Additionally, regularly check the
tyre inflation pressure of the emer-
gency wheel in the boot and correct
the pressure if necessary.
The emergency wheel and the tools
for changing wheels are located in
a bag in the boot.
1 Release the lashing strap at the
buckle, arrow 1.
2 Unhook the lashing straps from
the lashing eyes.
3 Remove the bag containing the
emergency wheel and the tools
for changing wheels from the
boot, arrow 2.
4 Open the bag, take out the
emergency wheel and the tools
for changing wheels.
Emergency wheel*
Principle
General
Safety note
WA R N I N G
The emergency wheel has special
dimensions. When driving with an emergency wheel, the driving proper-
ties may change, for example
reduced directional stability when braking, longer braking distance and
modified self-steering behaviour in
the limit range. There is a danger of accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.
Overview
Removing emergency wheel

3706-1. REFERENCE
6-1.REFERENCE
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the special equip-
ment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The technical data and specifica-
tions in the Owner's Manual are ref-
erence figures. The vehicle-specific
data can deviate from this, for
example, due to selected special
equipment, country variants or
country-specific measurement
methods. Detailed values can be
found in the permit documents, on
information plates on the vehicle or
can be requested from any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The information in the vehicle docu-
ments always takes precedence
over the information in this Owner's
Manual.
Dimensions can vary depending on the model version, equipment or coun-
try-specific m easurement method.
The heights specified do not take into account add-on parts such as a roof
aerial, roof railing or spo iler. The heights can deviate, for example, due to
selected special equipment, tyre s, loads and suspension design.
Technical data
Vehicle equipment
General
Dimensions
Width with mirrorsmm (in)2026 (79.8)
Width without mirrorsmm (in)1854 (73.0)
Heightmm (in)
SZ models1292 (50.9)
SZ-R models1299 (51.1)*1
1292 (50.9)*3
RZ models1299 (51.1)
Lengthmm (in)4379 (172.4)

486Alphabetical Index
Compartments in the doors......... 274
Compressor .................................. 300
Condensation when vehicle is
parked ......................................... 285
Condition Based Service CBS..... 330
Connection point, starting assis-
tance ............................................ 358
Connections, Screen Mirroring ..... 85
Continuing a journey with a flat tyre
..................................................... 311
Control Display ............................... 59
Control Display, settings ............... 71
Control systems, driving stability228
Controller ........................................ 60
Coolant .......................................... 327
Coolant level ................................. 327
Coolant temperature .................... 169
Cooling effect, maximum............. 263
Cooling function ........................... 262
Cooling system ............................. 327
Cornering light .............................. 188
Corrosion of brake discs ............. 285
Cruise Control with distance control,
see Dynamic radar cruise control
..................................................... 238
Cruise Control without distance con-
trol, see Cruise Control ............. 234
Cruise Control, active with Stop &
Go ACC........................................ 238
Cruise Control, see Cruise Control
..................................................... 234
Cruise control, see Dynamic radar
cruise control ............................. 238
Cupholder ..................................... 275
Curtain shield airbag.................... 193
Customize settings, see Sport mode
switch .......................................... 160
D
Damage, tyres ............................... 295
Data protection, settings ............... 75
Data, see Deleting personal data .. 75
Data, technical .............................. 370
Date.................................................. 72
Daytime driving lights ..................187
Deactivation, airbags.................... 202
Deleting personal data ................... 75
Deletion of personal data ............... 75
Departure time, auxiliary heating 268
Departure time, independent ventila-
tion ............................................... 268
Desired speed, see Dynamic radar
cruise control..............................238
Devices, managing ......................... 86
Diagnosis connection ..................332
Diesel particle filter, see Exhaust gas
particle filter ................................281
Differential oil ................................375
Dimensions ...................................370
Dimmable exterior mirrors ........... 118
Dimming rear-view mirror ............ 118
Dipping headlights, see Automatic
high-beam ...................................188
Direct selection buttons, see Favour-
ites buttons ................................... 68
Display in windscreen, see Head-Up
Display.........................................182
Display lighting, see Instrument
lighting ........................................191
Displaying the device list ............... 86
Displays .........................................162
Displays and symbols ......................4
Displays, screens ......................... 368
Disposal, coolant ..........................328
Disposal, vehicle battery.............. 343
Disposing of the battery...............343
Disposing of the old battery ........ 343
Distance warning, see Parking Sen-
sors ..............................................248
Downhill gradients........................285
Drive mode, see Sport mode switch
..................................................... 160
Driver assistance, see Toyota Supra
Safety...........................................205
Driver Attention Control ...............226
Driver profiles ................................. 76
Drive-ready state, idle state and
standby state ................................ 53

492Alphabetical Index
RES CNCL button, see Cruise Con-
trol ............................................... 234
RES CNCL button, see Dynamic
radar cruise control ................... 238
Reset, Tyre Pressure Monitor TPM
..................................................... 307
Restraint systems for children, see
Carrying children safely ............ 122
Retreaded tyres ............................ 297
Reuse, recycling ........................... 333
Reversing light, replacing Bulbs, see
Bulbs and lights ......................... 340
Revolution counter....................... 168
Right-hand tra ffic, light setting ... 190
Rim cleaner, light alloy wheels ... 366
RON, petrol grade......................... 323
Roof lining....................................... 49
Roof load ....................................... 371
Rope for tow-starting/towing....... 360
RSC Runflat System Component,
see Run-flat tyres ....................... 298
Rubber parts, care........................ 366
Run Flat tyres, see Run-flat tyres 298
Run-flat tyres ................................ 298
Running in..................................... 280
Running in brake discs, see Brake
system ......................................... 281
Running in brake pads, see Brake
system ......................................... 281
Run-on of fan, see Exhaust gas parti-
cle filter ....................................... 281
S
Safe seating position ................... 107
Safety systems, see Airbags ....... 192
Safety systems, see Toyota Supra
Safety .......................................... 205
Saving energy, see Shift position
indicator ...................................... 171
Saving fuel .................................... 286
Screen Mirroring, connection........ 85
Screen, see Control Display .......... 59
Screwdriver, see On-board tool kit
..................................................... 339
Sealant, see Mobility System.......299
Seat belt reminder for driver and
front passenger seat .................. 116
Seat belts ....................................... 111
Seat belts, care .............................367
Seat heating .................................. 120
Seat, see Memory function .......... 119
Seats, front .................................... 107
Securing a transported load ........ 276
Selection list in the instrument clus-
ter .................................................177
Selector lever, Automatic transmis-
sion ..............................................154
Sensors of the vehicle.................... 50
Sensors, care ................................367
Service requirement, see CBS Con-
dition Based Service ..................330
Service requirements ................... 170
Service, see Breakdown assistance
..................................................... 353
Settings on the Control Display .... 71
Settings, locking/unlocking .........101
Shift Lights, revolu tion counter .. 168
Shift paddles on the steering wheel
..................................................... 154
Shift position indicator................. 171
Side airbag .................................... 193
Side lights......................................186
Side nozzles, see Ventilation .......266
Signal horn, horn ............................ 46
Signals on unlocking, see
Acknowledgement signals ........ 102
Sizes, see Dimensions ................. 370
Smallest turning circle ................. 370
Smart Key System .......................... 96
Snow chains .................................. 304
Socket for on-board diagnosis OBD
..................................................... 332
Sockets, connecting electrical appli-
ances, see Sockets .................... 269
Soot particle filter, see Exhaust gas
particle filter ................................281
SOS button, see Automatic emer-
gency call .................................... 355
Spanner, see On-board tool kit.... 339
