5-1. MOBILITY
MOBILITY
for example tyres with special
approval, the system must be
actively reset. The current tyre
inflation pressures are then
accepted as the specified values.
When operating the system, please
also comply with the other informa-
tion and notes in the Tyre inflation
pressure chapter, see page 292.
The following requirements must be
met for the system, otherwise relia-
ble signalling of a loss of tyre infla-
tion pressure is not ensured:
• After each tyre or wheel change,
the system has detected the fit-
ted tyres, updated the relevant
information and, after a short
journey, shown it on the Control
Display.
If the system does not detect the tyres
automatically, enter the specifications
for the fitted tyres in the tyre settings.
• RDC only becomes active after a
journey of several minutes:
• After a tyre or wheel change.
• After a reset, in the case of tyres with
special approval.
• After changing the tyre setting.
• In the case of tyres with special
approval:
• After every tyre or wheel change, a
reset must be carried out with the
correct tyre infl ation pressure.
• A reset must be carried out after the
tyre inflation pressure has been
adjusted to a new value.
• Wheels with TPM wheel elec-
tronics.
If the system does not detect the
tyres automatically, the specifica-
tions for the fitted tyres can be
entered in the tyre settings.
The tyre sizes of the fitted tyres can
be found in the tyre inflation pres-
sure information, see page 292, or
directly on the tyres.
The tyre specifications do not have
to be re-entered if the tyre inflation
pressure is corrected.
For summer and winter tyres, the
tyre data last entered for each type
is saved. This means that the set-
tings can be retrieved again after a
tyre or wheel change.
Safety note
WA R N I N G
The display showing the specified
tyre inflation pressures does not
replace the tyre inflation pressure information on the vehicle. If incorrect
data has been entered into the tyre
settings, the specified tyre inflation pressures will also be incorrect. As a
result, reliable signalling of a loss of
tyre inflation pressure can no longer be guaranteed. There is a danger of
injury and damage to property. Make
sure that the tyre sizes of the fitted tyres are displayed correctly and that
they match the specifications on the
tyres and the tyre inflation pressure information.
Operating requirements
Tyre settings
General

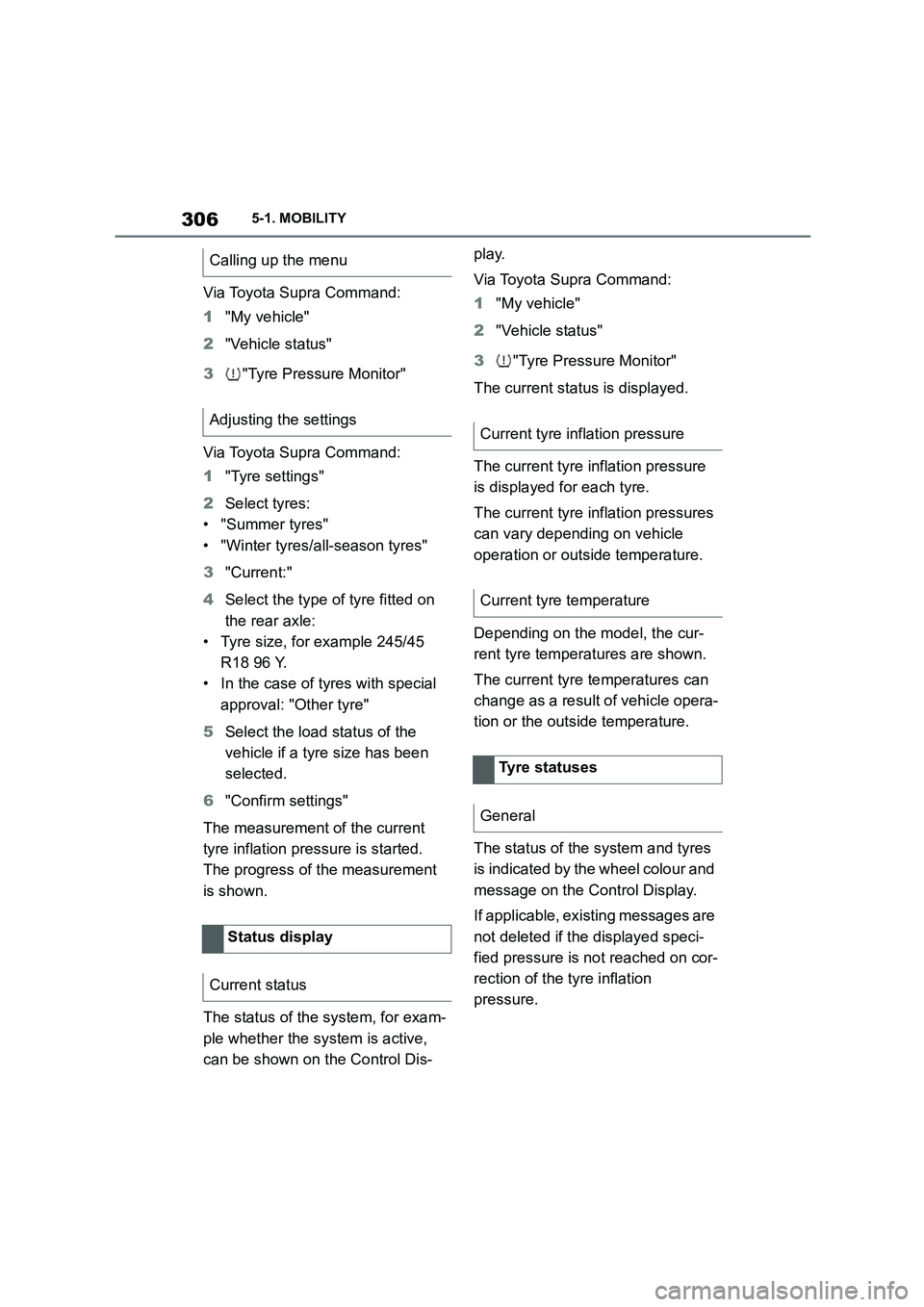

3065-1. MOBILITY
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle status"
3 "Tyre Pressure Monitor"
Via Toyota Supra Command:
1 "Tyre settings"
2 Select tyres:
• "Summer tyres"
• "Winter tyres/all-season tyres"
3 "Current:"
4 Select the type of tyre fitted on
the rear axle:
• Tyre size, for example 245/45
R18 96 Y.
• In the case of tyres with special
approval: "Other tyre"
5 Select the load status of the
vehicle if a tyre size has been
selected.
6 "Confirm settings"
The measurement of the current
tyre inflation pressure is started.
The progress of the measurement
is shown.
The status of the system, for exam-
ple whether the system is active,
can be shown on the Control Dis-
play.
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle status"
3 "Tyre Pressure Monitor"
The current status is displayed.
The current tyre inflation pressure
is displayed for each tyre.
The current tyre inflation pressures
can vary depending on vehicle
operation or outside temperature.
Depending on the model, the cur-
rent tyre temperatures are shown.
The current tyre temperatures can
change as a result of vehicle opera-
tion or the outside temperature.
The status of the system and tyres
is indicated by th e wheel colour and
message on the Control Display.
If applicable, existing messages are
not deleted if the displayed speci-
fied pressure is not reached on cor-
rection of the tyre inflation
pressure.
Calling up the menu
Adjusting the settings
Status display
Current status
Current tyre inflation pressure
Current tyre temperature
Tyre statuses
General

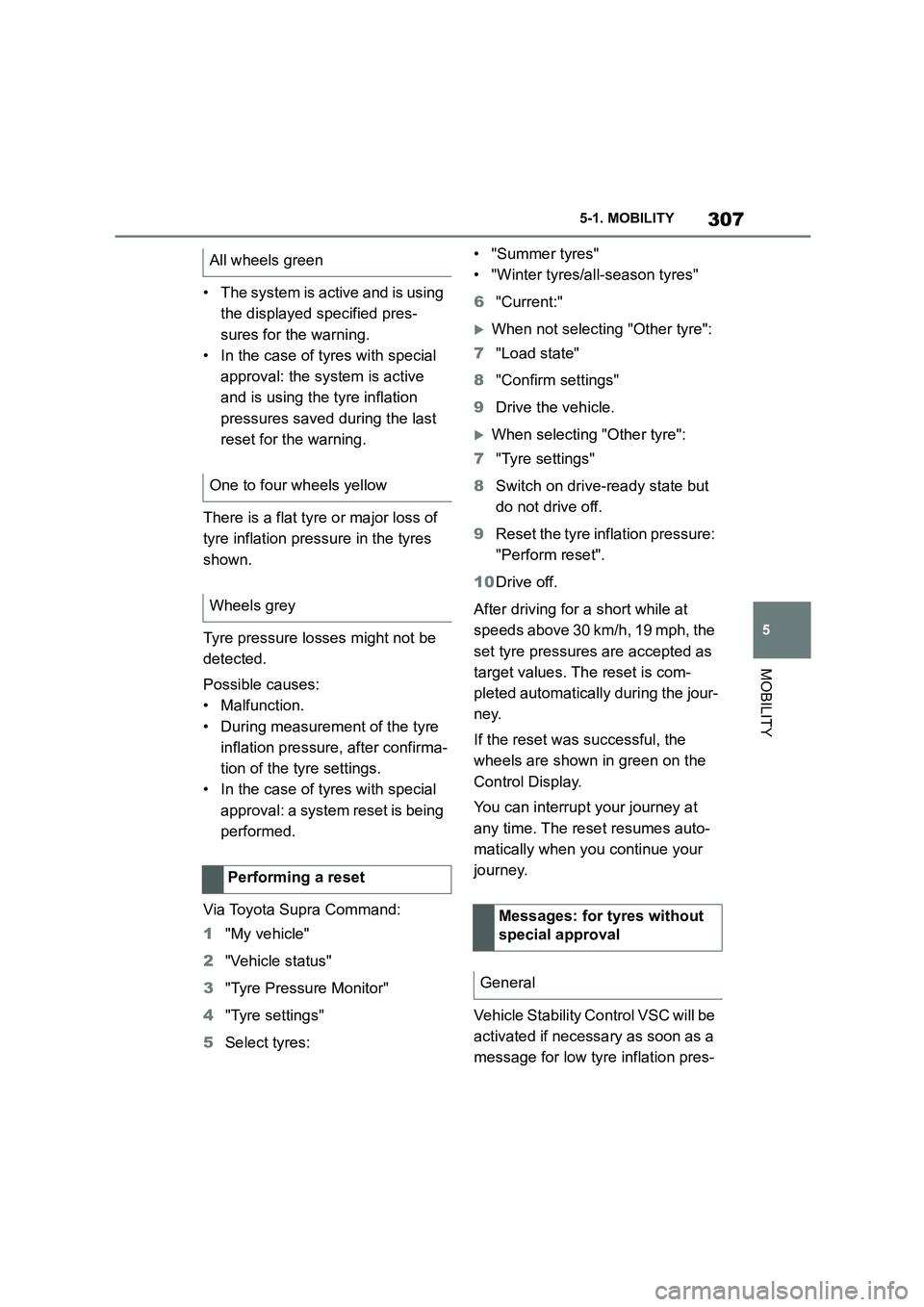

307
5
5-1. MOBILITY
MOBILITY
• The system is active and is using
the displayed specified pres-
sures for the warning.
• In the case of tyres with special
approval: the system is active
and is using the tyre inflation
pressures saved during the last
reset for the warning.
There is a flat tyre or major loss of
tyre inflation pre ssure in the tyres
shown.
Tyre pressure losses might not be
detected.
Possible causes:
• Malfunction.
• During measurement of the tyre
inflation pressure, after confirma-
tion of the tyre settings.
• In the case of tyres with special
approval: a system reset is being
performed.
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle status"
3 "Tyre Pressure Monitor"
4 "Tyre settings"
5 Select tyres:
• "Summer tyres"
• "Winter tyres/all-season tyres"
6 "Current:"
When not selecting "Other tyre":
7 "Load state"
8 "Confirm settings"
9 Drive the vehicle.
When selecting "Other tyre":
7 "Tyre settings"
8 Switch on drive-ready state but
do not drive off.
9 Reset the tyre inflation pressure:
"Perform reset".
10 Drive off.
After driving for a short while at
speeds above 30 km/h, 19 mph, the
set tyre pressures are accepted as
target values. Th e reset is com-
pleted automatically during the jour-
ney.
If the reset was successful, the
wheels are shown in green on the
Control Display.
You can interrupt your journey at
any time. The reset resumes auto-
matically when you continue your
journey.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
All wheels green
One to four wheels yellow
Wheels grey
Performing a reset
Messages: for tyres without
special approval
General

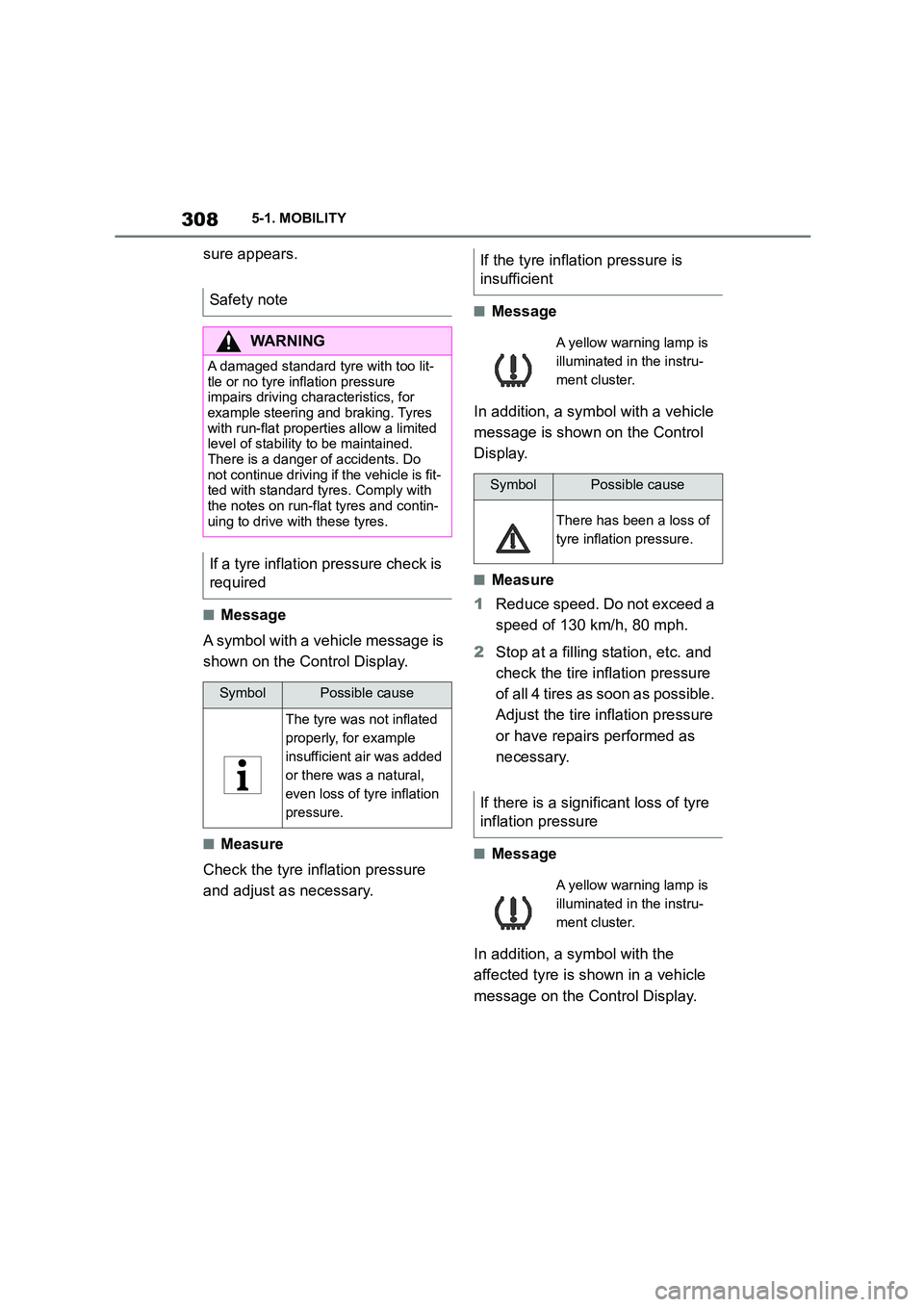

3085-1. MOBILITY
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
■Measure
Check the tyre inflation pressure
and adjust as necessary.
■Message
In addition, a symbol with a vehicle
message is shown on the Control
Display.
■Measure
1 Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2 Stop at a filling station, etc. and
check the tire in flation pressure
of all 4 tires as soon as possible.
Adjust the tire inflation pressure
or have repairs performed as
necessary.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
Safety note
WA R N I N G
A damaged standard tyre with too lit-
tle or no tyre inflation pressure impairs driving characteristics, for
example steering and braking. Tyres
with run-flat properties allow a limited
level of stability to be maintained. There is a danger of accidents. Do
not continue driving if the vehicle is fit-
ted with standard tyres. Comply with the notes on run-flat tyres and contin-
uing to drive with these tyres.
If a tyre inflation pressure check is
required
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air was added
or there was a natural,
even loss of tyre inflation
pressure.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.

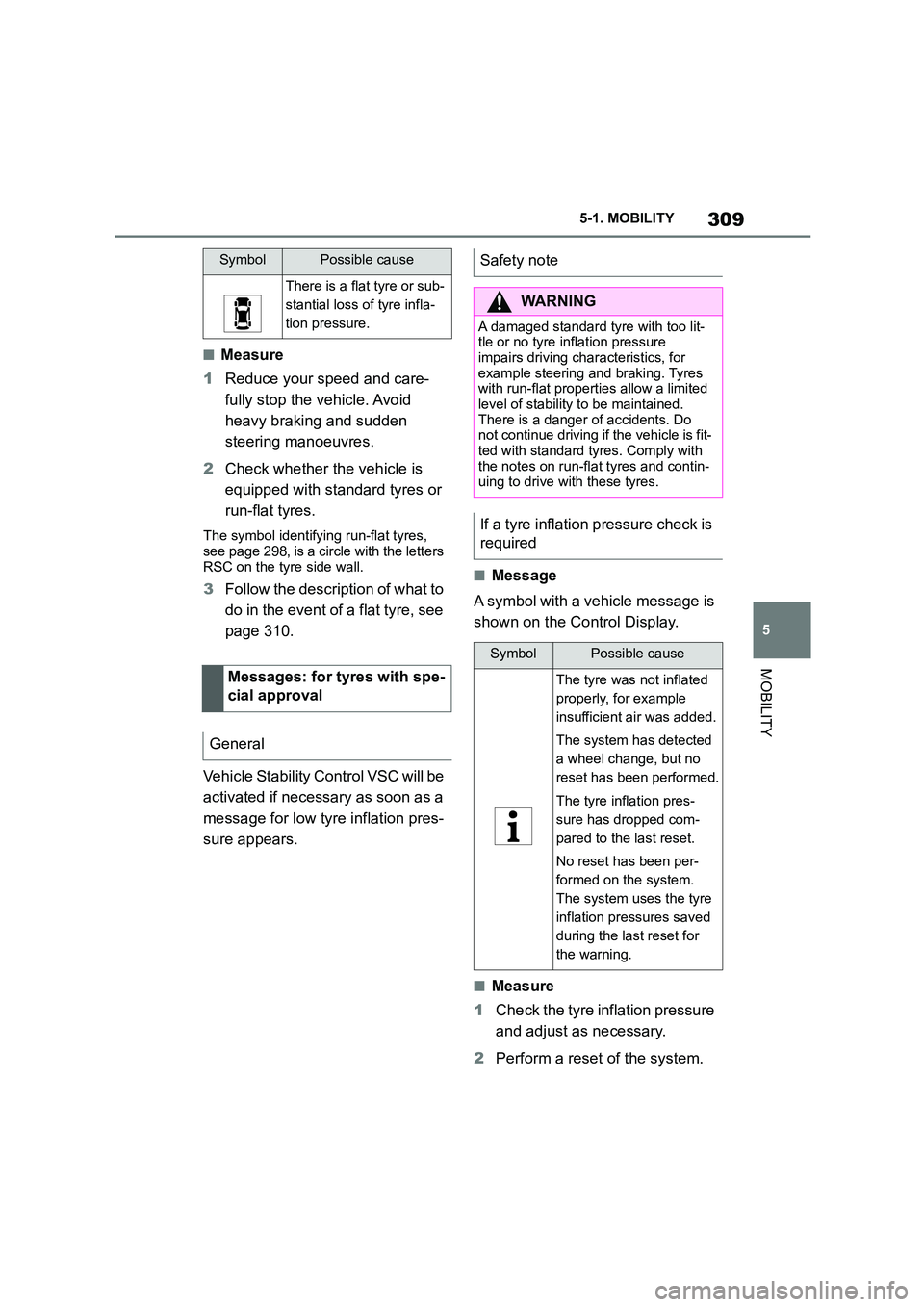

309
5
5-1. MOBILITY
MOBILITY
■Measure
1 Reduce your speed and care-
fully stop the vehicle. Avoid
heavy braking and sudden
steering manoeuvres.
2 Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 298, is a circle with the letters
RSC on the tyre side wall.
3 Follow the description of what to
do in the event of a flat tyre, see
page 310.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
■Measure
1 Check the tyre inflation pressure
and adjust as necessary.
2 Perform a reset of the system.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
Messages: for tyres with spe-
cial approval
General
Safety note
WA R N I N G
A damaged standard tyre with too lit-
tle or no tyre inflation pressure impairs driving char acteristics, for
example steering and braking. Tyres
with run-flat properties allow a limited level of stability to be maintained.
There is a danger of accidents. Do
not continue driving if the vehicle is fit-
ted with standard tyres. Comply with the notes on run-flat tyres and contin-
uing to drive with these tyres.
If a tyre inflation pressure check is
required
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air was added.
The system has detected
a wheel change, but no
reset has been performed.
The tyre inflation pres-
sure has dropped com-
pared to the last reset.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.

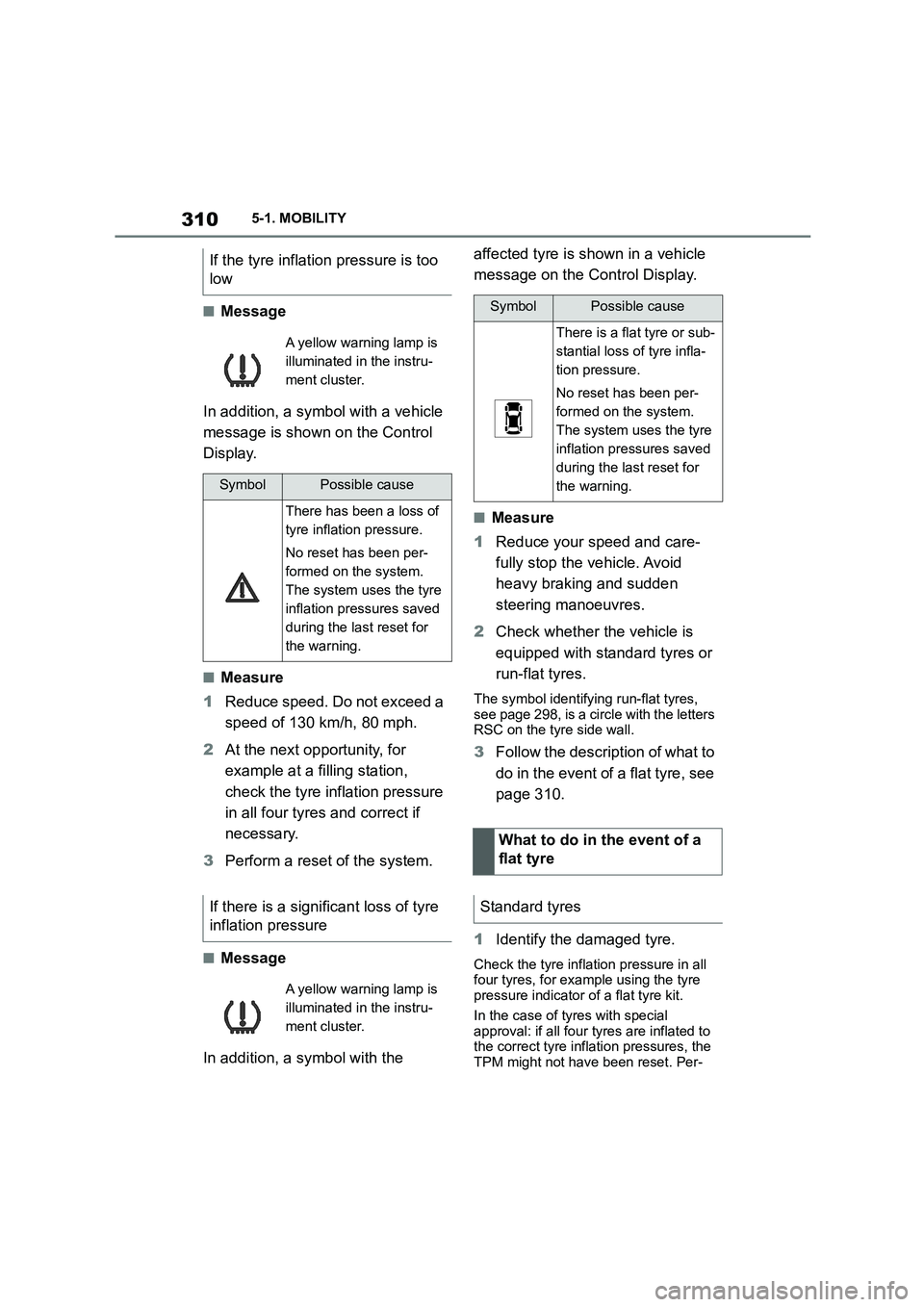

3105-1. MOBILITY
■Message
In addition, a symbol with a vehicle
message is shown on the Control
Display.
■Measure
1 Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2 At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
3 Perform a reset of the system.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
■Measure
1 Reduce your speed and care-
fully stop the vehicle. Avoid
heavy braking and sudden
steering manoeuvres.
2 Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 298, is a circle with the letters
RSC on the tyre side wall.
3 Follow the description of what to
do in the event of a flat tyre, see
page 310.
1 Identify the damaged tyre.
Check the tyre inflation pressure in all four tyres, for example using the tyre
pressure indicator of a flat tyre kit.
In the case of ty res with special approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
TPM might not have been reset. Per-
If the tyre inflation pressure is too
low
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
What to do in the event of a
flat tyre
Standard tyres

3125-1. MOBILITY

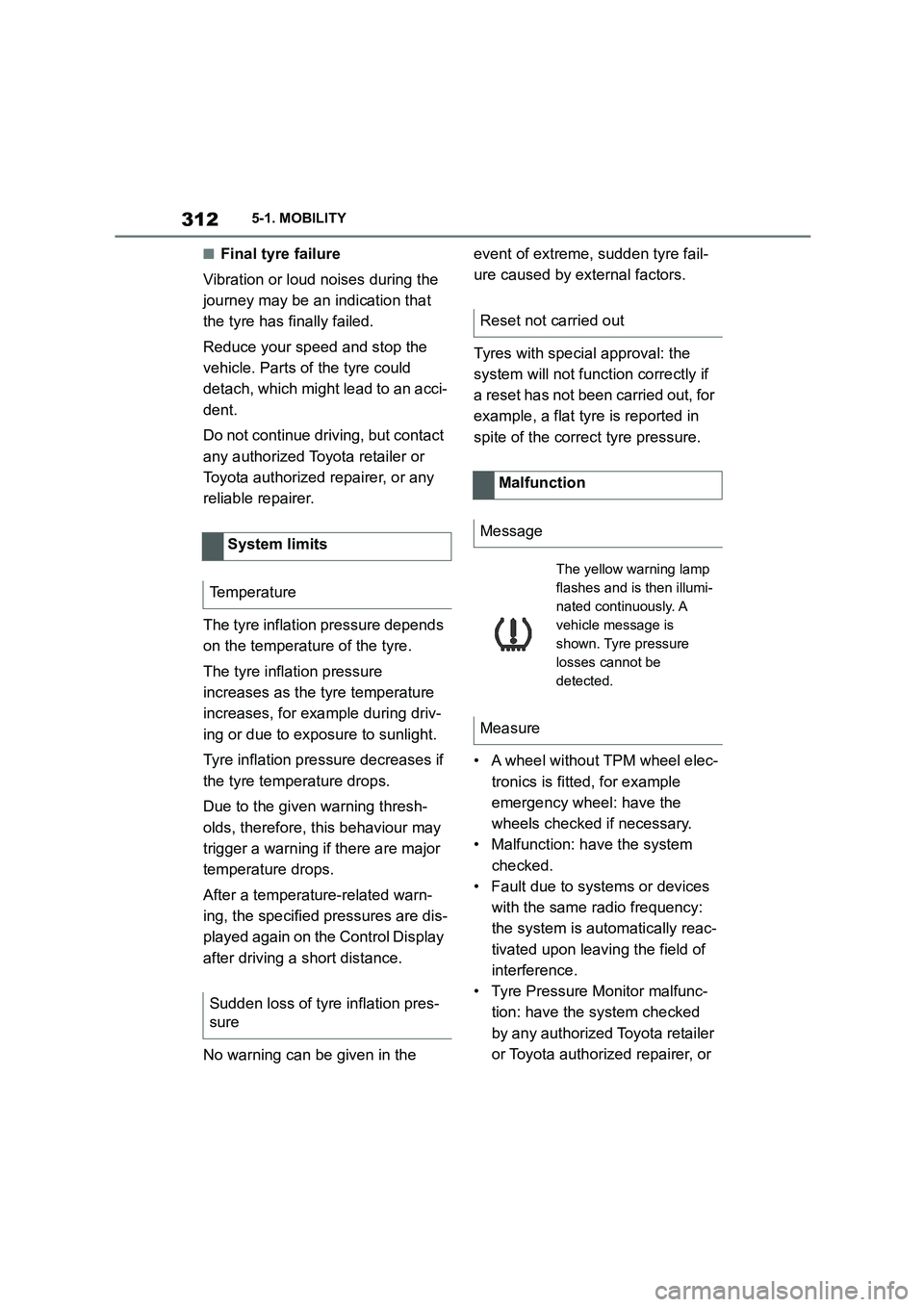

■Final tyre failure
Vibration or loud noises during the
journey may be an indication that
the tyre has finally failed.
Reduce your speed and stop the
vehicle. Parts of the tyre could
detach, which might lead to an acci-
dent.
Do not continue driving, but contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
The tyre inflation pressure depends
on the temperature of the tyre.
The tyre inflation pressure
increases as the tyre temperature
increases, for example during driv-
ing or due to exposure to sunlight.
Tyre inflation pressure decreases if
the tyre temperature drops.
Due to the given warning thresh-
olds, therefore, this behaviour may
trigger a warning if there are major
temperature drops.
After a temperature-related warn-
ing, the specified pressures are dis-
played again on the Control Display
after driving a short distance.
No warning can be given in the
event of extreme, sudden tyre fail-
ure caused by external factors.
Tyres with special approval: the
system will not function correctly if
a reset has not been carried out, for
example, a flat ty re is reported in
spite of the correct tyre pressure.
• A wheel without TPM wheel elec-
tronics is fitted, for example
emergency wheel: have the
wheels checked if necessary.
• Malfunction: have the system
checked.
• Fault due to systems or devices
with the same radio frequency:
the system is automatically reac-
tivated upon leaving the field of
interference.
• Tyre Pressure Monitor malfunc-
tion: have the system checked
by any authorized Toyota retailer
or Toyota authorized repairer, or
System limits
Temperature
Sudden loss of tyre inflation pres-
sure
Reset not carried out
Malfunction
Message
The yellow warning lamp
flashes and is then illumi-
nated continuously. A
vehicle message is
shown. Tyre pressure
losses cannot be
detected.
Measure

323
5
5-1. MOBILITY
MOBILITY
SZ, SZ-R and RZ (DB41L-ZRLW,
DB42R-ZRRW) models
Super, RON 95.
Use this fuel to achieve the nominal
performance and consumption fig-
ures.
RZ (DB01L-ZULW,
DB02R-ZURW) models
Super, RON 98.
Use this fuel to achieve the nominal
performance and consumption fig-
ures.
Unleaded petrol, RON 91.
Engine oil consumption depends on
the driving style and operating con-
ditions.
Therefore check the engine oil level
regularly each time you fill up with
fuel by taking a detailed measure-
ment.
Engine oil consumption can be
increased, for example in the fol-
lowing situations:
• Sporty driving style.
• Running in the engine.
• Engine idling.
• Use of engine oil grades catego-
rised as unsuitable.
Different vehicle messages are
shown on the Control Display,
depending on the engine oil level.
NOTICE
After filling the wrong fuel, do not
press the start/stop button. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
NOTICE
Incorrect fuels can damage the fuel
system and engine. There is a danger of damage to property. Do not refuel
with fuel with a higher ethanol content
than recommended. Do not refuel with fuel containing methanol, for
example M5 to M100.
NOTICE
Fuel below the specified minimum quality can adversely affect engine
function or lead to engine damage.
There is a danger of damage to prop- erty. Do not refuel with petrol below
the specified minimum quality.
Petrol grade
Minimum grade
Engine oil
General
Safety notes
NOTICE
Too little engine oil causes engine
damage. There is a danger of dam- age to property. Top up with engine oil
immediately.
