2022 TOYOTA RAV4 PLUG-IN HYBRID Owners Manual

567
9
9-1. Specifications
Vehicle specifications
QUse of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol
content is up to 10%. Make sure that the
ethanol blended gasoline to be used has
a Research Octane Number that follows
the above.
QIf your engine knocks
OConsult any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
OYou may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal and there is no need for concern.
Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
91 or higher for optimum
engine performance.
NOTICE
QNotice on fuel quality
ODo not use improper fuels. If improper fuels are used, the engine will be damaged.
ODo not use gasoline with metallic additives, for example manganese,
iron or lead, otherwise it may cause damage on your engine or emission control system.
ODo not add aftermarket fuel addi-tives which contain metallic addi-
tives.
OEU area: Bioethanol fuel sold under
names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The
use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
OExcept EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large
amount of ethanol should not be used. Your vehicle can use gaso-line mixed with 10% max ethanol.
The use of fuel with more than 10% ethanol content (E10) will damage the vehicle’s fuel system. You must
ensure that refueling is carried out only from a source where fuel spec-ification and quality can be guaran-
teed. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

5689-1. Specifications
NOTICE
ODo not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.

569
9
9-2. Customization
Vehicle specifications
9-2.Customiz ation
QChanging using the naviga-
tion/multimedia system
1 Press the “MENU” button.
2 Select “Setup” on the menu
screen and select “Vehicle”.
3 Select “Vehicle Customization”.
Various setting can be changed.
Refer to the list of settings that can
be changed for details.
QChanging using the multi-
information display
1 Press or of the meter
control switches and select .
2 Press or of the meter
control switches, select the item.
3 To switch the function on and
off, press to switch to the
desired setting.
4 To perform detailed setting of
functions that support detailed
settings, press and hold and
display the setting screen.
The method of performing detailed set- ting differs for each screen. Please
refer to the advice sentence displayed on the screen.
To go back to the previous screen or
exit the customize mode, press .
QWhen customizing using the navi- gation/multimedia system or multi-information display
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent 12-volt bat-
tery discharge, leave the hybrid system operating while customizing the fea-tures.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, navigation/multimedia
system, or at any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
tures
WARNING
QDuring customization
As the hybrid system needs to be operating during customization,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful car- bon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
QDuring customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

5709-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer for further details.
Vehicles with navigation system or multimedia system: Settings that can
be changed using the navigation system or multimedia system
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – =Not available
QAlarm* (P.78)
*: If equipped
QCharging system (P.124, 127)
*: Vehicles with 6.6 kW onboard traction battery charger only
Customizable Features
FunctionDefault
settingCustomized
setting
Deactivates the alarm when the
doors are unlocked using the
mechanical key
OffOn––O
FunctionDefault
settingCustomized
setting
“Charging Current”MAX8A–O–16A*
“Battery Heater”OnOff–O–
“Battery Cooler”OnOff–O–
A
B
C
ABC
ABC

571
9 9-2. Customization
Vehicle specifications
QGauges, meters and multi-information display (P.172, 177)
Function*1Default
settingCustomized
setting
Language*2“English”
(English)Except English*3–O–
Units*2km (L/100km,
kWh/100km)
km (km/L,
km/kWh)
–O–miles (MPG,
miles/kWh)
*4
Speedometer displayAnalogDigital–O–
EV indicatorOnOff–O–
“Eco Guidance” (ECO Accelera-
tor Guidance)OnOff–O–
“Fuel Economy”“Total Average”“Trip Average”–O–“Tank Average”
“Power Consumption”“Total Average”“Trip Average”–O–
Audio system linked displayOnOff–O–
Energy monitorOnOff–O–
AWD system displayOnOff–O–
Drive information typeTripTotal–O–
Drive information items (first
item)DistanceAverage Speed–O–Total Time
Drive information items (second
item)Total TimeAverage Speed–O–Distance
“Closing Display”“Drive Info”
“ECO Score”
–O–“Charging
Schedule”
Pop-up displayOnOff–O–
Calendar*5–––O–
Multi-Information display offOffOn–O–
Rear seat reminder functionOnOff–O–
ABC

5729-2. Customization
*1: For details about each function: P.184
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: This can only be set if GPS calibration of clock is turned off in the multimedia sys-
tem settings.
QHead-up display*1 (P.189)
*1: If equipped
*2: For details about each function: P.190
Convenience Services (Sugges-
tion function)On
On (when the
vehicle is
stopped)
O–O
Off
Function*2Default
settingCustomized
setting
Head-up displayOnOff–O–
Gauge informationHybrid System
IndicatorTachometer–O–No content
Route guidance to destina-
tion/street name
*1OnOff–O–
Driving support system informa-
tion displayOnOff–O–
Compass*1OnOff–O–
Audio system operation status*1OnOff–O–
Function*1Default
settingCustomized
settingABC
ABC

573
9 9-2. Customization
Vehicle specifications
QDoor lock (P.203, 544)
QSmart entry & start system and wireless remote control (P.201,
221)
QSmart entry & start system (P.221)
FunctionDefault
settingCustomized
setting
Unlocking using a mechanical
keyAll doors
unlocked in first
step
Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step
––O
Speed linked door locking func-
tionOnOffO–O
Shift position linked door locking
functionOffOnO–O
Shift position linked door unlock-
ing functionOffOnO–O
Driver’s door linked door unlock-
ing functionOnOffO–O
FunctionDefault
settingCustomized
setting
Time elapsed before the auto-
matic door lock function is acti-
vated if a door is not opened
after being unlocked
30 seconds
60 seconds
––O120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff––O
FunctionDefault
settingCustomized
setting
Smart entry & start systemOnOffO–O
Smart door unlockingAll the doorsDriver’s doorO–O
Number of consecutive door
lock operations2 times*1As many as
desired
*1
––OAs many as
desired
*22 times*2
ABC
ABC
ABC

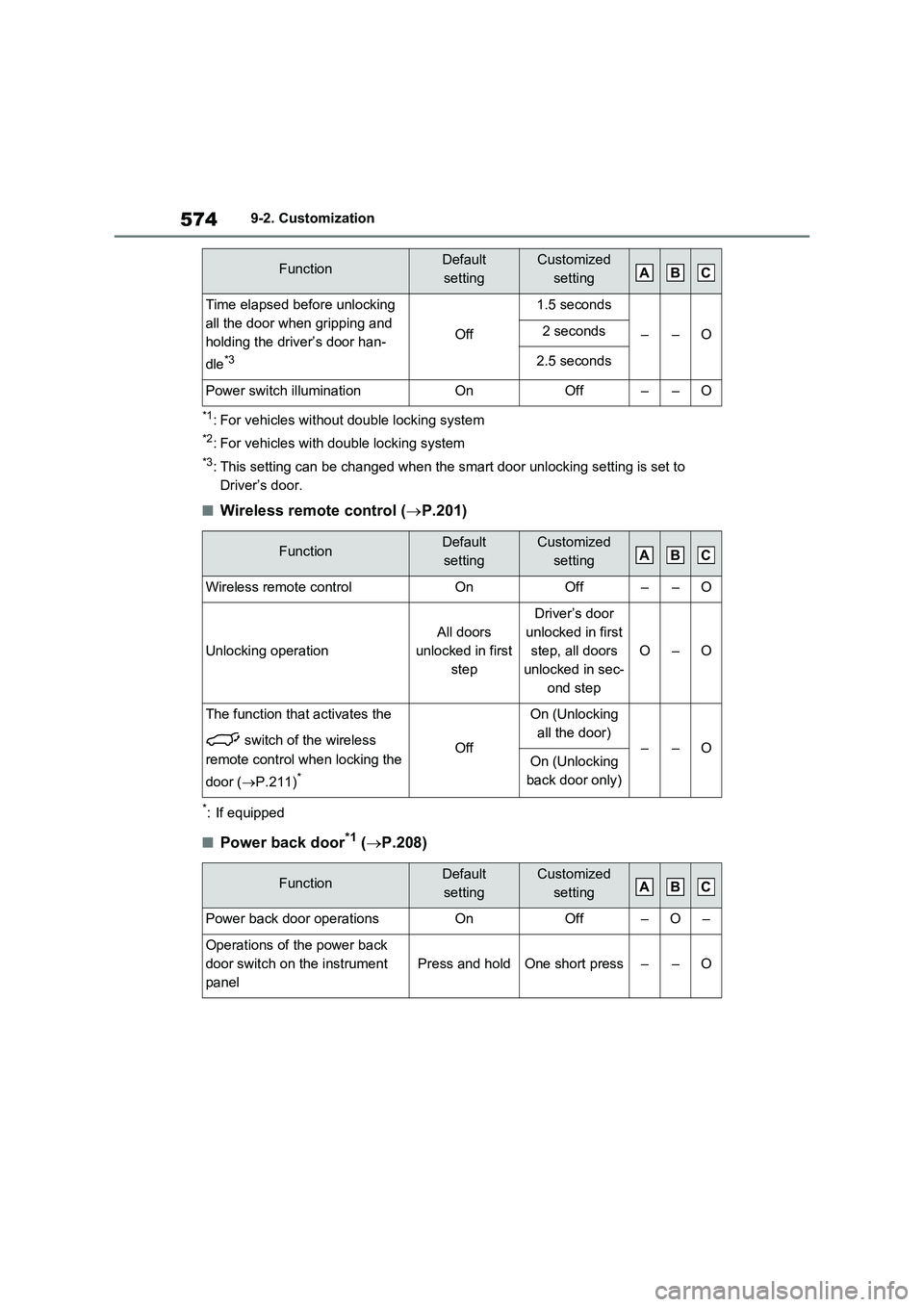

5749-2. Customization
*1: For vehicles without double locking system
*2: For vehicles with double locking system
*3: This setting can be changed when the smart door unlocking setting is set to
Driver’s door.
QWireless remote control (P.201)
*: If equipped
QPower back door*1 (P.208)
Time elapsed before unlocking
all the door when gripping and
holding the driver’s door han-
dle
*3
Off
1.5 seconds
––O2 seconds
2.5 seconds
Power switch illuminationOnOff––O
FunctionDefault
settingCustomized
setting
Wireless remote controlOnOff––O
Unlocking operation
All doors
unlocked in first
step
Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step
O–O
The function that activates the
switch of the wireless
remote control when locking the
door (P.211)
*
Off
On (Unlocking
all the door)
––OOn (Unlocking
back door only)
FunctionDefault
settingCustomized
setting
Power back door operationsOnOff–O–
Operations of the power back
door switch on the instrument
panel
Press and holdOne short press––O
FunctionDefault
settingCustomized
settingABC
ABC
ABC
