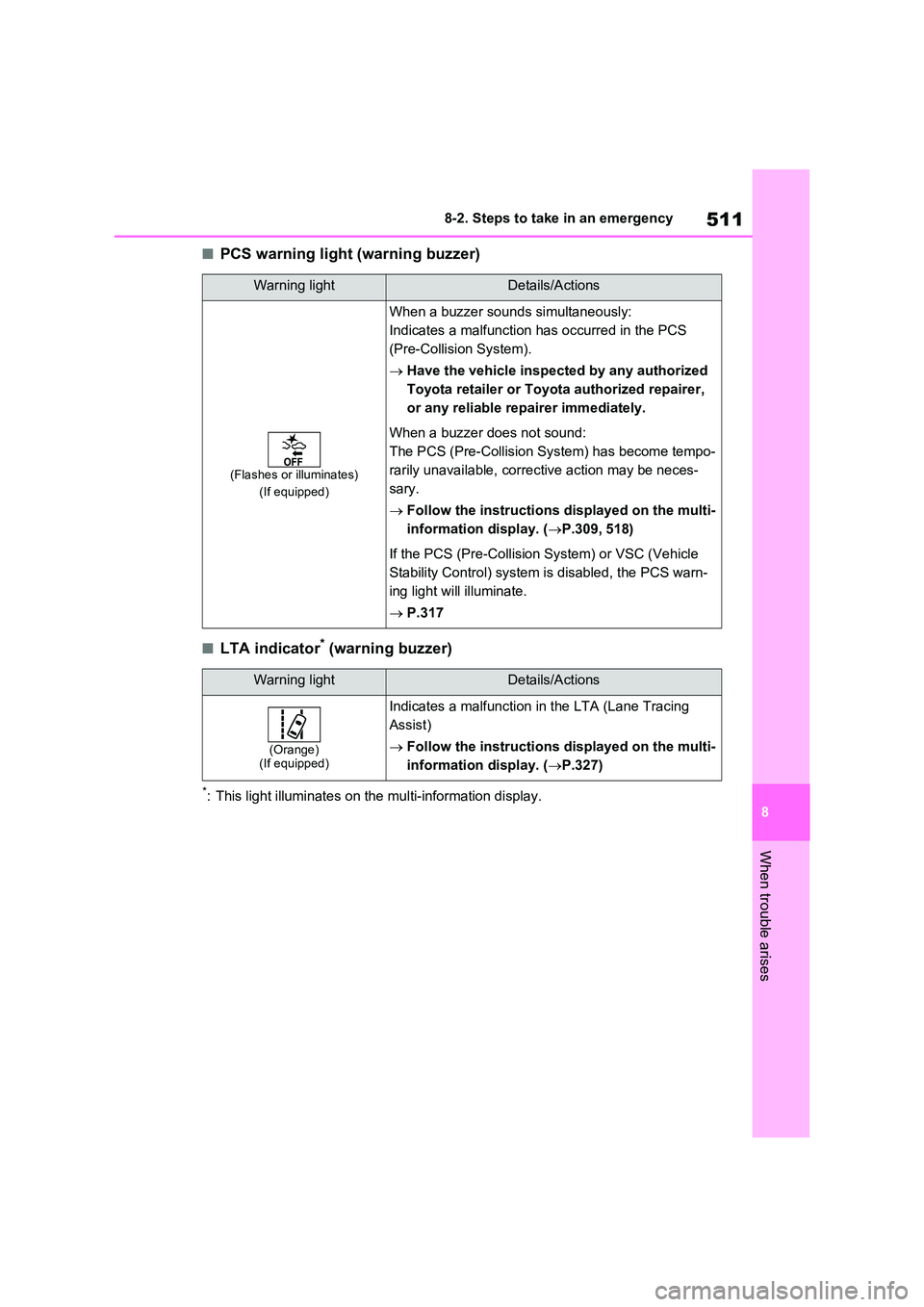

8-2. Steps to take in an emergency
When trouble arises
QPCS warning light (warning buzzer)
QLTA indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
Warning lightDetails/Actions
(Flashes or illuminates)
(If equipped)
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS
(Pre-Collision System).
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become tempo-
rarily unavailable, corrective action may be neces-
sary.
 Follow the instructions displayed on the multi-
information display. ( P.309, 518)
If the PCS (Pre-Collision System) or VSC (Vehicle
Stability Control) system is disabled, the PCS warn-
ing light will illuminate.
 P.317
Warning lightDetails/Actions
(Orange) (If equipped)
Indicates a malfunction in the LTA (Lane Tracing
Assist)
 Follow the instructions displayed on the multi-
information display. ( P.327)

5128-2. Steps to take in an emergency
QToyota parking assist-sensor OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QPKSB OFF indicator*
*: This light illuminates on the multi-information display.
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in the Toyota parking assist-
sensor function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.373, 518)
Warning lightDetails/Actions
(If equipped)
If “Parking Support Brake Malfunction Visit Your
Dealer” is displayed on the multi-information display:
Indicates a malfunction in the PKSB (Parking Support
Brake) system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
If “Parking Assist Unavailable” is displayed on the
multi-information display:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.383, 518)

513
8
8-2. Steps to take in an emergency
When trouble arises
QBSM OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QRCTA OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QSlip indicator light
Warning lightDetails/Actions
Indicates a malfunction in the BSM (Blind Spot Moni-
tor) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.364)
 Follow the instructions displayed on the multi-
information display. ( P.350, 518)
Warning lightDetails/Actions
(If equipped)
Indicates a malfunction in the RCTA (Rear Crossing
Traffic Alert) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.364)
 Follow the instructions displayed on the multi-
information display. ( P.350, 518)
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC/Trailer Sway Control system;
 The TRC system;
 The Trail Mode function; or
 The hill-start assist control system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.

5148-2. Steps to take in an emergency
QInappropriate pedal operation warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
QBrake hold operated indicator (warning buzzer)
QParking brake indicator
Warning lightDetails/Actions
When a buzzer sounds:
 Brake Override System is malfunctioning
 Drive-Start Control is malfunctioning
 Drive-Start Control is operating
 Follow the instructions displayed on the multi-
information display.
When a buzzer does not sound:
Brake Override System is operating.
 Release the accelerator pedal and depress the
brake pedal.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
(Flashes)
It is possible that the parking brake is not fully
engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not
released. If the light turns off after the parking brake
is fully released, the system is operating normally.

515
8
8-2. Steps to take in an emergency
When trouble arises
QTire pressure warning light*
*: This light illuminates on the multi-information display.
QLow fuel level warning light
QDriver’s and front passenger’s seat belt reminder light (warning
buzzer)*
*: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s and front passenger’s seat belt warning buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. If the seat belt
is unfastened, the buzzer sounds intermittently for a certain period of time after
the vehicle reaches a certain speed.
Warning lightDetails/Actions
When the light comes on after blinking for approxi-
mately 1 minute (a buzzer does not sound):
Malfunction in the tire pressure warning system
 Have the system checked by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the light comes on (a buzzer sounds):
Low tire inflation pressure from natural causes
 Adjust the tire inflation pressure to the speci-
fied cold tire inflation pressure level. ( P.564)
Low tire inflation pressure from flat tire
 Immediately stop the vehicle in a safe place.
Handling method ( P.516)
Warning lightDetails/Actions
Indicates that remaining fuel is approximately 8.3 L
(2.2 gal., 1.8 Imp. gal.) or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front passenger to fasten
their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the
front passenger’s seat belt also needs to be
fastened to make the warning light (warning
buzzer) turn off.

5168-2. Steps to take in an emergency
QRear passengers’ seat belt reminder lights*1 (warning buzzer)*2
*1: This light illuminates on the multi-information display.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear passen-
ger that his or her seat belt is not fastened. If the seat belt is unfastened, the
buzzer sounds intermittently for a certain period of time after the vehicle reaches
a certain speed.
QWarning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
QFront passenger detection sensor, seat belt reminder and warning buzzer
OIf luggage is placed on the front pas-
senger seat, the front passenger detection sensor may cause the warn-ing light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
OIf a cushion is placed on the seat, the sensor may not detect a passenger, and the warning light may not operate
properly.
QIf the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will
come on if the fuel tank becomes com- pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The mal-
function indicator lamp will go off after several trips.
If the malfunction indicator lamp does
not go off, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon
as possible.
QElectric power steering system warning light (warning buzzer)
When the 12-volt battery charge
becomes insufficient or the voltage tem- porarily drops, the electric power steer-
ing system warning light may come on and the warning buzzer may sound.
At this time, the functions of the air con-
ditioning, etc. may be partially limited in order to reduce the power consumption of the 12-volt battery.
QWhen the tire pressure warning
light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured: P.522, 533
If none of the tires are punctured:
Turn the power switch to OFF then turn
it to ON. Check if the tire pressure warn- ing light comes on or blinks.
If the tire pressure warning light blinks
for approximately 1 minute then stays on
There may be a malfunction in the tire
pressure warning system. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immedi- ately.
If the tire pressure warning light
comes on
1 After the temperature of the tires has lowered sufficiently, check the infla-tion pressure of each tire and adjust
them to the specified level.
2 If the warning light does not turn off even after several minutes have
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.

517
8

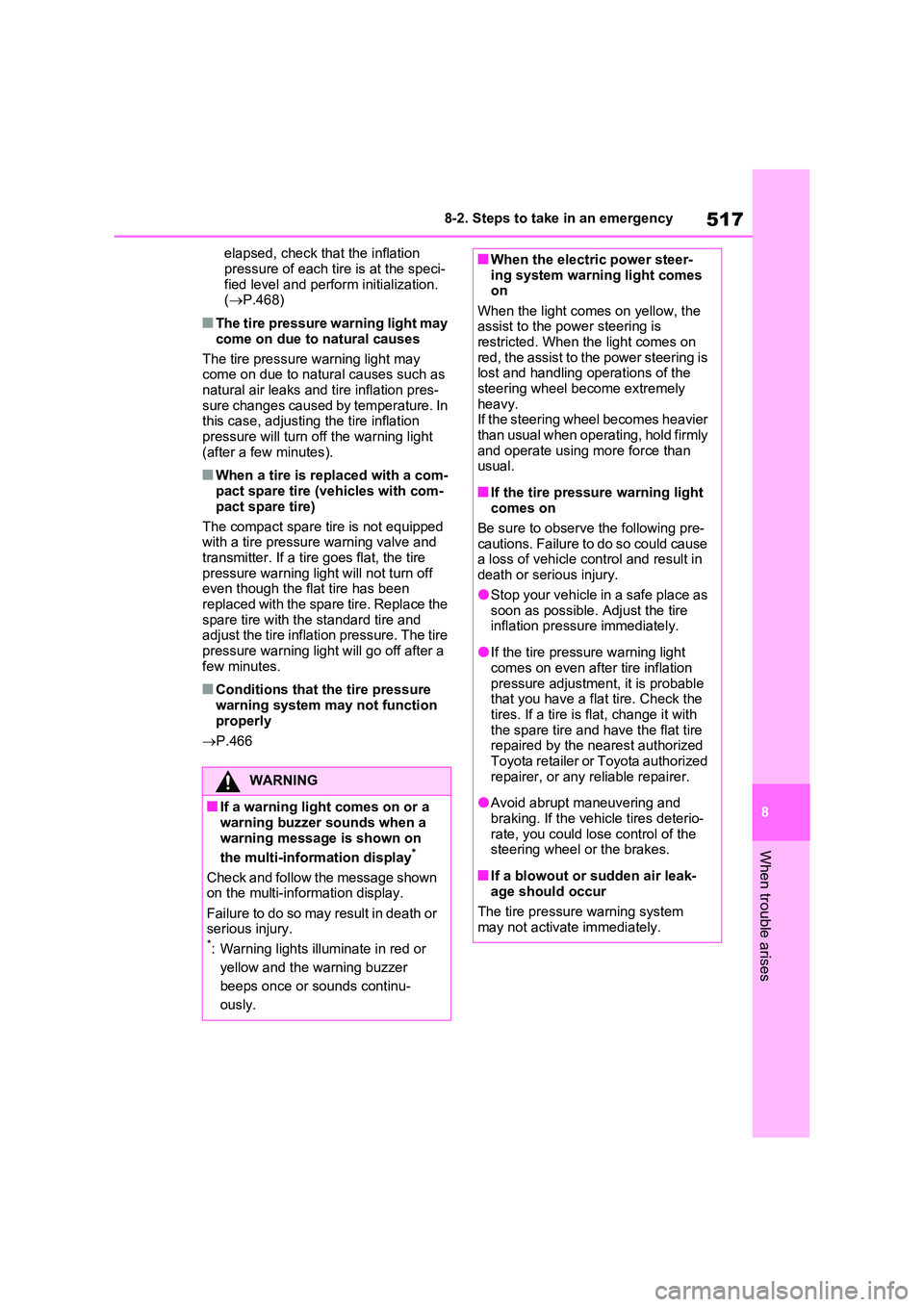

8-2. Steps to take in an emergency
When trouble arises
elapsed, check that the inflation
pressure of each tire is at the speci- fied level and perform initialization. ( P.468)
QThe tire pressure warning light may
come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pres- sure changes caused by temperature. In this case, adjusting the tire inflation
pressure will turn off the warning light (after a few minutes).
QWhen a tire is replaced with a com-pact spare tire (vehicles with com-
pact spare tire)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat tire has been
replaced with the spare tire. Replace the spare tire with the standard tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
QConditions that the tire pressure warning system may not function
properly
 P.466
WARNING
QIf a warning light comes on or a
warning buzzer sounds when a warning message is shown on
the multi-information display*
Check and follow the message shown on the multi-information display.
Failure to do so may result in death or serious injury.*: Warning lights illuminate in red or
yellow and the warning buzzer
beeps once or sounds continu-
ously.
QWhen the electric power steer- ing system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted. When the light comes on
red, the assist to the power steering is lost and handling operations of the steering wheel become extremely
heavy. If the steering wheel becomes heavier than usual when operating, hold firmly
and operate using more force than usual.
QIf the tire pressure warning light comes on
Be sure to observe the following pre-
cautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury.
OStop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure immediately.
OIf the tire pressure warning light comes on even after tire inflation
pressure adjustment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it with
the spare tire and have the flat tire repaired by the nearest authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
OAvoid abrupt maneuvering and
braking. If the vehicle tires deterio- rate, you could lose control of the steering wheel or the brakes.
QIf a blowout or sudden air leak-age should occur
The tire pressure warning system may not activate immediately.

5188-2. Steps to take in an emergency
QWarning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
QIf a message about an operation is
shown
OIf a message about an operation of
the accelerator pedal or brake pedal is shown
NOTICE
QTo ensure the tire pressure warn-ing system operates properly
Do not install tires with different speci- fications or manufacturers, as the tire pressure warning system may not
operate properly.
If a warning message is
displayed
The multi-information display
shows warnings of system
malfunctions, incorrectly per-
formed operations, and mes-
sages that indicate a need for
maintenance. When a message
is shown, perform the correc-
tion procedure appropriate to
the message.
If a warning message is dis-
played again after the appropri-
ate actions have been performed,
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
When a message about charging
is displayed, refer to P.159.
