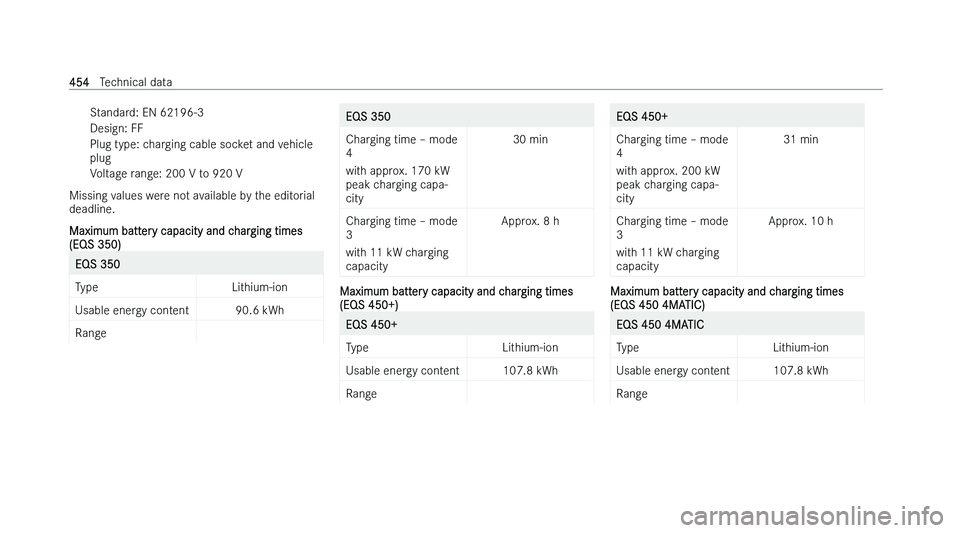

Standard: EN 62196-3
Design: FF
Plug type: charging cable socket and vehicle
plug
Voltage range: 200 V to 920 V
Missing values were not available by the editorial
deadline.
Maximum batt
ery capacity and charging times
(EQS 350) EQS 350
Type
Lithium-ion
Usable energy content 90.6 kWh
Range EQS 350
Charging time !

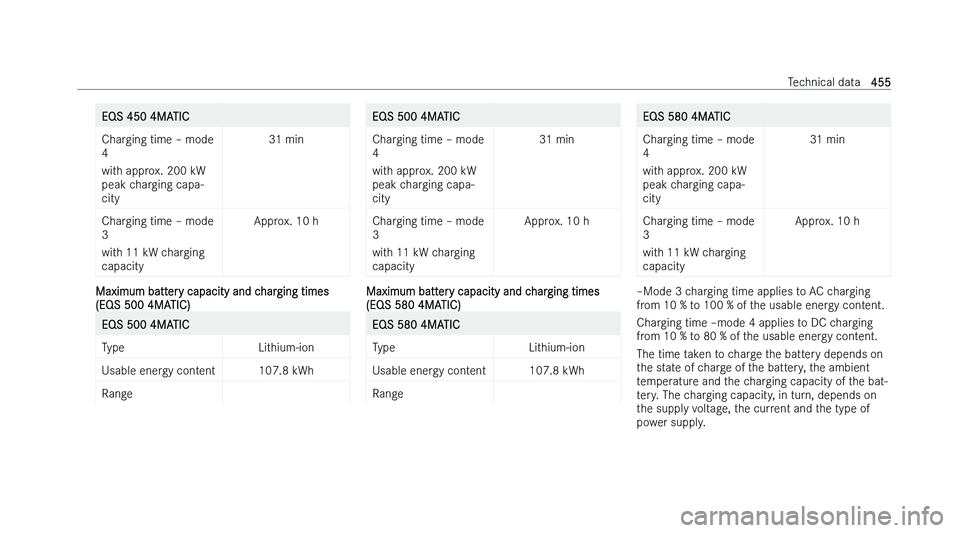

EQS 450 4MATIC
Charging time !

The nominal voltage range for your vehicle can be
f ound on the information label in the socket cover
(  page 211). Trailer hitch
General notes on the trailer hitch
ModiNcations
t
o the cooling system may be nec-
essary, depending on the vehicle model. The ret-
roNtting of a trailer hitch is only permissible if a
towing capacity is speciNed in your vehicle docu-
ments.
Further information can be obtained at a qualiNed

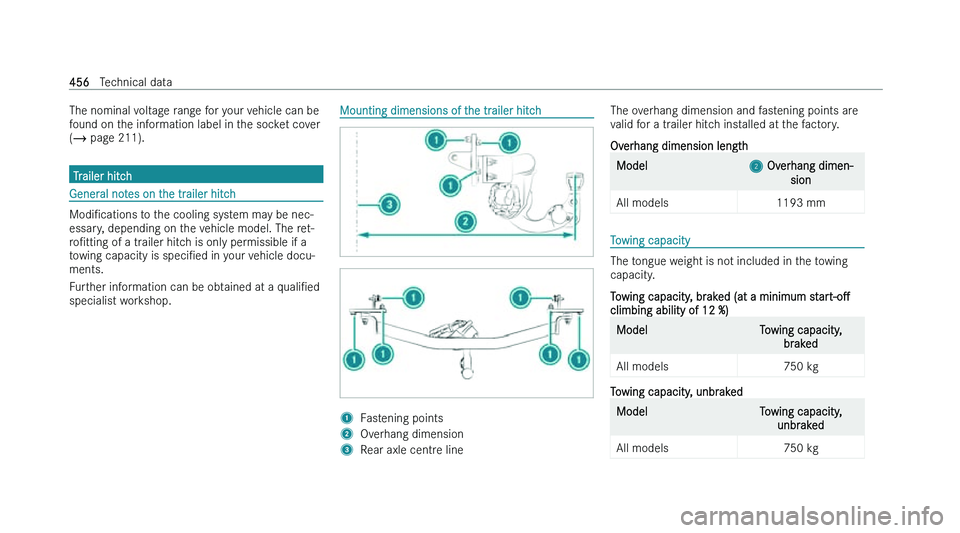

specialist workshop. Mounting dimensions of the trailer hitch
1
Fastening points
2 Overhang dimension
3 Rear axle centre line The overhang dimension and fastening points are
v

alid for a trailer hitch installed at the factory.
Overhang dimension length Model
2 Ov
erhang dimen-
sion
All models 1193 mm Towing capacity
The tongue weight is not included in the towing
capacity

.
Towing capacity, braked (at a minimum start-oM
climbing ability of 12 %) Model
Towing capacity,
br
aked
All models 750 kg Towing capacity, unbraked
Model
Towing capacity,
unbr
aked
All models 750 kg456
Technical data

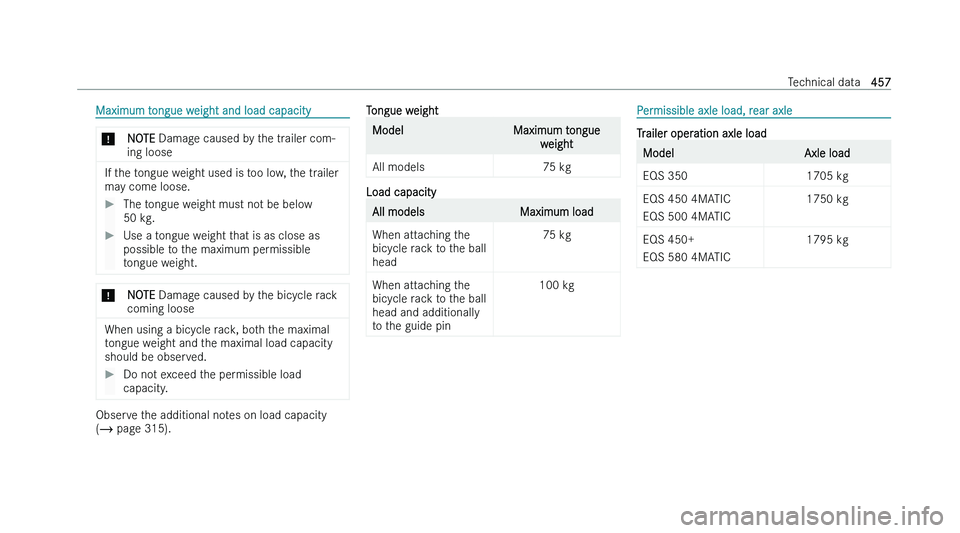

Maximum tongue weight and load capacity
*
NOTE Damag e caused by the trailer com-
ing loose If the tongue weight used is too low, the trailer
ma

y come loose.
The tongue weight must not be below
50 k

g.
Use a tongue weight that is as close as
possible t

o the maximum permissible
tongue weight. *
NOTE Damag
e caused by the bicycle rack
coming loose When using a bicycle rack, both the maximal
t

ongue weight and the maximal load capacity
should be observed.
Do not exceed the permissible load
capacity
. Observe the additional notes on load capacity
(
 pag

e 315). Tongue weight Model
Maximum tongue
w
eight
All models 75 kg Load capacity
All models
Maximum load
When attaching the
bicy
cle rack to the ball
head 75 kg
When attaching the
bicy
cle rack to the ball
head and additionally
to the guide pin 100 kg Permissible axle load, rear axle
Trailer operation axle load
Model
Axle load
EQS 350 1705 kg
EQS 450 4MATIC
EQS 500 4MA
TIC 1750 kg
EQS 450+
EQS 580 4MA
TIC 1795 kg Technical data
457

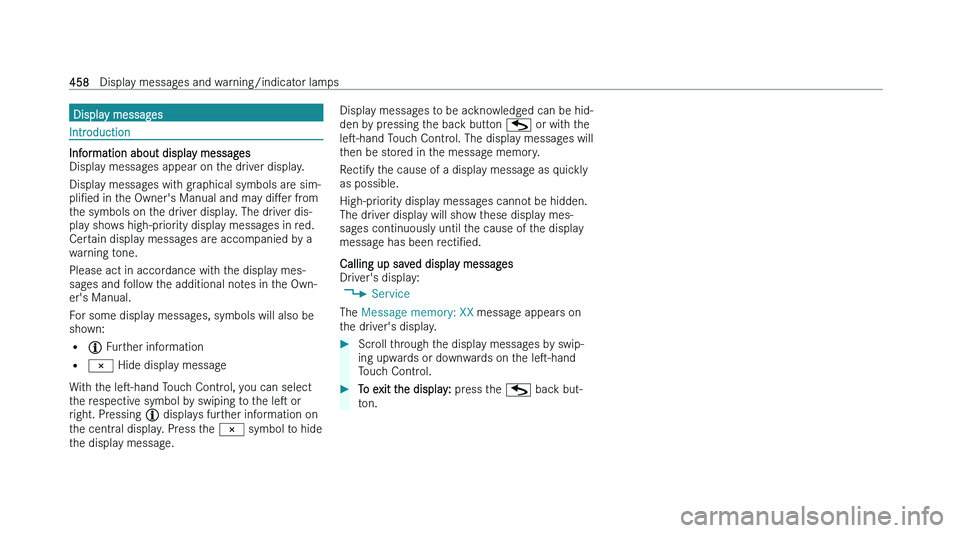

Display messages
Introduction
Information about display messages
Displa y messages appear on the driver display.
Display messages with graphical symbols are sim-
pliNed in the Owner's Manual and may diMer from
the symbols on the driver display. The driver dis-
play shows high-priority display messages in red.
Certain display messages are accompanied by a
warning tone.
Please act in accordance with the display mes-
sages and follow the additional notes in the Own-
er's Manual.
For some display messages, symbols will also be
shown:
=

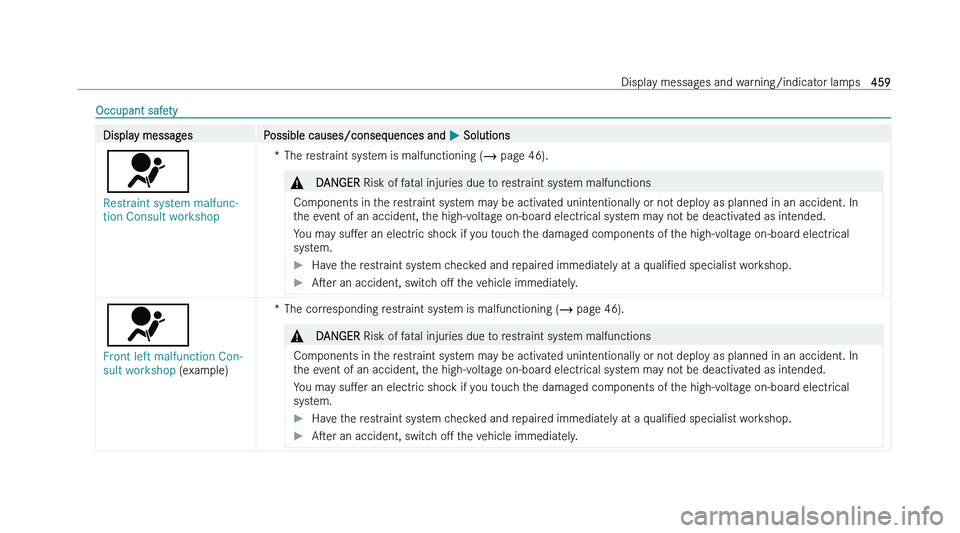

Occupant safety
Display messages
Possible causes/consequences and P Solutions
6
Restraint system malfunc-
tion Consult workshop * The restraint system is malfunctioning (
 pag e 46). &
DANGER Risk of f
atal injuries due to restraint system malfunctions
Components in the restraint system may be activated unintentionally or not deploy as planned in an accident. In
t
he event of an accident, the high-voltage on-board electrical system may not be deactivated as intended.
You may suMer an electric shock if you touch the damaged components of the high-voltage on-board electrical
system.
Have the restraint system checked and repaired immediately at a q
ualiNed specialist workshop.
Aser an accident, switc
h oM the vehicle immediately. 6
Front left malfunction Con-
sult workshop (e

xample)* The corresponding restraint system is malfunctioning (
 pag
e 46).&
DANGER Risk of f
atal injuries due to restraint system malfunctions
Components in the restraint system may be activated unintentionally or not deploy as planned in an accident. In
t
he event of an accident, the high-voltage on-board electrical system may not be deactivated as intended.
You may suMer an electric shock if you touch the damaged components of the high-voltage on-board electrical
system.
Have the restraint system checked and repaired immediately at a q
ualiNed specialist workshop.
Aser an accident, switc
h oM the vehicle immediately. Display messages and warning/indicator lamps
459

Display messages
Possible causes/consequences and P Solutions
6
Left window airbag mal-
function Consult work-
shop (e
xample) * The corresponding restraint system is malfunctioning ( pag

e 46).&
WARNING Risk of injur
y or fatal injury due to a malfunction in the windowbag
The windowbag might be triggered unintentionally or might not be triggered at all in the event of an accident.
Have the windowbag checked and repaired immediately at a q
ualiNed specialist workshop. Front passenger airbag dis-
abled See Owner's Manual
* The front passenger airbag has been disabled even though an adult or a person of adult build is on the front passenger
seat. If additional f
orces are applied to the seat, the weight the system detects may be too low. &
WARNING !

Display messages
Possible causes/consequences and P Solutions

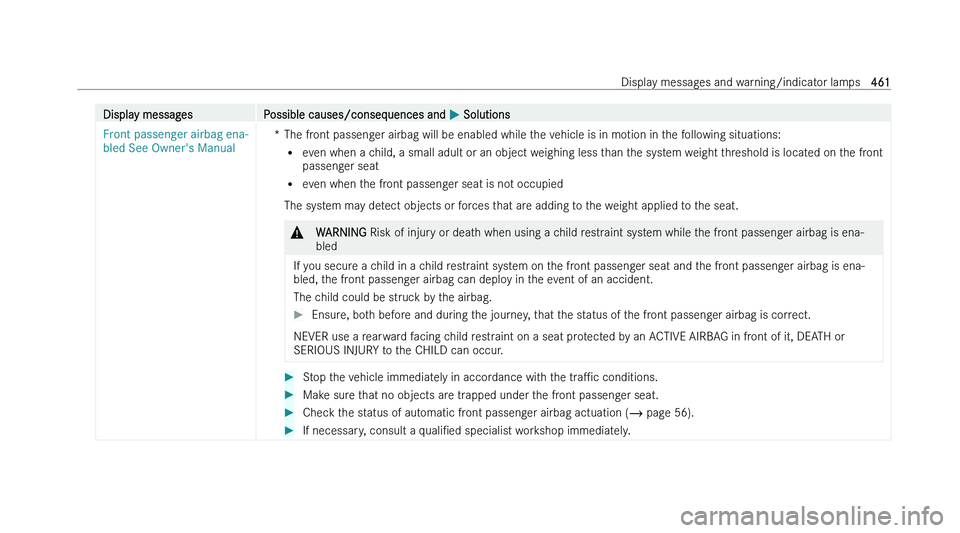

Front passenger airbag ena-
bled See Owner's Manual * The front passenger airbag will be enabled while the vehicle is in motion in the following situations:
= e
ven when a child, a small adult or an object weighing less than the system weight threshold is located on the front
passenger seat
= even when the front passenger seat is not occupied
The system may detect objects or forces that are adding to the weight applied to the seat. &
WARNING Risk of injur
y or death when using a child restraint system while the front passenger airbag is ena-
bled
If you secure a child in a child restraint system on the front passenger seat and the front passenger airbag is ena-
bled, t
he front passenger airbag can deploy in the event of an accident.
The child could be struck by the airbag.
Ensure, both before and during the journey, that the status of the front passenger airbag is correct.
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or
SERIOUS INJUR
Y to the CHILD can occur.
Stop the vehicle immediately in accordance with the tr
aPc conditions.
Make sure that no objects are trapped under the front passenger seat.
Check the status of automatic front passenger airbag actuation (  pag
e 56).
If necessary, consult a q
ualiNed specialist workshop immediately. Display messages and warning/indicator lamps
