Alternatively, you can record text contents for
y our e-mail via the MBUX voice assistant or
via the dictation function.
Further information on the MBUX voice assis-
tant ( page 338).
% You can start the In-Car OPce function using
t
he Apps menu. Please note that certain func-
tions are only available when the vehicle is

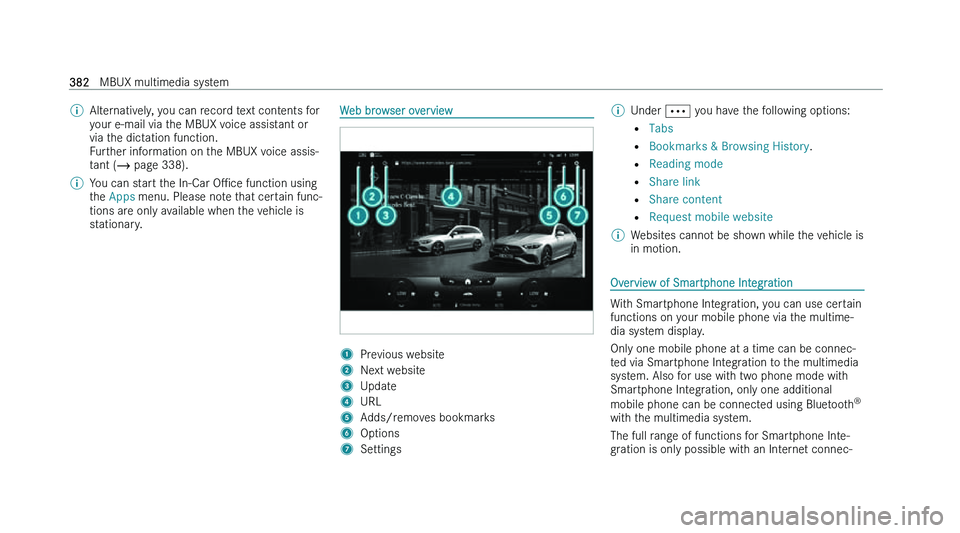

stationary. Web browser overview
1
Previous website
2 Next website
3 Update
4 URL
5 Adds/removes bookmarks
6 Options
7 Settings %
Under Ä y
ou have the following options:
= Tabs
= Bookmarks & Browsing History .
= Reading mode
= Share link
= Share content
= Request mobile website
% Websites cannot be shown while the vehicle is
in mo

tion. Overview of Smartphone Integration
With Smartphone Integration, you can use certain
functions on y

our mobile phone via the multime-
dia system display.
Only one mobile phone at a time can be connec-
ted via Smartphone Integration to the multimedia
system. Also for use with two phone mode with
Smartphone Integration, only one additional
mobile phone can be connected using Bluetooth n
with the multimedia system.
The full range of functions for Smartphone Inte-
gration is only possible with an Internet connec- 382
MBUX multimedia system

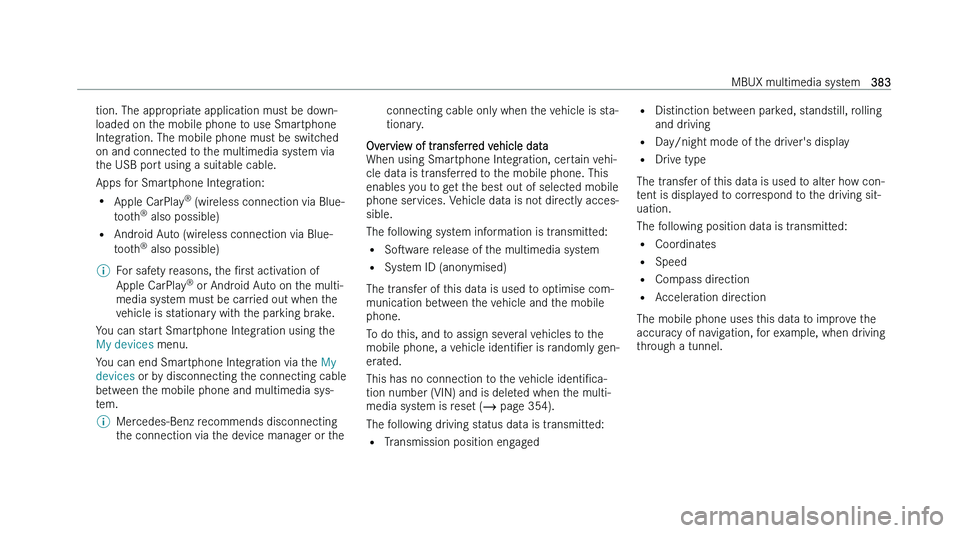

tion. The appropriate application must be down-
loaded on t
he mobile phone to use Smartphone
Integration. The mobile phone must be switched
on and connected to the multimedia system via
the USB port using a suitable cable.
Apps for Smartphone Integration:
= Apple CarPlay n
(wireless connection via Blue-
tooth n
also possible)
= Android Auto (wireless connection via Blue-
tooth n
also possible)
% For safety reasons, the Nr
st activation of
Apple CarPlay n
or Android Auto on the multi-
media system must be carried out when the
vehicle is stationary with the parking brake.
You can start Smartphone Integration using the
My devices menu.
Y

ou can end Smartphone Integration via the My
devices or by disconnecting the connecting cable
between the mobile phone and multimedia sys-
tem.
% Mercedes-Benz recommends disconnecting
t

he connection via the device manager or the connecting cable only when the vehicle is sta-
tionar
y.
Overview of transferred vehicle data
When using Smar
tphone Integration, certain vehi-
cle data is transferred to the mobile phone. This
enables you to get the best out of selected mobile
phone services. Vehicle data is not directly acces-
sible.
The following system information is transmitted:
= Sosware release of the multimedia system
= System ID (anonymised)
The transfer of this data is used to optimise com-
munication between the vehicle and the mobile
phone.
To do this, and to assign several vehicles to the
mobile phone, a vehicle identiNer is randomly gen-
erated.
This has no connection to the vehicle identiNca-
tion number (VIN) and is deleted when the multi-
media system is reset ( page 354).
The following driving status data is transmitted: = Transmission position engaged =
Dis
tinction between parked, standstill, rolling
and driving
= Day/night mode of the driver's display
= Drive type
The transfer of this data is used to alter how con-
tent is displayed to correspond to the driving sit-
uation.
The following position data is transmitted:
= Coordinates
= Speed
= Compass direction
= Acceleration direction
The mobile phone uses this data to improve the
accuracy of navigation, for example, when driving
through a tunnel. MBUX multimedia system
383

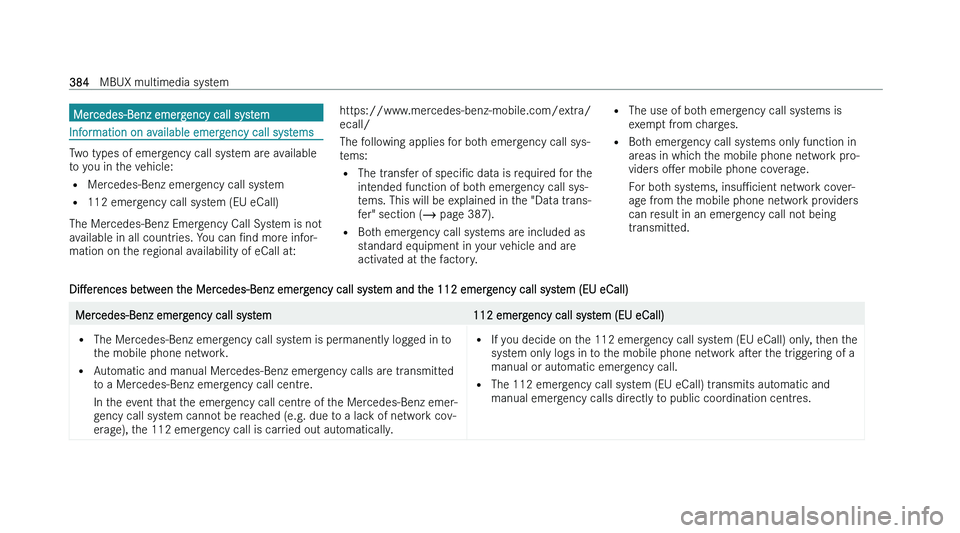

Mercedes-Benz emergency call system
Information on available emergency call systems
Two types of emergency call system are available
t
o you in the vehicle:
= Mercedes-Benz emergency call system
= 112 emergency call system (EU eCall)
The Mercedes-Benz Emergency Call System is not
available in all countries. You can Nnd more infor-
mation on the regional availability of eCall at: https://www.mercedes-benz-mobile.com/extra/
ecall/
The f

ollowing applies for both emergency call sys-
tems:
= The transfer of speciNc data is required for the
intended function of both emergency call sys-
tems. This will be explained in the "Data trans-
fer" section (  page 387).
= Both emergency call systems are included as
standard equipment in your vehicle and are
activated at the factory. =
The use of bo th emergency call systems is
exempt from charges.
= Both emergency call systems only function in
areas in which the mobile phone network pro-
viders oMer mobile phone coverage.
For both systems, insuPcient network cover-
age from the mobile phone network providers
can result in an emergency call not being
transmitted.
DiMerences be
tween the Mercedes-Benz emergency call system and the 112 emergency call system (EU eCall) Mercedes-Benz emergency call system
112 emergency call system (EU eCall)
= The Mer
cedes-Benz emergency call system is permanently logged in to
the mobile phone network.
= Automatic and manual Mercedes-Benz emergency calls are transmitted
to a Mercedes-Benz emergency call centre.
In the event that the emergency call centre of the Mercedes-Benz emer-
gency call system cannot be reached (e.g. due to a lack of network cov-
erage), the 112 emergency call is carried out automatically. =
If y ou decide on the 112 emergency call system (EU eCall) only, then the
system only logs in to the mobile phone network aser the triggering of a
manual or automatic emergency call.
= The 112 emergency call system (EU eCall) transmits automatic and
manual emergency calls directly to public coordination centres. 384
MBUX multimedia system

%

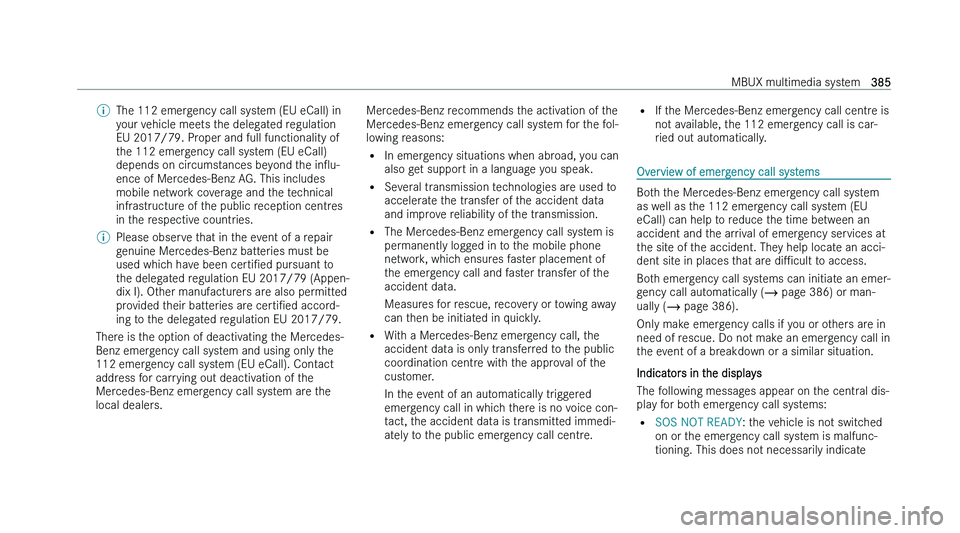

The 112 emergency call system (EU eCall) in
y our vehicle meets the delegated regulation
EU 2017/79. Proper and full functionality of
the 112 emergency call system (EU eCall)
depends on circumstances beyond the inOu-
ence of Mercedes-Benz AG. This includes
mobile network coverage and the technical
infrastructure of the public reception centres
in the respective countries.
% Please observe that in the event of a repair
g

enuine Mercedes-Benz batteries must be
used which have been certiNed pursuant to
the delegated regulation EU 2017/79 (Appen-
dix I). Other manufacturers are also permitted
provided their batteries are certiNed accord-
ing to the delegated regulation EU 2017/79.
There is the option of deactivating the Mercedes-
Benz emer
gency call system and using only the
112 emergency call system (EU eCall). Contact
address for carrying out deactivation of the
Mercedes-Benz emergency call system are the
local dealers. Mercedes-Benz recommends the activation of the
Mer
cedes-Benz emergency call system for the fol-
lowing reasons:
= In emergency situations when abroad, you can
also get support in a language you speak.
= Several transmission technologies are used to
accelerate the transfer of the accident data
and improve reliability of the transmission.
= The Mercedes-Benz emergency call system is
permanently logged in to the mobile phone
network, which ensures faster placement of
the emergency call and faster transfer of the
accident data.
Measures for rescue, recovery or towing away
can then be initiated in quickly.
= With a Mercedes-Benz emergency call, the
accident data is only transferred to the public
coordination centre with the approval of the
customer.
In the event of an automatically triggered
emergency call in which there is no voice con-
tact, the accident data is transmitted immedi-
ately to the public emergency call centre. =
If t he Mercedes-Benz emergency call centre is
not available, the 112 emergency call is car-
ried out automatically. Overview of emergency call systems
Both the Mercedes-Benz emergency call system
as w

ell as the 112 emergency call system (EU
eCall) can help to reduce the time between an
accident and the arrival of emergency services at
the site of the accident. They help locate an acci-
dent site in places that are diPcult to access.
Both emergency call systems can initiate an emer-
gency call automatically (  page 386) or man-
ually ( page 386).
Only make emergency calls if you or others are in
need of rescue. Do not make an emergency call in
the event of a breakdown or a similar situation.
Indicators in the displays
The following messages appear on the central dis-
play for both emergency call systems:
= SOS NOT READY : the vehicle is not switched
on or the emergency call system is malfunc-
tioning. This does not necessarily indicate MBUX multimedia system
385

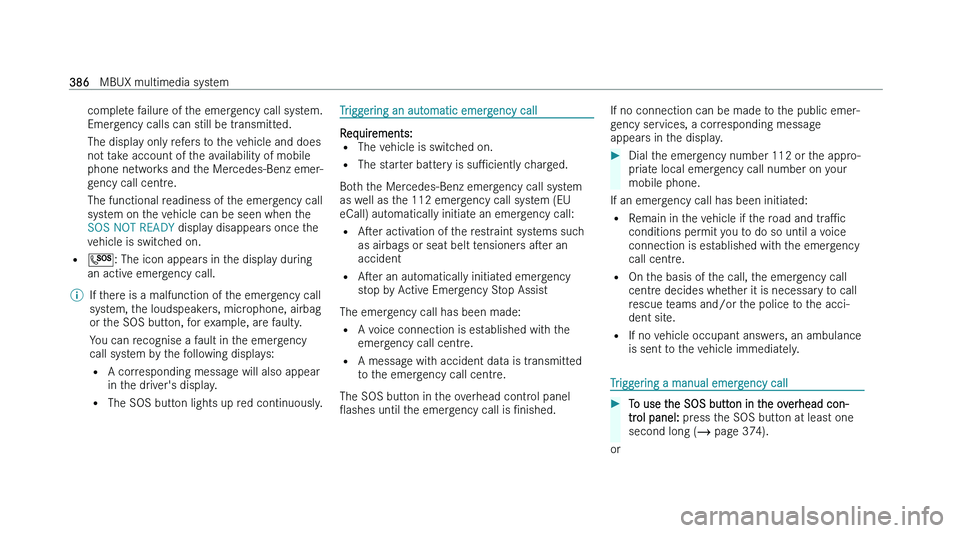

complete failure of the emergency call system.
Emer
gency calls can still be transmitted.
The display only refers to the vehicle and does
not take account of the availability of mobile
phone networks and the Mercedes-Benz emer-
gency call centre.
The functional readiness of the emergency call
system on the vehicle can be seen when the
SOS NOT READY display disappears once the
vehicle is switched on.
= S: The icon appears in the display during
an active emergency call.
% If there is a malfunction of the emergency call
sy

stem, the loudspeakers, microphone, airbag
or the SOS button, for example, are faulty.
You can recognise a fault in the emergency
call system by the following displays:
= A corresponding message will also appear
in the driver's display.
= The SOS button lights up red continuously. Triggering an automatic emergency call
Requirements:
= The v

ehicle is switched on.
= The starter battery is suPciently charged.
Both the Mercedes-Benz emergency call system
as well as the 112 emergency call system (EU
eCall) automatically initiate an emergency call:
= Aser activation of the restraint systems such
as airbags or seat belt tensioners aser an
accident
= Aser an automatically initiated emergency
stop by Active Emergency Stop Assist
The emergency call has been made: = A voice connection is established with the
emergency call centre.
= A message with accident data is transmitted
to the emergency call centre.
The SOS button in the overhead control panel
Oashes until the emergency call is Nnished.If no connection can be made to the public emer-
g
ency services, a corresponding message
appears in the display.
Dial the emergency number 112 or the appro-
pr
iate local emergency call number on your
mobile phone.
If an emergency call has been initiated: = R

emain in the vehicle if the road and traPc
conditions permit you to do so until a voice
connection is established with the emergency
call centre.
= On the basis of the call, the emergency call
centre decides whether it is necessary to call
rescue teams and/or the police to the acci-
dent site.
= If no vehicle occupant answers, an ambulance
is sent to the vehicle immediately. Triggering a manual emergency call

To use the SOS button in the overhead con-
tr
ol panel: press the SOS button at least one
second long (  page 374).
or 386
MBUX multimedia system

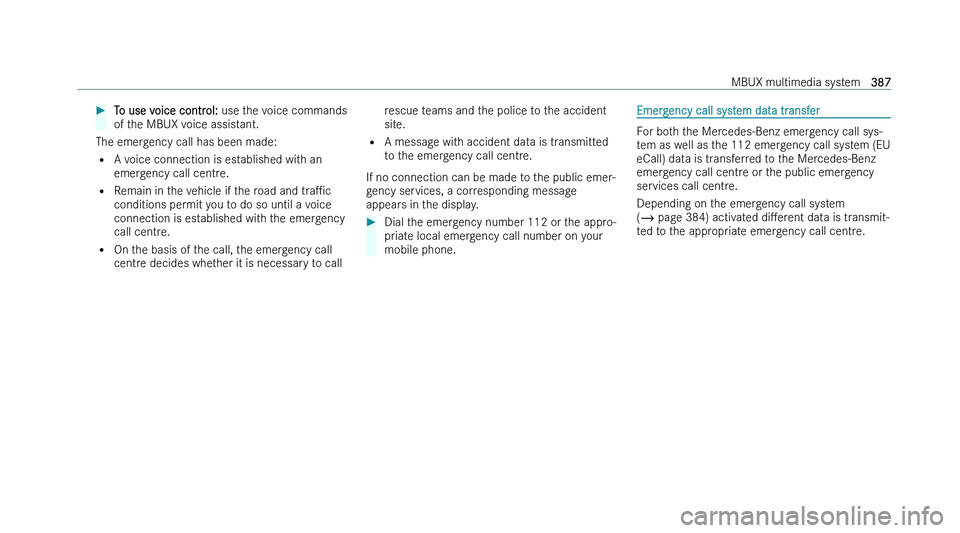

To use voice control: use t he voice commands
of the MBUX voice assistant.
The emergency call has been made:
= A v

oice connection is established with an
emergency call centre.
= Remain in the vehicle if the road and traPc
conditions permit you to do so until a voice
connection is established with the emergency
call centre.
= On the basis of the call, the emergency call
centre decides whether it is necessary to call rescue teams and the police to the accident
sit

e.
= A message with accident data is transmitted
to the emergency call centre.
If no connection can be made to the public emer-
gency services, a corresponding message
appears in the display.
Dial the emergency number 112 or the appro-
pr
iate local emergency call number on your
mobile phone. Emergency call system data transfer
For both the Mercedes-Benz emergency call sys-
t

em as well as the 112 emergency call system (EU
eCall) data is transferred to the Mercedes-Benz
emergency call centre or the public emergency
services call centre.
Depending on the emergency call system
(  page 384) activated diMerent data is transmit-
ted to the appropriate emergency call centre. MBUX multimedia system
387

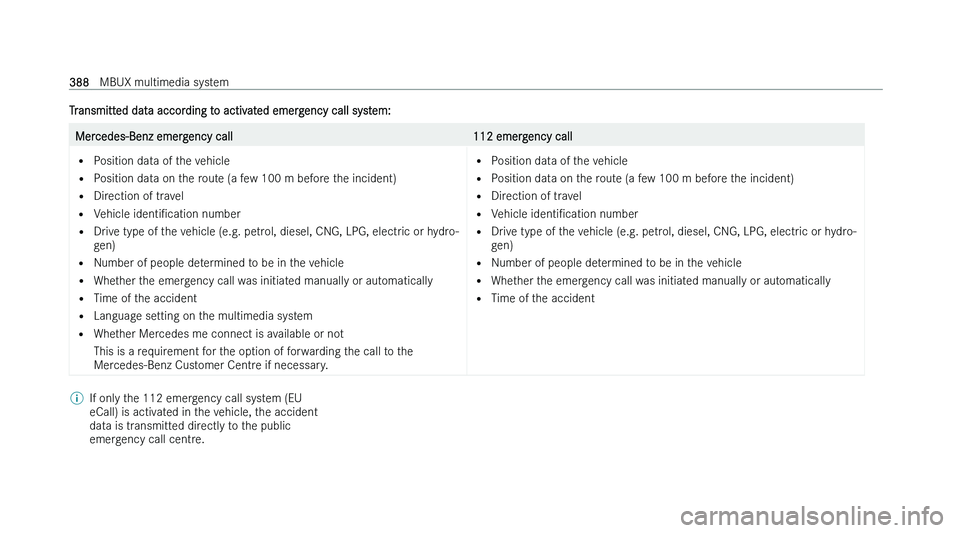

Transmitted data according to activated emergency call system:
Mercedes-Benz emergency call
112 emergency call
= P osition data of the vehicle
= Position data on the route (a few 100 m before the incident)
= Direction of travel
= Vehicle identiNcation number
= Drive type of the vehicle (e.g. petrol, diesel, CNG, LPG, electric or hydro-
gen)
= Number of people determined to be in the vehicle
= Whether the emergency call was initiated manually or automatically
= Time of the accident
= Language setting on the multimedia system
= Whether Mercedes me connect is available or not
This is a requirement for the option of forwarding the call to the
Mercedes-Benz Customer Centre if necessary. =
P osition data of the vehicle
= Position data on the route (a few 100 m before the incident)
= Direction of travel
= Vehicle identiNcation number
= Drive type of the vehicle (e.g. petrol, diesel, CNG, LPG, electric or hydro-
gen)
= Number of people determined to be in the vehicle
= Whether the emergency call was initiated manually or automatically
= Time of the accident %
If only the 112 emergency call system (EU
eCall) is activ
ated in the vehicle, the accident
data is transmitted directly to the public
emergency call centre. 388
MBUX multimedia system

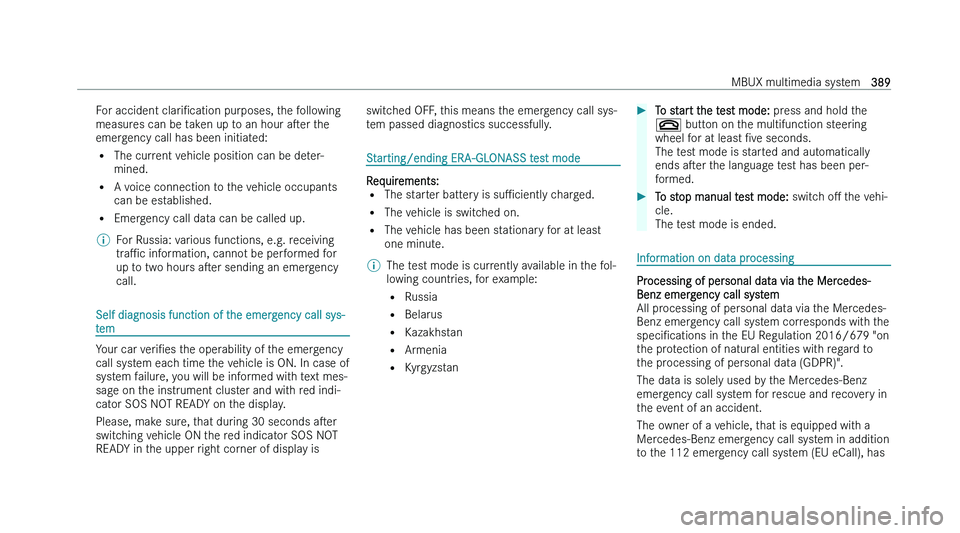

For accident
clar iNcation purposes, the following
measures can be taken up to an hour aser the
emergency call has been initiated:
= The current vehicle position can be deter-
mined.
= A voice connection to the vehicle occupants
can be established.
= Emergency call data can be called up.
% For Russia: various functions, e.g. receiving
tr

aPc information, cannot be performed for
up to two hours aser sending an emergency
call. Self diagnosis function of the emergency call sys-
t
em Your car
v
eriNes the operability of the emergency
call system each time the vehicle is ON. In case of
system failure, you will be informed with text mes-
sage on the instrument cluster and with red indi-
cator SOS NOT READY on the display.
Please, make sure, that during 30 seconds aser
switching vehicle ON the red indicator SOS NOT
READY in the upper right corner of display is switched OFF, this means the emergency call sys-
t
em passed diagnostics successfully. Starting/ending ERA-GLONASS test mode
Requirements:
= The s

tarter battery is suPciently charged.
= The vehicle is switched on.
= The vehicle has been stationary for at least
one minute.
% The test mode is currently available in the fol-
lo
wing countries, for example:
= Russia
= Belarus
= Kazakhstan
= Armenia
= Kyrgyzstan
To start the test mode: pr
ess and hold the
v button on the multifunction steering
wheel for at least Nve seconds.
The test mode is started and automatically
ends aser the language test has been per-
formed.
To stop manual test mode: switc
h oM the vehi-
cle.
The test mode is ended. Information on data processing
Processing of personal data via the Mercedes-
Benz emer
gency call system
All processing of personal data via the Mercedes-
Benz emergency call system corresponds with the
speciNcations in the EU Regulation 2016/679 "on
the protection of natural entities with regard to
the processing of personal data (GDPR)".
The data is solely used by the Mercedes-Benz
emergency call system for rescue and recovery in
the event of an accident.
The owner of a vehicle, that is equipped with a
Mercedes-Benz emergency call system in addition
to the 112 emergency call system (EU eCall), has MBUX multimedia system
389
