2022 MERCEDES-BENZ EQS SALOON Owners Manual

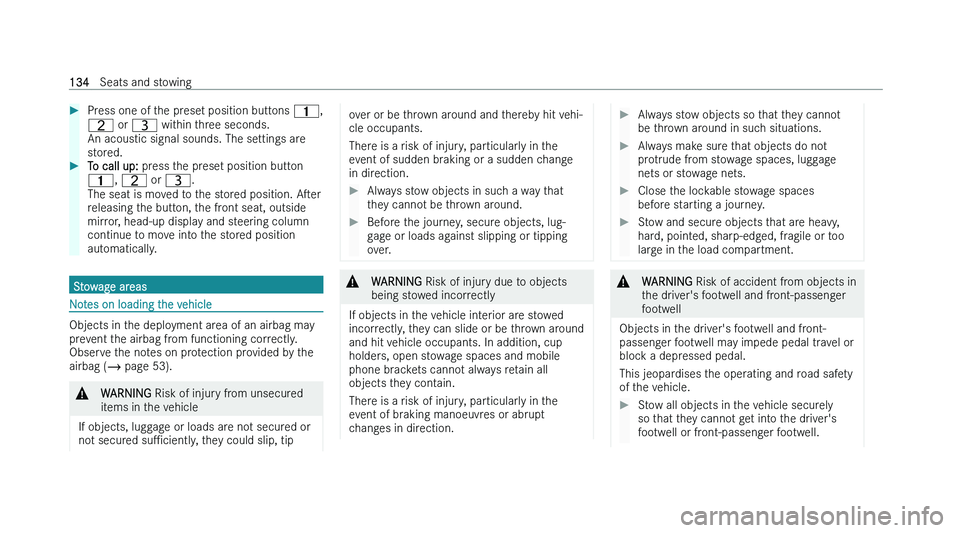

Press one of the preset position buttons 7,
T or U wit hin three seconds.
An acoustic signal sounds. The settings are
stored.
To call up: pr
ess the preset position button
7, T or U.
The seat is moved to the stored position. Aser
releasing the button, the front seat, outside
mirror, head-up display and steering column
continue to move into the stored position
automatically. Stowage areas
Notes on loading the vehicle
Objects in the deployment area of an airbag may
pr

event the airbag from functioning correctly.
Observe the notes on protection provided by the
airbag ( page 53). &
WARNING Risk of injur
y from unsecured
items in the vehicle
If objects, luggage or loads are not secured or
no
t secured suPciently, they could slip, tip over or be thrown around and thereby hit vehi-
cle occupants.
Ther

e is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction.
Always stow objects in such a way that
t

hey cannot be thrown around.
Before the journey, secure objects, lug-
g

age or loads against slipping or tipping
over. &
WARNING Risk of injur
y due to objects
being stowed incorrectly
If objects in the vehicle interior are stowed
incor
rectly, they can slide or be thrown around
and hit vehicle occupants. In addition, cup
holders, open stowage spaces and mobile
phone brackets cannot always retain all
objects they contain.
There is a risk of injury, particularly in the
event of braking manoeuvres or abrupt
changes in direction.
Always stow objects so that they cannot
be t
hrown around in such situations.
Always make sure that objects do not
pr

otrude from stowage spaces, luggage
nets or stowage nets.
Close the lockable stowage spaces
bef
ore starting a journey.
Stow and secure objects that are heavy,
har
d, pointed, sharp-edged, fragile or too
large in the load compartment. &
WARNING Risk of accident fr
om objects in
the driver's footwell and front-passenger
footwell
Objects in the driver's footwell and front-
passeng
er footwell may impede pedal travel or
block a depressed pedal.
This jeopardises the operating and road safety
of the vehicle.
Stow all objects in the vehicle securely
so t
hat they cannot get into the driver's
footwell or front-passenger footwell. 134
Seats and stowing

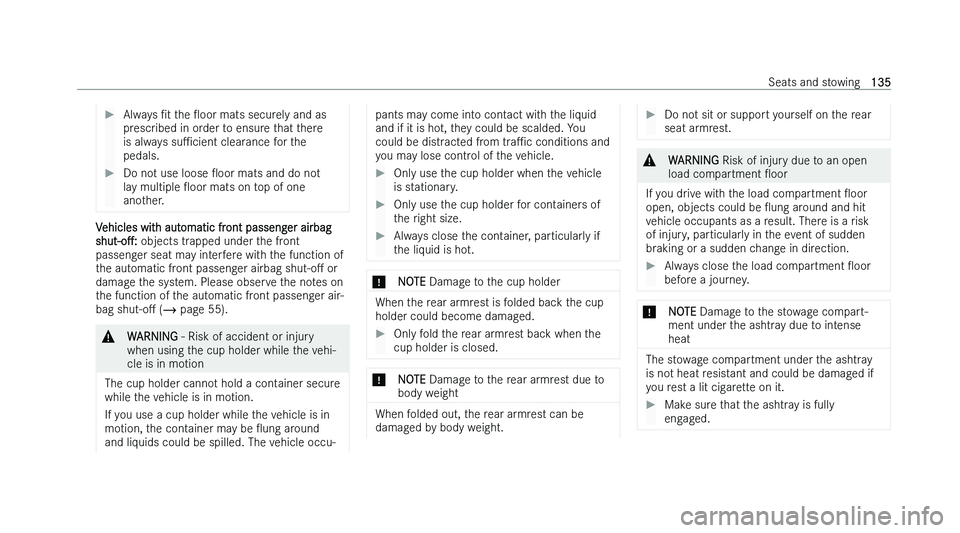

Always Nt the Ooor mats securely and as
prescribed in order to ensure that there
is always suPcient clearance for the
pedals.
Do not use loose Ooor mats and do no
t
lay multiple Ooor mats on top of one
another. Vehicles with automatic front passenger airbag
shut-oM:
objects tr

apped under the front
passenger seat may interfere with the function of
the automatic front passenger airbag shut-oM or
damage the system. Please observe the notes on
the function of the automatic front passenger air-
bag shut-oM ( page 55). &
WARNING !

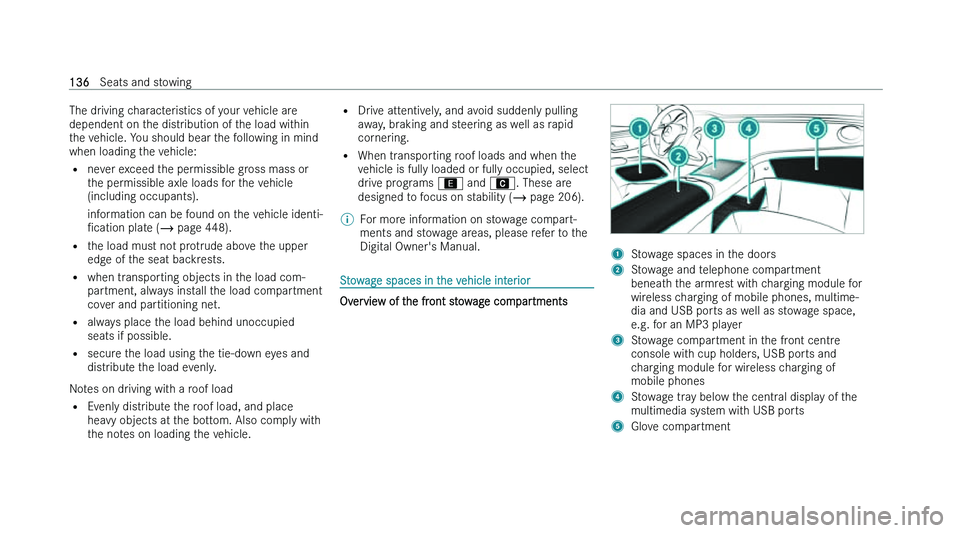

The driving characteristics of your vehicle are
dependent on t
he distribution of the load within
the vehicle. You should bear the following in mind
when loading the vehicle:
= never exceed the permissible gross mass or
the permissible axle loads for the vehicle
(including occupants).
information can be found on the vehicle identi-
Ncation plate ( page 448).
= the load must not protrude above the upper
edge of the seat backrests.
= when transporting objects in the load com-
partment, always install the load compartment
cover and partitioning net.
= always place the load behind unoccupied
seats if possible.
= secure the load using the tie-down eyes and
distribute the load evenly.
Notes on driving with a roof load
= Evenly distribute the roof load, and place
heavy objects at the bottom. Also comply with
the notes on loading the vehicle. =
Dr ive attentively, and avoid suddenly pulling
away, braking and steering as well as rapid
cornering.
= When transporting roof loads and when the
vehicle is fully loaded or fully occupied, select
drive programs  and A. These are
designed to focus on stability (  page 206).
% For more information on stowage compart-
ments and s
towage areas, please refer to the
Digital Owner's Manual. Stowage spaces in the vehicle interior
Overview of the front stowage compartments 1
Stowage spaces in the doors
2 Stowage and telephone compartment
beneat

h the armrest with charging module for
wireless charging of mobile phones, multime-
dia and USB ports as well as stowage space,
e.g. for an MP3 player
3 Stowage compartment in the front centre
console wit
h cup holders, USB ports and
charging module for wireless charging of
mobile phones
4 Stowage tray below the central display of the
multimedia sy
stem with USB ports
5 Glove compartment 136
Seats and stowing

%

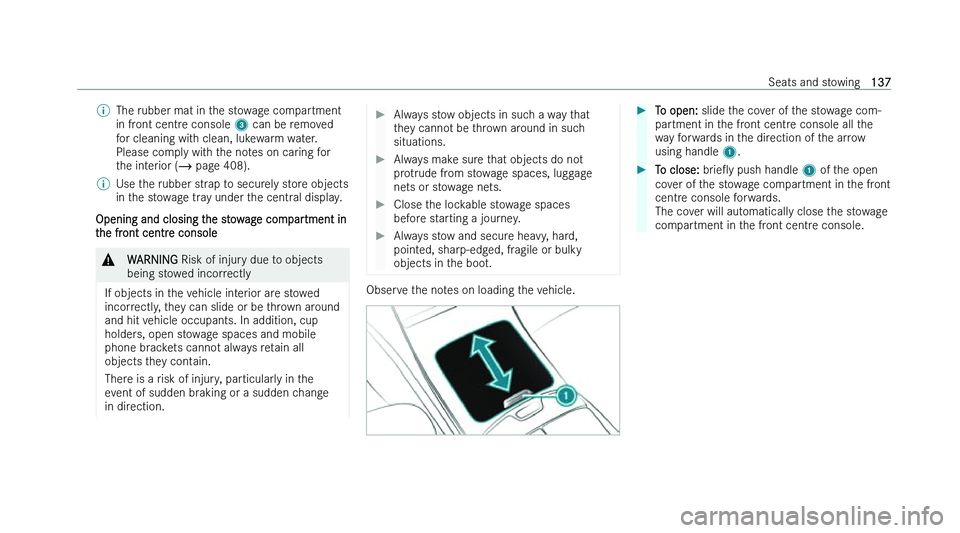

The rubber mat in the stowage compartment
in fr
ont centre console 3 can be removed
for cleaning with clean, lukewarm water.
Please comply with the notes on caring for
the interior ( page 408).
% Use the rubber strap to securely store objects
in t
he stowage tray under the central display.
Opening and closing the stowage compartment in
t
he front centre console &
WARNING Risk of injur
y due to objects
being stowed incorrectly
If objects in the vehicle interior are stowed
incor
rectly, they can slide or be thrown around
and hit vehicle occupants. In addition, cup
holders, open stowage spaces and mobile
phone brackets cannot always retain all
objects they contain.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction.
Always stow objects in such a way that
t

hey cannot be thrown around in such
situations.
Always make sure that objects do not
pr

otrude from stowage spaces, luggage
nets or stowage nets.
Close the lockable stowage spaces
bef
ore starting a journey.
Always stow and secure heavy, hard,
point
ed, sharp-edged, fragile or bulky
objects in the boot. Observe the notes on loading the vehicle.
To open: slide t
he cover of the stowage com-
partment in the front centre console all the
way forwards in the direction of the arrow
using handle 1.
To close: br
ieOy push handle 1 of the open
cover of the stowage compartment in the front
centre console forwards.
The cover will automatically close the stowage
compartment in the front centre console. Seats and stowing
137

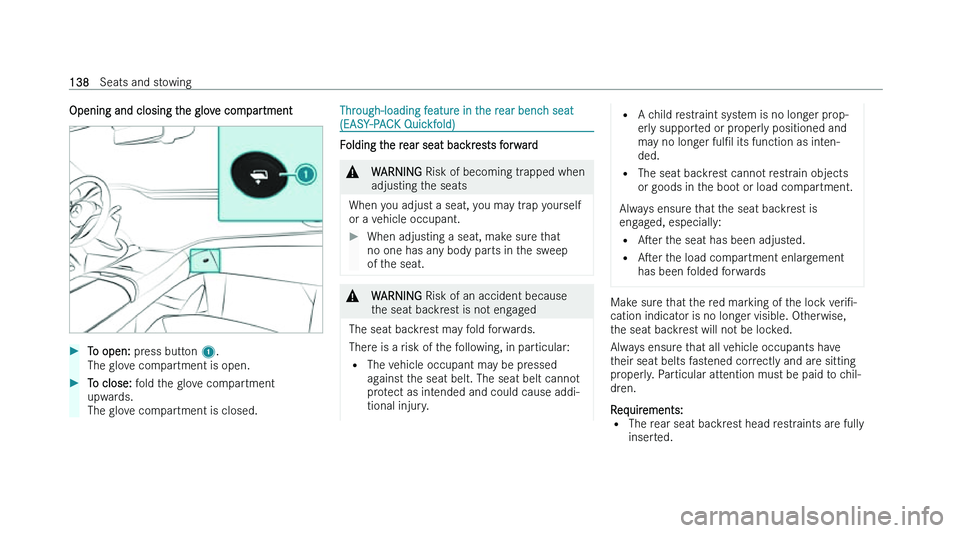

Opening and closing the glove compartment

To open: press button 1.
The glove compartment is open.
To close: f
old the glove compartment
upwards.
The glove compartment is closed. Through-loading feature in the rear bench seat
(EAS

Y-PACK Quickfold) Folding the rear seat backrests forward
&
WARNING Risk of becoming tr
apped when
adjusting the seats
When you adjust a seat, you may trap yourself
or a v
ehicle occupant.
When adjusting a seat, make sure that
no one has an
y body parts in the sweep
of the seat. &
WARNING Risk of an accident because
t
he seat backrest is not engaged
The seat backrest may fold forwards.
Ther
e is a risk of the following, in particular:
= The vehicle occupant may be pressed
against the seat belt. The seat belt cannot
protect as intended and could cause addi-
tional injury. =
A c
hild restraint system is no longer prop-
erly supported or properly positioned and
may no longer fulNl its function as inten-
ded.
= The seat backrest cannot restrain objects
or goods in the boot or load compartment.
Always ensure that the seat backrest is
engaged, especially:
= Aser the seat has been adjusted.
= Aser the load compartment enlargement
has been folded forwards Make sure that the red marking of the lock
v
eriN-
cation indicator is no longer visible. Otherwise,
the seat backrest will not be locked.
Always ensure that all vehicle occupants have
their seat belts fastened correctly and are sitting
properly. Particular attention must be paid to chil-
dren.
Requirements: = The r

ear seat backrest head restraints are fully
inserted. 138
Seats and stowing

=

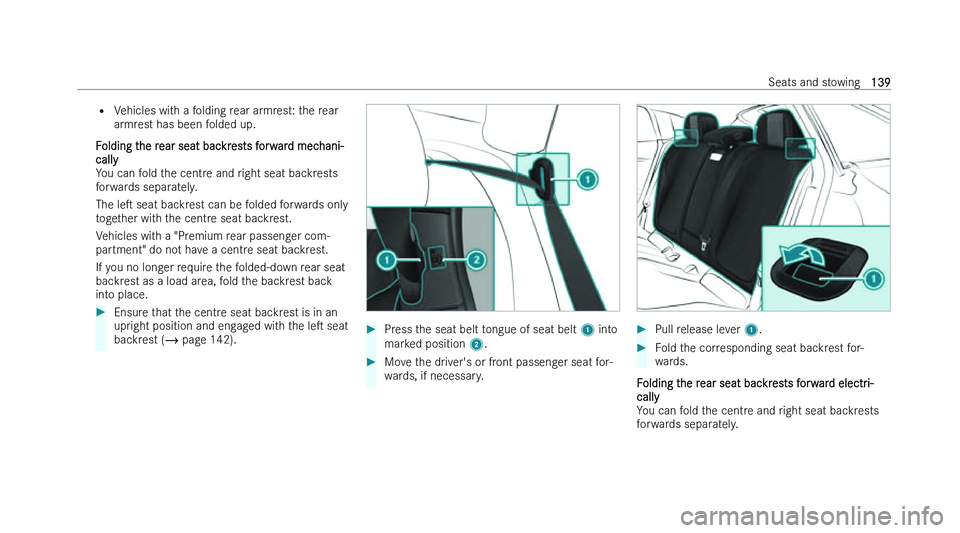

V ehicles with a folding rear armrest: the rear
armrest has been folded up.
Folding the rear seat backrests forward mechani-
cally
You can fold the centre and right seat backrests
forwards separately.
The les seat backrest can be folded forwards only
together with the centre seat backrest.
Vehicles with a "Premium rear passenger com-
partment" do not have a centre seat backrest.
If you no longer require the folded-down rear seat
backrest as a load area, fold the backrest back
into place.
Ensure that the centre seat backrest is in an
upr

ight position and engaged with the les seat
backrest (  page 142).
Press the seat belt tongue of seat belt 1 int
o
marked position 2.
Move the driver's or front passenger seat for-
w

ards, if necessary.
Pull release lever 1.
Fold the corresponding seat backrest for-
w
ards.
Folding the rear seat backrests forward electri-
call
y
You can fold the centre and right seat backrests
forwards separately. Seats and stowing
139

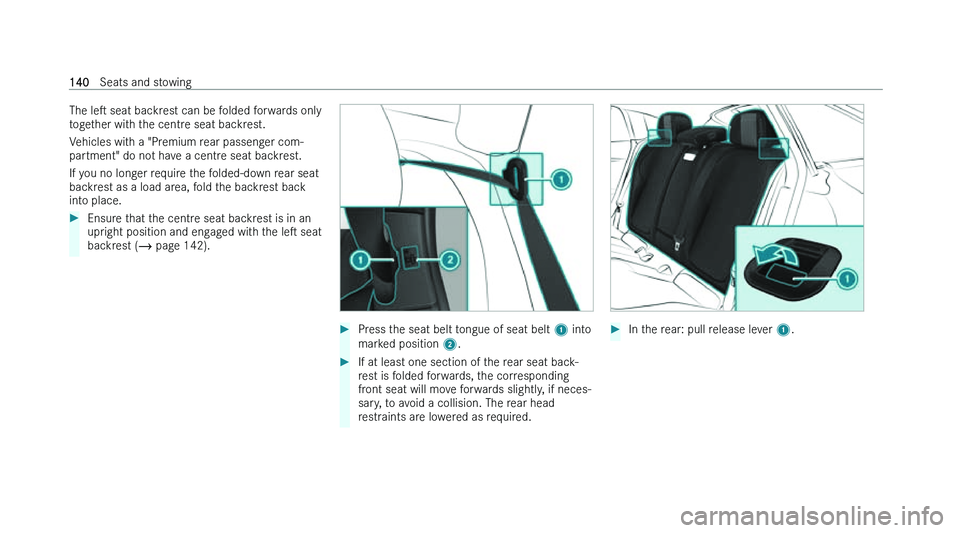

The les seat bac
krest can be folded forwards only
together with the centre seat backrest.
Vehicles with a "Premium rear passenger com-
partment" do not have a centre seat backrest.
If you no longer require the folded-down rear seat
backrest as a load area, fold the backrest back
into place.
Ensure that the centre seat backrest is in an
upr

ight position and engaged with the les seat
backrest (  page 142).
Press the seat belt tongue of seat belt 1 int
o
marked position 2.
If at least one section of the rear seat back-
r

est is folded forwards, the corresponding
front seat will move forwards slightly, if neces-
sary, to avoid a collision. The rear head
restraints are lowered as required.
In the rear: pull release lever 1.140
Seats and stowing

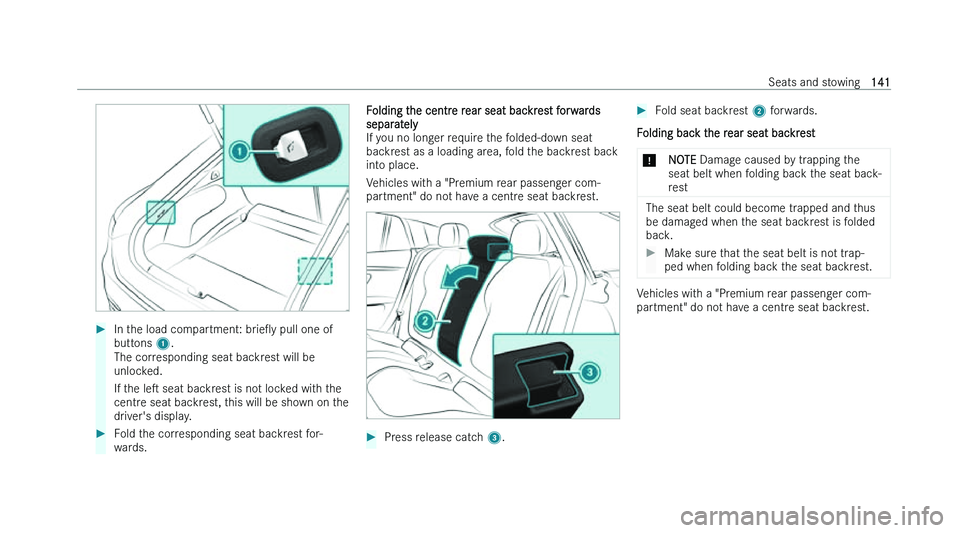

In the load compartment: br ieOy pull one of
buttons 1.
The corresponding seat backrest will be
unlocked.
If the les seat backrest is not locked with the
centre seat backrest, this will be shown on the
driver's display.
Fold the corresponding seat backrest for-
w

ards. Folding the centre rear seat backrest forwards
separ
ately
If you no longer require the folded-down seat
backrest as a loading area, fold the backrest back
into place.
Vehicles with a "Premium rear passenger com-
partment" do not have a centre seat backrest.
Press release catch 3.
Fold seat backrest 2 f orwards.
Folding back the rear seat backrest
* NOTE Damag
e caused by trapping the
seat belt when folding back the seat back-
rest The seat belt could become trapped and thus
be damag

ed when the seat backrest is folded
back.
Make sure that the seat belt is not trap-
ped when f
olding back the seat backrest. Vehicles with a "Premium rear passenger com-
par

tment" do not have a centre seat backrest. Seats and stowing
141
