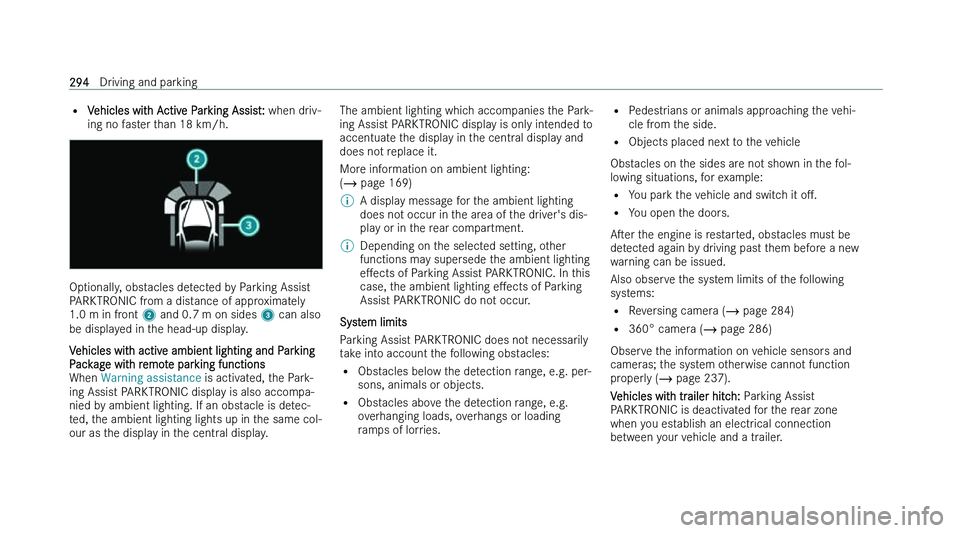

V ehicles with Active Parking Assist: when driv-
ing no faster than 18 km/h. Optionally, obstacles detected by Parking Assist
P

ARKTRONIC from a distance of approximately
1.0 m in front 2 and 0.7 m on sides 3 can also
be displayed in the head-up display.
Vehicles with active ambient lighting and Parking
Package with remote parking functions
When Warning assistance is activated, the Park-
ing Assist PARKTRONIC display is also accompa-
nied by ambient lighting. If an obstacle is detec-
ted, the ambient lighting lights up in the same col-
our as the display in the central display. The ambient lighting which accompanies the Park-
ing Assis
t PARKTRONIC display is only intended to
accentuate the display in the central display and
does not replace it.
More information on ambient lighting:
(  page 169)
% A display message for the ambient lighting
does no
t occur in the area of the driver's dis-
play or in the rear compartment.
% Depending on the selected setting, other
functions ma

y supersede the ambient lighting
eMects of Parking Assist PARKTRONIC. In this
case, the ambient lighting eMects of Parking
Assist PARKTRONIC do not occur.
System limits
P
arking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects.
= Obstacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of lorries. =
P
edestrians or animals approaching the vehi-
cle from the side.
= Objects placed next to the vehicle
Obstacles on the sides are not shown in the fol-
lowing situations, for example: = You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, obstacles must be
detected again by driving past them before a new
warning can be issued.
Also observe the system limits of the following
systems:
= Reversing camera (  page 284)
= 360° camera ( page 286)
Observe the information on vehicle sensors and
cameras; the system otherwise cannot function
properly (  page 237).
Vehicles with trailer hitch: Parking Assist
PARKTRONIC is deactivated for the rear zone
when you establish an electrical connection
between your vehicle and a trailer. 294
Driving and parking

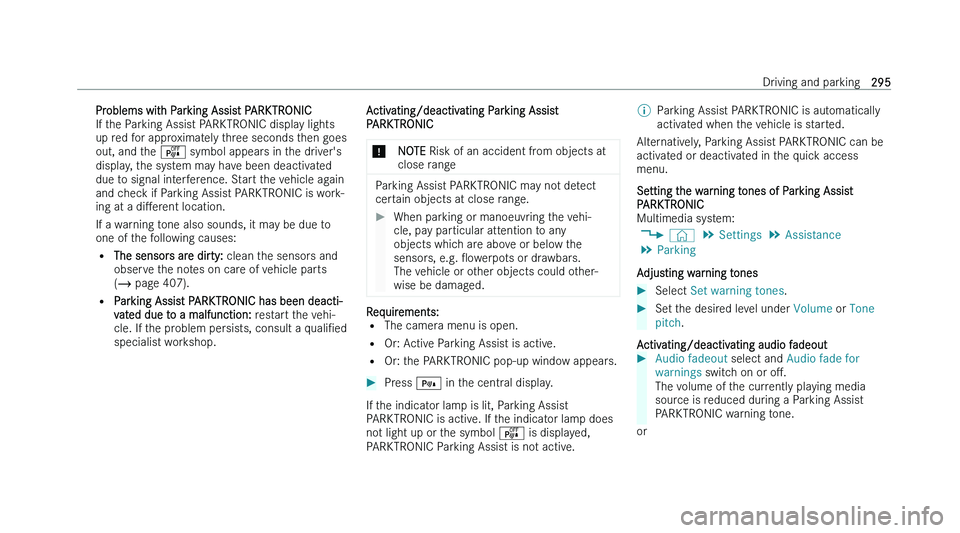

Problems with Parking Assist PARKTRONIC
If t he Parking Assist PARKTRONIC display lights
up red for approximately three seconds then goes
out, and the


Audio fadeout select and Audio fadeout in
trans. position R switc h on or oM.
The volume of the currently playing media
source is reduced when reverse gear is
engaged.

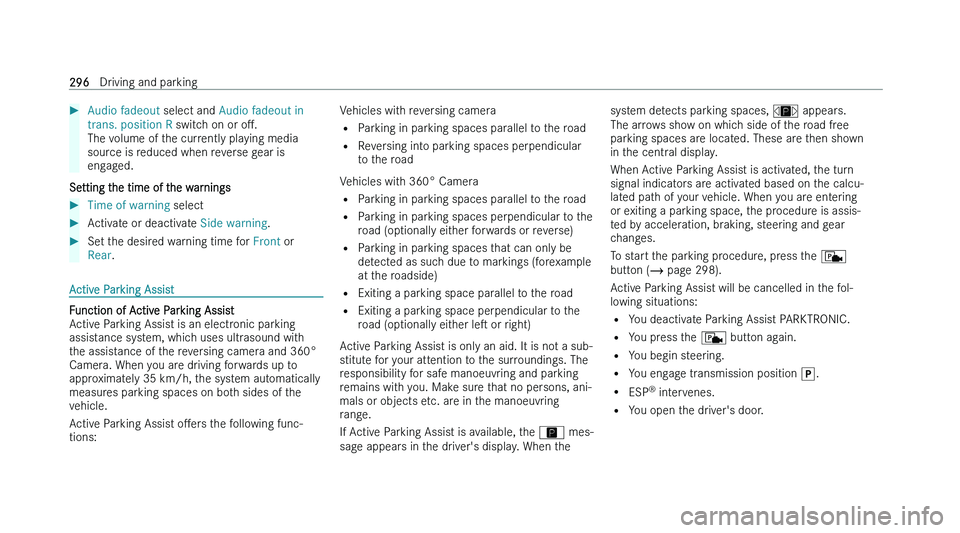

Setting the time of the warnings
Time of warning select
Activate or deactivate Side warning.
Set the desired warning time for Front or
Rear . Active Parking Assist
Function of Active Parking Assist
A

ctive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
the assistance of the reversing camera and 360°
Camera. When you are driving forwards up to
approximately 35 km/h, the system automatically
measures parking spaces on both sides of the
vehicle.
Active Parking Assist oMers the following func-
tions: Vehicles with reversing camera
=
P

arking in parking spaces parallel to the road
= Reversing into parking spaces perpendicular
to the road
Vehicles with 360° Camera
= Parking in parking spaces parallel to the road
= Parking in parking spaces perpendicular to the
road (optionally either forwards or reverse)
= Parking in parking spaces that can only be
detected as such due to markings (forexample
at the roadside)
= Exiting a parking space parallel to the road
= Exiting a parking space perpendicular to the
road (optionally either les or right)
Active Parking Assist is only an aid. It is not a sub-
stitute for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range.
If Active Parking Assist is available, the Ç mes-
sage appears in the driver's display. When the system detects parking spaces,
È appear s.
The arrows show on which side of the road free
parking spaces are located. These are then shown
in the central display.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle. When you are entering
or exiting a parking space, the procedure is assis-
ted by acceleration, braking, steering and gear
changes.
To start the parking procedure, press the E
button ( page 298).
Active Parking Assist will be cancelled in the fol-
lowing situations:
= You deactivate Parking Assist PARKTRONIC.
= You press the E button again.
= You begin steering.
= You engage transmission position j.
= ESP n
intervenes.
= You open the driver's door. 296
Driving and parking

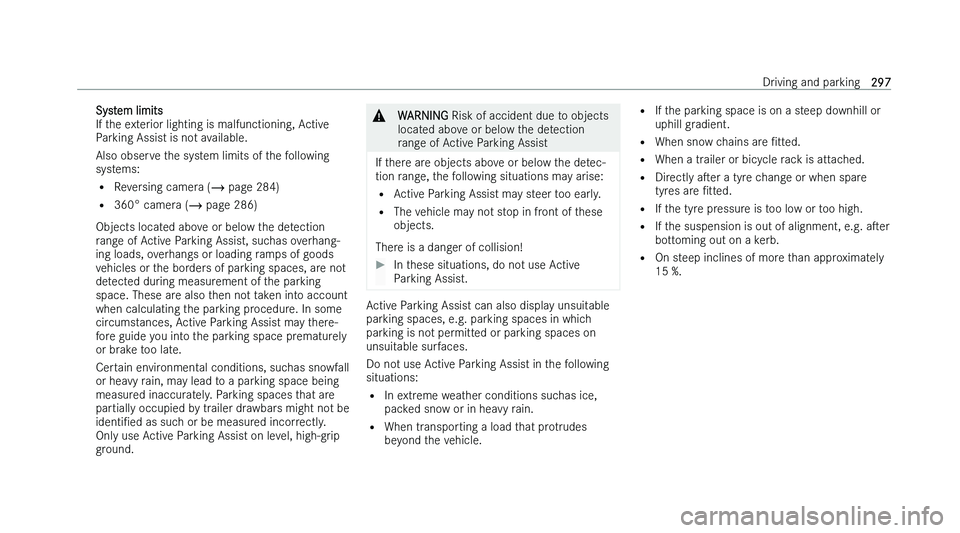

System limits
If t
he exterior lighting is malfunctioning, Active
Parking Assist is not available.
Also observe the system limits of the following
systems:
= Reversing camera ( page 284)
= 360° camera (  page 286)
Objects located above or below the detection
range of Active Parking Assist, suchas overhang-
ing loads, overhangs or loading ramps of goods
vehicles or the borders of parking spaces, are not
detected during measurement of the parking
space. These are also then not taken into account
when calculating the parking procedure. In some
circumstances, Active Parking Assist may there-
fore guide you into the parking space prematurely
or brake too late.
Certain environmental conditions, suchas snowfall
or heavy rain, may lead to a parking space being
measured inaccurately. Parking spaces that are
partially occupied by trailer drawbars might not be
identiNed as such or be measured incorrectly.
Only use Active Parking Assist on level, high-grip
ground. &
WARNING Risk of accident due t o objects
located above or below the detection
range of Active Parking Assist
If there are objects above or below the detec-
tion r
ange, the following situations may arise:
= Active Parking Assist may steer too early.
= The vehicle may not stop in front of these
objects.
There is a danger of collision!
In these situations, do not use Active
P
arking Assist. Active Parking Assist can also display unsuitable
par

king spaces, e.g. parking spaces in which
parking is not permitted or parking spaces on
unsuitable surfaces.
Do not use Active Parking Assist in the following
situations:
= In extreme weather conditions suchas ice,
packed snow or in heavy rain.
= When transporting a load that protrudes
beyond the vehicle. =
If t
he parking space is on a steep downhill or
uphill gradient.
= When snow chains are Ntted.
= When a trailer or bicycle rack is attached.
= Directly aser a tyre change or when spare
tyres are Ntted.
= If the tyre pressure is too low or too high.
= If the suspension is out of alignment, e.g. aser
bottoming out on a kerb.
= On steep inclines of more than approximately
15 %. Driving and parking
297

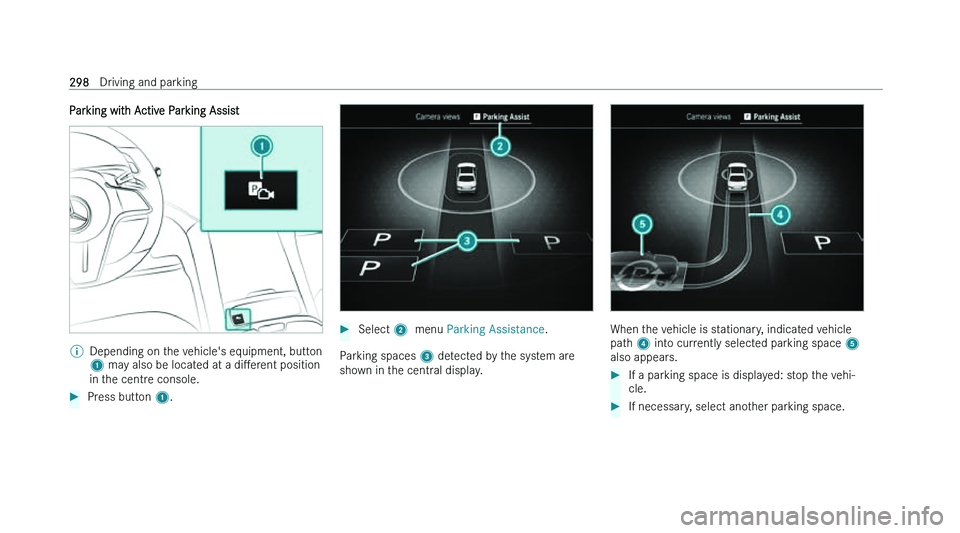

Parking with Active Parking Assist
%
Depending on the vehicle's equipment, button
1 ma
y also be located at a diMerent position
in the centre console.
Press button 1.
Select 2 menu Parking Assistance .
Parking spaces 3 de tected by the system are
shown in the central display. When the vehicle is stationary, indicated vehicle
pat
h 4 into currently selected parking space 5
also appears.
If a parking space is displayed: stop the vehi-
cle.
If necessary, select another parking space. 298
Driving and parking

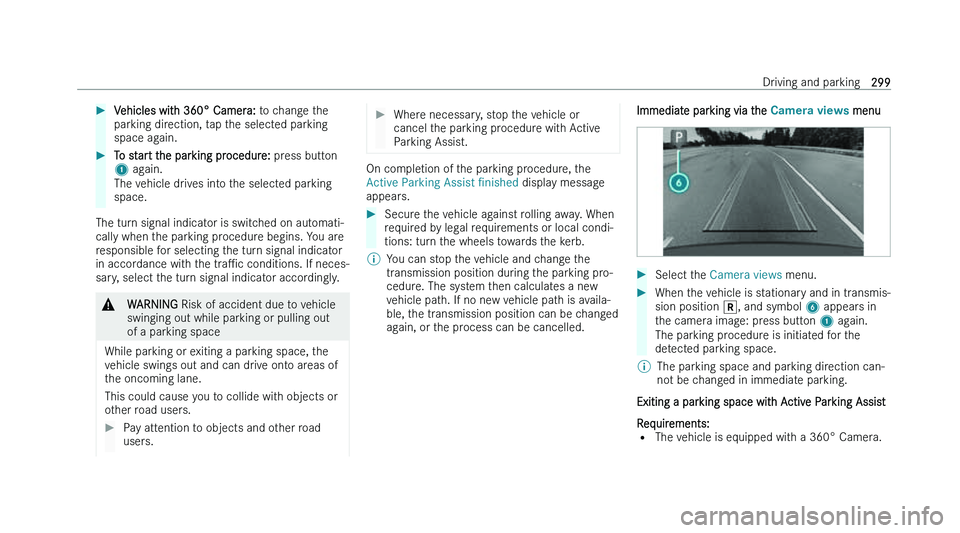

Vehicles with 360° Camera: t o change the
parking direction, tap the selected parking
space again.
To start the parking procedure: pr
ess button
1 again.
The vehicle drives into the selected parking
space.
The turn signal indicator is switched on automati-
call
y when the parking procedure begins. You are
responsible for selecting the turn signal indicator
in accordance with the traPc conditions. If neces-
sary, select the turn signal indicator accordingly. &
WARNING Risk of accident due t
o vehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
v
ehicle swings out and can drive onto areas of
the oncoming lane.
This could cause you to collide with objects or
other road users.
Pay attention to objects and other road
user

s.
Where necessary, stop the vehicle or
cancel t

he parking procedure with Active
Parking Assist. On completion of the parking procedure, the
Active Parking Assist finished
displa

y message
appears.
Secure the vehicle against rolling away. When
r
equired by legal requirements or local condi-
tions: turn the wheels towards the kerb.
% You can stop the vehicle and change the
tr
ansmission position during the parking pro-
cedure. The system then calculates a new
vehicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled. Immediate parking via the
&DmHrDvLHws menu
Select the Camera views menu.
When the vehicle is stationary and in transmis-
sion position k, and symbol 6 appear

s in
the camera image: press button 1 again.
The parking procedure is initiated for the
detected parking space.
% The parking space and parking direction can-
no

t be changed in immediate parking.
Exiting a parking space with Active Parking Assist
R
equirements:
= The vehicle is equipped with a 360° Camera. Driving and parking
299

=
The v ehicle has been parked with Active Park-
ing Assist.
Start the vehicle.
Press button 1.
Select Parking Assistance menu 2.
If necessary, change direction of exit 3.
To start exiting the parking space: pr ess but-
ton 1 again.
If necessary, change the gearbox setting.
Obser

ve any messages displayed in the driv-
er's display and central display.
The vehicle moves out of the parking space.
The turn signal indicator is automatically switched
on when e
xiting a parking space begins and
switched oM when it is completed. You are
responsible for selecting the turn signal indicator
in accordance with the traPc conditions. If neces-
sary, select the turn signal indicator accordingly.
Aser the parking space has been exited, a warn-
ing tone and the Ø Active Parking Assist fin-
ished, take control of vehicle message prompt
you to take control of the vehicle. You have to
accelerate, brake, steer and change gear yourself
again.
If you do not react to the prompt to take control
of the vehicle, the system will brake the vehicle to
a standstill. Pausing Active Parking Assist
Y

ou can interrupt the parking or exiting procedure
of Active Parking Assist by performing one of the
following actions, forexample:
Depress the brake pedal.
Open the front passenger door, a rear door or
t

he load compartment.
Apply the electric parking brake or activating
t

he HOLD function.
To resume the parking or exiting procedure:
g

ently depress the accelerator pedal.
% If the electric parking brake was applied
bef

ore Active Parking Assist was activated,
depress the accelerator pedal lightly to start
the parking or exiting procedure.
Check the area around your vehicle again before
r
esuming a paused parking procedure. Make sure
that persons, animals or objects are no longer in
the manoeuvring range. Also observe the system
limitations of Active Parking Assist. 300
Driving and parking

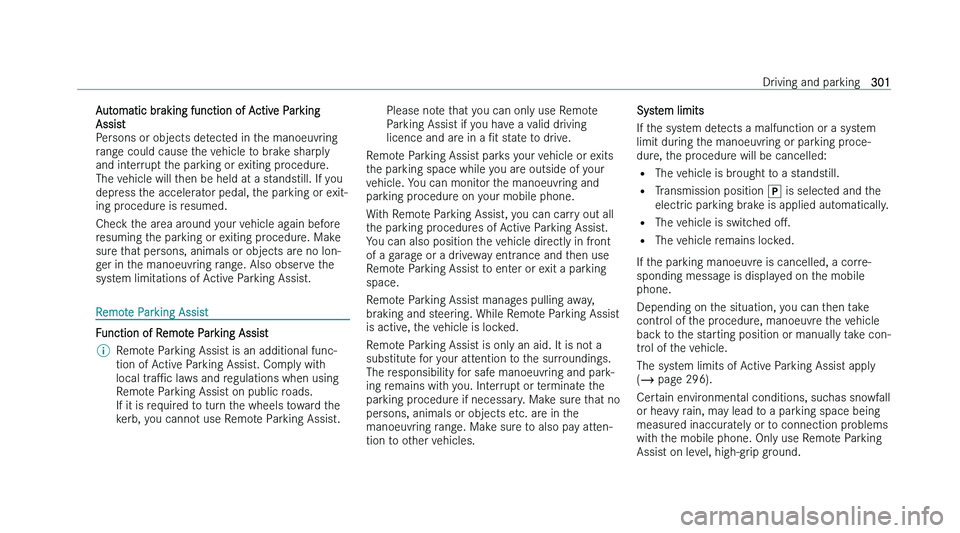

Automatic braking function of Active Parking
Assis
t
Persons or objects detected in the manoeuvring
range could cause the vehicle to brake sharply
and interrupt the parking or exiting procedure.
The vehicle will then be held at a standstill. If you
depress the accelerator pedal, the parking or exit-
ing procedure is resumed.
Check the area around your vehicle again before
resuming the parking or exiting procedure. Make
sure that persons, animals or objects are no lon-
ger in the manoeuvring range. Also observe the
system limitations of Active Parking Assist. Remote Parking Assist
Function of Remote Parking Assist
% Remote Parking Assist is an additional func-
tion of A
ctive Parking Assist. Comply with
local traPc laws and regulations when using
Remote Parking Assist on public roads.
If it is required to turn the wheels toward the
kerb, you cannot use Remote Parking Assist. Please note that you can only use Remote
P
arking Assist if you have a valid driving
licence and are in a Nt state to drive.
Remote Parking Assist parks your vehicle or exits
t
he parking space while you are outside of your
vehicle. You can monitor the manoeuvring and
parking procedure on your mobile phone.
With Remote Parking Assist, you can carry out all
the parking procedures of Active Parking Assist.
You can also position the vehicle directly in front
of a garage or a driveway entrance and then use
Remote Parking Assist to enter or exit a parking
space.
Remote Parking Assist manages pulling away,
braking and steering. While Remote Parking Assist
is active, the vehicle is locked.
Remote Parking Assist is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Interrupt or terminate the
parking procedure if necessary. Make sure that no
persons, animals or objects etc. are in the
manoeuvring range. Make sure to also pay atten-
tion to other vehicles. System limits
If t

he system detects a malfunction or a system
limit during the manoeuvring or parking proce-
dure, the procedure will be cancelled:
= The vehicle is brought to a standstill.
= Transmission position j is selected and the
electric parking brake is applied automatically.
= The vehicle is switched oM.
= The vehicle remains locked.
If the parking manoeuvre is cancelled, a corre-
sponding message is displayed on the mobile
phone.
Depending on the situation, you can then take
control of the procedure, manoeuvre the vehicle
back to the starting position or manually take con-
trol of the vehicle.
The system limits of Active Parking Assist apply
( page 296).
Certain environmental conditions, suchas snowfall
or heavy rain, may lead to a parking space being
measured inaccurately or to connection problems
with the mobile phone. Only use Remote Parking
Assist on level, high-grip ground. Driving and parking
301
