2022 MERCEDES-BENZ AMG GT COUPE Owners Manual

Manoeuvr
Manoeuvr
ing assist
ing assistant
ant F
F
unction of Dr
unction of Dr iv
ive Awa
e Away Assi st
y Assi st

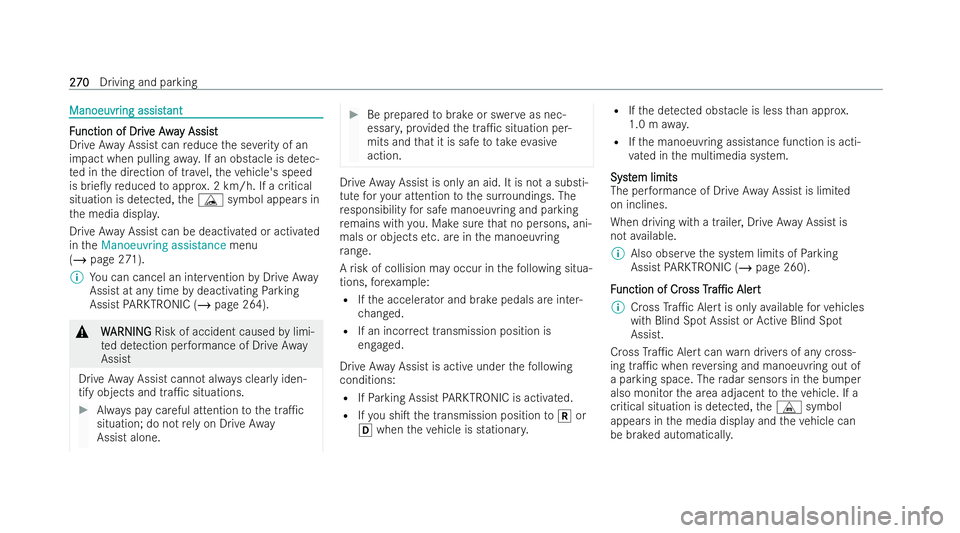

Drive Away Assist can reduce the se verity of an
impact when pulling away.If an obs tacle is de tec-
te d in the direction of tr avel, theve hicle's speed
is brie0y reduced toappr ox. 2 km/h. If a critical
situation is de tected, theÉ symbol appears in
th e media displa y.
Drive Away Assist can be deactivated or activated
in theManoeuvring assistance menu
(/ page 271).
% You can cancel an inter vention byDrive Away
Assist at any time bydeactivating Parking
Assist PARKTRONIC (/ page 264).&
W
WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection per form ance of Drive Away
Assist
Drive Away Assist cannot alw ays clear lyiden-
tify objects and tra1c situations. #
Always pay careful attention tothe tra1c
situation; do not relyon Drive Away
Assist alone. #
Be prepa redto brake or swer veas nec-
essar y,prov ided the tra1c situation per-
mits and that it is safe totake evasive
action. Drive
Away Assist is only an aid. It is not a substi-
tute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
A risk of collision may occur in thefo llowing situa-
tions, fore xamp le:
R Ifth e accelerator and brake pedals are inter-
ch anged.
R If an inco rrect transmission position is
engaged.
Drive Away Assist is active under thefo llowing
conditions:
R IfPa rking Assist PARKTRONIC is activated.
R Ifyo u shiT the transmission position tok or
h when theve hicle is stationar y. R
Ifth e de tected obs tacle is less than appr ox.
1.0 m away.
R Ifth e manoeuvring assistance function is acti-
va ted in the multimedia system.
Syst
Syst em limits
em limits
The per form ance of Drive AwayAssist is limited
on inclines.
When driving with a trailer, Drive AwayAssist is
not available.
% Also obser vethe system limits of Parking
Assist PARKTRONIC (/ page 260).
F
F unction of Cr unction of Cr oss
ossTr
Tra1c
a1c Alert
Alert
% Cross Tra1c Ale rtis only available forve hicles
with Blind Spot Assist or Active Blind Spot
Assist.
Cross Tra1c Ale rtcan warndrivers of any cross-
ing tra1c when reve rsing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent totheve hicle. If a
critical situation is de tected, theL symbol
appears in the media display and theve hicle can
be braked automaticall y.270
270
Driving and parking

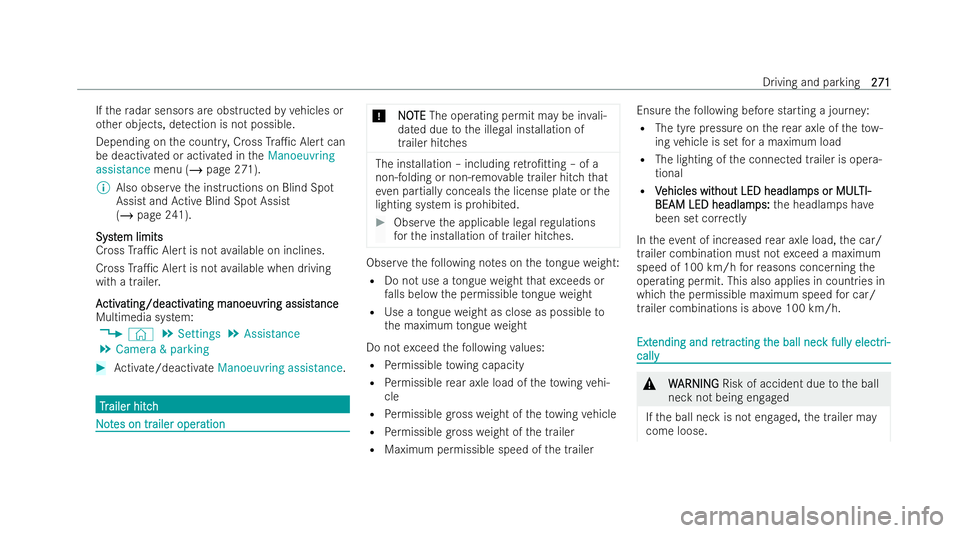

If
th era dar sensors are obstructed byvehicles or
ot her objects, de tection is not possible.
Depending on the countr y,Cross Tra1c Ale rtcan
be deactivated or activated in theManoeuvring
assistance menu (/page 271).
% Also obser vethe inst ructions on Blind Spot
Assist and Active Blind Spot Assist
(/ page 241).
Syst
Syst em limits
em limits
Cross Tra1c Ale rtis not available on inclines.
Cross Tra1c Ale rtis not available when driving
with a trailer.
A
A ctiv ctiv ating/deactiv
ating/deactiv ating manoeuvr
ating manoeuvr ing assist
ing assistance
ance
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Activate/deactivate Manoeuvring assistance. T
T
r
railer hitch
ailer hitch N
No
ot
tes on tr
es on tr ailer oper
ailer oper ation
ation *
N
NOOTE
TE The operating permit may be in vali-
dated due tothe illegal installation of
trailer hitches The installation – including
retro/tting – of a
non- folding or non-remo vable trailer hitch that
eve n partial lyconceals the license plate or the
lighting system is prohibited. #
Obser vethe applicable legal regulations
fo rth e installation of trailer hitches. Obser
vethefo llowing no tes on theto ngue weight:
R Do not use a tongue weight that exceeds or
fa lls below the permissible tongue weight
R Use a tongue weight as close as possible to
th e maximum tongue weight
Do not exceed thefo llowing values:
R Perm issible towing capacity
R Perm issible rear axle load of theto wing vehi-
cle
R Perm issible gross weight of theto wing vehicle
R Perm issible gross weight of the trailer
R Maximum permissible speed of the trailer Ensure
thefo llowing before starting a journe y:
R The tyre pressure on there ar axle of theto w-
ing vehicle is set for a maximum load
R The lighting of the connected trailer is opera-
tional
R V
V ehicles wit
ehicles wit hout LED headlam
hout LED headlam ps or MUL
ps or MULTI-
TI-
BEAM LED headlam
BEAM LED headlam ps:
ps:the headlamps ha ve
been set cor rectly
In theev ent of increased rear axle load, the car/
trailer combination must not exceed a maximum
speed of 100 km/h forre asons conce rning the
operating permit. This also applies in countries in
which the permissible maximum speed for car/
trailer combinations is abo ve100 km/h. Ext Ext
ending and re
ending and retr
tracting t
acting t he ball nec
he ball nec k full
k fully electr
y electr i-
i-
cal ly
cally &
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. Driving and parking
271
271

#
Make sure that the ball neck securely
engages and loc ksinto place. *
N
NOOTE
TE Damage tothe all-electric trailer
hitch due toadditional pressure The all-elect
ric trailer hitch could be mechani-
cally damaged byapplying additional pressure
when the ball neck is being extended or
re tracted. #
Do not make the ball neck extend/
re tract faster byapplying additional pres-
sure. *
N
NOOTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #

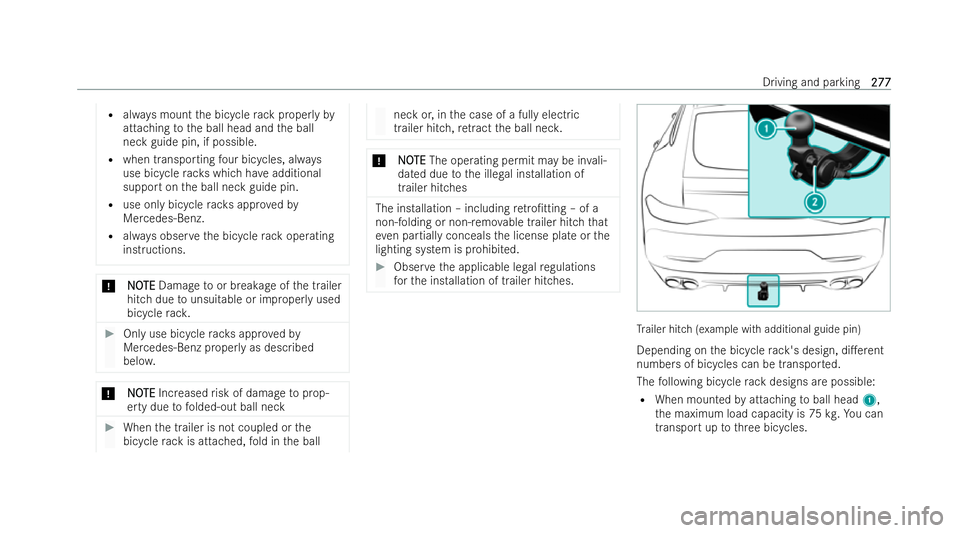

When the trailer is not coupled or the
bicycle rack is attached, fold in the ball
neck or, in the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE Damage totheve hicle due toincor-
re ct use of the trailer hitch When a trailer hitch is used
toreco ver a vehi-
cle, theve hicle may be damaged in the proc-
ess. #
Use the trailer hitch only for pulling a
trailer or attaching appr oved car rier sys-
te ms (e.g. a bicycle rack ). R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear.
R The trailer cables or ada pter plugs ha vebeen
re mo ved. Ext Ext
ending t ending t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Pull button 1.
Indicator lamp 2will 0ash and the message
Trailer coupling extending… will appear onthe
inst rument displa y.
The ball neck will extend fully electricall y.272
272
Driving and parking

#

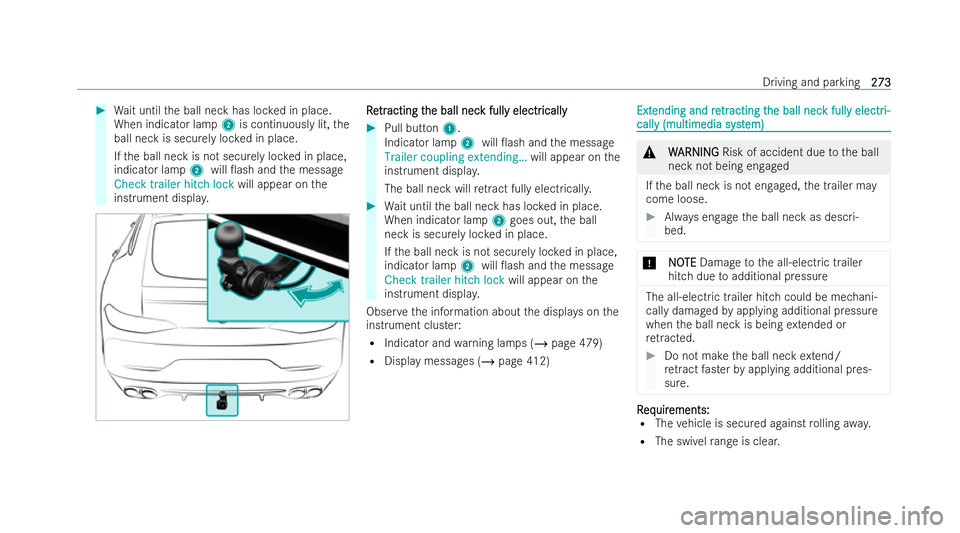

Wait until the ball neck has loc ked in place.
When indicator lamp 2is continuously lit, the
ball neck is securely loc ked in place.
If th e ball neck is not securely loc ked in place,
indicator lamp 2will 0ash and the message
Check trailer hitch lock will appear onthe
inst rument displa y. R
R
e
e tr
tr acting t
acting t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Pull button 1.
Indicator lamp 2will 0ash and the message
Trailer coupling extending… will appear onthe
inst rument displa y.
The ball neck will retract fully electricall y. #
Wait until the ball neck has loc ked in place.
When indicator lamp 2goes out, the ball
neck is securely loc ked in place.
If th e ball neck is not securely loc ked in place,
indicator lamp 2will 0ash and the message
Check trailer hitch lock will appear onthe
inst rument displa y.
Obser vethe information about the displa yson the
inst rument cluster:
R Indicator and warning lamps (/ page 479)
R Display message s (/page 412) Ext
Ext
ending and re
ending and retr
tracting t
acting t he ball nec
he ball nec k full
k fully electr
y electr i-
i-
call
call y (multimedia syst
y (multimedia syst em)
em) &
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. #
Always engage the ball neck as descri-
bed. *
N
NOOTE
TE Damage tothe all-electric trailer
hitch due toadditional pressure The all-elect
ric trailer hitch could be mechani-
cally damaged byapplying additional pressure
when the ball neck is being extended or
re tracted. #
Do not make the ball neck extend/
re tract faster byapplying additional pres-
sure. R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear. Driving and parking
273
273

R
The trailer cables or ada pter plugs ha vebeen
re mo ved.

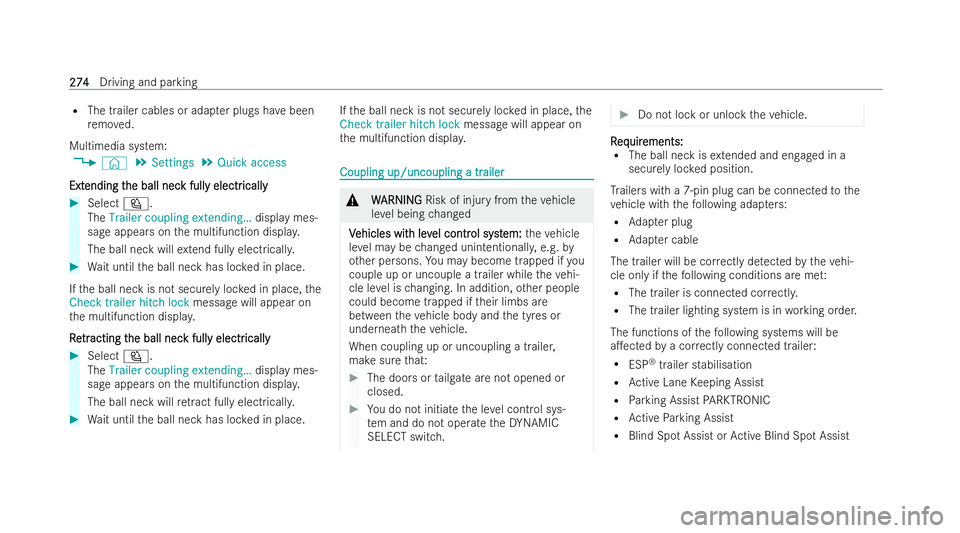

Multimedia system: 4 © 5
Settings 5
Quick access
Ext
Ext ending t
ending t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Select Ü.
The Trailer coupling extending… display mes-
sage appears on the multifunction displa y.
The ball neck will extend fully electricall y.#
Wait until the ball neck has loc ked in place.
If th e ball neck is not securely loc ked in place, the
Check trailer hitch lock message will appear on
th e multifunction displa y.
R
R e
etr
tr acting t
acting t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Select Ü.
The Trailer coupling extending… display mes-
sage appears on the multifunction displa y.
The ball neck will retract fully electricall y.#
Wait until the ball neck has loc ked in place. If
th e ball neck is not securely loc ked in place, the
Check trailer hitch lock message will appear on
th e multifunction displa y. Coupling up/uncoupling a tr
Coupling up/uncoupling a tr
ailer
ailer &
W
WARNING
ARNING Risk of injury from theve hicle
le ve l being changed
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol syst
ol system:
em:theve hicle
le ve l may be changed unintentionall y,e.g. by
ot her persons. You may become trapped if you
couple up or uncouple a trailer while theve hi-
cle le vel is changing. In addition, other people
could become trapped if their limbs are
between theve hicle body and the tyres or
underneath theve hicle.
When coupling up or uncoupling a trailer,
make sure that: #
The doors or tailgate are not opened or
closed. #
You do not initiate the le vel control sys-
te m and do not operate theDY NAMIC
SELECT switch. #
Do not lo ckor unlock theve hicle. R R
eq
eq uir
uir ements:
ements:
R The ball neck is extended and engaged in a
securely loc ked position.
Tr ailers with a 7-pin plug can be connected tothe
ve hicle with thefo llowing adap ters:
R Adapter plug
R Adapter cable
The trailer will be cor rectly de tected bytheve hi-
cle only if thefo llowing conditions are met:
R The trailer is connected cor rectl y.
R The trailer lighting system is in working order.
The functions of thefo llowing systems will be
a.ec tedbya cor rectly connected trailer:
R ESP ®
trailer stabilisation
R Active Lane Keeping Assist
R Parking Assist PARKTRONIC
R Active Parking Assist
R Blind Spot Assist or Active Blind Spot Assist 274
274
Driving and parking

R
Drive Away Assist
R Cross Tra1c Ale rt
R Reversing camera
R 360° camera
R AMG RIDE CONTROL +
Coupling up a tr
Coupling up a tr ailer
ailer
* NO NOTE TEDamage tothe star ter battery due
to full dis charge Charging
the trailer battery using the po wer
supply of the trailer can damage the star ter
batter y. #
Do not use theve hicle's po wer supply to
ch arge the trailer batter y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. #
Position the trailer on a le vel sur face behind
th eve hicle and couple it up totheve hicle. #
Open the soc ket cap. #
Inse rtthe plug with lug 1ingroo ve 3 on
th e soc ket. #
Turn bayonet coupling 2totheright as far as
it will go. #
Let the cap engage. #
Secure the cable tothe trailer with cable ties
(only if you are using an adap ter cable). #
Make sure that the cable is alw ays slack for
ease of mo vement during cornering. Under
thefo llowing conditions, a message may
appear on the inst rument display even if the
trailer has been connec ted cor rectl y:
R LEDs ha vebeen ins talled in the trailer lighting
system.
R The cur rent has fallen below the trailer lighting
system's minimum cur rent (50 mA).
% Accessories can be connected tothe perma-
nent po wer supply up to180 W and tothe
po we r supply that is switched on via the igni-
tion loc k.
U
U ncoupling a tr
ncoupling a tr ailer
ailer &
W
WARNI NG
ARNI NGRisk of being crushed and
becoming trapped when uncoupling a
trailer
When uncoupling a trailer with an engaged
inertia-activated brake, your hand may
become trapped between theve hicle and the
trailer dr awbar. #
Do not uncouple trailers with an engaged
ove rrun brake. Driving and parking
275 275

*
N
NO
OTE

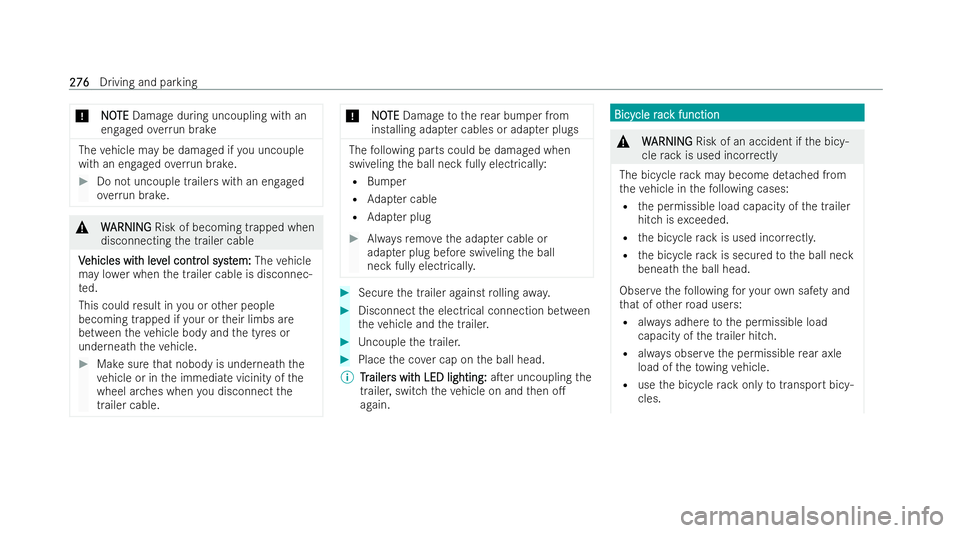

TE Damage during uncoupling with an
engaged overrun brake The
vehicle may be damaged if you uncouple
with an engaged overrun brake. #
Do not uncouple trailers with an engaged
ove rrun brake. &
W
WARNING
ARNING Risk of becoming trapped when
disconnecting the trailer cable
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol syst
ol system:
em:Thevehicle
may lo wer when the trailer cable is disconnec-
te d.
This could result in you or other people
becoming trapped if your or their limbs are
between theve hicle body and the tyres or
underneath theve hicle. #
Make sure that nobody is underneath the
ve hicle or in the immediate vicinity of the
wheel ar ches when you disconnect the
trailer cable. *
N
NOOTE
TE Damage tothere ar bumper from
ins talling adap ter cables or adap ter plugs The
following parts could be damaged when
swiveling the ball neck fully electricall y:
R Bumper
R Adapter cable
R Adapter plug #
Alwaysre mo vethe adap ter cable or
adap ter plug before swiveling the ball
neck fully electricall y. #
Secure the trailer against rolling away. #
Disconnect the electrical connection between
th eve hicle and the trailer. #
Uncouple the trailer. #
Place the co ver cap on the ball head.
% T Tr
railer
ailer s wit
s wit h LED lighting:
h LED lighting: aTer uncoupling the
traile r,switch theve hicle on and then o.
again. Bicy Bicy
cle r
cle r ac
ack function
k function &
W
WARNING
ARNING Risk of an accident if the bicy-
cle rack is used incor rectly
The bicycle rack may become de tach ed from
th eve hicle in thefo llowing cases:
R the permissible load capacity of the trailer
hitch is exceeded.
R the bicycle rack is used incor rectl y.
R the bicycle rack is secured tothe ball neck
beneath the ball head.
Obser vethefo llowing foryo ur ow n sa fety and
th at of other road users:
R always adhere tothe permissible load
capacity of the trailer hitch.
R always obser vethe permissible rear axle
load of theto wing vehicle.
R use the bicycle rack only totransport bicy-
cles. 276
276
Driving and parking

R
always mount the bicycle rack proper lyby
attaching tothe ball head and the ball
neck guide pin, if possible.
R when transporting four bicycles, alw ays
use bicycle rack s which ha veadditional
support on the ball neck guide pin.
R use only bicycle rack s appr oved by
Mercedes-Benz.
R always obser vethe bicycle rack operating
instructions. *
N NOOTE TE Damage toor breakage of the trailer
hitch due tounsuitable or improper lyused
bicycle rack. #
Only use bicycle rack s appr ovedby
Mercedes-Benz prope rly as described
bel ow. *
N
N O
OTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball neck or, in
the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE The ope rating permit may be in vali-
dated due tothe illegal installation of
trailer hitches The installation – including
retro/tting – of a
non- folding or non-remo vable trailer hitch that
eve n partial lyconceals the license plate or the
lighting system is prohibited. #
Obser vethe applicable legal regulations
fo rth e installation of trailer hitches. Tr
ailer hitch (example with additional guide pin)
Depending on the bicycle rack 's design, di.erent
numbers of bicycles can be transpor ted.
The following bicycle rack designs are possible:
R When mounted byattaching toball head 1,
th e maximum load capacity is 75 kg. You can
transport up tothre e bicycles. Driving and parking
277
277
