Maintenance
30
7

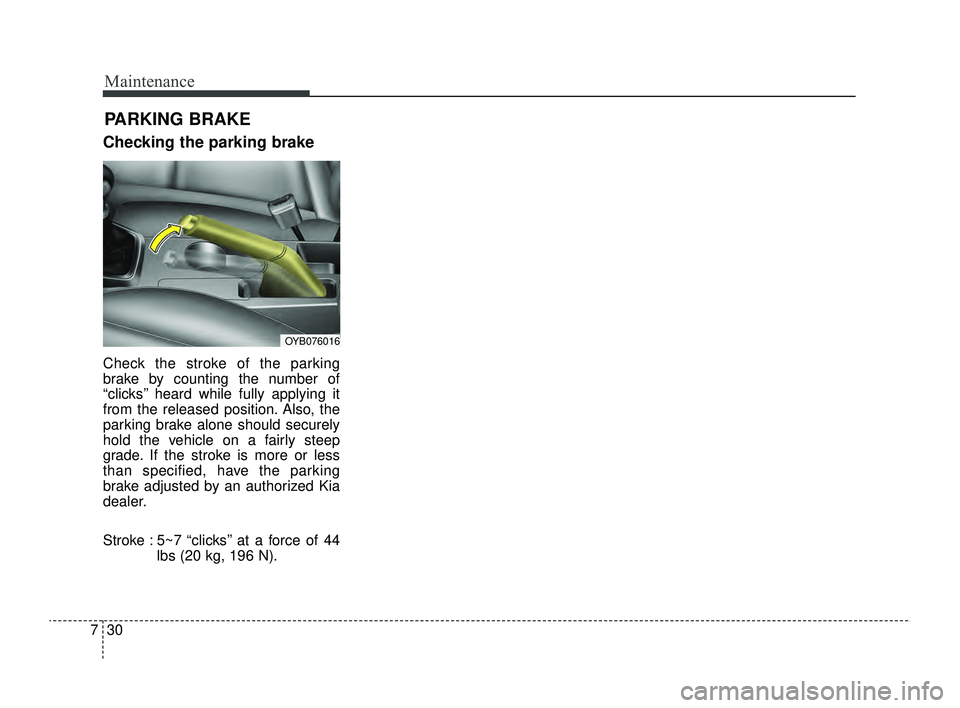

Checking the parking brake
Check the stroke of the parking
brake by counting the number of
“clicks’’ heard while fully applying it
from the released position. Also, the
parking brake alone should securely
hold the vehicle on a fairly steep
grade. If the stroke is more or less
than specified, have the parking
brake adjusted by an authorized Kia
dealer.
Stroke : 5~7 “clicks’’ at a force of 44
lbs (20 kg, 196 N).
PARKING BRAKE
OYB076016
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 30

731
Maintenance

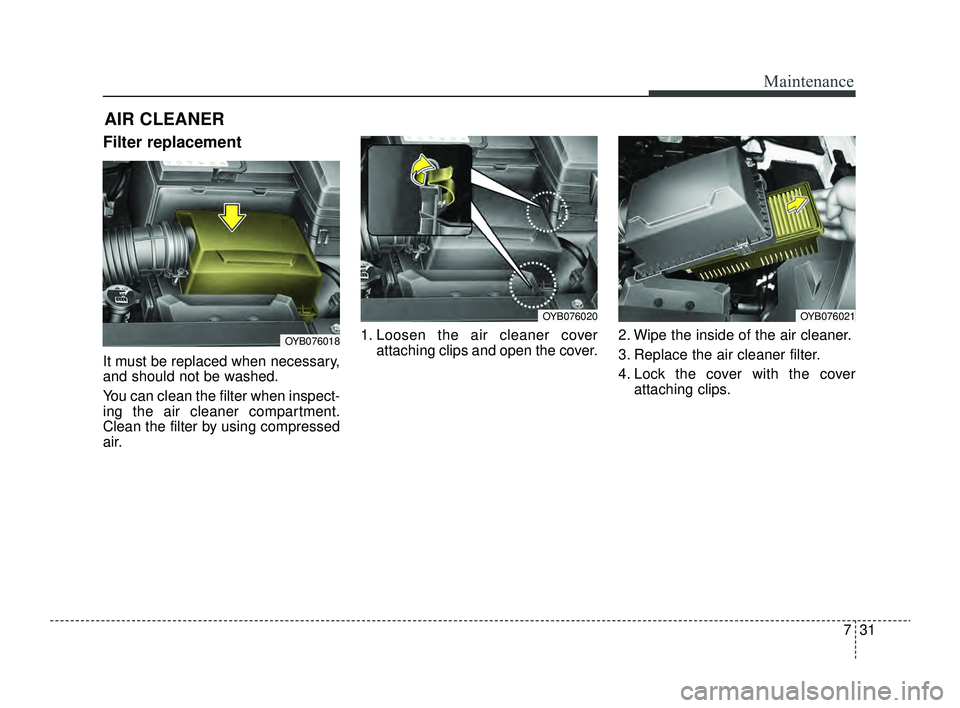

AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner compartment.
Clean the filter by using compressed
air.1. Loosen the air cleaner cover
attaching clips and open the cover. 2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover
attaching clips.
OYB076018
OYB076020OYB076021
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 31

Maintenance
32
7
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to“Maintenance under severe usageconditions” in this chapter.)
CAUTION - Air filter
maintenance
 Do not drive with the air clean- er removed; this will result inexcessive engine wear.
 When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
 Use a Kia genuine part. Use of a non-genuine part coulddamage the air flow sensor.
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 32

733
Maintenance

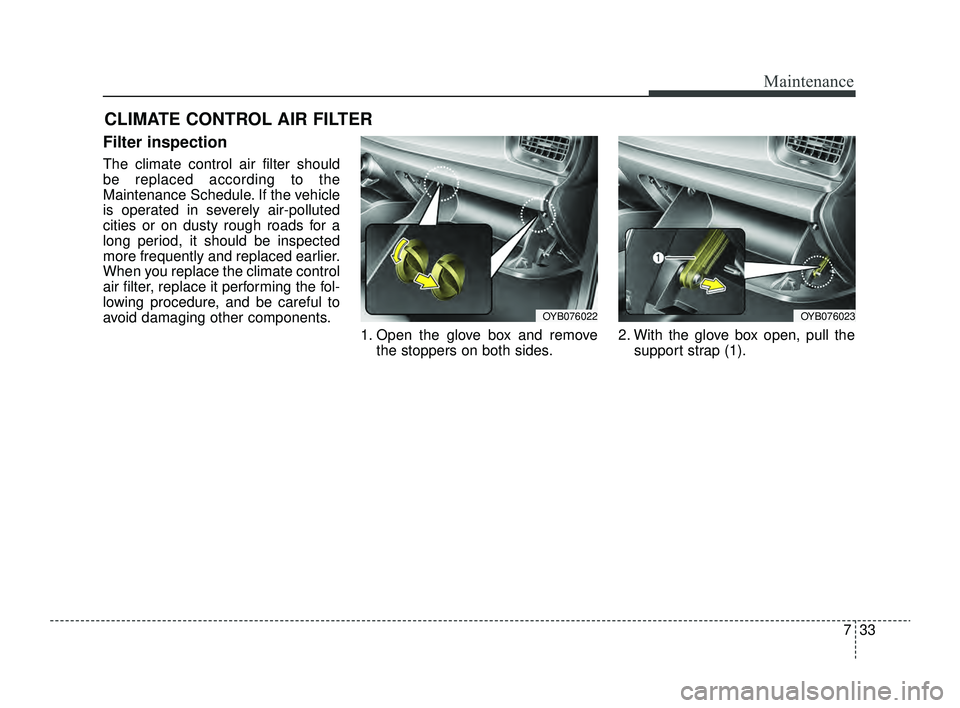

CLIMATE CONTROL AIR FILTER
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.1. Open the glove box and removethe stoppers on both sides. 2. With the glove box open, pull the
support strap (1).
OYB076023OYB076022
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 33

Maintenance
34
7

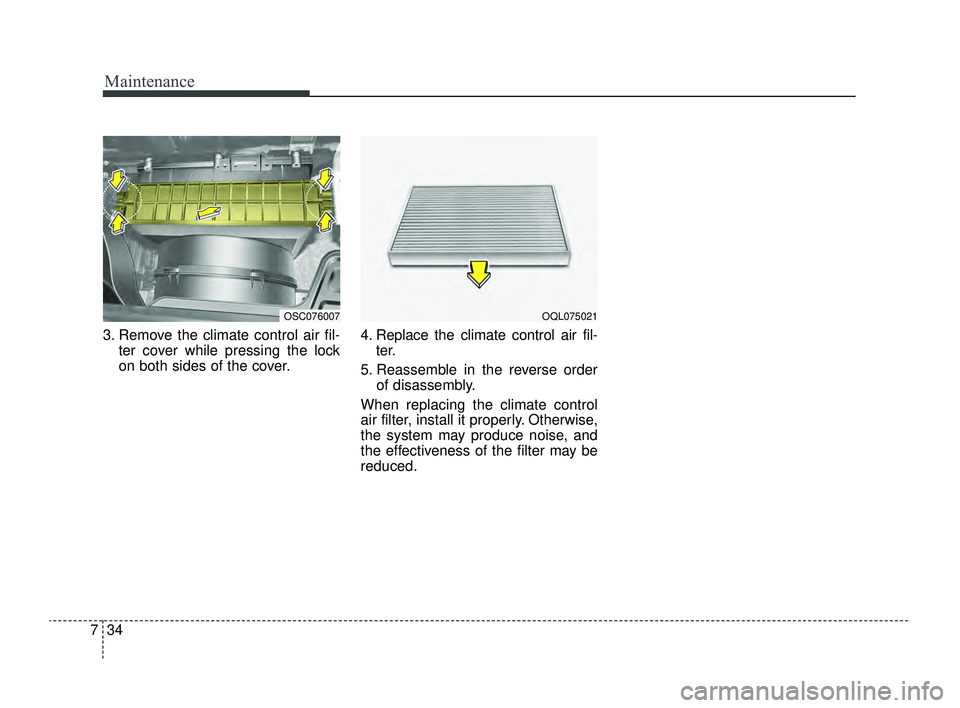

3. Remove the climate control air fil-
ter cover while pressing the lock
on both sides of the cover. 4. Replace the climate control air fil-
ter.
5. Reassemble in the reverse order of disassembly.
When replacing the climate control
air filter, install it properly. Otherwise,
the system may produce noise, and
the effectiveness of the filter may be
reduced.
OSC076007OQL075021
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 34

735
Maintenance

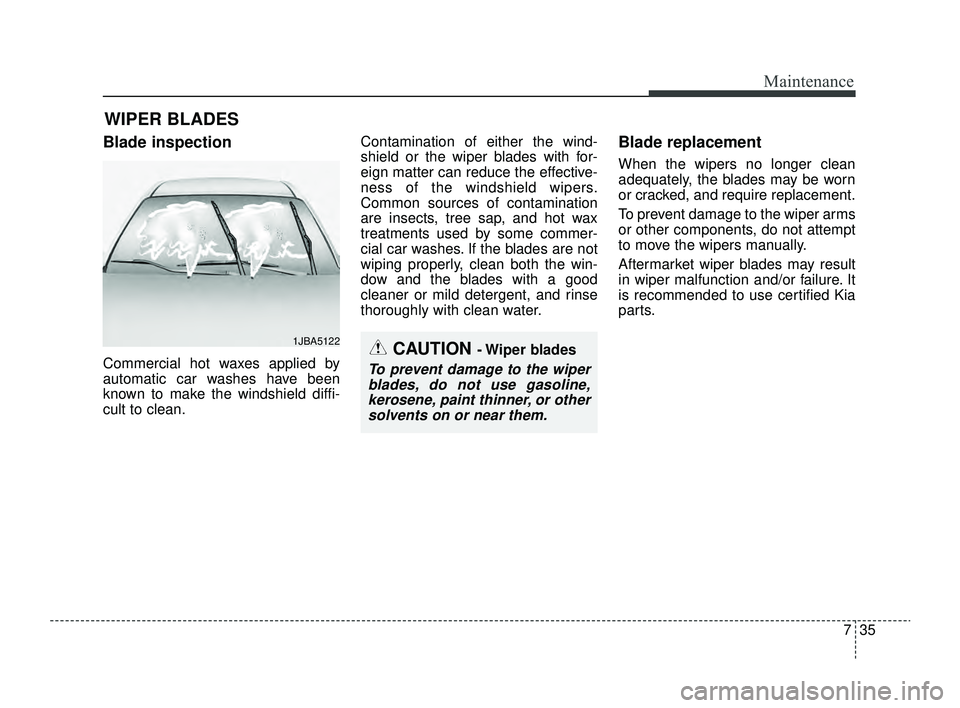

WIPER BLADES
Blade inspection
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.
Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper arms
or other components, do not attempt
to move the wipers manually.
Aftermarket wiper blades may result
in wiper malfunction and/or failure. It
is recommended to use certified Kia
parts.
1JBA5122CAUTION - Wiper blades
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 35

Maintenance
36
7

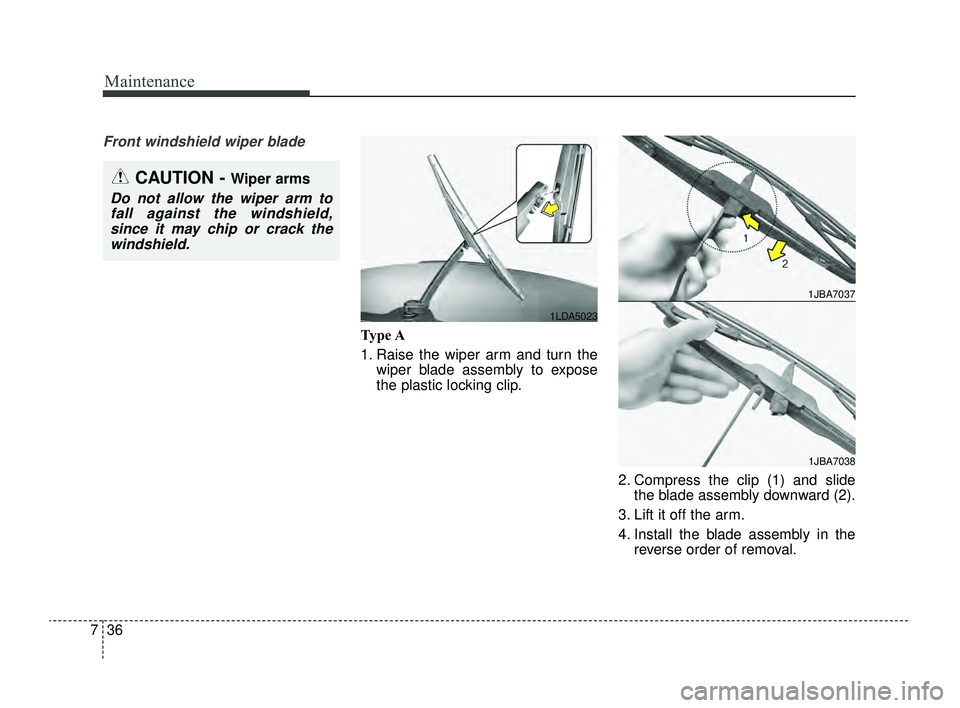

Front windshield wiper blade
Type A
1. Raise the wiper arm and turn the
wiper blade assembly to expose
the plastic locking clip.
2. Compress the clip (1) and slidethe blade assembly downward (2).
3. Lift it off the arm.
4. Install the blade assembly in the reverse order of removal.
1LDA5023
CAUTION - Wiper arms
Do not allow the wiper arm tofall against the windshield,since it may chip or crack thewindshield.
1JBA7037
1JBA7038
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 36

737
Maintenance

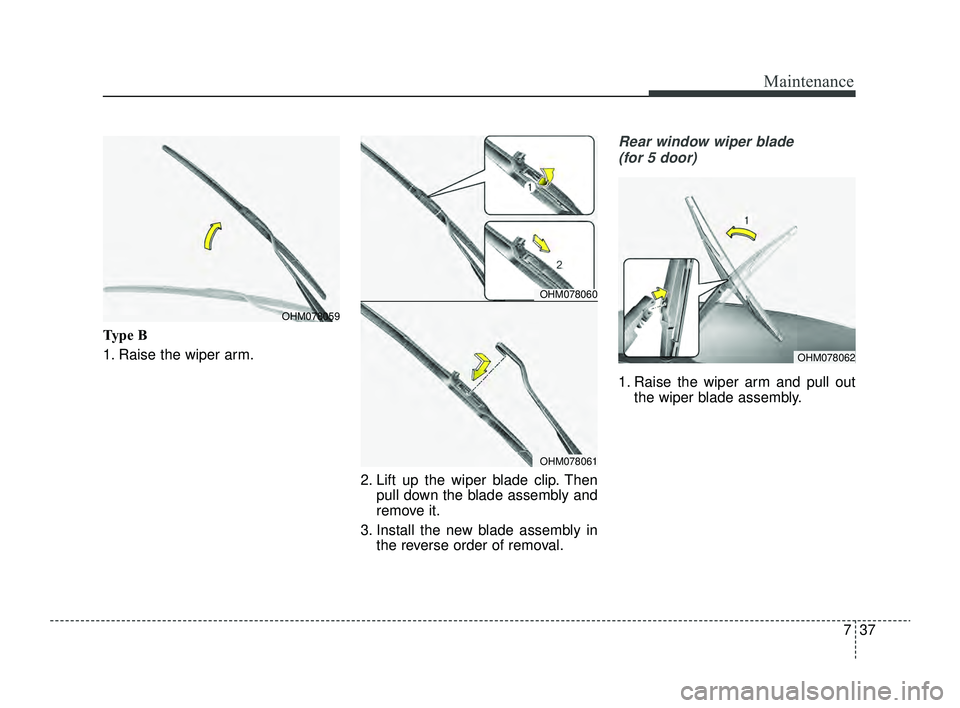

Type B
1. Raise the wiper arm.2. Lift up the wiper blade clip. Thenpull down the blade assembly and
remove it.
3. Install the new blade assembly in the reverse order of removal.
Rear window wiper blade
(for 5 door)
1. Raise the wiper arm and pull out the wiper blade assembly.
OHM078059
OHM078060
OHM078061
OHM078062
SC PE USA 7.qxp 9/9/2021 6:27 PM Page 37
