2022 KIA RIO Owners Manual

15
Introduction
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
 Observe all regulations regardingregistration and insurance.
 Determine that acceptable fuel is available. This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
 If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices. By following a few simple precau-
tions for the first 600 miles (1,000
km) you may add to the perform-
ance, economy and life of your vehi-
cle.
 Do not race the engine.
 While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
 Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
 Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
 Fuel economy and engine perform- ance may vary depending on vehi-
cle break-in process and be stabi-
lized after 4,000 miles (6,000 km).
New engines may consume more
oil during the vehicle break-in peri-
od.
VEHICLE BREAK-IN
PROCESS
VEHICLE MODIFICATIONS
SC PE USA 1.QXP 8/23/2021 5:21 PM Page 5

Introduction
61
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
* How various systems in yourvehicle were operating;
* Whether or not the driver and passenger safety belts were
buckled/fastened;
* How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
* How fast the vehicle was travel- ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving con-
ditions and no personal data (e.g.,
name, gender, age, and crash loca-
tion) are recorded. However, other
parties, such as law enforcement,
could combine the EDR data with
the type of personally identifying
data routinely acquired during a
crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
SC PE USA 1.QXP 8/23/2021 5:21 PM Page 6

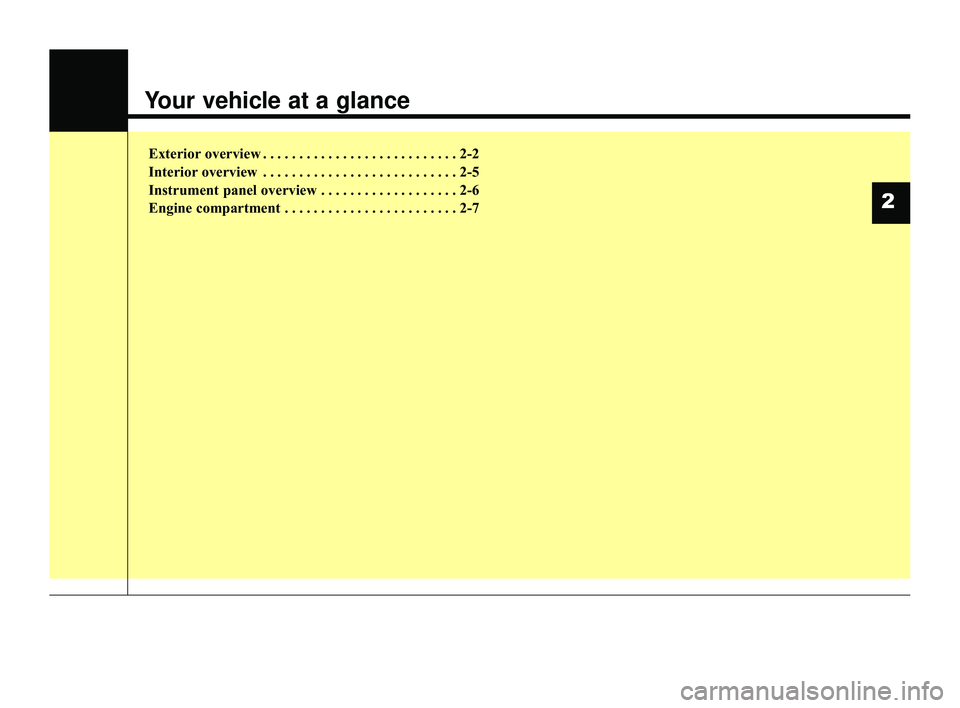

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-6
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 1

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-39
2. Head lamp (Features of your vehicle) ...4-92Head lamp (Maintenance) .....................7-74
3. Front fog lamp (Features of your vehicle)......................4-98
Front fog lamp (Maintenance) ...............7-74
4. Wheel and tire ................................7-42, 8-5
5. Outside rearview mirror .........................4-49
6. Windows ................................................4-33
7. Front windshield wiper blades (Features of your vehicle)......................4-99
Front windshield wiper blades
(Maintenance) .......................................7-36
OSC011001N
■Front view
❈ The actual shape may differ from the illustration.
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 2

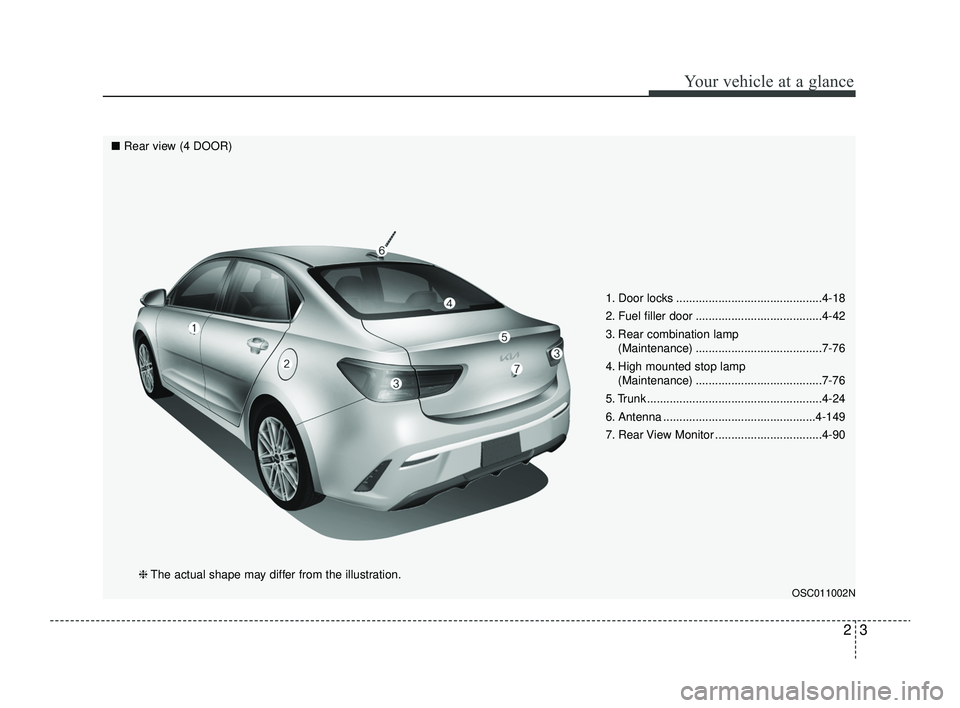

23
Your vehicle at a glance
1. Door locks .............................................4-18
2. Fuel filler door .......................................4-42
3. Rear combination lamp (Maintenance) .......................................7-76
4. High mounted stop lamp (Maintenance) .......................................7-76
5. Trunk ......................................................4-24
6. Antenna ...............................................4-149
7. Rear View Monitor .................................4-90
OSC011002N
■ Rear view (4 DOOR)
❈The actual shape may differ from the illustration.
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 3

Your vehicle at a glance
42
1. Door locks .............................................4-18
2. Fuel filler door .......................................4-42
3. Rear combination lamp (Maintenance) .......................................7-75
4. High mounted stop lamp (Maintenance) .......................................7-75
5. Liftgate...................................................4-30
6. Antenna ...............................................4-149
7. Rear View Monitor .................................4-90
8. Rear window wiper blade (Features of your vehicle)......................4-99
Rear window wiper blade (Maintenance) ...7-37
OSC011009N
■Rear view (5 DOOR)
❈The actual shape may differ from the illustration.
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 4

25
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ............................4-19
2. Inner fuse panel ................................7-59
3. Power window switches ....................4-33
4. Central door lock switch....................4-20
5. Power window lock button ................4-37
6. Outside rearview mirror controlswitch ................................................4-50
7. Hood release lever ............................4-39
8. Fuel filler door release lever .............4-42
9. Trunk open lever ...............................4-24
10. Steering wheel ................................4-45
11. Steering wheel tilt control ...............4-46
12. Instrument panel illumination control switch ..............................................4-52
13. ESC OFF button .............................5-31
14. Brake pedal .....................................5-25
15. Accelerator pedal
OSC011003N
• 4 Door 5 Door
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 5

Your vehicle at a glance
62
INSTRUMENT PANEL OVERVIEW
OSC011004N
1. Instrument cluster.............................4-51
2. Horn .................................................4-47
3. Driver’s front air bag .........................3-49
4. Light control/Turn signals .................4-93
5. Wiper/Washer ...................................4-99
6. Ignition switch .....................................5-7ENGINE START/STOP button ........5-10
7. Hazard warning flasher switch ................6-2
8. Infotainment system ................................ Refer to "Car Infotainment System Quick
Reference Guide".
9. Driving Assist button ........................5-84
10. Manual climate control system.....4-110 Automatic climate control system...4-122
11. USB port ......................................4-150
12. Intelligent Variable Transmission ....5-17
13. Parking brake lever ........................5-27
14. Passenger’s front air bag ...............3-49
15. Power outlet .................................4-144
16. Glove box .....................................4-140
17. Sport mode system ........................5-40
18. USB charger.................................4-145
19. Center console storage ................4-140
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 6
