EXTERIOR OVERVIEW

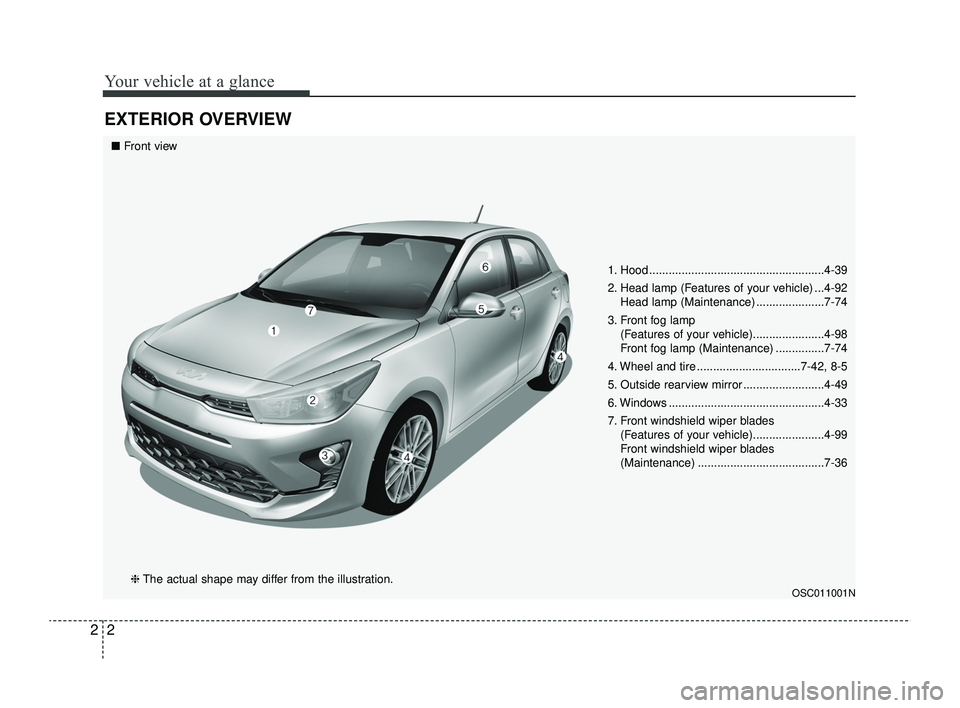

1. Hood ......................................................4-39
2. Head lamp (Features of your vehicle) ...4-92Head lamp (Maintenance) .....................7-74
3. Front fog lamp (Features of your vehicle)......................4-98
Front fog lamp (Maintenance) ...............7-74
4. Wheel and tire ................................7-42, 8-5
5. Outside rearview mirror .........................4-49
6. Windows ................................................4-33
7. Front windshield wiper blades (Features of your vehicle)......................4-99
Front windshield wiper blades
(Maintenance) .......................................7-36
OSC011001N
■Front view
❈ The actual shape may differ from the illustration.
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 2

Your vehicle at a glance
42

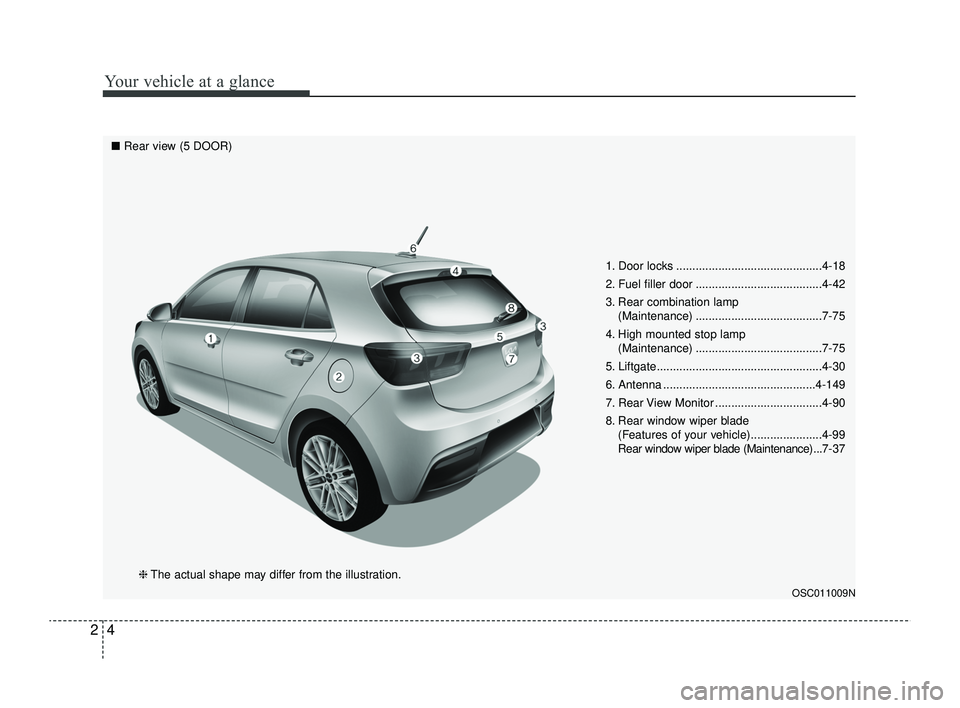

1. Door locks .............................................4-18
2. Fuel filler door .......................................4-42
3. Rear combination lamp (Maintenance) .......................................7-75
4. High mounted stop lamp (Maintenance) .......................................7-75
5. Liftgate...................................................4-30
6. Antenna ...............................................4-149
7. Rear View Monitor .................................4-90
8. Rear window wiper blade (Features of your vehicle)......................4-99
Rear window wiper blade (Maintenance) ...7-37
OSC011009N
■Rear view (5 DOOR)
❈The actual shape may differ from the illustration.
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 4

25
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ............................4-19
2. Inner fuse panel ................................7-59
3. Power window switches ....................4-33
4. Central door lock switch....................4-20
5. Power window lock button ................4-37
6. Outside rearview mirror controlswitch ................................................4-50
7. Hood release lever ............................4-39
8. Fuel filler door release lever .............4-42
9. Trunk open lever ...............................4-24
10. Steering wheel ................................4-45
11. Steering wheel tilt control ...............4-46
12. Instrument panel illumination control switch ..............................................4-52
13. ESC OFF button .............................5-31
14. Brake pedal .....................................5-25
15. Accelerator pedal
OSC011003N
• 4 Door 5 Door
SC PE USA 2.qxp 8/23/2021 5:23 PM Page 5

Safety features of your vehicle
36
3

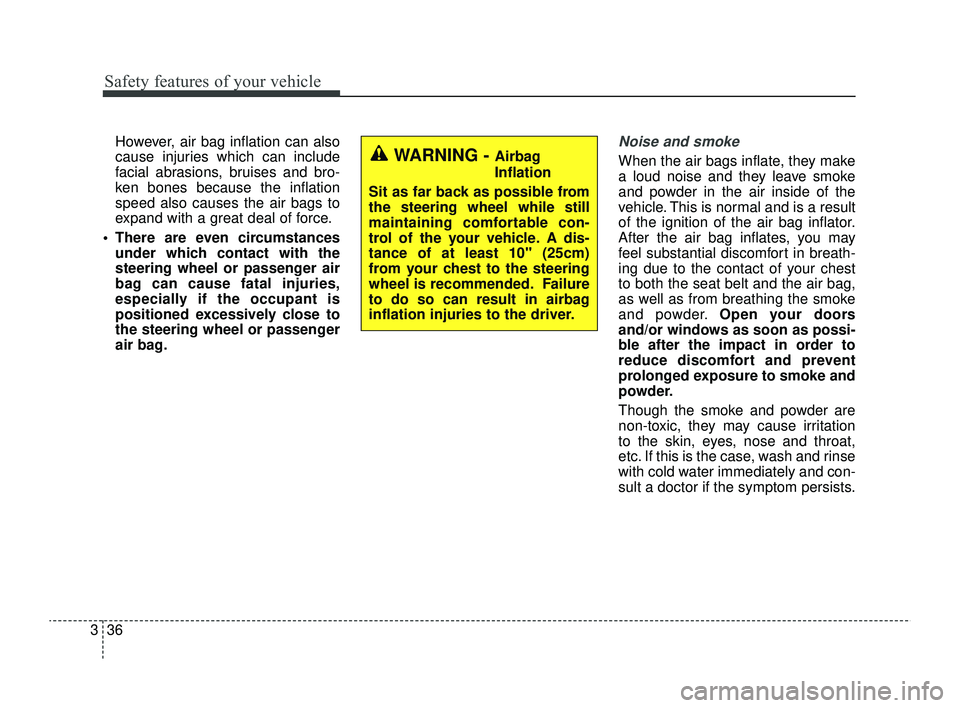

However, air bag inflation can also
cause injuries which can include
facial abrasions, bruises and bro-
ken bones because the inflation
speed also causes the air bags to
expand with a great deal of force.
 There are even circumstances under which contact with the
steering wheel or passenger air
bag can cause fatal injuries,
especially if the occupant is
positioned excessively close to
the steering wheel or passenger
air bag.Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chest
to both the seat belt and the air bag,
as well as from breathing the smoke
and powder. Open your doors
and/or windows as soon as possi-
ble after the impact in order to
reduce discomfort and prevent
prolonged exposure to smoke and
powder.
Though the smoke and powder are
non-toxic, they may cause irritation
to the skin, eyes, nose and throat,
etc. If this is the case, wash and rinse
with cold water immediately and con-
sult a doctor if the symptom persists.WARNING - Airbag
Inflation
Sit as far back as possible from
the steering wheel while still
maintaining comfortable con-
trol of the your vehicle. A dis-
tance of at least 10" (25cm)
from your chest to the steering
wheel is recommended. Failure
to do so can result in airbag
inflation injuries to the driver.
SC PE USA 3.QXP 8/23/2021 5:38 PM Page 36

337
Safety features of your vehicle

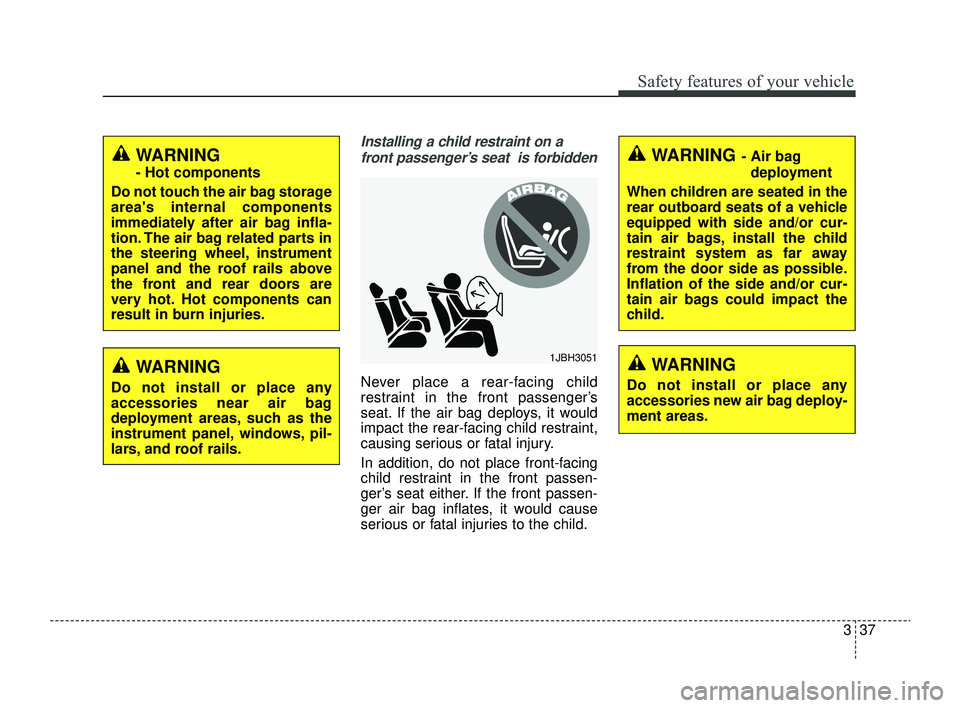

Installing a child restraint on afront passenger’s seat is forbidden
Never place a rear-facing child
restraint in the front passenger’s
seat. If the air bag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraint in the front passen-
ger’s seat either. If the front passen-
ger air bag inflates, it would cause
serious or fatal injuries to the child.
WARNING
- Hot components
Do not touch the air bag storage
area's internal components
immediately after air bag infla-
tion. The air bag related parts in
the steering wheel, instrument
panel and the roof rails above
the front and rear doors are
very hot. Hot components can
result in burn injuries.
1JBH3051
WARNING - Air bag deployment
When children are seated in the
rear outboard seats of a vehicle
equipped with side and/or cur-
tain air bags, install the child
restraint system as far away
from the door side as possible.
Inflation of the side and/or cur-
tain air bags could impact the
child.
WARNING
Do not install or place any
accessories near air bag
deployment areas, such as the
instrument panel, windows, pil-
lars, and roof rails.
WARNING
Do not install or place any
accessories new air bag deploy-
ment areas.
SC PE USA 3.QXP 8/23/2021 5:38 PM Page 37

355
Safety features of your vehicle

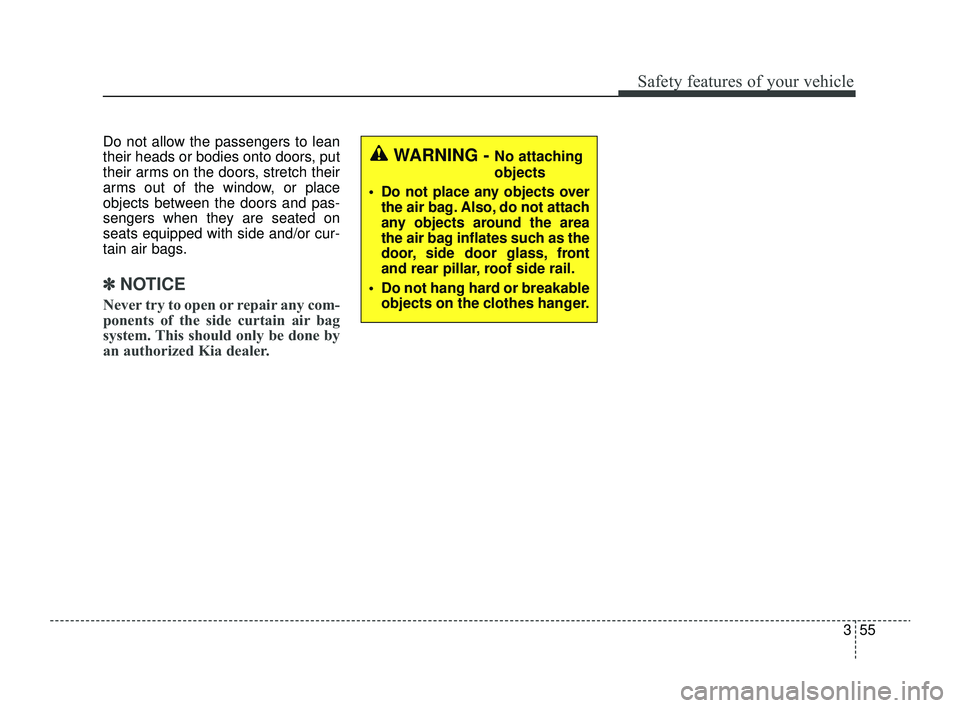

Do not allow the passengers to lean
their heads or bodies onto doors, put
their arms on the doors, stretch their
arms out of the window, or place
objects between the doors and pas-
sengers when they are seated on
seats equipped with side and/or cur-
tain air bags.
✽ ✽NOTICE
Never try to open or repair any com-
ponents of the side curtain air bag
system. This should only be done by
an authorized Kia dealer.
WARNING - No attaching
objects
 Do not place any objects over the air bag. Also, do not attach
any objects around the area
the air bag inflates such as the
door, side door glass, front
and rear pillar, roof side rail.
 Do not hang hard or breakable objects on the clothes hanger.
