Driving your vehicle
Blind-Spot Collision Warning dis-abled
When the rear bumper around the
rear corner radar or sensor is cov-
ered with foreign material, such as
snow or rain, or installing a trailer or
carrier, it can reduce the detecting
performance and temporarily limit or
disable Blind-Spot Collision Warning.
If this occurs, the 'Blind-Spot Safety
system disabled. Radar blocked'
warning message will appear on the
cluster.
Blind-Spot Collision Warning will
operate normally when such foreign
material or trailer, etc. is removed,
and then the engine is restarted. If Blind-Spot Collision Warning does
not operate normally after it is
removed, have your vehicle inspect-
ed by an authorized Kia dealer.
ODL3A050289
WARNING
 Even though the warning
message does not appear on
the cluster, Blind-Spot
Collision Warning may not
properly operate.
 Blind-Spot Collision Warning may not properly operate in
an area (for example, open ter-
rain), where any objects are
not detected right after the
engine is turned on, or when
the detecting sensor is
blocked with foreign material
right after the engine is turned
on.
CAUTION
Turn off Blind-Spot CollisionWarning to install or remove atrailer, carrier, or another attach-ment. Turn on Blind-SpotCollision Warning when fin-ished.
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 71

Driving your vehicle
72
5

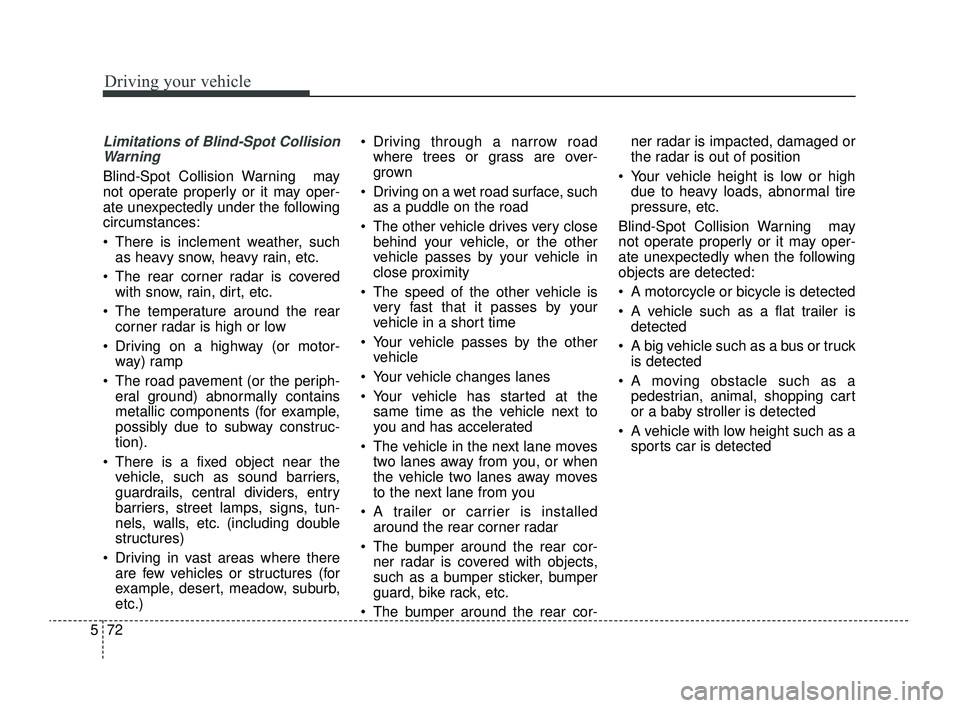

Limitations of Blind-Spot Collision
Warning
Blind-Spot Collision Warning may
not operate properly or it may oper-
ate unexpectedly under the following
circumstances:
 There is inclement weather, such as heavy snow, heavy rain, etc.
 The rear corner radar is covered with snow, rain, dirt, etc.
 The temperature around the rear corner radar is high or low
 Driving on a highway (or motor- way) ramp
 The road pavement (or the periph- eral ground) abnormally contains
metallic components (for example,
possibly due to subway construc-
tion).
 There is a fixed object near the vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs, tun-
nels, walls, etc. (including double
structures)
 Driving in vast areas where there are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)  Driving through a narrow road
where trees or grass are over-
grown
 Driving on a wet road surface, such as a puddle on the road
 The other vehicle drives very close behind your vehicle, or the other
vehicle passes by your vehicle in
close proximity
 The speed of the other vehicle is very fast that it passes by your
vehicle in a short time
 Your vehicle passes by the other vehicle
 Your vehicle changes lanes
 Your vehicle has started at the same time as the vehicle next to
you and has accelerated
 The vehicle in the next lane moves two lanes away from you, or when
the vehicle two lanes away moves
to the next lane from you
 A trailer or carrier is installed around the rear corner radar
 The bumper around the rear cor- ner radar is covered with objects,
such as a bumper sticker, bumper
guard, bike rack, etc.
 The bumper around the rear cor- ner radar is impacted, damaged or
the radar is out of position
 Your vehicle height is low or high due to heavy loads, abnormal tire
pressure, etc.
Blind-Spot Collision Warning may
not operate properly or it may oper-
ate unexpectedly when the following
objects are detected:
 A motorcycle or bicycle is detected
 A vehicle such as a flat trailer is detected
 A big vehicle such as a bus or truck is detected
 A moving obstacle such as a pedestrian, animal, shopping cart
or a baby stroller is detected
 A vehicle with low height such as a sports car is detected
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 72

573
Driving your vehicle

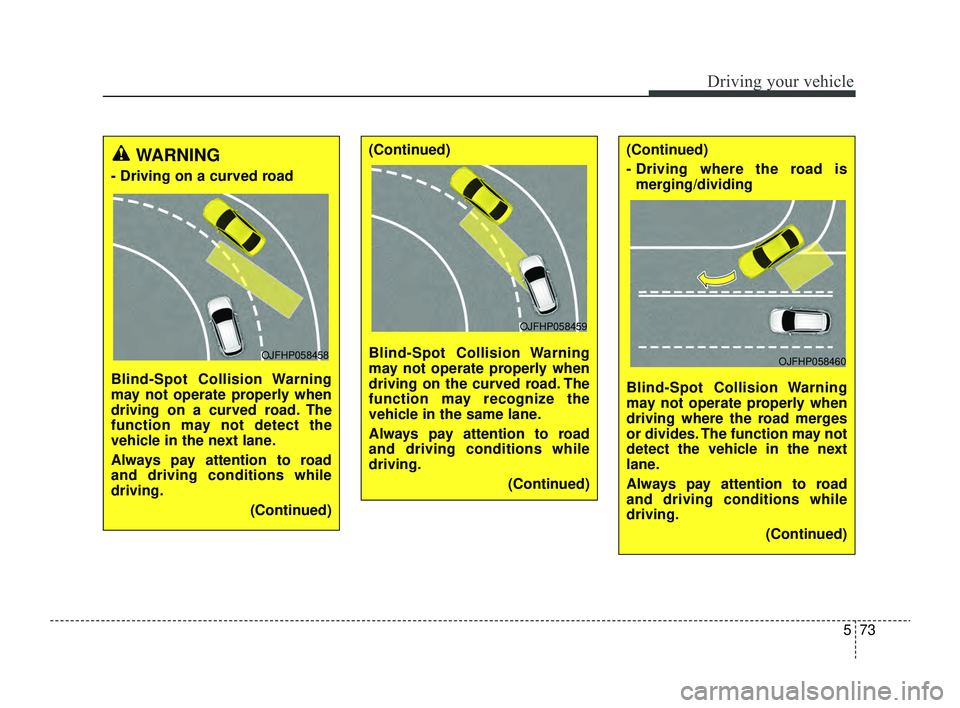

WARNING
- Driving on a curved road
Blind-Spot Collision Warning
may not operate properly when
driving on a curved road. The
function may not detect the
vehicle in the next lane.
Always pay attention to road
and driving conditions while
driving.(Continued)
OJFHP058458
(Continued)
Blind-Spot Collision Warning
may not operate properly when
driving on the curved road. The
function may recognize the
vehicle in the same lane.
Always pay attention to road
and driving conditions while
driving.(Continued)
OJFHP058459
(Continued)
- Driving where the road ismerging/dividing
Blind-Spot Collision Warning
may not operate properly when
driving where the road merges
or divides. The function may not
detect the vehicle in the next
lane.
Always pay attention to road
and driving conditions while
driving. (Continued)
OJFHP058460
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 73

Driving your vehicle
74
5
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
two conditions:
1. This device may not cause harm-
ful interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
(Continued)

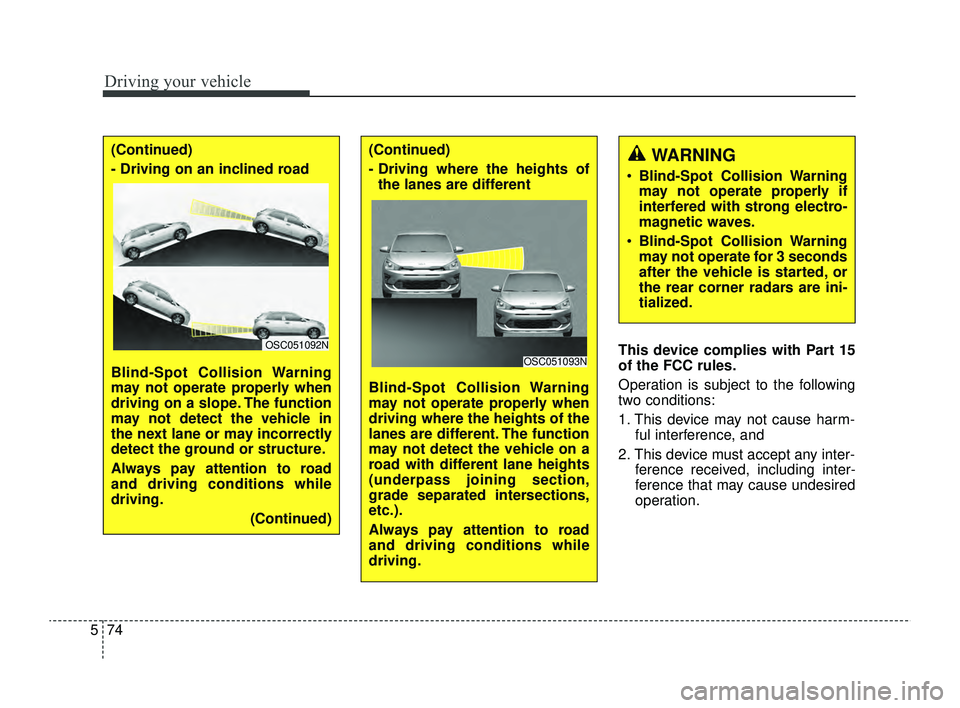

- Driving on an inclined road
Blind-Spot Collision Warning
may not operate properly when
driving on a slope. The function
may not detect the vehicle in
the next lane or may incorrectly
detect the ground or structure.
Always pay attention to road
and driving conditions while
driving.
(Continued)
OSC051092N
(Continued)
- Driving where the heights ofthe lanes are different
Blind-Spot Collision Warning
may not operate properly when
driving where the heights of the
lanes are different. The function
may not detect the vehicle on a
road with different lane heights
(underpass joining section,
grade separated intersections,
etc.).
Always pay attention to road
and driving conditions while
driving.
OSC051093N
WARNING
 Blind-Spot Collision Warning
may not operate properly if
interfered with strong electro-
magnetic waves.
 Blind-Spot Collision Warning
may not operate for 3 seconds
after the vehicle is started, or
the rear corner radars are ini-
tialized.
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 74

575
Driving your vehicle
Basic function
Driver Attention Warning can help
determine the driver's attention level
by analyzing driving pattern and driv-
ing time while the vehicle is driven.
The function will recommend a break
when the driver's attention level falls
below a certain level to help drive
safely.
Leading Vehicle Departure
Alert
Leading Vehicle Departure Alert will
inform the driver when a detected
vehicle in front departs from a stop.
Detecting sensor
The front view camera is used to
help detect driving patterns and front
vehicle departure while vehicle is
being driven.
Refer to the picture above for the
detailed location of the detecting
sensor.
DRIVER ATTENTION WARNING (DAW) (IF EQUIPPED)
OSC051301N
■Front view camera
WARNING
Driver Attention Warning is a
supplemental system and is not
a substitute for safe driving.
Driver Attention Warning may
not detect all instances of inat-
tentive driving practices.
Always drive safely and use
caution.
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 75

Driving your vehicle
76
5

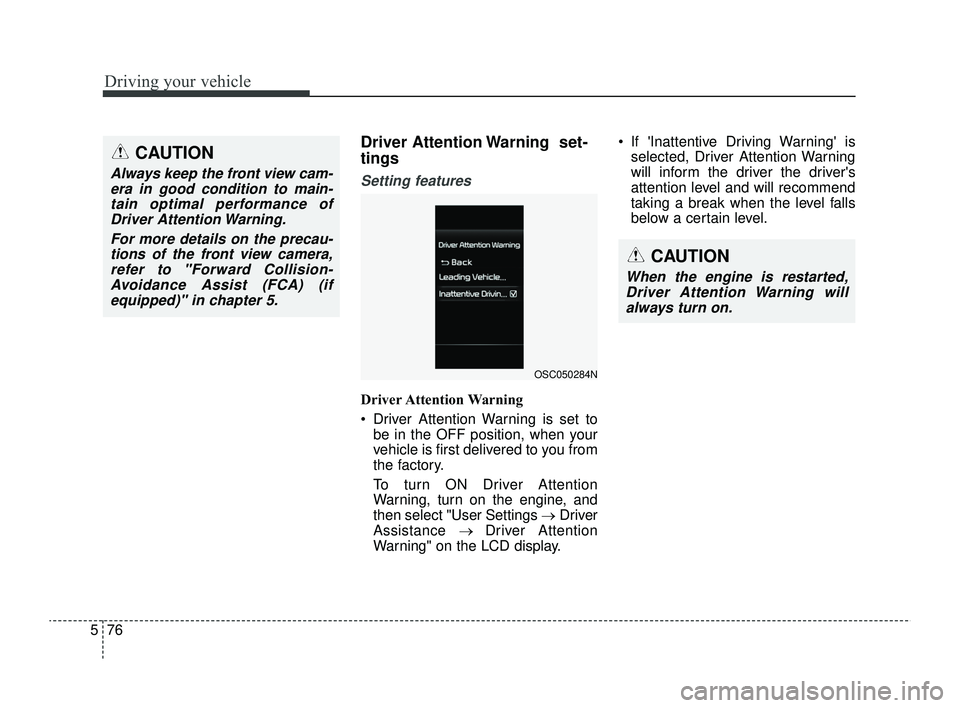

Driver Attention Warning set-
tings
Setting features
Driver Attention Warning
 Driver Attention Warning is set to
be in the OFF position, when your
vehicle is first delivered to you from
the factory.
To turn ON Driver Attention
Warning, turn on the engine, and
then select "User Settings →Driver
Assistance → Driver Attention
Warning" on the LCD display.  If 'Inattentive Driving Warning' is
selected, Driver Attention Warning
will inform the driver the driver's
attention level and will recommend
taking a break when the level falls
below a certain level.
CAUTION
Always keep the front view cam-era in good condition to main-tain optimal performance ofDriver Attention Warning.
For more details on the precau-tions of the front view camera,refer to "Forward Collision-Avoidance Assist (FCA) (ifequipped)" in chapter 5.
CAUTION
When the engine is restarted,Driver Attention Warning willalways turn on.
OSC050284N
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 76

577
Driving your vehicle

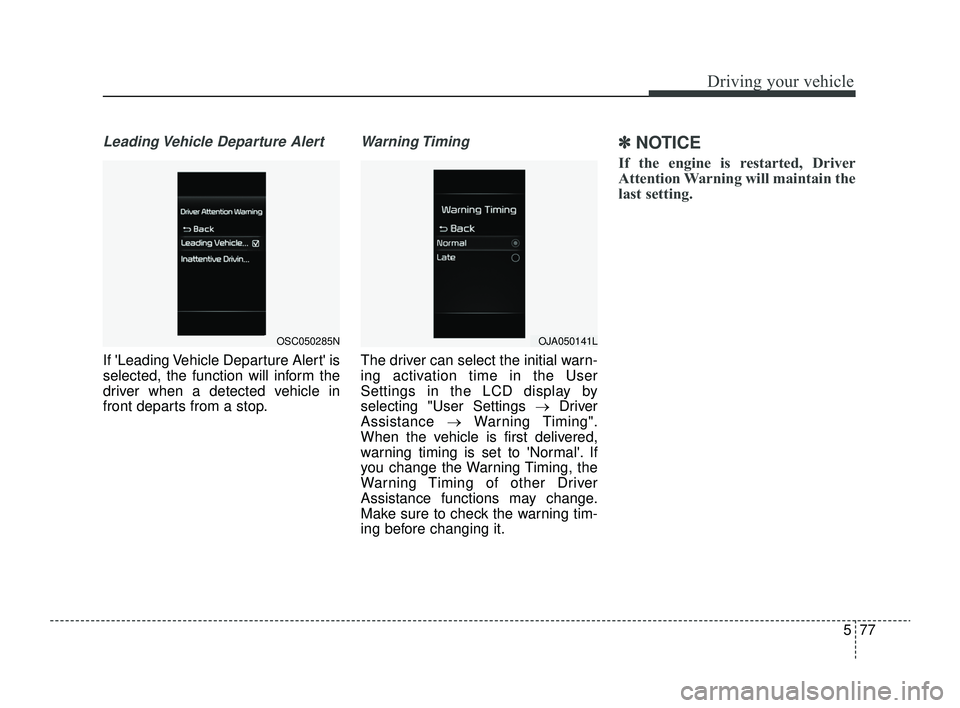

Leading Vehicle Departure Alert
If 'Leading Vehicle Departure Alert' is
selected, the function will inform the
driver when a detected vehicle in
front departs from a stop.
Warning Timing
The driver can select the initial warn-
ing activation time in the User
Settings in the LCD display by
selecting "User Settings →Driver
Assistance →Warning Timing".
When the vehicle is first delivered,
warning timing is set to 'Normal'. If
you change the Warning Timing, the
Warning Timing of other Driver
Assistance functions may change.
Make sure to check the warning tim-
ing before changing it.
✽ ✽ NOTICE
If the engine is restarted, Driver
Attention Warning will maintain the
last setting.
OSC050285NOJA050141L
SC PE USA 5.QXP 9/9/2021 6:20 PM Page 77

Driving your vehicle
78
5

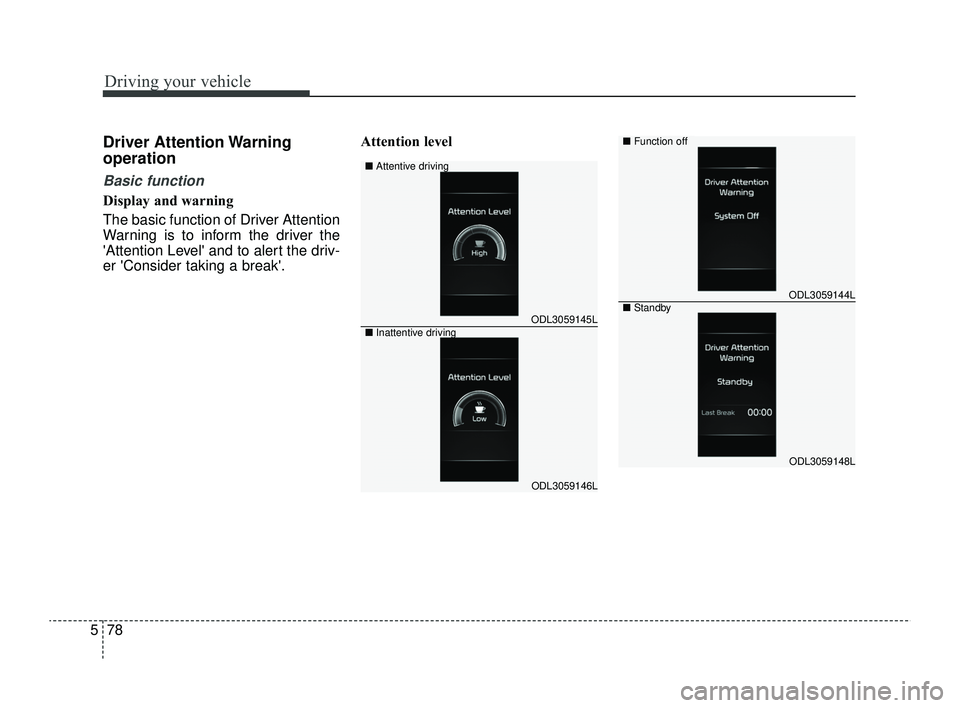

Driver Attention Warning
operation
Basic function
Display and warning
The basic function of Driver Attention
Warning is to inform the driver the
'Attention Level' and to alert the driv-
er 'Consider taking a break'. Attention level
ODL3059145L
ODL3059146L
■
Attentive driving
■ Inattentive driving
ODL3059144L
ODL3059148L
■Function off
■Standby
