2022 KIA RIO Owners Manual

Specifications, Consumer information, Reporting safety defects
48

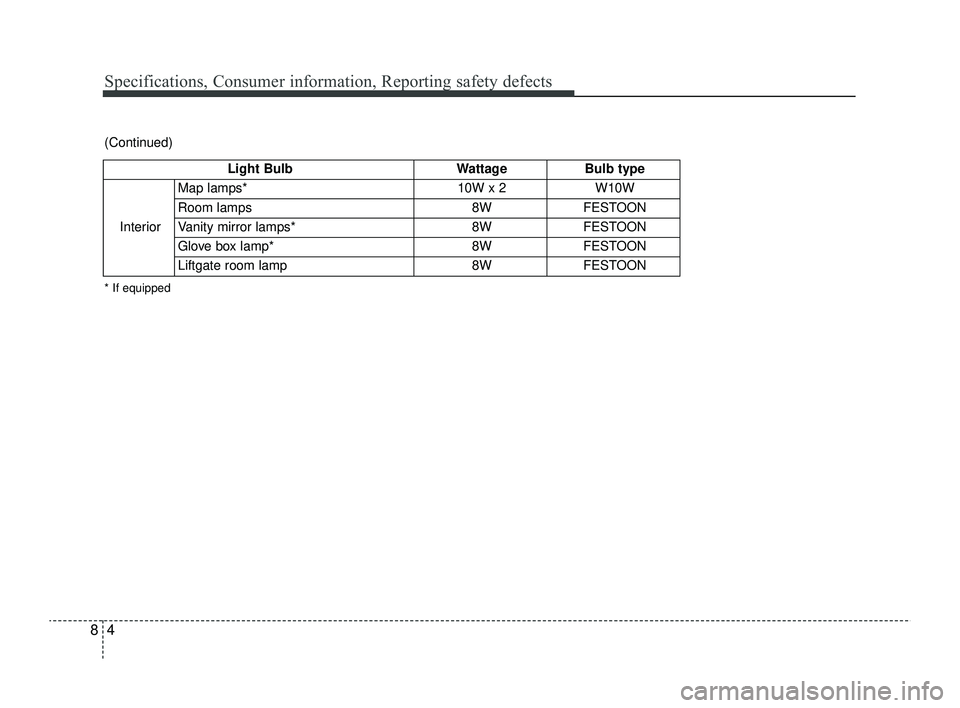

Light BulbWattageBulb type
Interior Map lamps*
10W x 2W10W
Room lamps 8WFESTOON
Vanity mirror lamps* 8WFESTOON
Glove box lamp* 8WFESTOON
Liftgate room lamp 8WFESTOON
(Continued)
* If equipped
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 4

85
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size may damage the related parts or cause them to operate improp\
erly.
*1: Normal load : Up to 3 persons
*
2: If your vehicle is not equipped with a compact spare tire, it will be equipped with a Tire Mobility Kit Item Tire size Wheel size
Inflation pressure kPa (psi)
Wheel lug nut torque
kgf•m (lbfft, Nm)
Normal load *
1Maximum load
Front Rear Front Rear
Full size tire 185/65R15 5.5J X 15
230 (33) 230 (33) 230 (33) 230 (33) 11~13
(79~94, 107~127)
205/45R17 6.5J X 17
Compact spare tire *
2T125/80D15 3.5J x 15 420 (60)
✽ ✽
NOTICE
• We recommend replacing tires with the same make and model originally supplied with the vehicle; no\
t doing so
may affect driving performance.
• When driving in high altitude grades such as mountainous areas, injection of additional air into tires may be required due to lower atmospheric pressure. Therefore, add 1.5 psi for every 1,000m above sea level at the recom-
mended tire pressure when frequently driving in high mountainous areas.
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 5

Specifications, Consumer information, Reporting safety defects
68
WEIGHT/VOLUME
ItemWeight of volumeClassification
Refrigerant
480 ± 25g
16.9 ± 0.88 oz R-1234yf
Compressor lubricant
110 ± 10g
3.9 ± 0.35 oz FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details. *
1: Behind rear seat to upper edge of the seat back.
*
2: Behind front seat to roof.
AIR CONDITIONING SYSTEM
Item Smartstream G1.6
4 Door5 Door
Gross vehicle weight lbs. (kg)3,616 (1,640)
3,616 (1,640)
Luggage volume cu ft (l)
13.7 (387)17.4 *1 / 32.8 *2
(493 *1 / 928 *2)
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 6

87
Specifications, Consumer information, Reporting safety defects

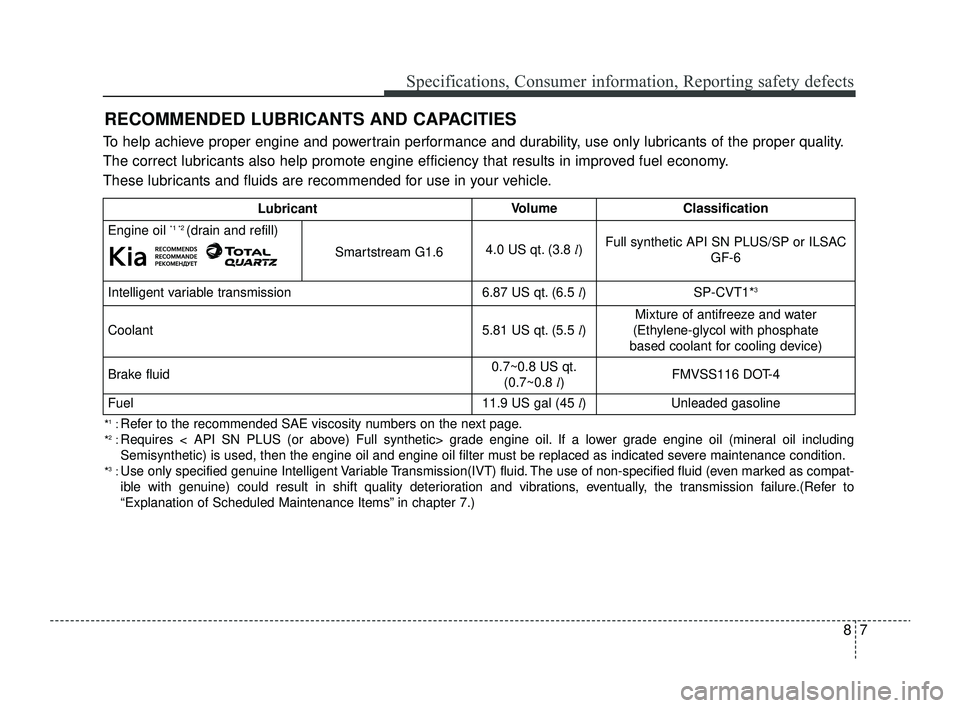

RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Smartstream G1.64.0 US qt. (3.8 l)Full synthetic API SN PLUS/SP or ILSAC
GF-6
Intelligent variable transmission6.87 US qt. (6.5 l)SP-CVT1*3
Coolant 5.81 US qt. (5.5 l)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
Brake fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-4
Fuel11.9 US gal (45 l)Unleaded gasoline
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1:Refer to the recommended SAE viscosity numbers on the next page.
*2:Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade engine oil (mineral oil including
Semisynthetic) is used, then the engine oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3:Use only specified genuine Intelligent Variable Transmission(IVT) fluid. The use of non-specified fluid (even marked as compat-
ible with genuine) could result in shift quality deterioration and vibrations, eventually, the transmission failure.(Refer to
“Explanation of Scheduled Maintenance Items” in chapter 7.)
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 7

Specifications, Consumer information, Reporting safety defects
88

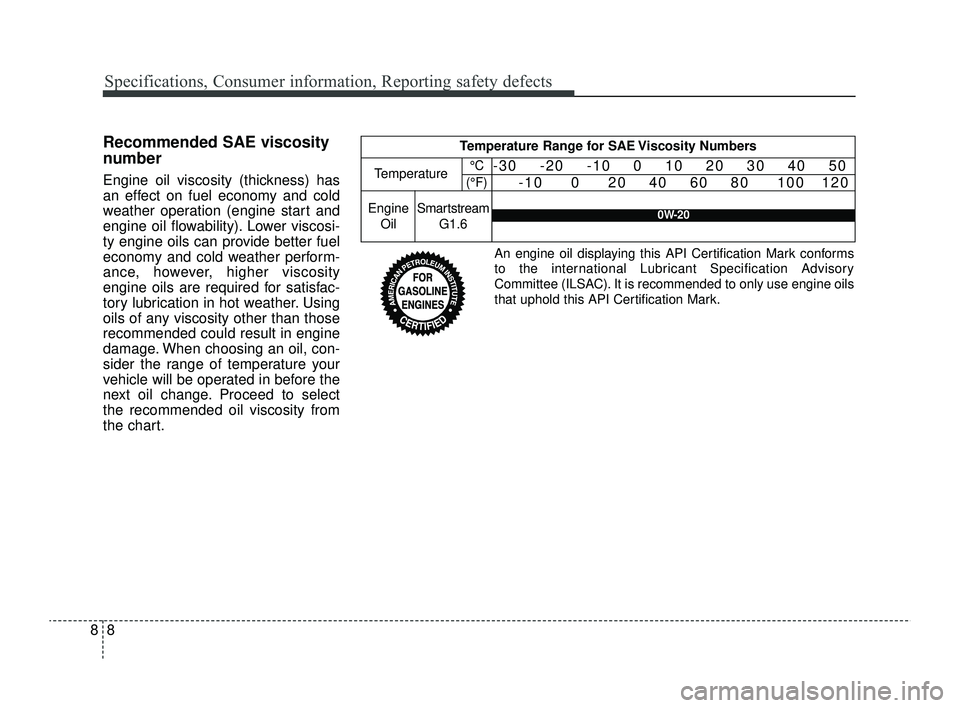

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Smartstream
G1.60W-20EngineOil
An engine oil displaying this API Certification Mark conforms
to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 8

89
Specifications, Consumer information, Reporting safety defects

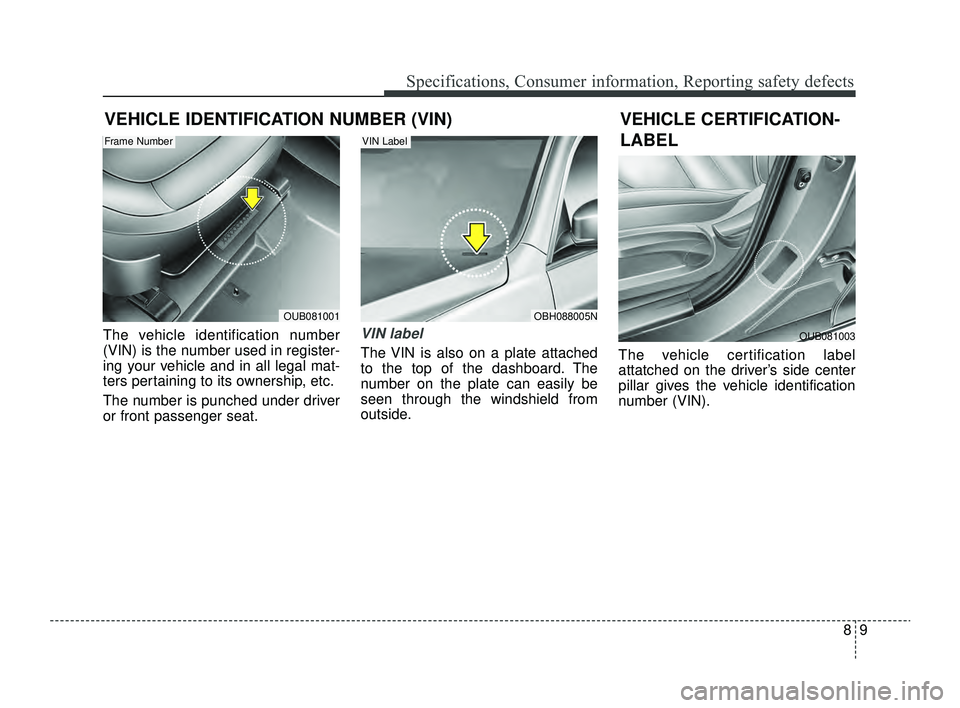

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBH088005N
VIN Label
OUB081001
OUB081003
VEHICLE CERTIFICATION-
LABEL
Frame Number
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 9

Specifications, Consumer information, Reporting safety defects
10
8

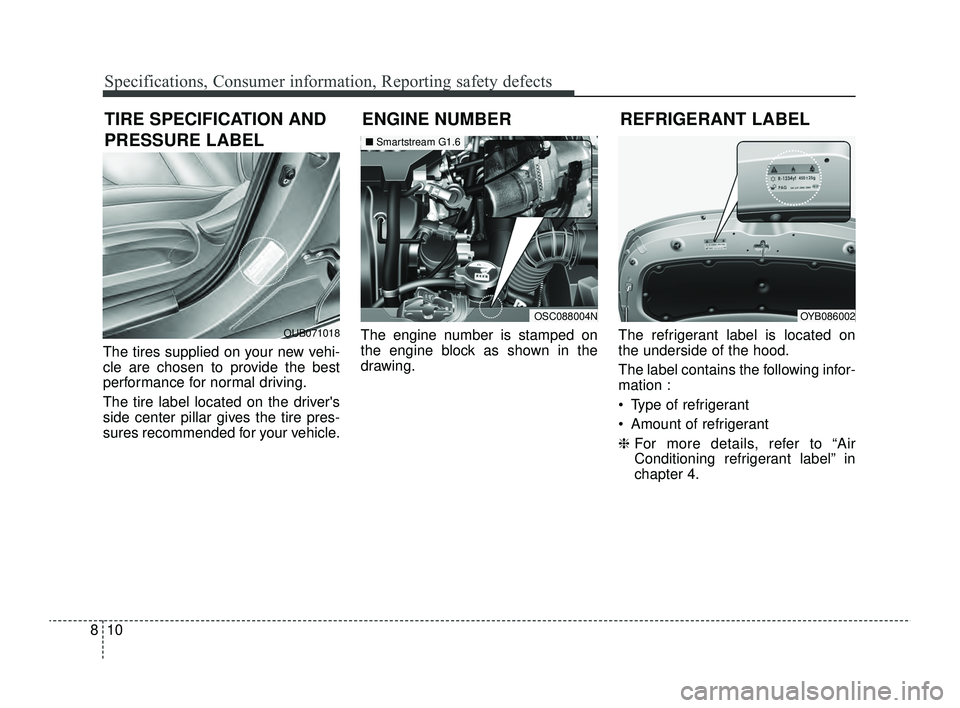

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle. The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located on
the underside of the hood.
The label contains the following infor-
mation :
 Type of refrigerant
 Amount of refrigerant
❈
For more details, refer to “Air
Conditioning refrigerant label” in
chapter 4.
REFRIGERANT LABELTIRE SPECIFICATION AND
PRESSURE LABEL
OYB086002
OUB071018
ENGINE NUMBER
OSC088004N
■Smartstream G1.6
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 10

811
Specifications, Consumer information, Reporting safety defects

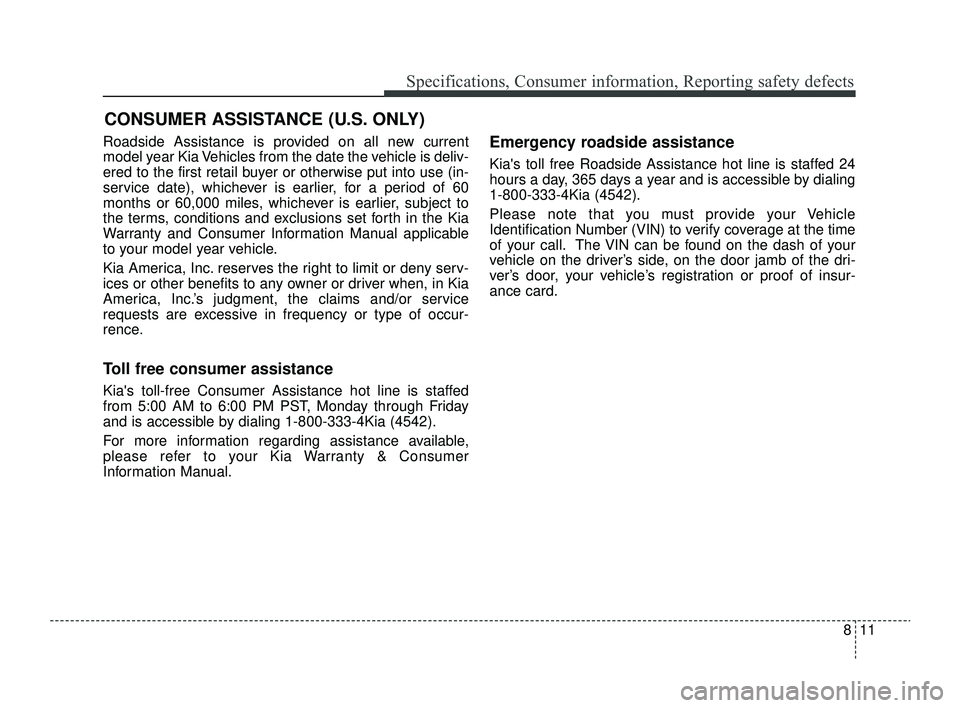

Roadside Assistance is provided on all new current
model year Kia Vehicles from the date the vehicle is deliv-
ered to the first retail buyer or otherwise put into use (in-
service date), whichever is earlier, for a period of 60
months or 60,000 miles, whichever is earlier, subject to
the terms, conditions and exclusions set forth in the Kia
Warranty and Consumer Information Manual applicable
to your model year vehicle.
Kia America, Inc. reserves the right to limit or deny serv-
ices or other benefits to any owner or driver when, in Kia
America, Inc.’s judgment, the claims and/or service
requests are excessive in frequency or type of occur-
rence.
Toll free consumer assistance
Kia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia (4542).
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.
Emergency roadside assistance
Kia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia (4542).
Please note that you must provide your Vehicle
Identification Number (VIN) to verify coverage at the time
of your call. The VIN can be found on the dash of your
vehicle on the driver’s side, on the door jamb of the dri-
ver’s door, your vehicle’s registration or proof of insur-
ance card.
CONSUMER ASSISTANCE (U.S. ONLY)
