2022 KIA NIRO HYBRID EV Owners Manual

Driving your vehicle
106 5

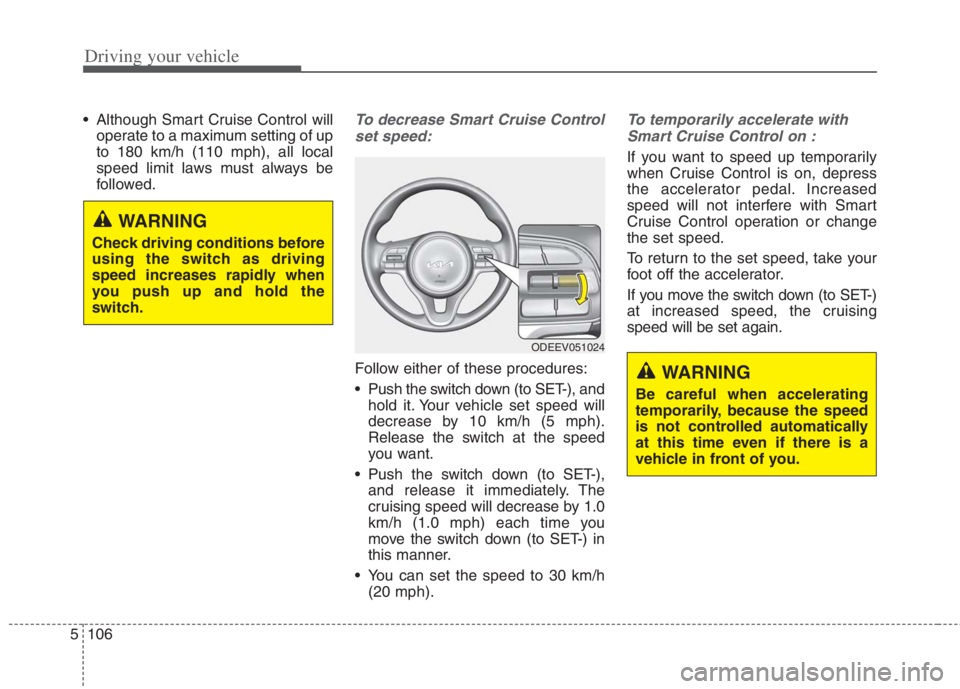

Although Smart Cruise Control will
operate to a maximum setting of up
to 180 km/h (110 mph), all local
speed limit laws must always be
followed.To decrease Smart Cruise Control
set speed:
Follow either of these procedures:
Push the switch down (to SET-), and
hold it. Your vehicle set speed will
decrease by 10 km/h (5 mph).
Release the switch at the speed
you want.
Push the switch down (to SET-),
and release it immediately. The
cruising speed will decrease by 1.0
km/h (1.0 mph) each time you
move the switch down (to SET-) in
this manner.
You can set the speed to 30 km/h
(20 mph).
To temporarily accelerate with
Smart Cruise Control on :
If you want to speed up temporarily
when Cruise Control is on, depress
the accelerator pedal. Increased
speed will not interfere with Smart
Cruise Control operation or change
the set speed.
To return to the set speed, take your
foot off the accelerator.
If you move the switch down (to SET-)
at increased speed, the cruising
speed will be set again.
WARNING
Check driving conditions before
using the switch as driving
speed increases rapidly when
you push up and hold the
switch.
ODEEV051024
WARNING
Be careful when accelerating
temporarily, because the speed
is not controlled automatically
at this time even if there is a
vehicle in front of you.

5107
Driving your vehicle
Smart Cruise Control will be tem-
porarily canceled when:
Canceled manually
Smart Cruise Control is temporarily
canceled when the brake pedal is
depressed or the CANCEL button is
pressed. The speed and vehicle dis-
tance indicator on the cluster is dis-
appeared and the cruise indicator
(CRUISE) is illuminated continuous-
ly.Canceled automatically
Smart Cruise Control will automati-
cally cancel in the following situa-
tions:
The driver's door is opened.
The shift lever is shifted to N
(Neutral), R (Reverse) or P (Paking).
The EPB (Electronic Parking
Brake) is applied.
The vehicle speed is over 190
km/h (120 mph)
The ESC, ABS or TCS is operating.
The ESC is turned off.
The sensor or the cover is dirty or
blocked with foreign matter.
The accelerator pedal is continu-
ously depressed for long time.
The engine speed is in dangerous
range.
Smart Cruise Control has malfunc-
tioned.
When the braking control is operat-
ed for Forward Collision-Avoidance
Assist.
The vehicle stops and goes repeat-
edly for a long period of time. When the parking brake is locked
Speed of the vehicle has been
decreased to less than 10 km/h (5
mph)
Engine has some problems
Each of these actions will cancel
Smart Cruise Control operation. (The
set speed of the cluster is displayed in
gray shades and the distance indica-
tor with the vehicle ahead is disap-
peared.)
In a condition Smart Cruise Control
is cancelled automatically, Smart
Cruise Control will not operate even
though the RES+ or SET- switch is
moved.
The EPB (Electronic Parking Brake)
is applied when Smart Cruise
Control auto release condition
occurs while Smart Cruise Control is
in use.
ODEP051026

Driving your vehicle
108 5

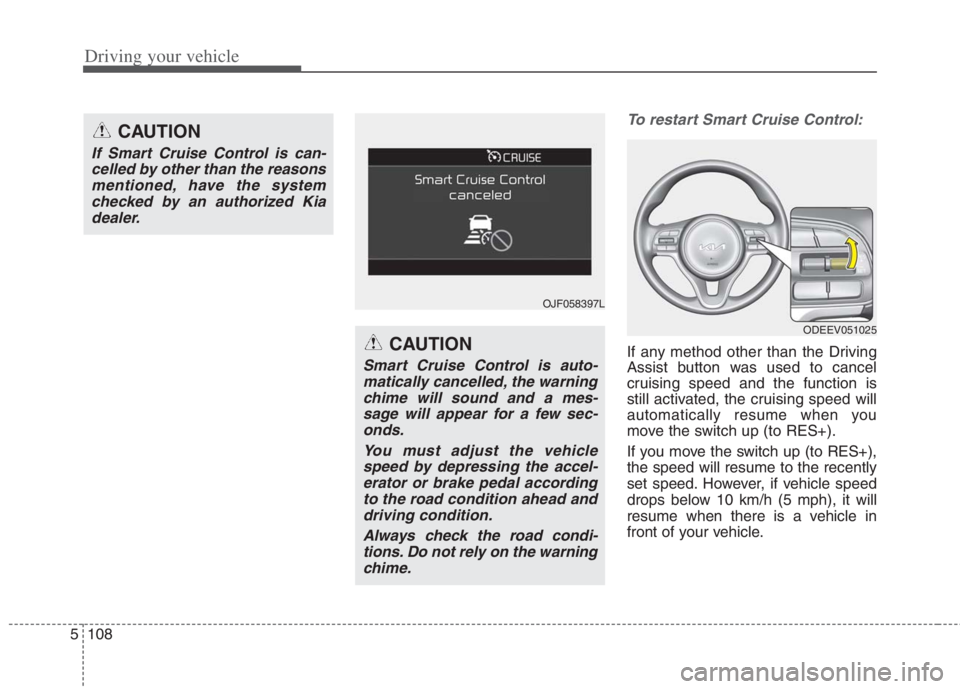

To restart Smart Cruise Control:
If any method other than the Driving
Assist button was used to cancel
cruising speed and the function is
still activated, the cruising speed will
automatically resume when you
move the switch up (to RES+).
If you move the switch up (to RES+),
the speed will resume to the recently
set speed. However, if vehicle speed
drops below 10 km/h (5 mph), it will
resume when there is a vehicle in
front of your vehicle.
CAUTION
If Smart Cruise Control is can-
celled by other than the reasons
mentioned, have the system
checked by an authorized Kia
dealer.
CAUTION
Smart Cruise Control is auto-
matically cancelled, the warning
chime will sound and a mes-
sage will appear for a few sec-
onds.
You must adjust the vehicle
speed by depressing the accel-
erator or brake pedal according
to the road condition ahead and
driving condition.
Always check the road condi-
tions. Do not rely on the warning
chime.
OJF058397L
ODEEV051025

5109
Driving your vehicle
✽ ✽
NOTICE
To reduce the risk of an accident,
always check the road conditions
when reactivating Smart Cruise
Control using the RES+ switch to
ensure the road conditions permit
safe use of Cruise Control.
To turn Smart Cruise Control off:
Press the Driving Assist button. (the
CRUISE indicator in the instrument
cluster will go off).
When Smart Cruise Control is not
needed, press the Driving Assist but-
ton and deactivate the function.
ODEEV051023
WARNING
Take the following precautions :
If Smart Cruise Control is left
on, (cruise indicator in the
instrument cluster illuminated)
Smart Cruise Control can be
activated unintentionally. Keep
Smart Cruise Control off (cruise
indicator turn off) when Smart
Cruise Control is not used.
Do not leave the vehicle when it
is stopped by Smart Cruise
Control. If it is necessary to
leave the vehicle, turn off Smart
Cruise Control and move the
gear shift to P (Parking),
engage the parking brake, and
turn off the engine while
depressing the brake pedal.
Use Smart Cruise Control only
on roads with good traffic con-
ditions. Do not use Smart
Cruise Control in the following
situations because of the high
risk of an accident.
(Continued)

Driving your vehicle
110 5

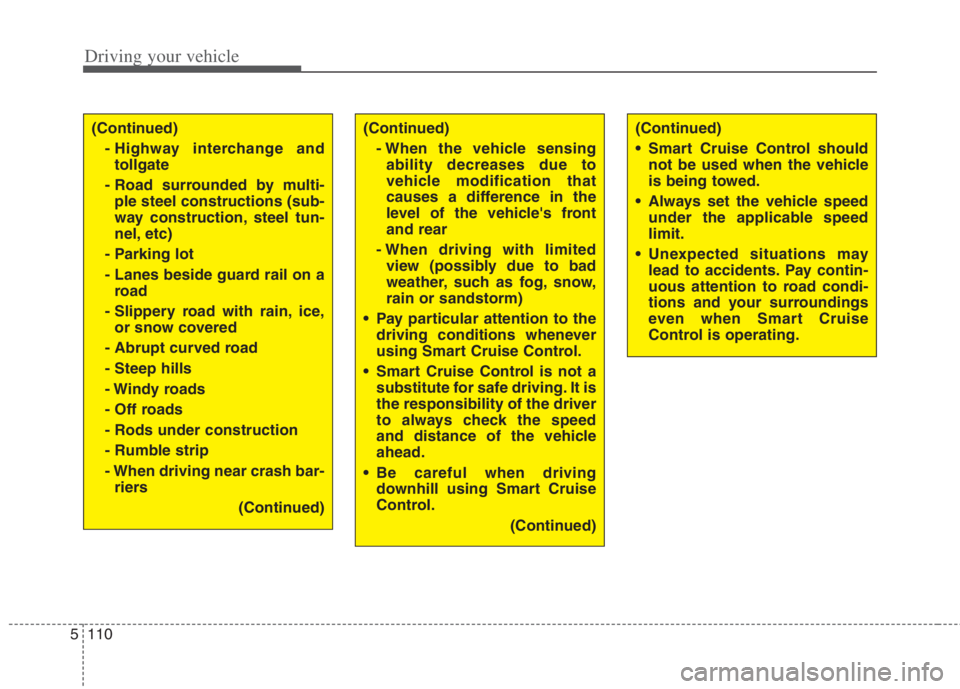

(Continued)
- Highway interchange and
tollgate
- Road surrounded by multi-
ple steel constructions (sub-
way construction, steel tun-
nel, etc)
- Parking lot
- Lanes beside guard rail on a
road
- Slippery road with rain, ice,
or snow covered
- Abrupt curved road
- Steep hills
- Windy roads
- Off roads
- Rods under construction
- Rumble strip
- When driving near crash bar-
riers
(Continued)(Continued)
- When the vehicle sensing
ability decreases due to
vehicle modification that
causes a difference in the
level of the vehicle's front
and rear
- When driving with limited
view (possibly due to bad
weather, such as fog, snow,
rain or sandstorm)
Pay particular attention to the
driving conditions whenever
using Smart Cruise Control.
Smart Cruise Control is not a
substitute for safe driving. It is
the responsibility of the driver
to always check the speed
and distance of the vehicle
ahead.
Be careful when driving
downhill using Smart Cruise
Control.
(Continued)(Continued)
Smart Cruise Control should
not be used when the vehicle
is being towed.
Always set the vehicle speed
under the applicable speed
limit.
Unexpected situations may
lead to accidents. Pay contin-
uous attention to road condi-
tions and your surroundings
even when Smart Cruise
Control is operating.

5111
Driving your vehicle

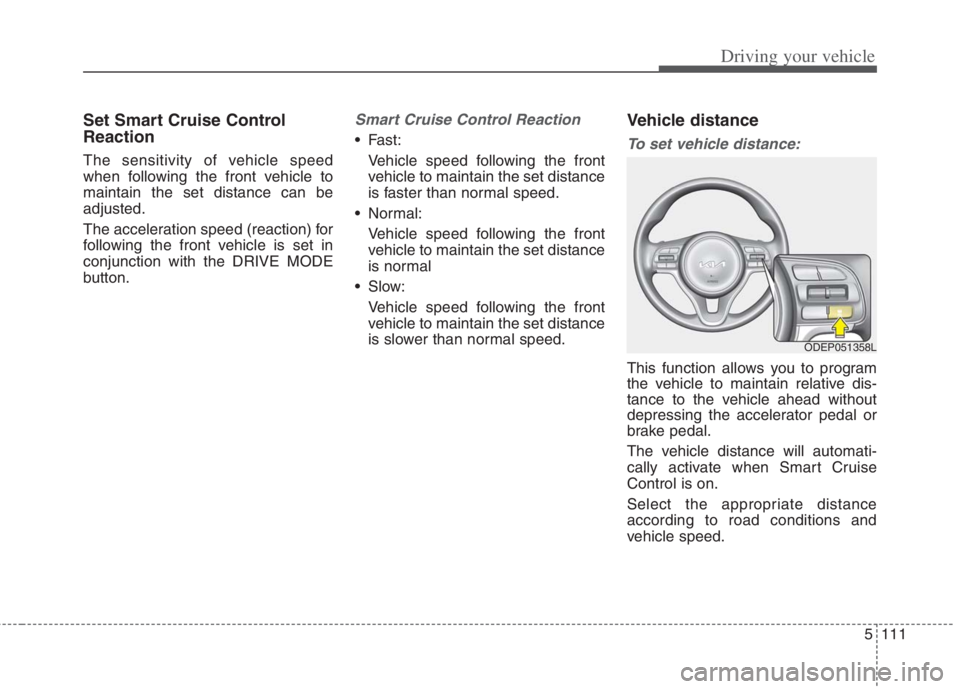

Set Smart Cruise Control
Reaction
The sensitivity of vehicle speed
when following the front vehicle to
maintain the set distance can be
adjusted.
The acceleration speed (reaction) for
following the front vehicle is set in
conjunction with the DRIVE MODE
button.
Smart Cruise Control Reaction
• Fast:Vehicle speed following the front
vehicle to maintain the set distance
is faster than normal speed.
Normal: Vehicle speed following the front
vehicle to maintain the set distance
is normal
Slow: Vehicle speed following the front
vehicle to maintain the set distance
is slower than normal speed.
Vehicle distance
To set vehicle distance:
This function allows you to program
the vehicle to maintain relative dis-
tance to the vehicle ahead without
depressing the accelerator pedal or
brake pedal.
The vehicle distance will automati-
cally activate when Smart Cruise
Control is on.
Select the appropriate distance
according to road conditions and
vehicle speed.
ODEP051358L

Driving your vehicle
112
5

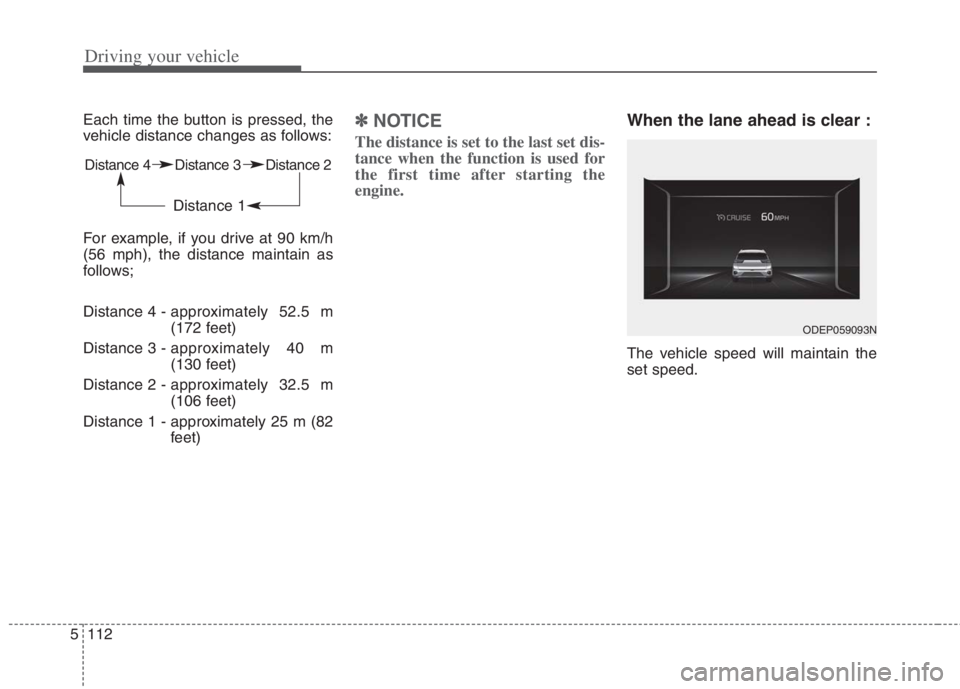

Each time the button is pressed, the
vehicle distance changes as follows:
For example, if you drive at 90 km/h
(56 mph), the distance maintain as
follows;
Distance 4 - approximately 52.5 m
(172 feet)
Distance 3 - approximately 40 m
(130 feet)
Distance 2 - approximately 32.5 m
(106 feet)
Distance 1 - approximately 25 m (82 feet) ✽ ✽NOTICE
The distance is set to the last set dis-
tance when the function is used for
the first time after starting the
engine.
When the lane ahead is clear :
The vehicle speed will maintain the
set speed.
Distance 4 Distance 3 Distance 2
Distance 1
ODEP059093N

5113
Driving your vehicle

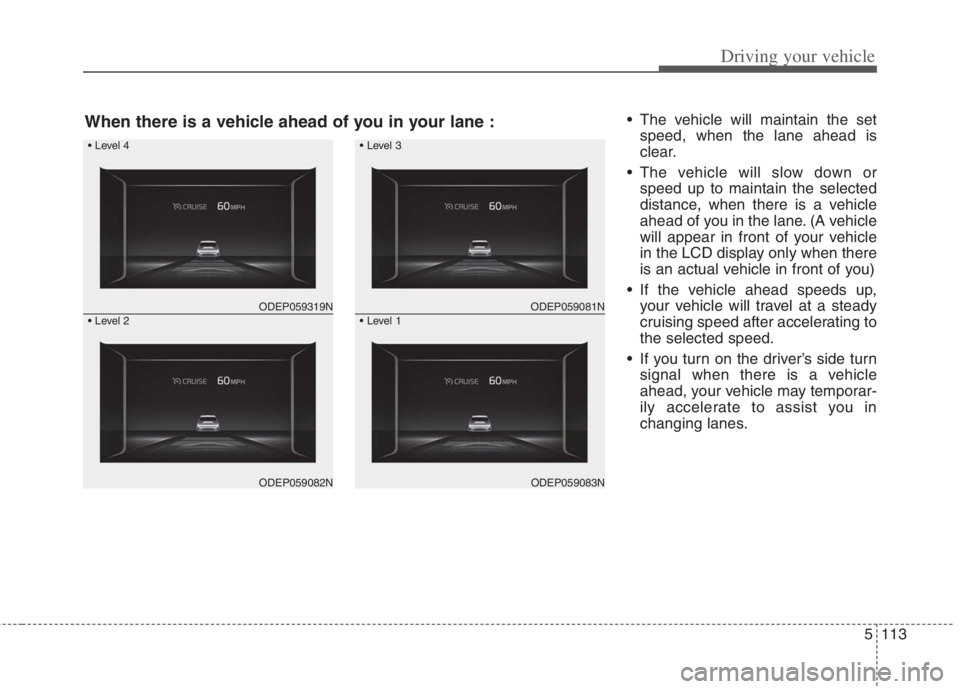

The vehicle will maintain the set
speed, when the lane ahead is
clear.
The vehicle will slow down or
speed up to maintain the selected
distance, when there is a vehicle
ahead of you in the lane. (A vehicle
will appear in front of your vehicle
in the LCD display only when there
is an actual vehicle in front of you)
If the vehicle ahead speeds up,
your vehicle will travel at a steady
cruising speed after accelerating to
the selected speed.
If you turn on the driver’s side turn
signal when there is a vehicle
ahead, your vehicle may temporar-
ily accelerate to assist you in
changing lanes.
ODEP059319N
ODEP059082N
ODEP059081N
ODEP059083N
When there is a vehicle ahead of you in your lane :
