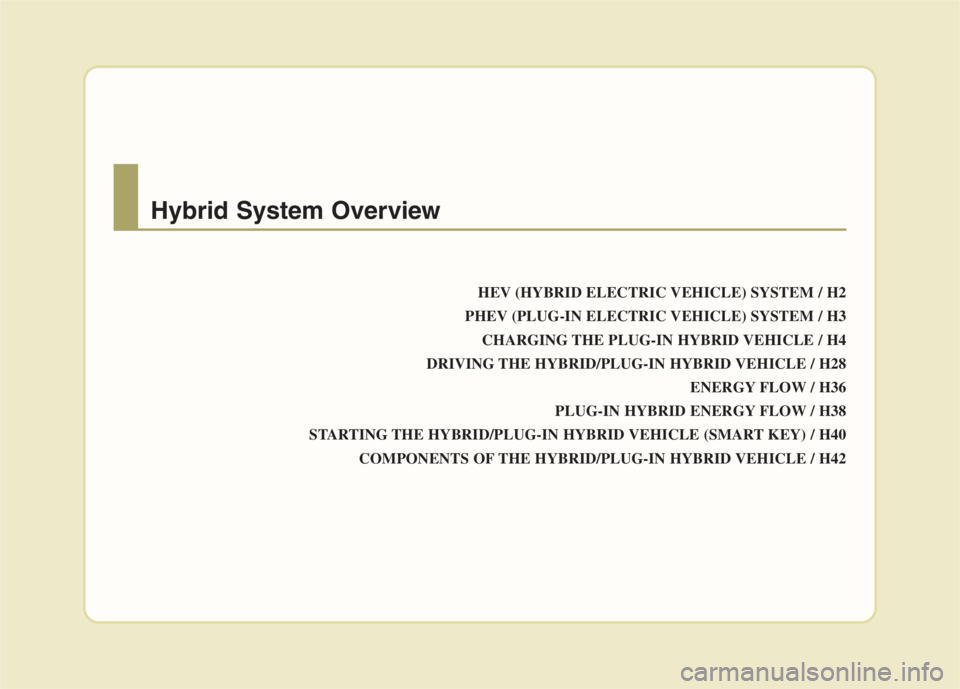

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM / H2
PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM / H3
CHARGING THE PLUG-IN HYBRID VEHICLE / H4

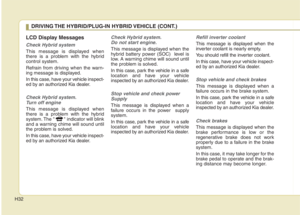

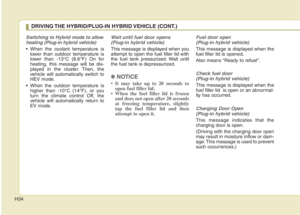

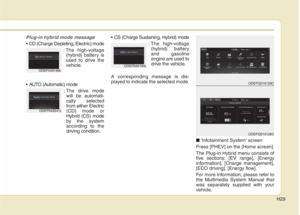

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE / H28

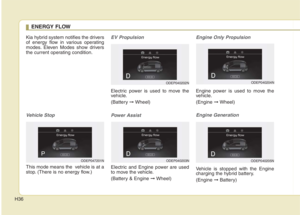

ENERGY FLOW / H36
PLUG-IN HYBRID ENERGY FLOW / H38
STARTING THE HYBRID/PLUG-IN HYBRID VEHICLE (SMART KEY) / H40

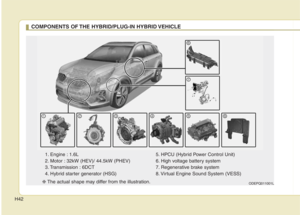

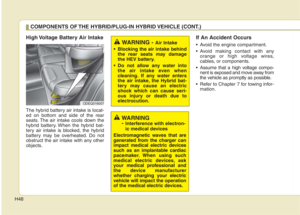

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE / H42

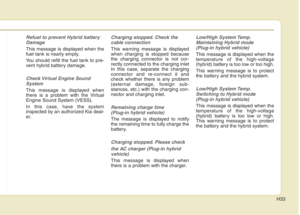

Hybrid System Overview

H2

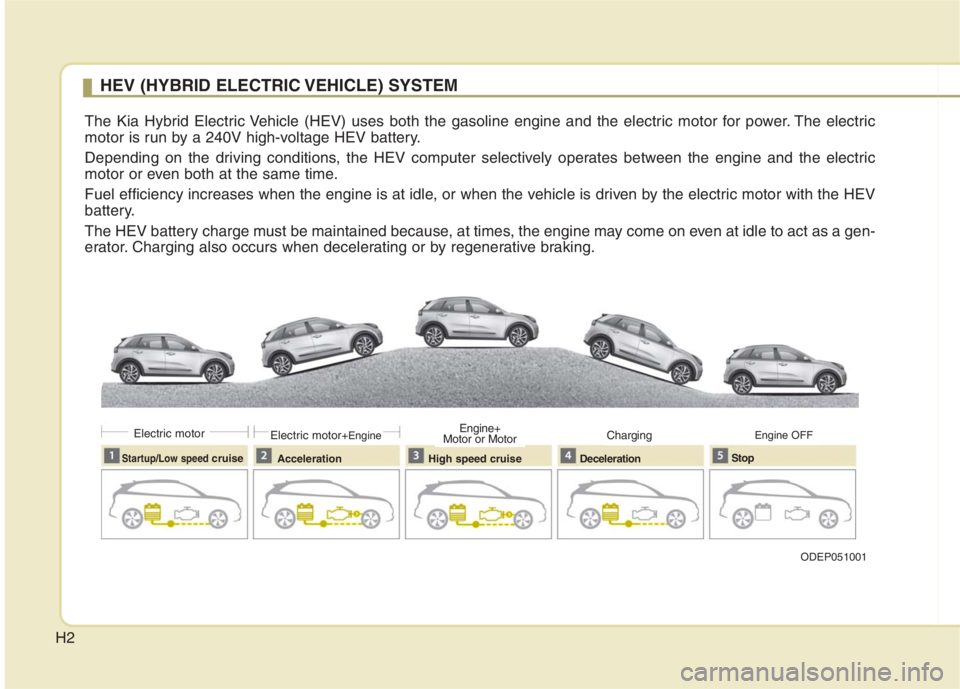

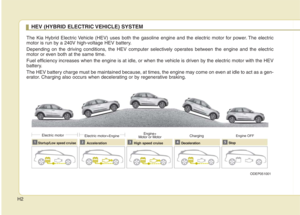

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM
The Kia Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the electric motor for power. The electric
motor is run by a 240V high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between the engine and the electric
motor or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the electric motor with the HEV
battery.
The HEV battery charge must be maintained because, at times, the engine may come on even at idle to act as a gen-
erator. Charging also occurs when decelerating or by regenerative braking.
ODEP051001
Startup/Low speed cruise
Acceleration High speed cruiseDecelerationStop
Electric motorElectric motor+EngineEngine+
Motor or MotorChargingEngine OFF

H3

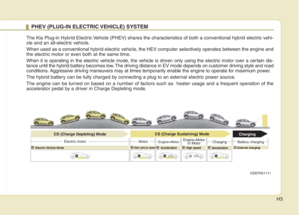

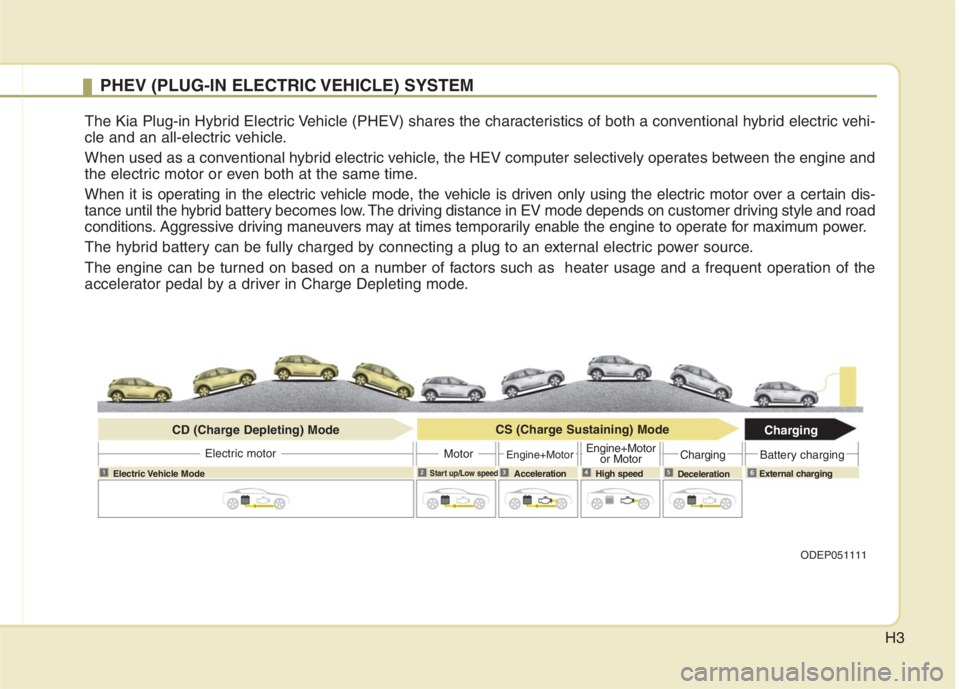

PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM
The Kia Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both a conventional hybrid electric vehi-
cle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively operates between the engine and
the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using the electric motor over a certain dis-
tance until the hybrid battery becomes low. The driving distance in EV mode depends on customer driving style and road
conditions. Aggressive driving maneuvers may at times temporarily enable the engine to operate for maximum power.
The hybrid battery can be fully charged by connecting a plug to an external electric power source.
The engine can be turned on based on a number of factors such as heater usage and a frequent operation of the
accelerator pedal by a driver in Charge Depleting mode.
ODEP051111
Electric Vehicle ModeStart up/Low speedAcceleration High speed
DecelerationExternal charging
Electric motor
CD (Charge Depleting) ModeCS (Charge Sustaining) ModeCharging
MotorEngine+MotorEngine+Motor
or MotorChargingBattery charging
6

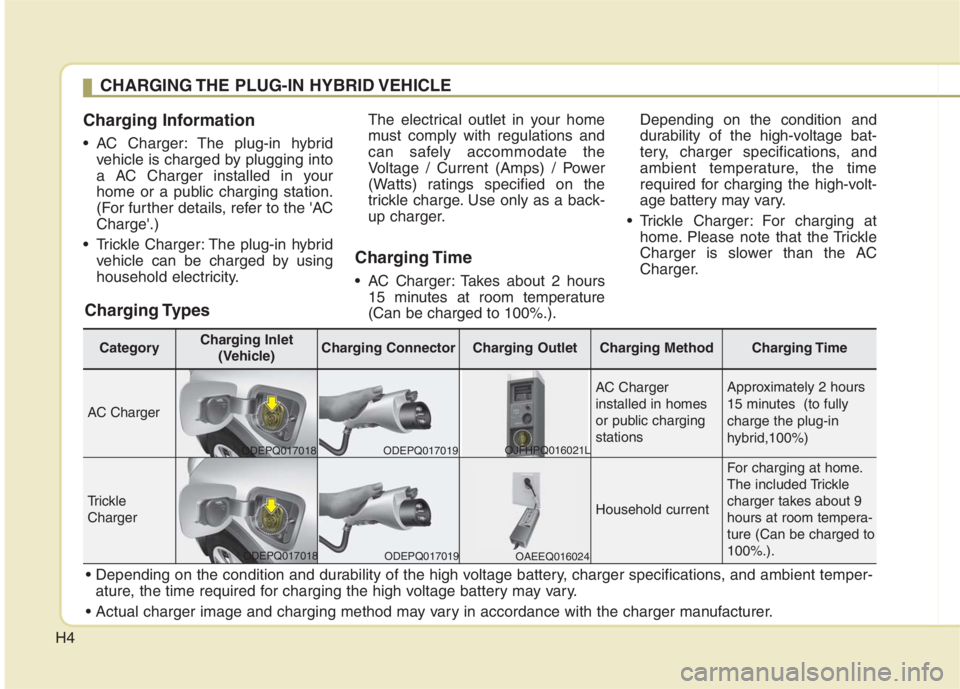

H4
Charging Information

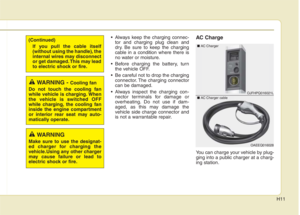

• AC Charger: The plug-in hybrid
vehicle is charged by plugging into
a AC Charger installed in your
home or a public charging station.
(For further details, refer to the 'AC
Charge'.)

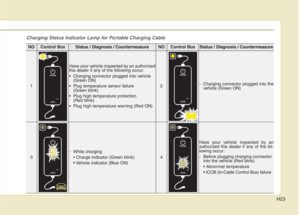

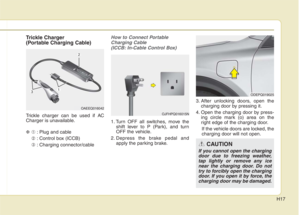

Trickle Charger: The plug-in hybrid
vehicle can be charged by using
household electricity.The electrical outlet in your home
must comply with regulations and
can safely accommodate the
Voltage / Current (Amps) / Power
(Watts) ratings specified on the
trickle charge. Use only as a back-
up charger.
Charging Time
AC Charger: Takes about 2 hours
15 minutes at room temperature
(Can be charged to 100%.).Depending on the condition and
durability of the high-voltage bat-
tery, charger specifications, and
ambient temperature, the time
required for charging the high-volt-
age battery may vary.
Trickle Charger: For charging at
home. Please note that the Trickle
Charger is slower than the AC
Charger.

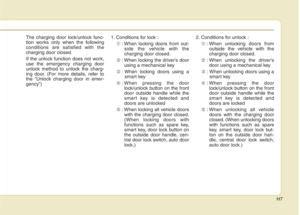

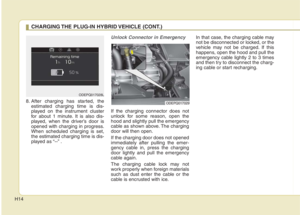

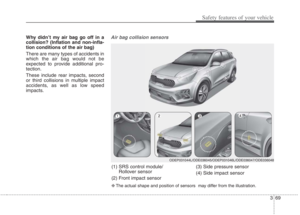

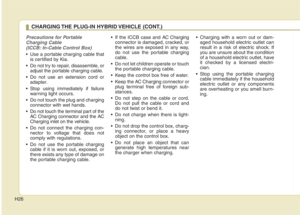

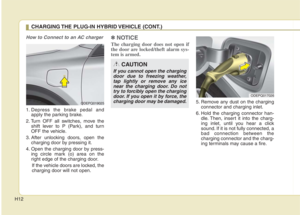

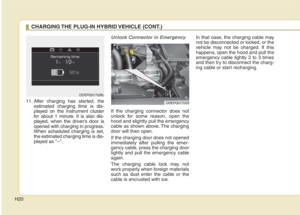

CHARGING THE PLUG-IN HYBRID VEHICLE
Charging Types

ature, the time required for charging the high voltage battery may vary.

CategoryCharging Inlet
(Vehicle)Charging ConnectorCharging OutletCharging Method Charging Time
AC Charger
AC Charger
installed in homes
or public charging
stations Approximately 2 hours
15 minutes (to fully
charge the plug-in
hybrid,100%)
Trickle
ChargerHousehold current
For charging at home.
The included Trickle
charger takes about 9
hours at room tempera-
ture (Can be charged to
100%.).
ODEPQ017018
ODEPQ017019
ODEPQ017019
OAEEQ016024 OJFHPQ016021L
ODEPQ017018

H5

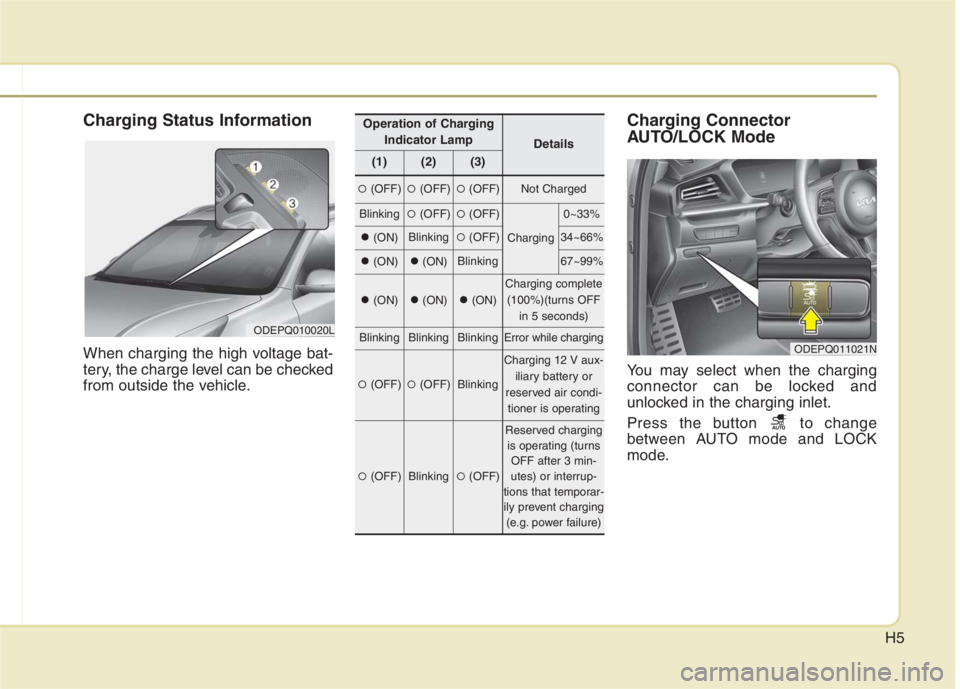

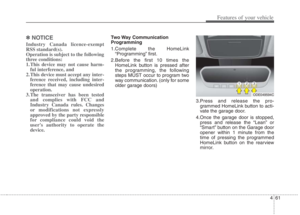

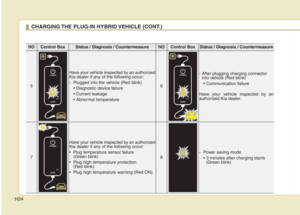

Charging Status Information
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.

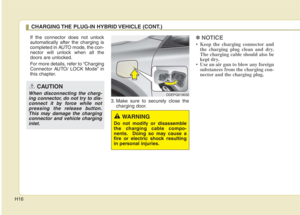

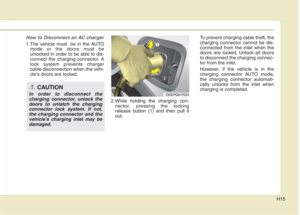

Charging Connector

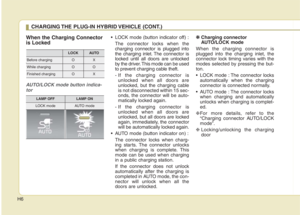

AUTO/LOCK Mode
You may select when the charging
connector can be locked and
unlocked in the charging inlet.
Press the button to change
between AUTO mode and LOCK
mode.
ODEPQ011021N

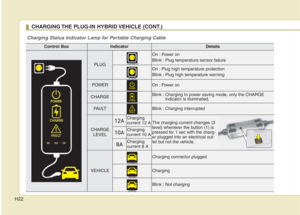

Operation of Charging
Indicator Lamp
Details
(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)
Charging complete
(100%)(turns OFF
in 5 seconds)
BlinkingBlinkingBlinkingError while charging
(OFF)(OFF)Blinking
Charging 12 V aux-
iliary battery or
reserved air condi-
tioner is operating
(OFF)Blinking(OFF)
Reserved charging
is operating (turns
OFF after 3 min-
utes) or interrup-
tions that temporar-
ily prevent charging
(e.g. power failure)
ODEPQ010020L
