2022 KIA NIRO HYBRID EV Owners Manual

Driving your vehicle
98
5

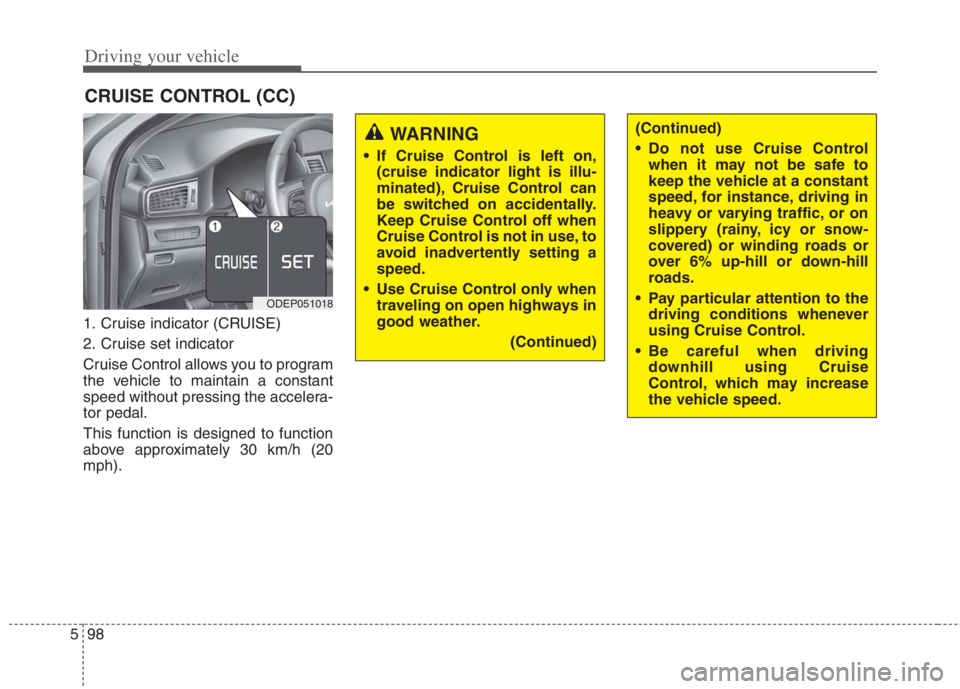

1. Cruise indicator (CRUISE)
2. Cruise set indicator
Cruise Control allows you to program
the vehicle to maintain a constant
speed without pressing the accelera-
tor pedal.
This function is designed to function
above approximately 30 km/h (20
mph).
CRUISE CONTROL (CC)
WARNING
• If Cruise Control is left on,
(cruise indicator light is illu-
minated), Cruise Control can
be switched on accidentally.
Keep Cruise Control off when
Cruise Control is not in use, to
avoid inadvertently setting a
speed.
Use Cruise Control only when traveling on open highways in
good weather.
(Continued)
(Continued)
Do not use Cruise Controlwhen it may not be safe to
keep the vehicle at a constant
speed, for instance, driving in
heavy or varying traffic, or on
slippery (rainy, icy or snow-
covered) or winding roads or
over 6% up-hill or down-hill
roads.
Pay particular attention to the driving conditions whenever
using Cruise Control.
Be careful when driving downhill using Cruise
Control, which may increase
the vehicle speed.
ODEP051018

599
Driving your vehicle
✽ ✽
NOTICE
• During normal Cruise Control
operation, when the SET- switch is
activated or reactivated after apply-
ing the brakes, Cruise Control will
energize after approximately 3 sec-
onds. This delay is normal.
• To activate Cruise Control, depress
the brake pedal at least once after
placing the ignition switch or
ENGINE START/STOP button to
the ON position or starting the
engine. This is to check if the brake
switch which is important part to
cancel Cruise Control is in normal
condition.
Driving Assist button
CRUISE : Turns Cruise Control on or
off.
RES+ :Resumes or increases
Cruise Control speed.
SET- : Sets or decreases Cruise
Control speed.
CANCEL :Cancels Cruise Control
operation.
To set Cruise Control speed:
1. Press the Driving Assist button on
the steering wheel, to turn the
function on. The cruise indicator
light will illuminate.
2. Accelerate to the desired speed,
which must be more than approxi-
mately 30 km/h (20 mph).
ODEEV051023ODEEV051023

Driving your vehicle
100
5

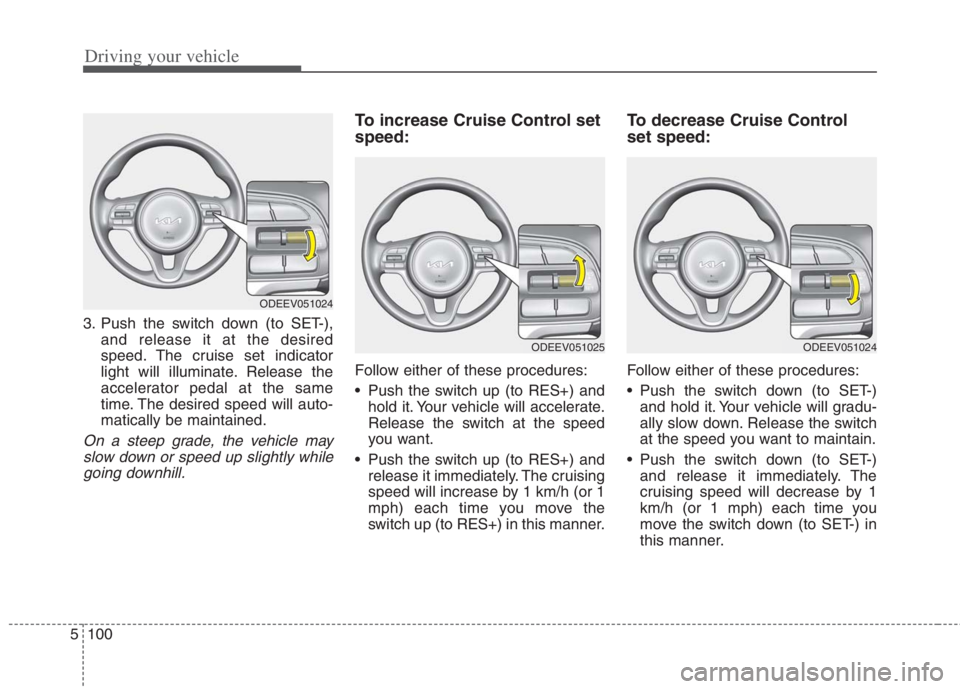

3. Push the switch down (to SET-),
and release it at the desired
speed. The cruise set indicator
light will illuminate. Release the
accelerator pedal at the same
time. The desired speed will auto-
matically be maintained.
On a steep grade, the vehicle mayslow down or speed up slightly whilegoing downhill.
To increase Cruise Control set
speed:
Follow either of these procedures:
Push the switch up (to RES+) and hold it. Your vehicle will accelerate.
Release the switch at the speed
you want.
Push the switch up (to RES+) and release it immediately. The cruising
speed will increase by 1 km/h (or 1
mph) each time you move the
switch up (to RES+) in this manner.
To decrease Cruise Control
set speed:
Follow either of these procedures:
Push the switch down (to SET-)and hold it. Your vehicle will gradu-
ally slow down. Release the switch
at the speed you want to maintain.
Push the switch down (to SET-) and release it immediately. The
cruising speed will decrease by 1
km/h (or 1 mph) each time you
move the switch down (to SET-) in
this manner.
ODEEV051024
ODEEV051025ODEEV051024

5101
Driving your vehicle

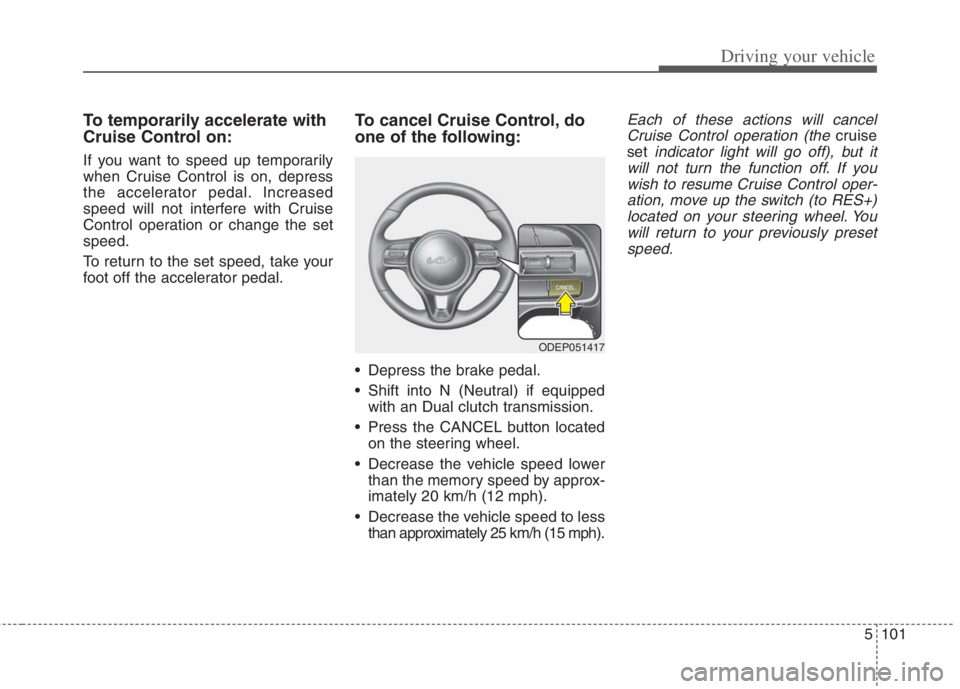

To temporarily accelerate with
Cruise Control on:
If you want to speed up temporarily
when Cruise Control is on, depress
the accelerator pedal. Increased
speed will not interfere with Cruise
Control operation or change the set
speed.
To return to the set speed, take your
foot off the accelerator pedal.
To cancel Cruise Control, do
one of the following:
• Depress the brake pedal.
Shift into N (Neutral) if equippedwith an Dual clutch transmission.
Press the CANCEL button located on the steering wheel.
Decrease the vehicle speed lower than the memory speed by approx-
imately 20 km/h (12 mph).
Decrease the vehicle speed to less than approximately 25 km/h (15 mph).
Each of these actions will cancelCruise Control operation (the
cruise
set
indicator light will go off), but it
will not turn the function off. If you wish to resume Cruise Control oper-ation, move up the switch (to RES+)located on your steering wheel. Youwill return to your previously presetspeed.
ODEP051417

Driving your vehicle
102 5

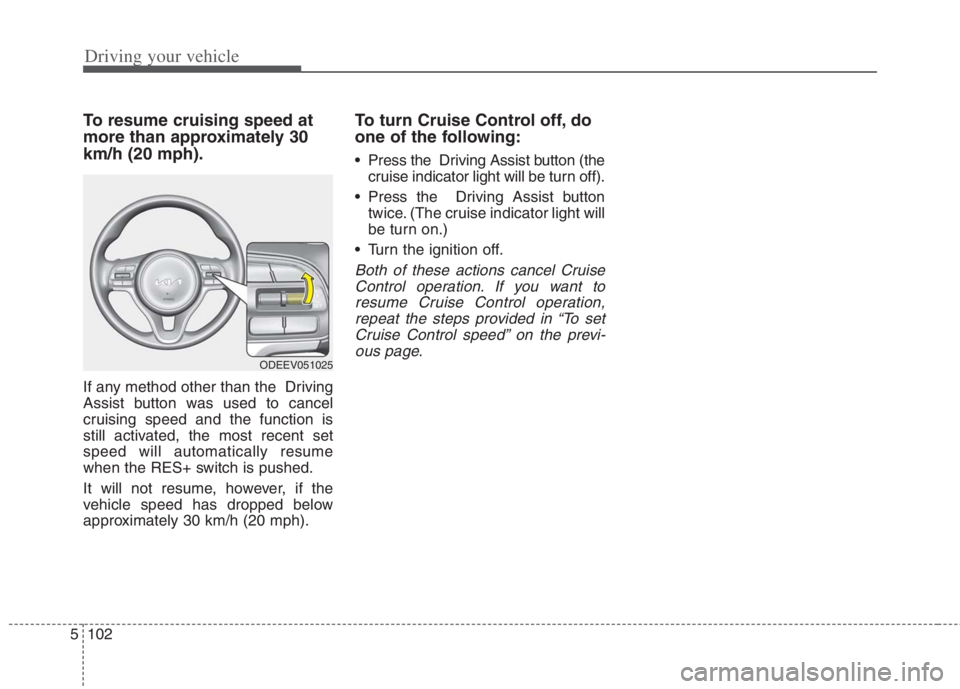

To resume cruising speed at
more than approximately 30
km/h (20 mph).
If any method other than the Driving
Assist button was used to cancel
cruising speed and the function is
still activated, the most recent set
speed will automatically resume
when the RES+ switch is pushed.
It will not resume, however, if the
vehicle speed has dropped below
approximately 30 km/h (20 mph).
To turn Cruise Control off, do
one of the following:
Press the Driving Assist button (the
cruise indicator light will be turn off).
Press the Driving Assist button
twice. (The cruise indicator light will
be turn on.)
Turn the ignition off.
Both of these actions cancel Cruise
Control operation. If you want to
resume Cruise Control operation,
repeat the steps provided in “To set
Cruise Control speed” on the previ-
ous page.
ODEEV051025

5103
Driving your vehicle
➀Cruise indicator ( CRUISE)
➁Set speed
➂Vehicle distance
Smart Cruise Control allows you to
program the vehicle to maintain con-
stant speed and distance detecting
the vehicle ahead without depressing
the accelerator or brake pedal.
To see Smart Cruise Control screen
on the LCD display on the cluster,
select Driving Assist ( ). For more
informations, refer to “LCD Display
Modes” in chapter 4.
✽ ✽
NOTICE
To activate Smart Cruise Control,
depress the brake pedal at least once
after placing the ignition switch or
ENGINE START/STOP button to
the ON position or starting the
engine. This is to check if the brake
switch which is important part to
cancel Smart Cruise Control is in
normal condition.
Driving Assist button
CRUISE : Turns Smart Cruise
Control on or off.
RES + : Sets or increases Smart
Cruise Control speed.
SET - : Sets or decreases Smart
Cruise Control speed.
: Sets vehicle distance
CANCEL :Cancels Smart Cruise
Control operation.
SMART CRUISE CONTROL (SCC) (IF EQUIPPED)
WARNING
For your safety, please read the
owner's manual before using
Smart Cruise Control.
ODEP059080N

Driving your vehicle
104 5

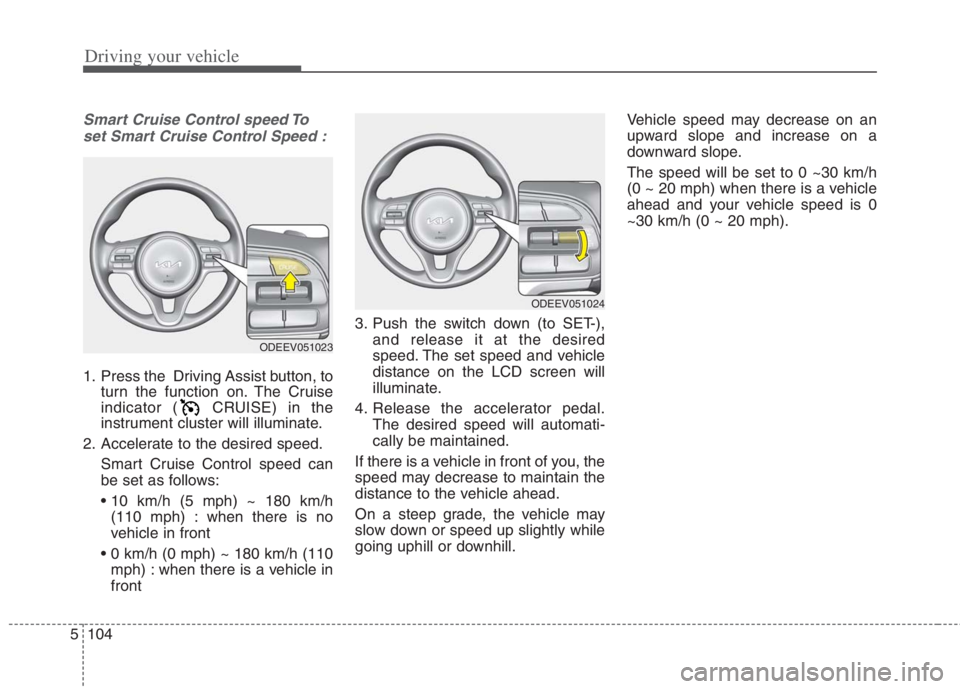

Smart Cruise Control speed To
set Smart Cruise Control Speed :
1. Press the Driving Assist button, to
turn the function on. The Cruise
indicator ( CRUISE) in the
instrument cluster will illuminate.
2. Accelerate to the desired speed.
Smart Cruise Control speed can
be set as follows:

(110 mph) : when there is no
vehicle in front

mph) : when there is a vehicle in
front3. Push the switch down (to SET-),
and release it at the desired
speed. The set speed and vehicle
distance on the LCD screen will
illuminate.
4. Release the accelerator pedal.
The desired speed will automati-
cally be maintained.
If there is a vehicle in front of you, the
speed may decrease to maintain the
distance to the vehicle ahead.
On a steep grade, the vehicle may
slow down or speed up slightly while
going uphill or downhill.Vehicle speed may decrease on an
upward slope and increase on a
downward slope.
The speed will be set to 0 ~30 km/h
(0 ~ 20 mph) when there is a vehicle
ahead and your vehicle speed is 0
~30 km/h (0 ~ 20 mph).
ODEEV051023
ODEEV051024

5105
Driving your vehicle
Smart Cruise Control Not
Operating Conditions
The driver’s door is opened.
The vehicle is shifted to N (Neutral)
/ R (Reverse) / P (Parking).
The parking brake is applied.
The vehicle speed is not within the
specified Smart Cruise Control
range.
The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is operating. The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is off.
The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is operating.
The sensor cover is extremely con-
taminated.
The engine performance is abnor-
mal.
Forward Collision-Avoidance
Assist is activated.
The engine RPM is in the red zone.
The front radar is abnormal.
To increase Smart Cruise Control
set speed:
Follow either of these procedures:
Push the switch up (to RES+), and
hold it. Your vehicle set speed will
increase by 10 km/h (5 mph).
Release the switch at the speed
you want.
Push the switch up (to RES+), and
release it immediately. The cruising
speed will increase by 1.0 km/h
(1.0 mph) each time you move the
switch up (to RES+) in this manner.
OYG059346L
ODEEV051025
