2022 ACURA NSX Owners Manual

Continued383

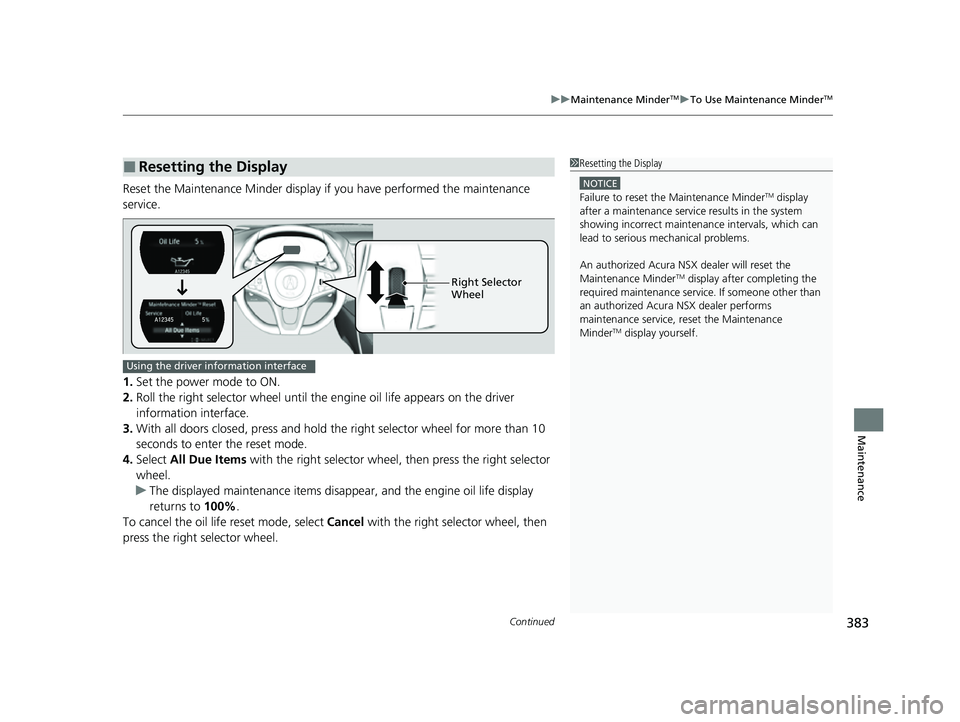

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
Reset the Maintenance Minder display if you have performed the maintenance
service.
1. Set the power mode to ON.
2. Roll the right selector wheel until the en gine oil life appears on the driver
information interface.
3. With all doors closed, press and hold the right selector wheel for more than 10
seconds to enter the reset mode.
4. Select All Due Items with the right selector wheel, then press the right selector
wheel.
u The displayed maintenance items disappear, and the engine oil life display
returns to 100%.
To cancel the oil life reset mode, select Cancel with the right selector wheel, then
press the right selector wheel.
■Resetting the Display1 Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
An authorized Acura NSX dealer will reset the
Maintenance Minder
TM display after completing the
required maintenance service. If someone other than
an authorized Acura NSX dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
Right Selector
Wheel
Using the driver information interface
22 ACURA NSX PMC-31T6N6500.book 383 ページ ２０２１年９月２８日　火曜日　午後４時７分

384
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1. Set the power mode to ON.
2. Select on the audio/ information screen.
3. Select Settings .
4. Select Vehicle , then Maintenance Info .
5. Select Reset.
u A confirmation message appears on the screen.
6. Select Reset.
u The engine oil life display returns to 100%.
To cancel the oil life reset mode, select Cancel.
Using the audio/information screen
22 ACURA NSX PMC-31T6N6500.book 384 ページ ２０２１年９月２８日　火曜日　午後４時７分

385Continued
Maintenance

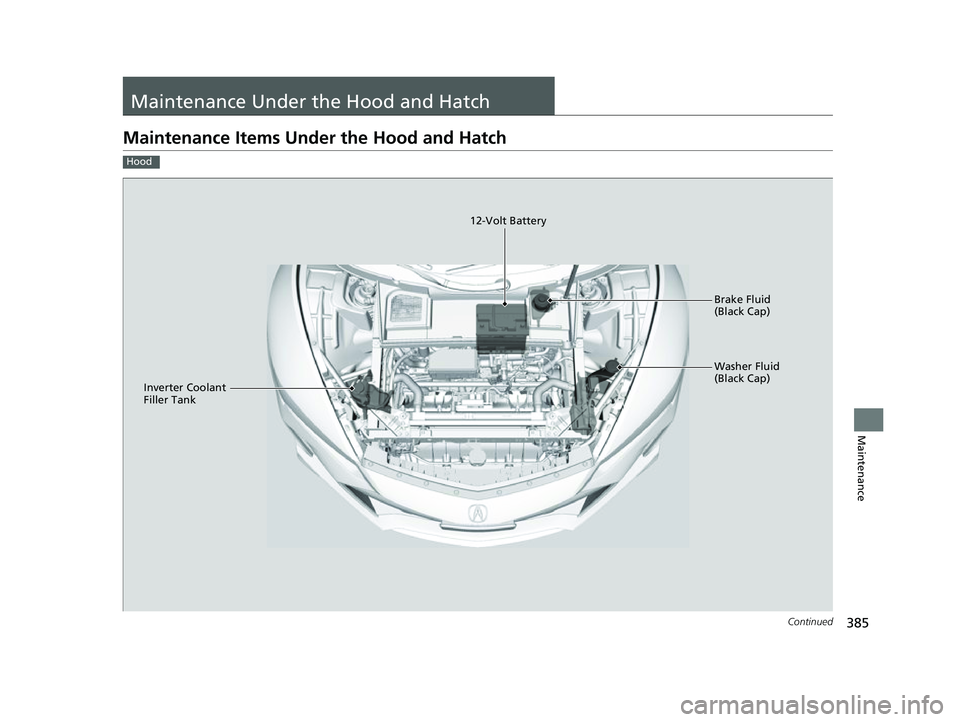

Maintenance Under the Hood and Hatch
Maintenance Items Under the Hood and Hatch
Hood
Brake Fluid
(Black Cap)
Washer Fluid
(Black Cap)
12-Volt Battery
Inverter Coolant
Filler Tank
22 ACURA NSX PMC-31T6N6500.book 385 ページ ２０２１年９月２８日　火曜日　午後４時７分

386
uuMaintenance Under the Hood and Hatch uMaintenance Items Under the Hood and Hatch
Maintenance
Hatch
Engine Oil Fill Cap
Engine Coolant
Reserve Tank Cap Engine Oil Dipstick
(Orange)
Engine Coolant
Reserve Tank
22 ACURA NSX PMC-31T6N6500.book 386 ページ ２０２１年９月２８日　火曜日　午後４時７分

387
uuMaintenance Under the Hood and Hatch uOpening the Hatch
Maintenance
Opening the Hatch
1. Park the vehicle on a level surface, and set
the parking brake.
2. Press the hatch release button on the
driver’s door.
3. Lift the hatch up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, press down firmly with your
hands.1 Opening the Hatch
When closing the hatch, check that the hatch is
securely latched.
The hatch can be opened by pressing the release
button on the hatch.
2 Using the Hatch Release Button P. 122
Hatch Release
Button
22 ACURA NSX PMC-31T6N6500.book 387 ページ ２０２１年９月２８日　火曜日　午後４時７分

388
uuMaintenance Under the Hood and Hatch uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower corner of the dashboard.
u The hood will pop up slightly.
3. Pull up the hood latch lever (located under
the front edge of the hood to the center)
and raise the hood. Once you have raised
the hood slightly, you can release the lever.
4. Lift the hood up most of the way.
u The hydraulic support will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then pr ess down firmly with
your hands, and make su re both right and left
latches are firmly locked in place.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.
When closing the hood, check that both right and
left latches are securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricatedM
Pull
Hood Release Handle
Lever
22 ACURA NSX PMC-31T6N6500.book 388 ページ ２０２１年９月２８日　火曜日　午後４時７分

389
uuMaintenance Under the Hood and Hatch uEngine Compartment Cover
Maintenance
Engine Compartment Cover
The component parts in the engine co mpartment are protected by covers.
You may need to remove the cover when you perform certain maintenance work.
Pull up on the engine compartment cover, remove it from the pins.
Engine
Compartment
Covers
22 ACURA NSX PMC-31T6N6500.book 389 ページ ２０２１年９月２８日　火曜日　午後４時７分

390
uuMaintenance Under the Hood and Hatch uRecommended Engine Oil
Maintenance
Recommended Engine Oil
Oil is a major contributor to your engine’s
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
Under normal ambient temperature an d driving conditions, Acura NSX
specifications require full synthetic, 0W-40 motor oil such as Ultimate Full
Synthetic Motor Oil, Type 3, 0W-40, available at your authorized Acura
NSX dealer. Contact your authorized Acura NSX dealer for more details.1Recommended Engine Oil
NOTICE
Acura cannot ensure prope r engine operation and
durability if other engine oil is used.
Ambient Temperature
