2022 ACURA NSX Owners Manual

375
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 376
Safety When Performing Maintenance .... 377Parts and Fluids Used in Maintenance Service ........................................... 378
Maintenance Minder
TM..................... 379
Maintenance Under the Hood and Hatch Maintenance Items Under the Hood and Hatch ............................................. 385
Opening the Hatch .......................... 387
Opening the Hood ........................... 388
Engine Compartment Cover ............. 389
Recommended Engine Oil ................ 390
Oil Check ......................................... 391 Adding Engine Oil ............................ 394
Cooling System ................................ 396
Inverter Coolant ............................... 398
Transmission Fluids .......................... 399
Brake Fluid ....................................... 400
Refilling Window Wa
sher Fluid......... 400
Replacing Light Bulbs ....................... 401
Checking and Maintaining Wiper Blades.... 404Checking and Maintaining Tires
Checking Tires ................................. 407
Tire and Loading Information Label ..... 408Tire Labeling .................................... 408DOT Tire Quality Grading (U.S. Vehicles) ...... 410Wear Indicators................................ 412
Tire Service Life ................................ 412 Tire and Wheel Replacement ........... 413
Tire Rotation .................................... 414
Winter Tires ..................................... 415
Cold Weather Driving ...................... 416
12-Volt Battery ................................. 417
Remote Transmitter Care Replacing the Remote Battery .......... 418
Climate Control System Maintenance.... 419CleaningInterior Care .................................... 420
Exterior Care.................................... 422
Accessories and Modifications
Accessories ...................................... 428
Modifications................................... 429
Storage .............................................. 430
22 ACURA NSX PMC-31T6N6500.book 375 ページ ２０２１年９月２８日　火曜日　午後４時７分

376
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Acura NSX dealer. (Note, however, that service at an authorized Acura
NSX dealer is not mandatory to keep your wa rranties in effect.) Refer to the separate
maintenance booklet for detailed main tenance and inspection information.
■Routine inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
2 Maintenance P. 28
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 400
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 407
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 401
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 404
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 382
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.acura.com .
2 Authorized Manuals P. 480
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
22 ACURA NSX PMC-31T6N6500.book 376 ページ ２０２１年９月２８日　火曜日　午後４時７分

377
uuBefore Performing Maintenance uSafety When Performing Maintenance
Continued
Maintenance
Safety When Performing Maintenance
Some of the most important safety precau tions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Volt age system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood and hatch.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreas er or parts cleaner, not
gasoline.
• Wear eye protection and protective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
■Maintenance Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
22 ACURA NSX PMC-31T6N6500.book 377 ページ ２０２１年９月２８日　火曜日　午後４時７分

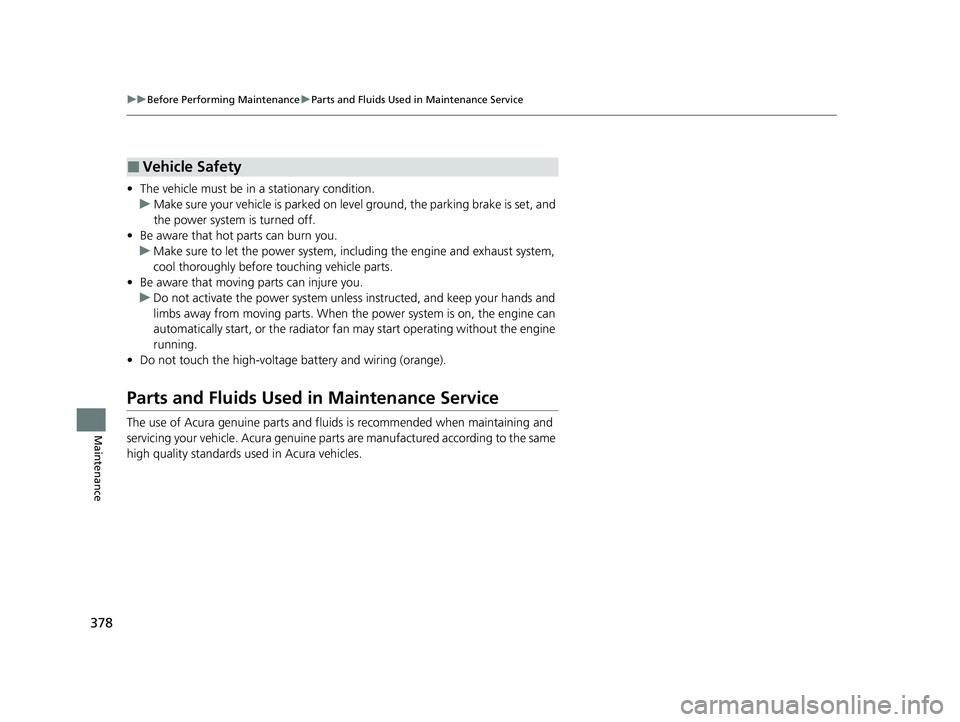

378
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on leve l ground, the parking brake is set, and
the power system is turned off.
• Be aware that hot parts can burn you.
u Make sure to let the power system, incl uding the engine and exhaust system,
cool thoroughly before touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not activate the power system unle ss instructed, and keep your hands and
limbs away from moving parts. When the power system is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.
• Do not touch the high -voltage battery and wiring (orange).
Parts and Fluids Used in Maintenance Service
The use of Acura genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Acura genuine parts are manufactured according to the same
high quality standards used in Acura vehicles.
■Vehicle Safety
22 ACURA NSX PMC-31T6N6500.book 378 ページ ２０２１年９月２８日　火曜日　午後４時７分

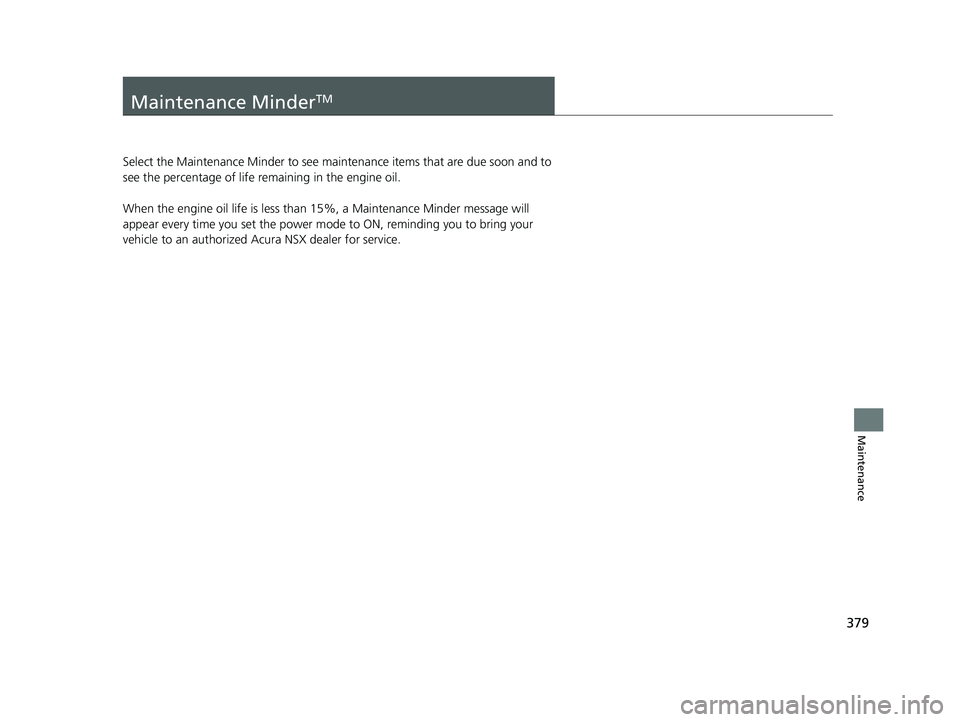

379
Maintenance
Maintenance MinderTM
Select the Maintenance Minder to see maintenance items that are due soon and to
see the percentage of life remaining in the engine oil.
When the engine oil life is less than 15%, a Maintenance Minder message will
appear every time you set the power mode to ON, reminding you to bring your
vehicle to an authorized Acura NSX dealer for service.
22 ACURA NSX PMC-31T6N6500.book 379 ページ ２０２１年９月２８日　火曜日　午後４時７分

380
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To Use Maintenance MinderTM
Certain maintenance items due soon, along with the estimated remaining oil life,
appear on the driver information interface.
You can view them on the Maintenance Minder screen at any time.
1. Set the power mode to ON.
2. Roll the right selector wheel until the en gine oil life appears on the driver
information interface.
■Displaying the Engine Oil Life and Maintenance Items1 Displaying the Engine Oil Life and Maintenance Items
Based on the engine opera ting conditions and oil
age, the remaining engine oi l life is calculated and
displayed as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 382
Displayed Engine Oil
Life (%)Calculated Engine Oil Life (%)
100 100 to 91
9090 to 81
80 80 to 71
7070 to 61
60 60 to 51
5050 to 41
40 40 to 31
3030 to 21
20 20 to 16
1515 to 11
10 10 to 6
55 to 1
0 0
Remaining Engine Oil Life
Maintenance Service Items
Right Selector Wheel
22 ACURA NSX PMC-31T6N6500.book 380 ページ ２０２１年９月２８日　火曜日　午後４時７分

381
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
Service Due Soon15 %The engine oil life indi cator starts to appear
along with other due-soon maintenance item
codes when the remaining oil life drops to 15
percent. Once you switch the display by
rolling the right selector wheel, this message
will go off.The engine oil is approaching the end
of its service life.
Service Due Now5 %The remaining engine oil life is 5 to 1
percent. Roll the right selector wheel to
switch to another display.The engine oil has almost reached
the end of its service life, and the
maintenance items should be
inspected and servic ed as soon as
possible.
Service Past DueNegative DistanceThe engine oil life has passed its service life,
and a negative distance appears after driving
over 10 miles (U.S. models) or 10 km
(Canadian models). Roll the right selector
wheel to switch to another display.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
22 ACURA NSX PMC-31T6N6500.book 381 ページ ２０２１年９月２８日　火曜日　午後４時７分

382
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
•Inspect direct injection + port injection fuel system
every 3 years or service item B is indicated.
•Inspect tire condition ev ery 3,100 miles (5,000 km).
Maintenance Minder Message System Message
Indicator
Main Item Sub Items
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Check expiration date for temporary tire repair kit
bottle
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and lines (Including ABS/VSA ®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
•Inspect direct injection + port injection fuel system*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filters every 15,000 miles (24,000 km) or
every year.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid and clutch fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under this condition, have the transmission
fluid and clutch fluid changed every 20,000 miles (32,000 km).
*5: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires Twin Motor Unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the Twin Motor
Unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1 •Inspect tire condition
2•Replace air cleaner element*2
•Replace dust and pollen filters*3
3 •Replace transmission fluid*4
•Replace clutch fluid*4
4•Replace spark plugs
• Inspect valve clearance
• Inspect Active Exhaust Valve function
• Replace Intake Sound Control
5 •Replace engine coolant
6•Replace Twin Motor Unit fluid*5
22 ACURA NSX PMC-31T6N6500.book 382 ページ ２０２１年９月２８日　火曜日　午後４時７分
