2022 ACURA NSX Owners Manual

15
Quick Reference Guide
Auto Engine Stop/Start
Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.
In the following cases, however, Auto Engine Stop may not activate.
●When the Integrated Dynamics System is in SPORT+ mode or TRACK mode.●The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.●The climate control system is in heavy use.●The High Voltage battery temperature is high or low.●The High Voltage battery state of charge is low.●The engine coolant temperature is low.●When the door is opened after releasing seatbelt.●When the shift position is in M (Manual) mode.
About Your Vehicle’s Limited Operating Temperature
If the outside temperature is about -4°F (-20°C), some operation might be limited.
The limited operation is listed below:
2 High Voltage Battery (P94)
2 Dual Clutch Transmission (P323)
2 Shifting (P324)
Sounds Unique to th e SPORT HYBRID SH-AWD ® System
When you first start driving this vehicle, you likely will hear so me unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this ve hicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
About a system to cool the High Voltage battery using the climate control system.●The system will not be activated when the defroster is ON.●When the outside temperature is in extreme hot or cold condit ion, the system may not provide sufficient cooling performance to the
High Voltage battery due to the protection of the electric A/C compressor.
●When the system is active, the climate control system may not work sufficiently.
22 ACURA NSX PMC-31T6N6500.book 15 ページ ２０２１年９月２８日　火曜日　午後４時７分

16
Quick Reference Guide
Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. If the High Voltage system needs maintenance or repair, it
should be performed at an authorized Acura NSX dealer.
If a crash occurs●Be careful of electric shock hazard.
uIf a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical shock
due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a severe
crash. Avoid any skin or ey e contact with the electrolyte as it is corrosive. If you accidentally touch it,
flush your eyes or skin with a large quantity of water for at le ast five minutes, and seek medical
attention immediately.
●Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with even a small quantity of water, from a garden hose
for instance, can be dangerous.
●Anytime the vehicle is damaged in a crash, have it repaired by an authorized Acura NSX
dealer.
Emergency Shutdown System for the High Voltage SystemThe emergency shutdown system may activate when the vehicle is impacted by some
incident such as a crash. When this system activates, the High Voltage system automatically
shuts down, and your vehicle no longer will move under its own power. To return the High
Voltage system back to normal operation, consult an authorized Acura NSX dealer.
Acura collects and recycles High Voltage batteries used in its vehicles – consult an
authorized Acura NSX dealer for more information.
22 ACURA NSX PMC-31T6N6500.book 16 ページ ２０２１年９月２８日　火曜日　午後４時７分

17
Quick Reference Guide

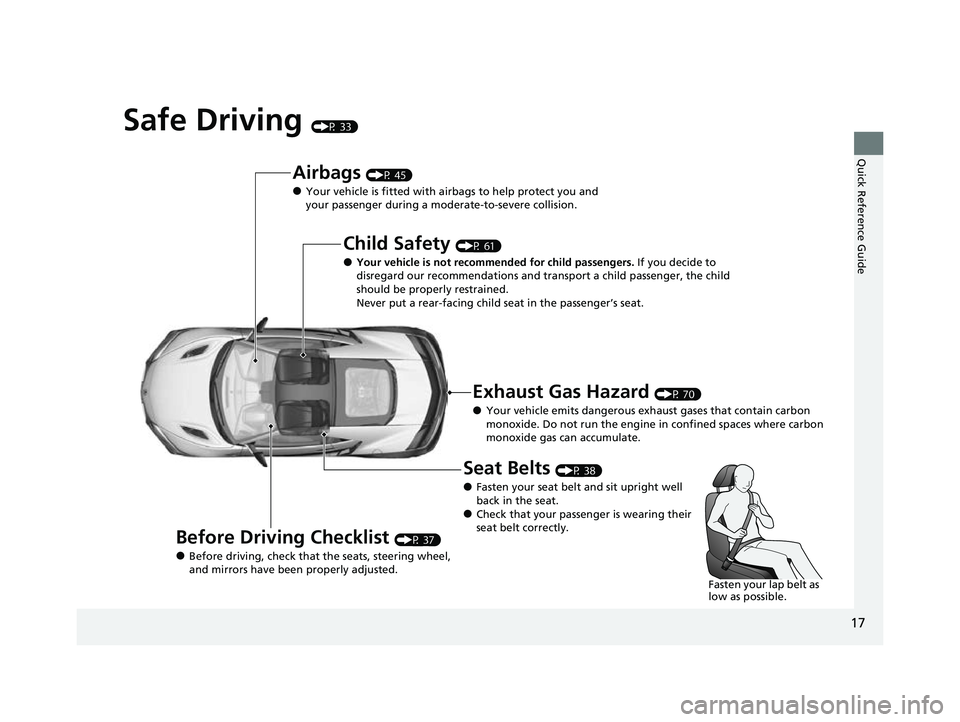

Safe Driving (P 33)
Airbags (P 45)
●Your vehicle is fitted with airbags to help protect you and
your passenger during a moderate-to-severe collision.
Child Safety (P 61)
●Your vehicle is not recommended for child passengers. If you decide to
disregard our recommendations and tra nsport a child passenger, the child
should be properly restrained.
Never put a rear-facing child seat in the passenger’s seat.
Exhaust Gas Hazard (P 70)
●Your vehicle emits dangerous exha ust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
●Before driving, check that the seats, steering wheel,
and mirrors have been properly adjusted.
Seat Belts (P 38)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passenger is wearing their
seat belt correctly.
Fasten your lap belt as
low as possible.
22 ACURA NSX PMC-31T6N6500.book 17 ページ ２０２１年９月２８日　火曜日　午後４時７分

18
Quick Reference Guide
Instrument Panel (P 73)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Indicators (P 74)/Gauges (P 99)/Driver Information Interface (P 102)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge
Security System
Alarm Indicator
Fuel Gauge
Tachometer
Driver Information Interface Speedometer
Gear Position Indicator Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
READY Indicator
POWER SYSTEM
Indicator
Temperature Gauge ASSIST/CHARGE
Gauge
U.S.
Canada Active Damper System
Indicator
Brake Wear Indicator
*
CRUISE MAIN

Indicator
CRUISE CONTROL
Indicator
Engine Oil Temperature
Gauge
Integrated Dynamics System
Mode
SH-AWD ® Temperature
Gauge
22 ACURA NSX PMC-31T6N6500.book 18 ページ ２０２１年９月２８日　火曜日　午後４時７分

19
Quick Reference Guide
Controls (P 107)
Clock (P 108)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aSelect the (HOME) icon, then select
Settings.
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
34
ENGINE START/STOP
Button
(P 130)
Press the button to ch anges the vehicle’s
power mode.
Turn Signals (P 133)
Lights (P 134)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 19 ページ ２０２１年９月２８日　火曜日　午後４時７分

20
Quick Reference Guide
Wipers and Washers
(P 138)
Wiper/Washer Control LeverAdjustment Ring: Lower speed, fewer sweeps
: Higher speed, more sweeps
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull
toward
you to
spray
washer
fluid.
Steering Wheel (P 143)
To adjust, push the adjustment lever down,
adjust to the desired po sition, then lock the
lever back in place.
Unlocking the Doors
from the Inside
(P 118)
●Pull either inner door handle to unlock
and open it in one motion.
●Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
To adjust To lock
Hatch (P 122)
●To unlock and open the hatch:
•
Press the hatch release button on the
driver’s door.
• Press the hatch release button on the
keyless access remote.
• Press the hatch release button on the
hatch.
Hatch Release Button
22 ACURA NSX PMC-31T6N6500.book 20 ページ ２０２１年９月２８日　火曜日　午後４時７分

21
Quick Reference Guide
Power Door Mirrors
(P 145)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 128)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, the passenger’s window can
be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), the passenger’s
window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
22 ACURA NSX PMC-31T6N6500.book 21 ページ ２０２１年９月２８日　火曜日　午後４時７分

22
Quick Reference Guide
Climate Control System (P 156)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Passenger side Temperature Control
Buttons (Windshield Defroster) ButtonDriver side
Temperature Control
Buttons
(Recirculation) Button
(CLIMATE ) Button
(ON/OFF ) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronization) Button Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard vents.
MID vents provide supplemental
air to the lower body of the
occupant(s). MID vents can be
used together with any other
vent mode.
22 ACURA NSX PMC-31T6N6500.book 22 ページ ２０２１年９月２８日　火曜日　午後４時７分
