Page 433 of 492
431
uuStorage uVehicle Storage
Maintenance
• To maintain the High Voltage battery, driv e your vehicle for more than 30 minutes
at least once every three months.
If road conditions are not suitable or de sirable for driving, the following alternate
procedure can be used to maintain the vehi cle's High Voltage battery if local idling
by-laws permit:
1. Remove the vehicle from the garage or enclosed area to prevent carbon
monoxide accumulation.
2 Carbon Monoxide Gas P. 70
2.Depress the brake pedal and press the ENGINE START/STOP button as you
normally would to start the vehicle.
3. Allow the vehicle to run for 30 minutes. Time spent at idle stop still counts as part
of this 30-minute run.
22 ACURA NSX PMC-31T6N6500.book 431 ページ 2021年9月28日 火曜日 午後4時7分
Page 434 of 492
432

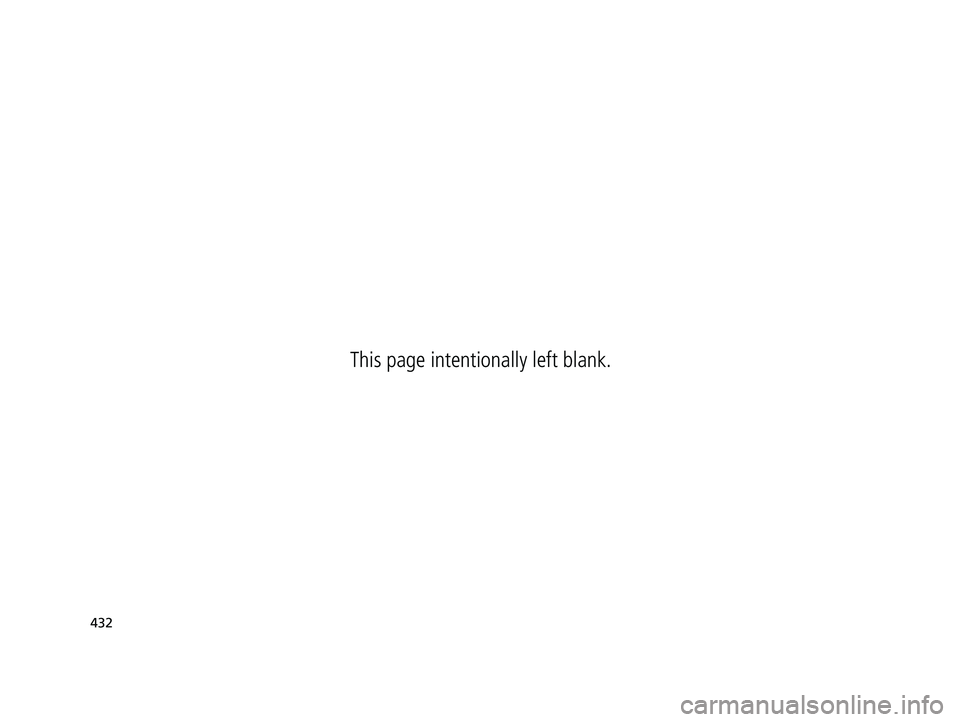

22 ACURA NSX PMC-31T6N6500.book 432 ページ 2021年9月28日 火曜日 午後4時7分This page intentionally left blank.
Page 435 of 492

433
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 434
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 435
Handling of the Jack ......................... 446
Power System Won’t Start
Checking the Procedure ................... 447
If the Keyless Access Remote Battery is Weak ............................................. 448
Emergency Power System Off........... 449
If the 12-Volt Battery Is Dead .......... 450
Overheating
How to Handle Overheating ............. 452 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 454
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 454
If the Brake System Indicator (Red) Comes
On ................................................. 455
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 455
If the Electric Parking Brake System Indicator Comes On ....................... 456
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 457 If the Transmission System Indicator Blinks
along with the Warning Message... 458
If the Check Engine Oil Level Warning Appears .............................................459
Fuses Fuse Locations ................................. 460
Inspecting and Changing Fuses ........ 464
Emergency Towing ........................... 465
If You Cannot Unlock the Fuel Fill Door.... 466
If You Cannot Open the Hatch............467
Refueling
Refueling from a Portable Fuel Container .... 468
22 ACURA NSX PMC-31T6N6500.book 433 ページ 2021年9月28日 火曜日 午後4時7分
Page 436 of 492
434
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Towing Hook Funnel
Tool Box
Wheel Bolt Cap Removal Tool
22 ACURA NSX PMC-31T6N6500.book 434 ページ 2021年9月28日 火曜日 午後4時7分
Page 437 of 492

435Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a sma ll puncture, from a small nail for instance,
you can use the temporary tire repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface. Apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Acura NSX dealer or a
roadside assistant to have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture isYKit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
22 ACURA NSX PMC-31T6N6500.book 435 ページ 2021年9月28日 火曜日 午後4時7分
Page 438 of 492

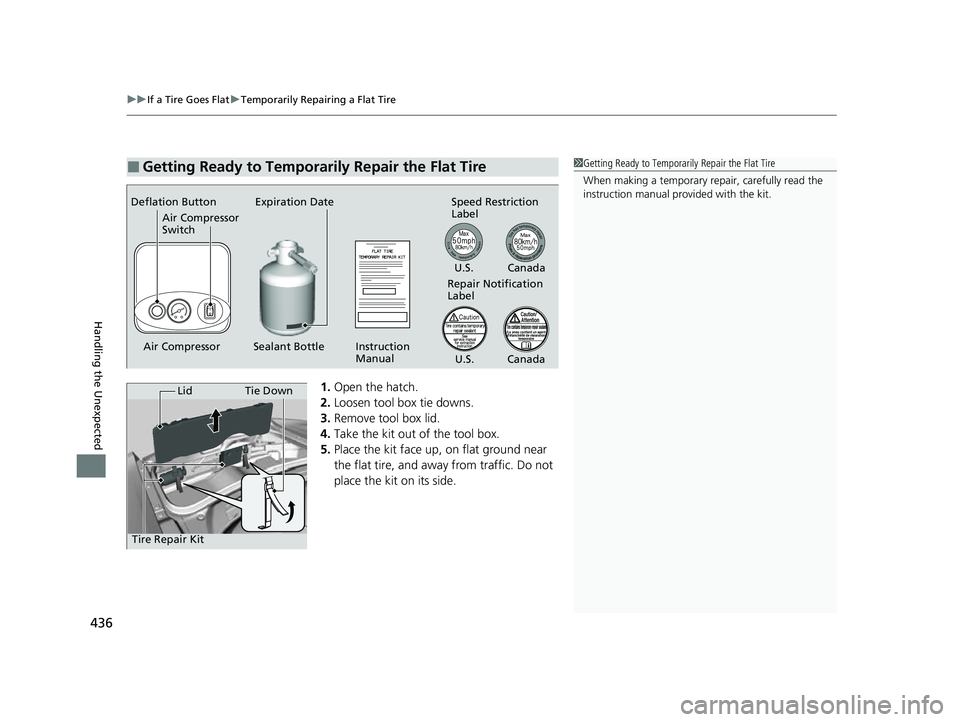

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
436
Handling the Unexpected
1. Open the hatch.
2. Loosen tool box tie downs.
3. Remove tool box lid.
4. Take the kit out of the tool box.
5. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Air Compressor Instruction
Manual
Sealant Bottle Speed Restriction
Label
Expiration Date
Deflation Button
Air Compressor
Switch
Repair Notification
Label
U.S. Canada
U.S. Canada
Tie Down
Lid
Tire Repair Kit
22 ACURA NSX PMC-31T6N6500.book 436 ページ 2021年9月28日 火曜日 午後4時7分
Page 439 of 492

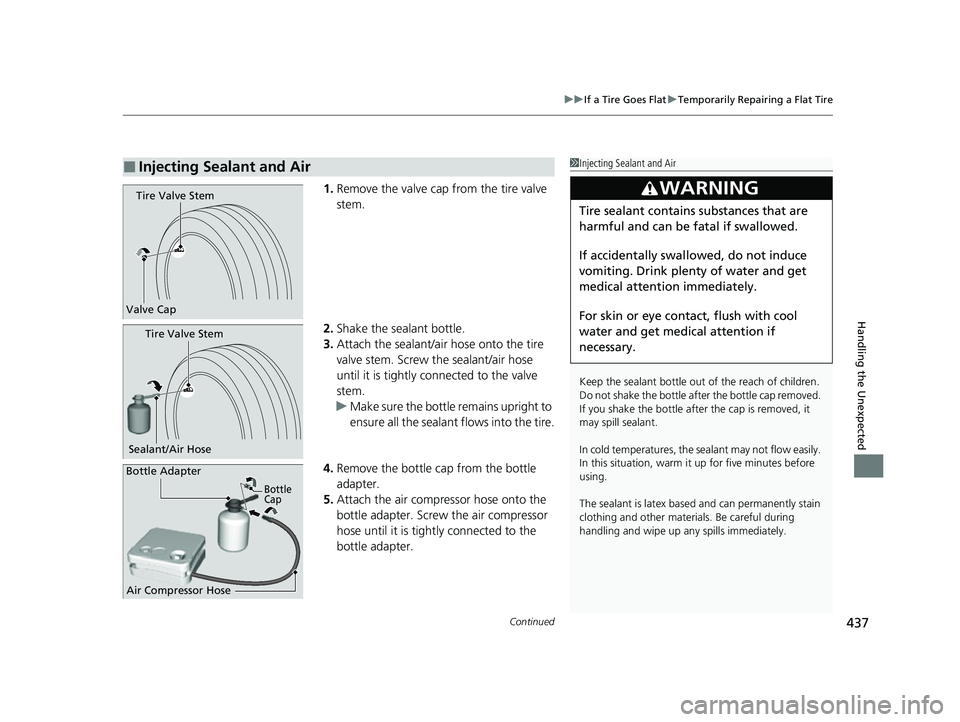

Continued437
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Remove the valve cap from the tire valve
stem.
2. Shake the sealant bottle.
3. Attach the sealant/air hose onto the tire
valve stem. Screw the sealant/air hose
until it is tightly connected to the valve
stem.
u Make sure the bottle remains upright to
ensure all the sealant flows into the tire.
4. Remove the bottle cap from the bottle
adapter.
5. Attach the air compre ssor hose onto the
bottle adapter. Screw the air compressor
hose until it is tightly connected to the
bottle adapter.
■Injecting Sealant and Air1 Injecting Sealant and Air
Keep the sealant bottle out of the reach of children.
Do not shake the bottle after the bottle cap removed.
If you shake the bottle after the cap is removed, it
may spill sealant.
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant is latex based and can permanently stain
clothing and other materi als. Be careful during
handling and wipe up any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/Air Hose Tire Valve Stem
Bottle Adapter
Air Compressor Hose
Bottle
Cap
22 ACURA NSX PMC-31T6N6500.book 437 ページ 2021年9月28日 火曜日 午後4時7分
Page 440 of 492

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
438
Handling the Unexpected
6. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 154
7.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 70
8.Turn the air compressor on to inflate the
tire.
u The compressor starts injecting sealant
and air into the tire.
9. After the air pressure reaches 32 psi (220
kPa), turn off the compressor.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit compressor
for more than 15 minutes. The compressor can overheat
and become permanently damagedM
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begi n to rise again as the tire
is inflated with air. This is normal. To accurately measure
the air pressure using the gauge, turn the air compressor
off only after the sealan t injection is complete.
If the required air pressure is not reached within 15
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal and your vehicle
will need to be towed.
See an authorized Acura NSX dealer for a replacement
sealant bottle and proper disposal of an empty bottle.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Air Compressor Switch
OFF
ON
