2022 ACURA NSX glove box

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 128)
❚Driver’s Front Airbag (P 48)
❚Hatch Release Button (P 122)
❚Hood Release Handle (P 388)
❚Passenger’s Front Airbag
(P 48)
❚Glove Box (P 152)
❚Driver’s Knee Airbag (P 52)
❚Door Mirror Controls (P 145)
❚Power Door Lock Master Switch (P 120)
❚Fuel Fill Door Release Button (P 370)
❚USB Port (P 163)
❚Memory Buttons (P 142)
❚SET Button (P 142)
❚Rearview Mirror (P 144)
❚Driver’s Side Interior Fuse
Boxes
(P 462)
❚Passenger’s Side Interior Fuse
Box
(P 463)
❚USB Port (P 163)
❚Accessory Power Socket
(P 154)
❚Electric Parking Brake Switch
(P 355)
❚Automatic Brake Hold Button
(P 358)
❚Shift Button
Electronic Gear Selector
(P 324)
22 ACURA NSX PMC-31T6N6500.book 8 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
By switching the auto pop-out main switch to OFF, you can disable the auto pop-out
function. For the purpose of safety and to prevent damaging the vehicle, disable this
function and manually operate the handl e, especially when the vehicle is:
• Being shipped by train, truck, or boat.
• Going through a car wash.
• Having maintenance performed on it.
■To temporarily deactivate the auto pop-out function:
Turn off the auto pop-ou t main switch in the
glove box.
■Auto Pop-Out Main Switch1 Auto Pop-Out Main Switch
The auto pop-out function is deactivated in the
following situations:
•The auto pop-out main sw itch is turned off.
•The keyless access remote is not within a 6-foot
(2m) radius of the outside door handle.
•The keyless access remote is in the vehicle.
•The power mode is in ACCESSORY or ON.
Main Switch
ON
OFF
22 ACURA NSX PMC-31T6N6500.book 114 ページ ２０２１年９月２８日　火曜日　午後４時７分

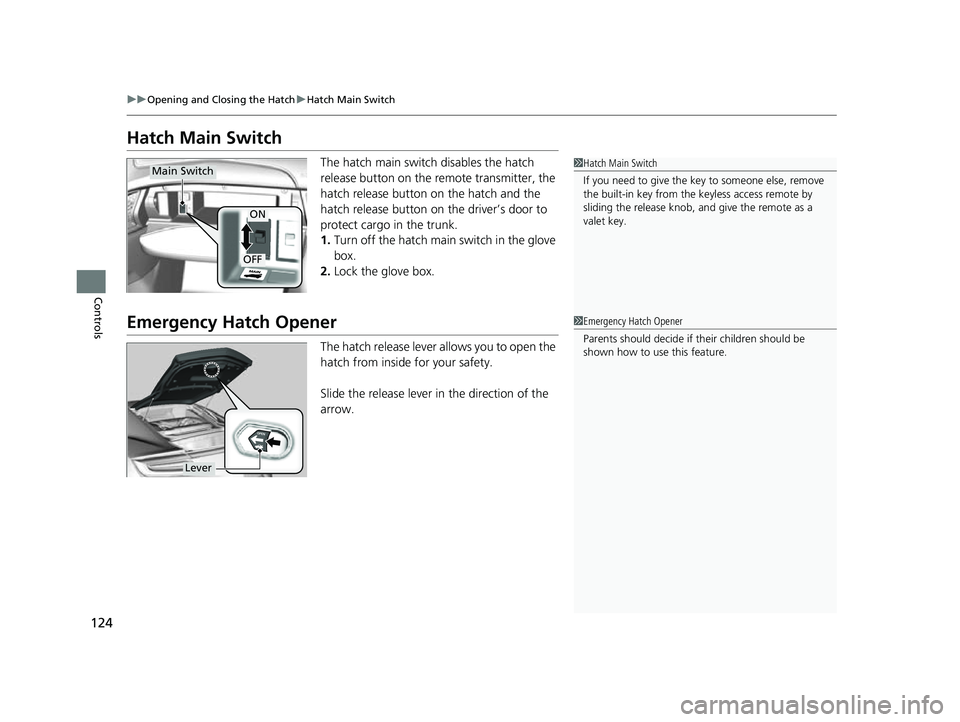

124
uuOpening and Closing the Hatch uHatch Main Switch
Controls
Hatch Main Switch
The hatch main switch disables the hatch
release button on the remote transmitter, the
hatch release button on the hatch and the
hatch release button on the driver’s door to
protect cargo in the trunk.
1. Turn off the hatch main switch in the glove
box.
2. Lock the glove box.
Emergency Hatch Opener
The hatch release lever allows you to open the
hatch from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Hatch Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
ON
OFF
1 Emergency Hatch Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
22 ACURA NSX PMC-31T6N6500.book 124 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
132
Controls
When the power mode is set to any mode
other than OFF and you remove the keyless
access remote from the vehicle and shut the
door, an alarm will sound. If the alarm
continues to sound, place the keyless access
remote in another location.
■When the power mode is in
ACCESSORY
The alarm will sound from outside the vehicle.
■When the power mode is in ON
An alarm will sound both inside and outside
the vehicle. In addition, a warning indicator
will appear on the instrument panel.
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational ra nge, and both doors are
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the power system has been turned on, you can
no longer change the ENGINE START/STOP button
mode or restart the power system. Always make sure
if the remote is in your vehicle when you operate the
ENGINE START/STOP button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go off. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.
22 ACURA NSX PMC-31T6N6500.book 132 ページ ２０２１年９月２８日　火曜日　午後４時７分

152
uuInterior Convenience Items uStorage Items
Controls
Storage Items
Pull the handle to open the glove box.
You can lock the glove box with the built-in
key.
Pull the lid to open th e console compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Handle
■Console Compartment
22 ACURA NSX PMC-31T6N6500.book 152 ページ ２０２１年９月２８日　火曜日　午後４時７分

163
uuAudio System uUSB Ports
Features
USB Ports
Install the USB connector or the USB flash drive to the USB port.
■In the glove box
The USB port (1.0A) is for playing audio files
on a USB flash drive and connecting a cellular
phone, and charging device.
■In the consol e compartment
The USB port (1.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto. u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
1 USB Ports
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend k eeping your data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5A of power. It does
not output 1.5A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise to the radio station you are
listening to.
USB charge
In the glove box
In the console compartment
22 ACURA NSX PMC-31T6N6500.book 163 ページ ２０２１年９月２８日　火曜日　午後４時７分

470
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura NSX
No. of Passengers:
Front 2
Rear 0
Total 2
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL 11
Quantity 6.1 - 7.0 cu-in (100 - 115 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement213 cu-in (3,493 cm3)
Spark Plugs NGK SILZKAR8F7S
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.6 US gal (59.0 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Daytime Running Lights LED
Rear Turn Signal LightsLED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up LightsLED
Rear License Plate Lights LED
High-Mount Brake LightLEDInterior LightsMap LightsLEDAmbient LightsLEDDoor Courtesy LightsLEDGlove Box LightLEDTrunk LightLED
22 ACURA NSX PMC-31T6N6500.book 470 ページ ２０２１年９月２８日　火曜日　午後４時７分

485
Index
Fuel Economy........................................... 372
Fuel Fill Door ...................................... 27, 370
Fuses ......................................................... 460
Inspecting and Changing ........................ 464
Locations ................................ 460, 462, 463
G
Gasoline (Fuel) Economy................................................. 372
Gauge ...................................................... 99
Information............................................. 369
Instant Fuel Economy .............................. 105
Low Fuel Indicator..................................... 81
Refueling ................................................ 369
Gauges ........................................................ 99
Gear Position Indicator ...................... 80, 326
Gear Shift Positions
Dual Clutch Transmission ........................ 324
Glass (care) ....................................... 420, 425
Glove Box ................................................. 152
H
Handling of the Jack ................................ 446
Handling the Unexpected ....................... 433
HandsFreeLink ® (HFL) .............................. 269
Automatic Import of Ce llular Phonebook and
Call History ........................................... 282
Displaying Messages ............................... 298
HFL Buttons ............................................ 269 HFL Menus .............................................. 272
HFL Status Display ................................... 271
Limitations for Manua
l Operation ............ 271
Making a Call .......................................... 291
Options During a Call .............................. 295
Phone Setup ............................................ 277
Phonebook Phonetic M odification ........... 286
Receiving a Call ....................................... 295
Receiving a Text/E-mail Message .............. 296
Ring Tone ................................................ 281
Roadside Assistance ................................. 302
Selecting a Mail Account ......................... 297
Speed Dial ............................................... 283
To Set Up Text/E-mail Message Options ... 280
Hatch ......................................................... 122
Unable to Open ....................................... 467
Hazard Warning Button ............................... 6
Headlights ................................................. 134
Aiming .................................................... 401
Automatic Operation (automatic lighting control).................................................. 135
Dimming ......................................... 134, 137
Operating ................................................ 134
Heaters (Seat) ........................................... 155
HFL (HandsFreeLink ®)............................... 269
High Beam Indicator .................................. 85
High Voltage Battery ............................... 354
High-Performance Driving ....................... 313
Hill Start Assist System ............................. 321
HomeLink® Universal Transceiver ............ 266
Honda App License Agreement ............... 227Hybrid Vehicle
SPORT HYBRID Super Handling All-Wheel-
Drive
TM (SPORT HYBRID SH-AWD ®).......... 11
I
Identification Numbers
Engine, Motor, and Transmission............. 472
Vehicle Identification ............................... 472
If the 12-Volt Battery Is Dead .................. 450
Immobilizer System .................................. 125
Indicator.................................................... 85
Indicators .................................................... 74
12-Volt Battery Charging System ....... 79, 454
Active Damper System............................... 78
Anti-lock Brake System (ABS)..................... 82
Automatic Brake Hold ....................... 76, 358
Automatic Brake Hold System ........... 76, 358
Brake System (Amber) ............................... 77
Brake System (Red) ............................ 74, 455
Brake Wear ............................................... 78
CRUISE CONTROL ............................. 86, 342
CRUISE MAIN .................................... 86, 341
Door and Trunk (Hatch) Open ............. 37, 92
Electric Parking Brake ................................ 75
Electric Parking Brake System ............ 75, 456
Electric Power Steering (EPS) System .. 82, 455
Gear Position............................................. 80
High Beam ................................................ 85
Immobilizer System ................................... 85
Keyless Access System ............................... 86
22 ACURA NSX PMC-31T6N6500.book 485 ページ ２０２１年９月２８日　火曜日　午後４時７分
