2021 CADILLAC ESCALADE Owner's Manual

C
M
Y
CM
MY
CY
CMY
K
ai162869443135_21_CAD_Escalade_COV_en_US_84266974C_2021AUG12.pdf 1 8\
/11/2021 11:07:11 AM

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Keys, Doors, and Windows . . . . . . . . . . 6
Seats and Restraints . . . . . . . . . . . . . . . 40
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Instruments and Controls . . . . . . . . 103
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Infotainment System . . . . . . . . . . . . . 157
Climate Controls . . . . . . . . . . . . . . . . . . 220
Driving and Operating . . . . . . . . . . . . 229
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 362
Service and Maintenance . . . . . . . . . 441
Technical Data . . . . . . . . . . . . . . . . . . . . 454
Customer Information . . . . . . . . . . . . 458
Reporting Safety Defects . . . . . . . . . 468
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471
Connected Services . . . . . . . . . . . . . . . 476
Index . . . . . . . . . . . . . . . . . . . . . . . . 479
Introduction
The names, logos, emblems, slogans,
vehicle model names, and vehicle
body designs appearing in this manual
including, but not limited to, GM, the
GM logo, CADILLAC, the CADILLAC
Emblem, and ESCALADE are
trademarks and/or service marks of
General Motors LLC, its subsidiaries,
affiliates, or licensors.
For vehicles first sold in Canada,
substitute the name“General Motors
of Canada Company ”for Cadillac
Motor Car Division wherever it
appears in this manual.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle, model variants, country specifications,
features/applications that may not be
available in your region, or changes
subsequent to the printing of this
owner’s manual, including changes in
standard or optional content.
If the vehicle has the Duramax diesel
engine, see the Duramax diesel
supplement for additional and specific
information on this engine.
Refer to the purchase documentation
relating to your specific vehicle to
confirm the features.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
A French language manual can be
obtained from your dealer, at
www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce
guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Litho in U.S.A.
Part No. 84266974 C Third Printing©2021 General Motors LLC. All Rights Reserved.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21

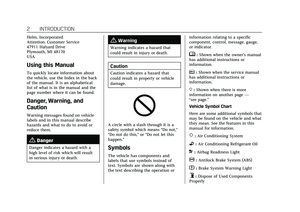

2 INTRODUCTION
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Manual
To quickly locate information about
the vehicle, use the Index in the back
of the manual. It is an alphabetical
list of what is in the manual and the
page number where it can be found.
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means“Do not,”
“Do not do this,” or“Do not let this
happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or information relating to a specific
component, control, message, gauge,
or indicator.
M:
Shown when the owner’s manual
has additional instructions or
information.
*: Shown when the service manual
has additional instructions or
information.
0: Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional symbols that
may be found on the vehicle and what
they mean. See the features in this
manual for information.
u: Air Conditioning System
G:Air Conditioning Refrigerant Oil
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
$:Brake System Warning Light
9:Dispose of Used Components
Properly

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21
INTRODUCTION 3
P:Do Not Apply High Pressure
Water
B: Engine Coolant Temperature
_:Flame/Fire Prohibited
H: Flammable
[:Forward Collision Alert
R:Fuse Block Cover Lock Location
+:Fuses
j:ISOFIX/LATCH System Child
Restraints
Q: Keep Fuse Block Covers Properly
Installed
|: Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist
*: Malfunction Indicator Lamp
::Oil Pressure
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7:Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
h:Risk of Electrical Fire
>:Seat Belt Reminders
I:Side Blind Zone Alert
h:Stop/Start
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak/
Electronic Stability Control (ESC)
a: Under Pressure
V: Vehicle Ahead Indicator

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21
4 INTRODUCTION
Instrument Panel Overview

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/11/21
INTRODUCTION 5
1.Driver Information Center (DIC)
0132.
2. Air Vents 0225.
3. Turn Signal Lever. See Turn and
Lane-Change Signals 0153.
Exterior Lamp Controls 0149.
4. Tap Shift Controls (If Equipped). See Manual Mode 0255.
5. Instrument Cluster 0114.
6. Driver Monitoring Camera. See Super Cruise 0283 (If Equipped).
7. Windshield Wiper/Washer 0105.
Rear Window Wiper/Washer 0107.
8. Infotainment. See Overview0158.
9. Light Sensor. See Automatic
Headlamp System 0152.
10. Dual Automatic Climate Control
System 0220.
Heated and Ventilated Front Seats
0 48 (If Equipped).
11. USB Ports. See USB Port0169.
12. Storage Compartment.
13. Infotainment Controls. See Overview 0158.
14. Hazard Warning Flashers 0153. 15.
Wireless Charging 0111.
16. Shift Lever. See Automatic
Transmission 0251.
17. Automatic Vehicle Hold (AVH) 0263.
Stop/Start Disable Button. See
Stop/Start System 0247.
Lane Keep Assist (LKA) 0324 (If
Equipped).
18. ENGINE START/STOP Button. See Ignition Positions 0245.
19. Steering Wheel Controls 0104.
20. Horn 0104.
21. Steering Column Adjustment. See Steering Wheel Adjustment 0104.
22. Hood Release. See Hood0365.
23. Cruise Control 0271 (If Equipped).
Adaptive Cruise Control (Advanced)
0 274 (If Equipped).
Super Cruise 0283 (If Equipped).
Forward Collision Alert (FCA) System
0 313 (If Equipped).
Heated Steering Wheel 0104 (If
Equipped).
24. Instrument Panel Illumination
Control 0154. 25. Data Link Connector (DLC) (Out of
View). See Malfunction Indicator
Lamp (Check Engine Light) 0122.
26. Trailer Brake Control. See Towing
Equipment 0338 (If Equipped).
27. Electric Parking Brake 0261.
28. Four-Wheel Drive 0256 (If
Equipped).
Four Corner Air Suspension System
0 268 (If Equipped).
Driver Mode Control 0266

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
6 KEYS, DOORS, AND WINDOWS
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . . . . . . 7
Remote Vehicle Start . . . . . . . . . . . . . . 14
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Door Locks . . . . . . . . . . . . . . . . . 18
Delayed Locking . . . . . . . . . . . . . . . . . . . 19
Automatic Door Locks . . . . . . . . . . . . 19
Lockout Protection . . . . . . . . . . . . . . . . 19
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 19
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Assist Steps . . . . . . . . . . . . . . . . . 28
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . 28
Vehicle Alarm System . . . . . . . . . . . . . 28
Steering Column Lock . . . . . . . . . . . . . 30
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 31
Immobilizer Operation . . . . . . . . . . . . 31
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . 31 Power Mirrors . . . . . . . . . . . . . . . . . . . . . . 32
Folding Mirrors . . . . . . . . . . . . . . . . . . . . 32
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . 33
Automatic Dimming Mirror . . . . . . . 33
Reverse Tilt Mirrors . . . . . . . . . . . . . . . 33
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . 34
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Rear Camera Mirror . . . . . . . . . . . . . . . 34
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Windows . . . . . . . . . . . . . . . . . . . . 36
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
remote key is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the remote key in the
vehicle, and children or others
could be caught in the path of a
closing window. Do not leave
children in a vehicle with a
remote key.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 7
The mechanical key inside the remote
key can be used for all locks.
To remove the mechanical key, press
the button near the bottom of the
remote key, and pull the mechanical
key out. Never pull the mechanical
key out without pressing the button.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
See your dealer if a replacement key
or additional key is needed.
Contact Roadside Service if locked out
of the vehicle. SeeRoadside Service
0 462. With an active OnStar or connected
service plan, an OnStar Advisor may
remotely unlock the vehicle. See
OnStar Overview
0471.
Remote Keyless Entry
(RKE) System
See Radio Frequency Statement 0467.
If there is a decrease in the remote
key operating range:
.Check the distance. The remote key
may be too far from the vehicle.
.Check the location. Other vehicles
or objects may be blocking the
signal.
.Check the remote key’s battery. See
“Battery Replacement ”later in this
section.
.If the remote key is still not working
correctly, see your dealer or a
qualified technician for service.
Remote Keyless Entry
(RKE) System Operation
The Keyless Access system allows for
vehicle entry when the remote key is
within 1 m (3 ft). See “Keyless Access
Operation ”later in this section.
