2019 VOLVO S60 TWIN ENGINE Owners Manual

SPECIFICATIONS
}}
615
Dimensions
The vehicle's length, height, etc. are shown inthe table.
Dimensionsmminches
AGround clearanceA1365.4
B Wheelbase2872 113,1
C Length4761 187.4
D Load length, floor,folded backrest1797 70.7
E Load length, floor 1005 39.6
FHeightB1437 56.6
Dimensionsmminches
GLoad height485 19,1
H Wheel track, front1603C
1600D
1593E
63.1C
63,0D
62,7E
I Wheel track, rear1603C
1600D
1593E
63.1C
63,0D
62,7E
Dimensionsmminches
JLoad width, floor 867 34,1
K Width1850 72.8

||
SPECIFICATIONS
616
Dimensionsmminches
LWidth incl. rearviewmirrors2040 80.3
M Width incl. folded rear-view mirrors1916 75.4
AAt curb weight + 2 people. (Varies slightly depending on tiredimensions, chassis, etc.)BIncluding roof antenna, at curb weight.CVehicles with 17-inch wheels.DVehicles with 18/19-inch wheels.EVehicles with 20-inch wheels.

Related information
Weights (p. 617)

SPECIFICATIONS
617

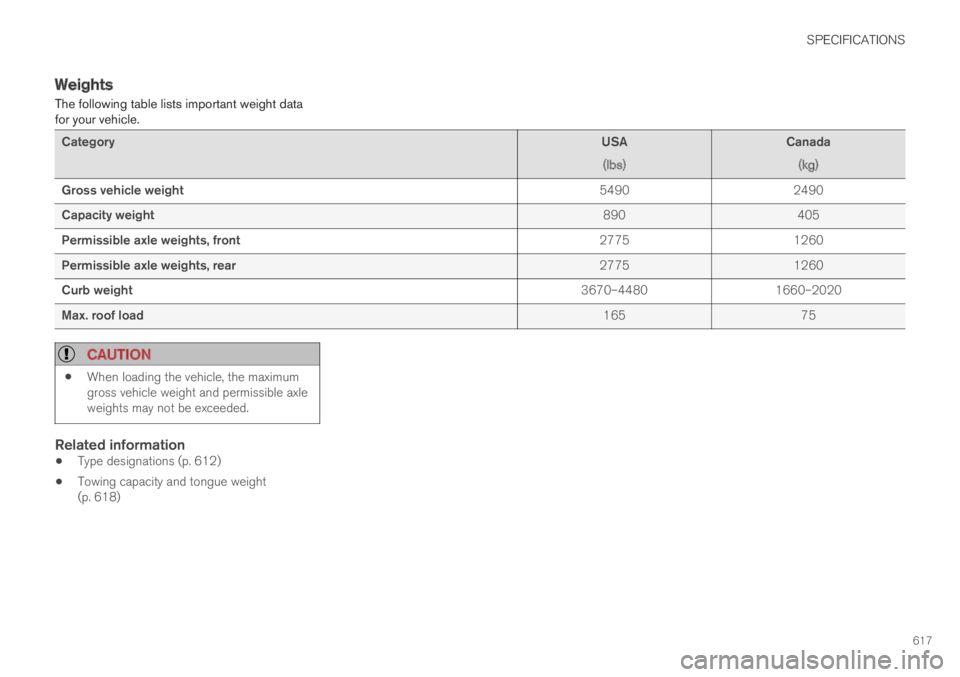

Weights
The following table lists important weight datafor your vehicle.
CategoryUSA
(lbs)
Canada
(kg)
Gross vehicle weight54902490
Capacity weight890405
Permissible axle weights, front27751260
Permissible axle weights, rear27751260
Curb weight3670–44801660–2020
Max. roof load16575

CAUTION
When loading the vehicle, the maximumgross vehicle weight and permissible axleweights may not be exceeded.

Related information
Type designations (p. 612)
Towing capacity and tongue weight(p. 618)

SPECIFICATIONS
* Option/accessory.618
Towing capacity and tongue weightTowing capacity and tongue weight are shownin the tables below.
CategoryUSA
(lbs)
Canada
(kg)
Max. trailer weightsWithout brakes:1650750
With brakes:2000900
Max. tongue weight20090

CAUTION
The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

Related information
Type designations (p. 612)
Weights (p. 617)
Driving with a trailer (p. 434)
Trailer Stability Assist* (p. 436)

SPECIFICATIONS
619
Engine specifications
Engine specifications (output, etc.) for eachengine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary.
Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).

NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin EngineB4204T28 233/100 313/6000 400/37–90 295/2200–54004
T8 Twin Engine Polestar B4204T28P 245/97–102 328/5800–6000 430/75 317/45004
AThe engine code, component and manufacturer serial numbers can be found on the engine.

Electric motor
Max. output: 65 kW (87 hp).
Torque: 240 Nm.

Related information
Type designations (p. 612)
Engine oil specifications (p. 620)
Coolant specifications (p. 621)

SPECIFICATIONS
620
Engine oil specifications
Fully synthetic engine oil of at leastACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:

General
See the Service and warranty booklet for infor-mation about oil change intervals.

NOTE
This vehicle is delivered from the factory withsynthetic oil.
Do not use oil additives.
Oil viscosity
The wrong oil viscosity can shorten engine serv-ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart

Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-mended for extreme conditions.

Oil volume
The oil volume for the engine is:
Liter (approx)5.6
US qts (approx)5.9

Related information
Type designations (p. 612)
Checking and filling engine oil (p. 570)
Engine oil (p. 569)

SPECIFICATIONS
621
Coolant specifications
Recommended grade: Volvo-approved pre-mixed coolant. If concentrated coolant is used,mix with 50% water of acceptable quality (i.e.not salt water, etc.). Consult a Volvo retailer ifyou have any questions.
To avoid deterioration of the cooling system,engine trouble, etc., only approved Volvo coolantshould be used.

WARNING
Coolant is hazardous if ingested and couldcause damage to organs (kidneys). The prod-uct contains ethylene glycol, inhibitor, emetic,water, etc.

Related information
Refilling coolant (p. 571)
Transmission fluid specifications
Under normal driving conditions, the transmis-sion fluid will not need to be changed during thetransmission's service life. However, it may needto be changed if the vehicle is driven frequentlyin adverse driving conditions.
Automatic transmission
Prescribed transmission fluid:AW1

Related information
Type designations (p. 612)
Brake fluid specifications
The medium in the hydraulic brake system iscalled brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade: Volvo Original or similarfluid that meets a combination of Dot 4, 5.1 andISO 4925 class 6.

NOTE
Changing or filling brake fluid should beentrusted to an authorized Volvo workshop.

Related information
Engine compartment overview (p. 568)

SPECIFICATIONS
622
Fuel tank volume
The fuel tank's refillable volume is shown in thetable below.
All models
Liter (approx)60
US gallons (approx)15.9

Related information
Refueling (p. 426)
Octane rating (p. 429)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R134a refrigerant. For information regardingthe refrigerant, refer to the decal located on theinside of the hood.
The prescribed grades and volumes for fluids andlubricants in the air conditioning system areshown in the tables below.

A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
WeightPrescribed grade
725 g (1.60 lbs)R134a
WARNING
The air conditioning system contains therefrigerant R134a under pressure. Serviceand repairs to the system should only be doneby an authorized workshop.

Compressor oil
VolumePrescribed grade
100 ml (3.38 fl. oz.)PAG SP-A2

Evaporator
CAUTION
The A/C system evaporator must never berepaired or replaced with a previously usedevaporator. The new evaporator must be certi-fied and labeled in accordance with SAEJ2842.

Related information
Climate control system service (p. 566)
