2019 TOYOTA LAND CRUISER Owners Manual (in English)

LC200_OM_OM60Q99U_(U)
5056-3. Do-it-yourself maintenance
6
Maintenance and care
Unplug the connector while
pressing the lock release.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6
7

506
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights/daytime running lights
● Parking lights
● Fog lights
● Side turn signal lights
● High mounted stoplight
● Stop/tail lights
● Stop lights
● Rear side marker lights
● License plate lights
■LED lights
The headlights/daytime running lights, parking lights, fog lights, side turn sig-
nal lights, high mounted stoplight, stop/tail lights, stop ligh ts, rear side marker
lights and license plate lights consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the l ight replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 494

LC200_OM_OM60Q99U_(U)
5076-3. Do-it-yourself maintenance
6
Maintenance and care
WARNING
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb imm ediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Fa ilure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors , electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

508
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

509
LC200_OM_OM60Q99U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers .......... 510
If your vehicle has to be stopped in
an emergency ................. 511
If the vehicle is trapped in rising water.................. 512
7-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 513
If you think something is wrong .............................. 519
Fuel pump shut off system ............................ 520
If a warning light turns on or a warning buzzer
sounds ............................ 521
If a warning message is displayed......................... 530
If you have a flat tire.......... 535
If the engine will not start ................................. 549
If the electronic key does not operate properly ........ 551
If the vehicle battery is discharged ...................... 554
If your vehicle overheats ... 557
If the vehicle becomes stuck ............................... 560

510
LC200_OM_OM60Q99U_(U)
7-1. Essential information

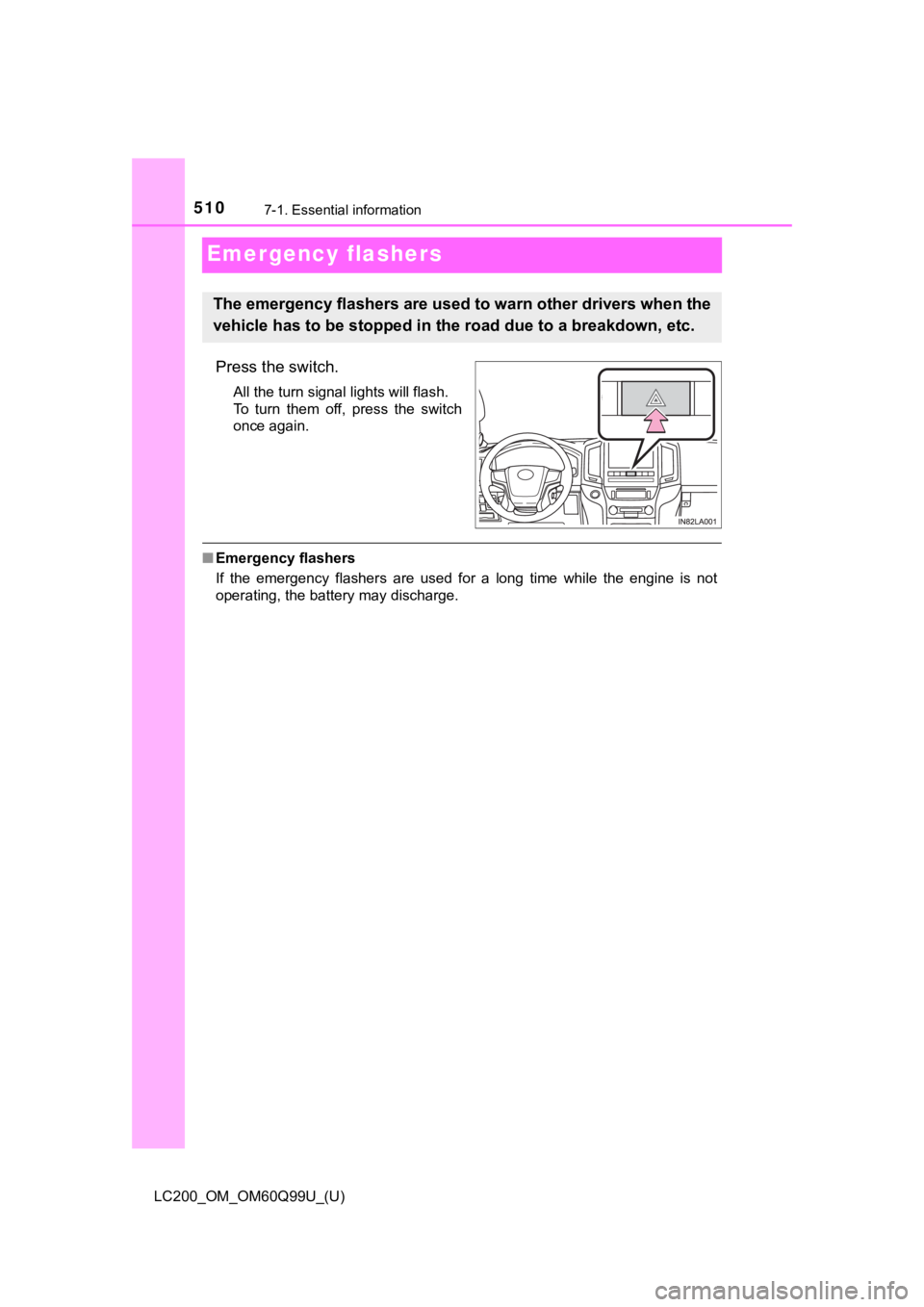

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the en gine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be st opped in the road due to a breakdown, etc.

511
LC200_OM_OM60Q99U_(U)
7
When trouble arises
7-1. Essential information

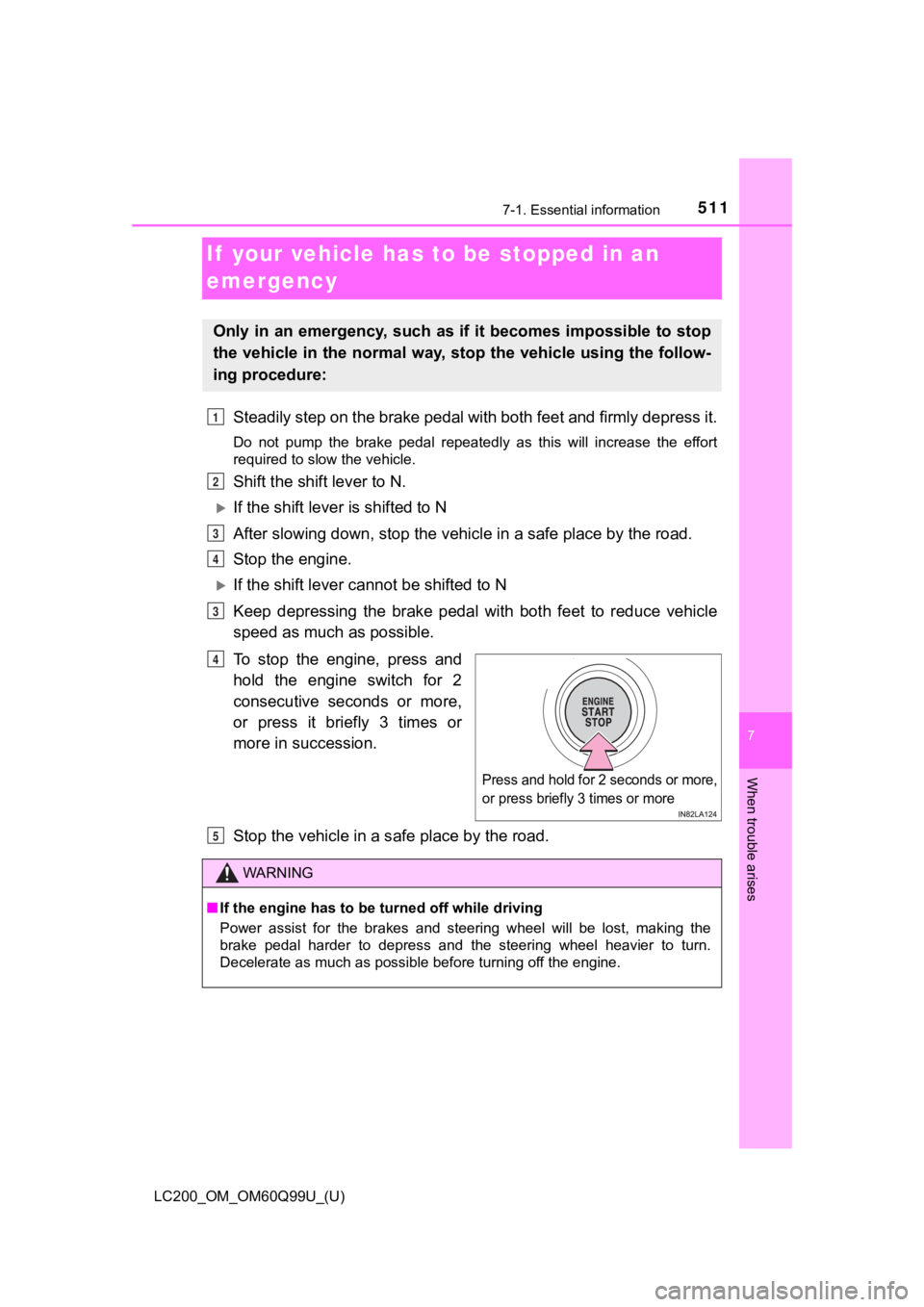

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase th e effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehi cle in a safe place by the road.
Stop the engine.
If the shift lever cann ot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicl e
speed as much as possible.
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a s afe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
Q
WARNING
■ If the engine has to be tu rned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
5

512
LC200_OM_OM60Q99U_(U)
7-1. Essential information
If the vehicle is trapped in rising water
●Remove the seat belt first.
● If the door can be opened, open the door and exit the vehicle.
● If the door can not be opened, open the window using the power
window switch and exit the vehicle through the window.
● If the window can not be opened using the power window switch,
remain calm, wait until the water level inside the vehicle rise s to the
point that the water pressure i nside of the vehicle equals the water
pressure outside of the vehicl e, and then open the door and exi t the
vehicle.
In the event the vehicle is submerged in water, remain calm and
perform the following.
WARNING
■ Using an emergency hammer* for emergency escape
The front side windows and rear side windows, as well as the re ar window
can be shattered with an emergency hammer
* used for emergency escape.
However, an emergency hammer can not shatter the windshield as it is lam-
inated glass.
*: Contact your Toyota dealer or aftermarket accessory manufacturer for fur-
ther information about an emergency hammer.
■ Escaping the vehicle from the window
There are cases where escaping the vehicle from the window is n ot possi-
ble due to seating position, passenger body type, etc.
When using an emergency hammer, consider your seat location and the
size of the window opening to ensure that the opening is accessible and
large enough to escape.
