For information about other th an the side view and side views d isplay
area, refer to the page for the respective screen.
Front distance guide line (red)
Indicates a distance approximately 1.5 ft. (0.5 m) from the front end of the
vehicle.
Front tire contact line (blue)
Indicates the estimated front tire position on the image.
Vehicle width lines (blue)
Indicate the estimated vehicle width including the outside rear view mir-
rors.
Rear tire contact line (blue)
Indicates the estimated rear tire position on the image.
1
2
3
4

338
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

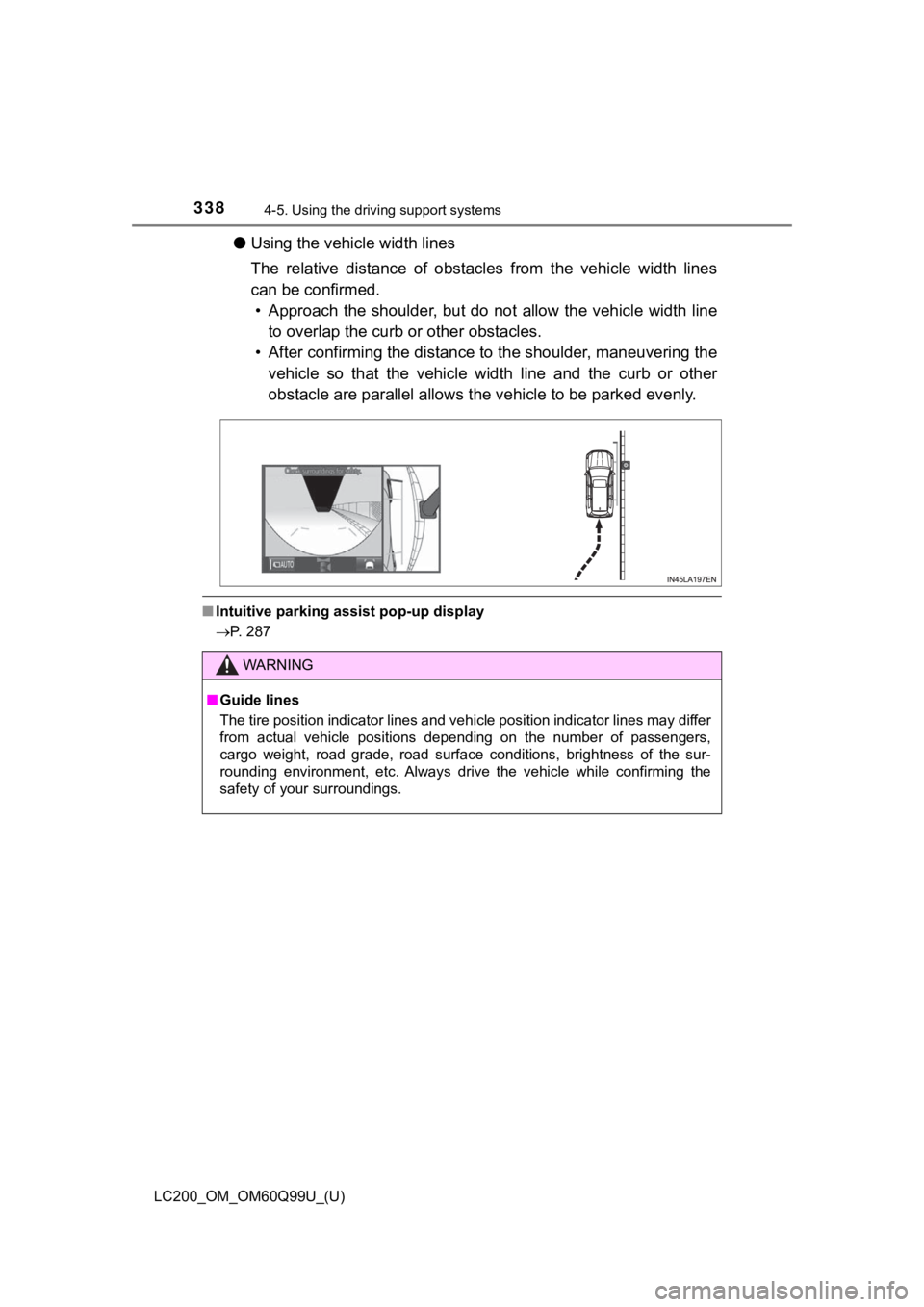

●Using the vehicle width lines
The relative distance of obstacles from the vehicle width lines
can be confirmed.
• Approach the shoulder, but do not allow the vehicle width line
to overlap the curb o r other obstacles.
• After confirming the distance to the shoulder, maneuvering the
vehicle so that the vehicle width line and the curb or other
obstacle are parallel allows t he vehicle to be parked evenly.
■Intuitive parking assist pop-up display
P. 287
WARNING
■Guide lines
The tire position indicator lines and vehicle position indicator lines may differ
from actual vehicle positions depending on the number of passen gers,
cargo weight, road grade, road surface conditions, brightness o f the sur-
rounding environment, etc. Always drive the vehicle while confi rming the
safety of your surroundings.

LC200_OM_OM60Q99U_(U)
3394-5. Using the driving support systems
4
Driving
■Intuitive parking assist a nd RCTA cooperative display
When either the Intuitive parking assist ( P. 287) or Blind Spot
Monitor ( P. 358) is turned on, a popup icon warns the driver when
an obstacle is detected.
Example of pop-up display in the panoramic view
Example of pop-up display in the wide rear view
Example of pop-up display in the side view (with mirrors retrac ted)
Example of pop-up display in the side views
Example of pop-up display in the front view & dual side view, u nder
vehicle terrain view & dual side view or rear view & dual side view
■Intuitive parking assist pop-up display
While the intuitive parking assist is in use, a pop-up is displayed when an
obstacle is detected ( P. 287).
However, this function only informs the driver that an obstacle is close to the
vehicle and the detected obstacle is not displayed on the scree n. Be sure to
visually confirm the safety of your surroundings.
1
2
3
4
5

340
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
Observe the following precautions. Failure to do so may result in an
unexpected accident. Al so, when driving, make sure to directly con-
firm the safety of your surroundings and the area to the rear o f the
vehicle.

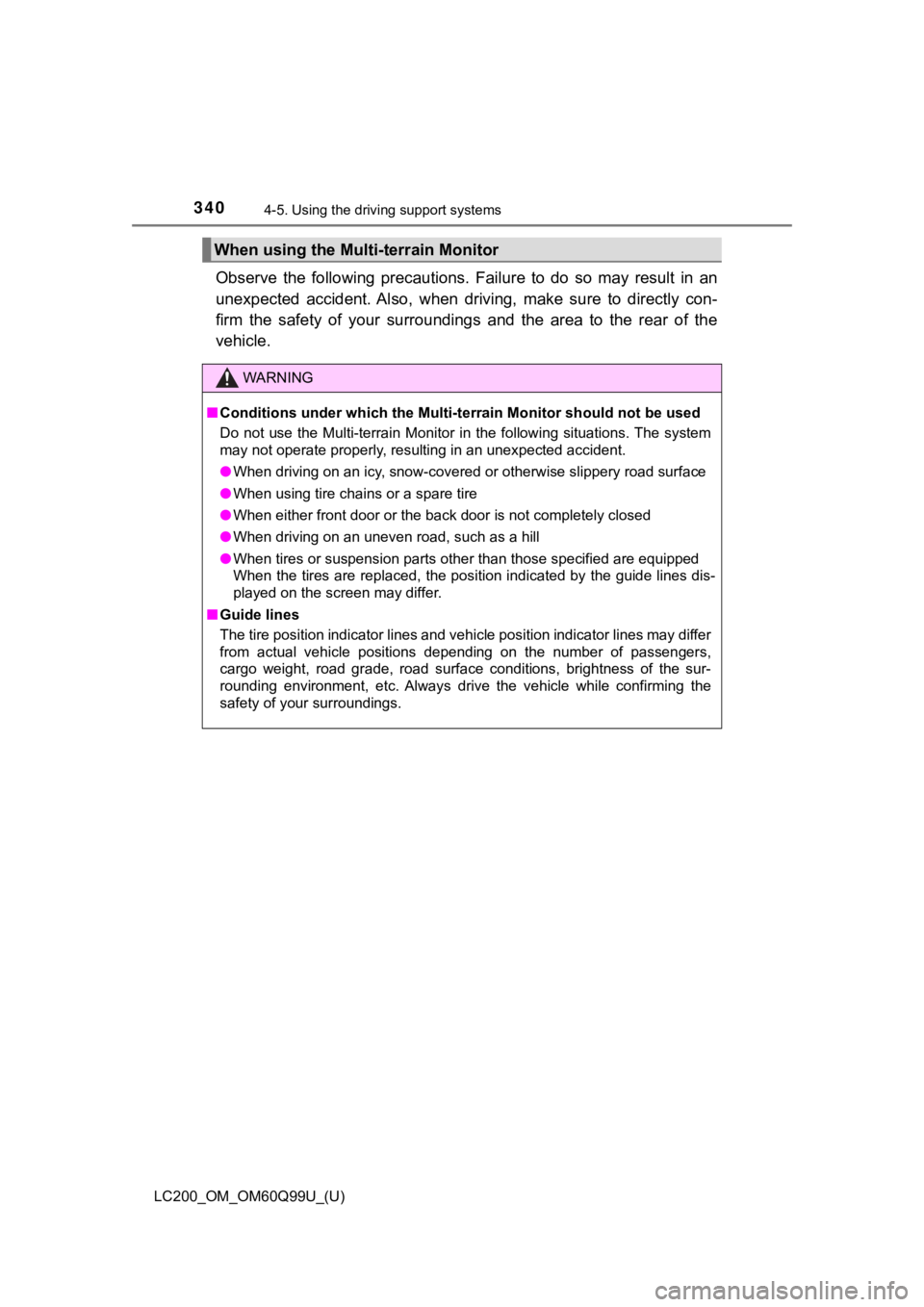

When using the Multi-terrain Monitor
WARNING
■ Conditions under which the Multi-terrain Monitor should not be used
Do not use the Multi-terrain Monitor in the following situations. The system
may not operate properly, resulting in an unexpected accident.
● When driving on an icy, snow-covered or otherwise slippery road surface
● When using tire chains or a spare tire
● When either front door or the back door is not completely close d
● When driving on an uneven road, such as a hill
● When tires or suspension parts other than those specified are e quipped
When the tires are replaced, the position indicated by the guid e lines dis-
played on the screen may differ.
■ Guide lines
The tire position indicator lines and vehicle position indicator lines may differ
from actual vehicle positions depending on the number of passen gers,
cargo weight, road grade, road surface conditions, brightness o f the sur-
rounding environment, etc. Always drive the vehicle while confi rming the
safety of your surroundings.

LC200_OM_OM60Q99U_(U)
3414-5. Using the driving support systems
4
Driving
NOTICE
■Panoramic view
● In the panoramic view, the system combines images taken from th e front,
back, left and right side cameras into a single image. There ar e limits to
the range and content that can be displayed. Understand the cha racteris-
tics of this system before using.
● Image clarity may decline at the four corners of the panoramic view. How-
ever, this is not a malfunction, as these are the regions along the border of
each camera image where the images are combined.
● Depending on lighting conditions near each of the cameras, brig ht and
dark patches may appear on the panoramic view.
● The panoramic view display does not extend higher than the inst allation
position and image capture range of each camera.
● There are blind spots around the vehicle and there are regions that are not
displayed in the panoramic view.
● Three-dimensional objects displayed in wide front view or rear view may
not be displayed in the panoramic view.
● People and other three-dimensional obstacles may appear differently
when displayed in the panoramic view. (These differences includ e, among
others, cases in which displayed objects appear to have fallen over, disap-
pear near image processing areas, appear from image processing areas,
or when the actual distance to an object differs from the displ ayed posi-
tion.)
● The panoramic view will not be properly displayed when either f ront door
or the back door is open.
● The vehicle icon displayed in the panoramic view is a computer generated
image, and properties such as the color, shape and size will di ffer from the
actual vehicle. Therefore, nearby three-dimensional objects may appear to
be touching the vehicle, and actual distances to three-dimensio nal objects
may differ from those displayed.

342
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

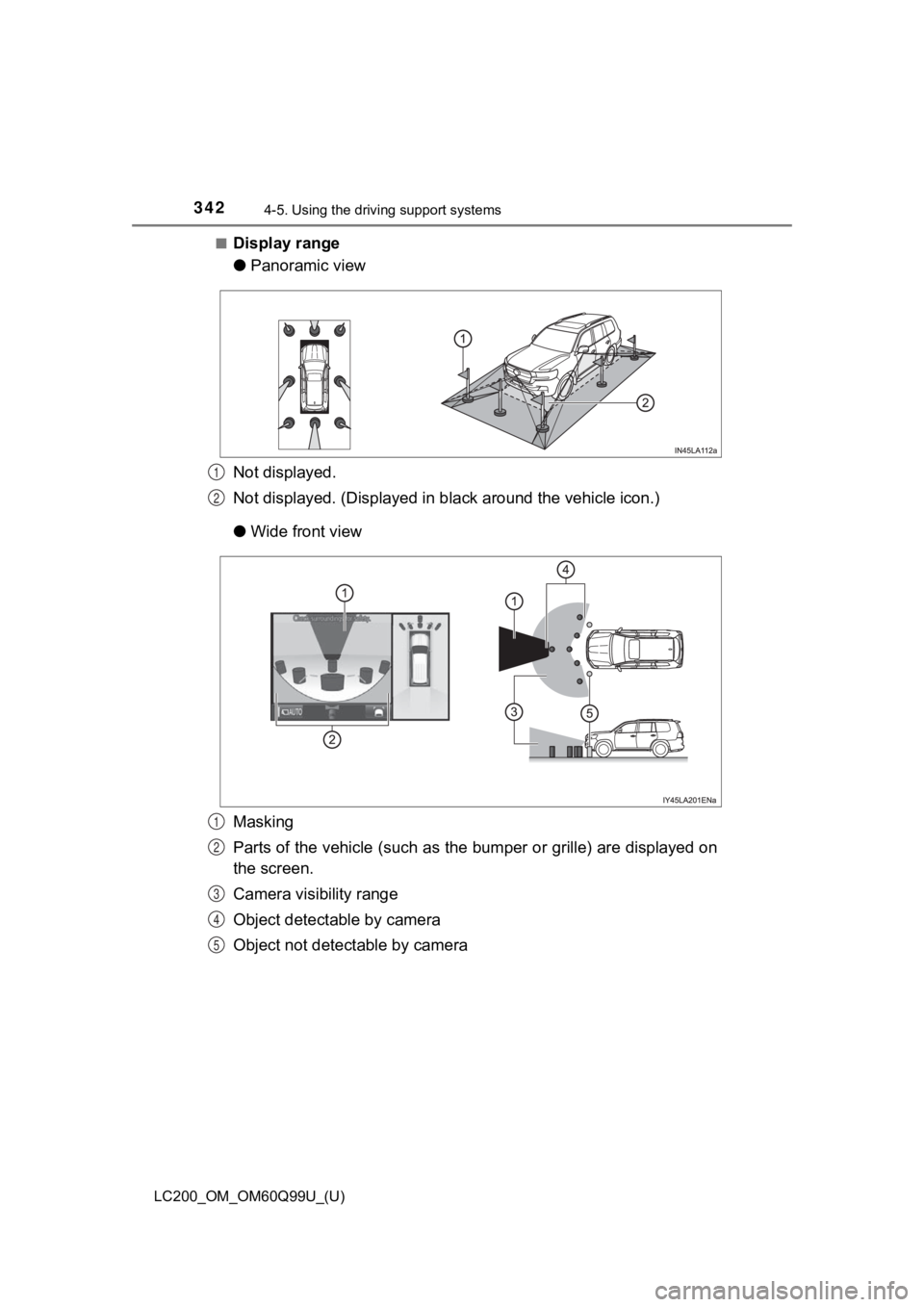

■Display range
●Panoramic view
Not displayed.
Not displayed. (Displayed in b lack around the vehicle icon.)

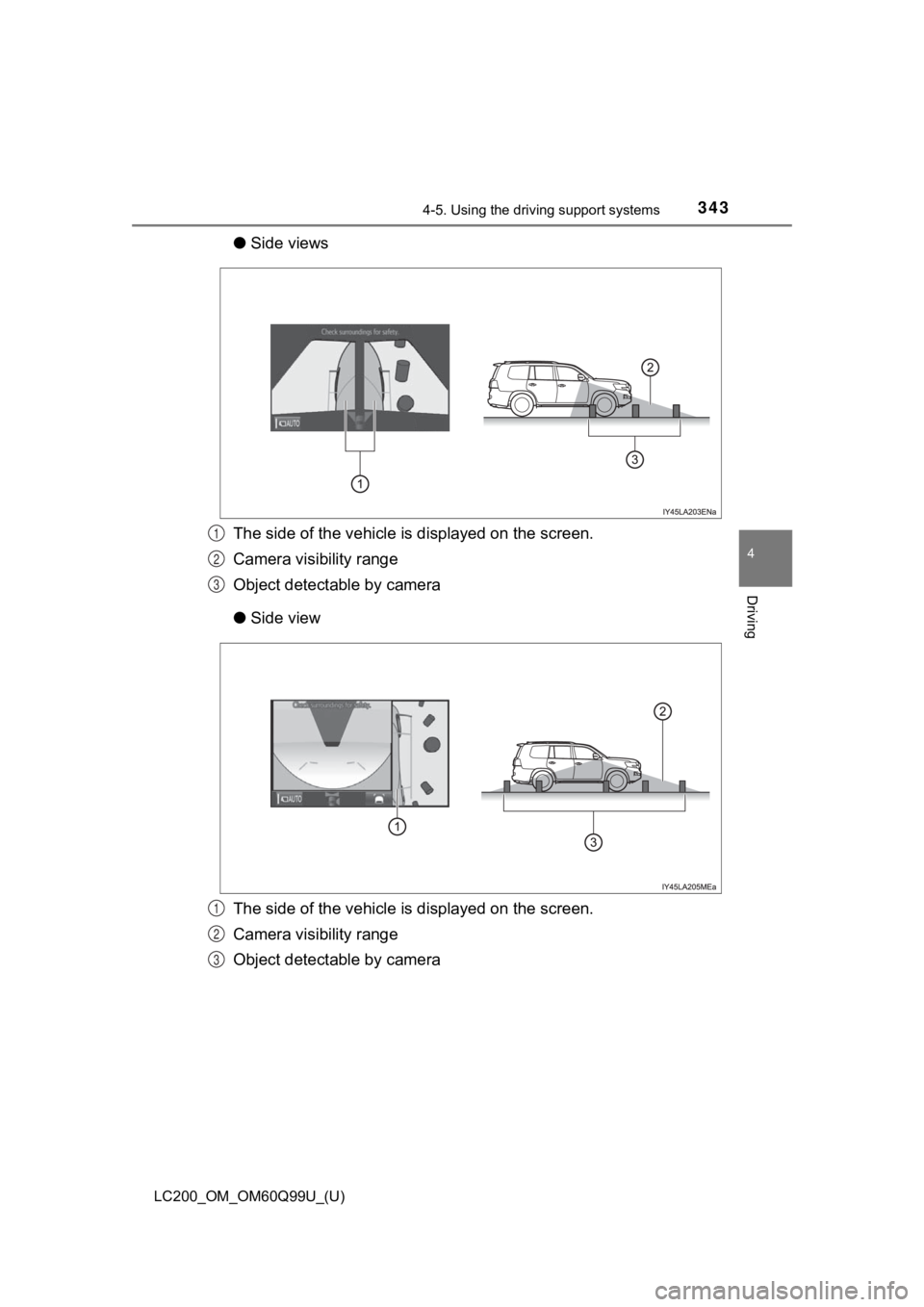

● Wide front view
Masking
Parts of the vehicle (such as the bumper or grille) are display ed on
the screen.
Camera visibility range
Object detectable by camera
Object not detectable by camera
1
2
1
2
3
4
5

LC200_OM_OM60Q99U_(U)
3434-5. Using the driving support systems
4
Driving

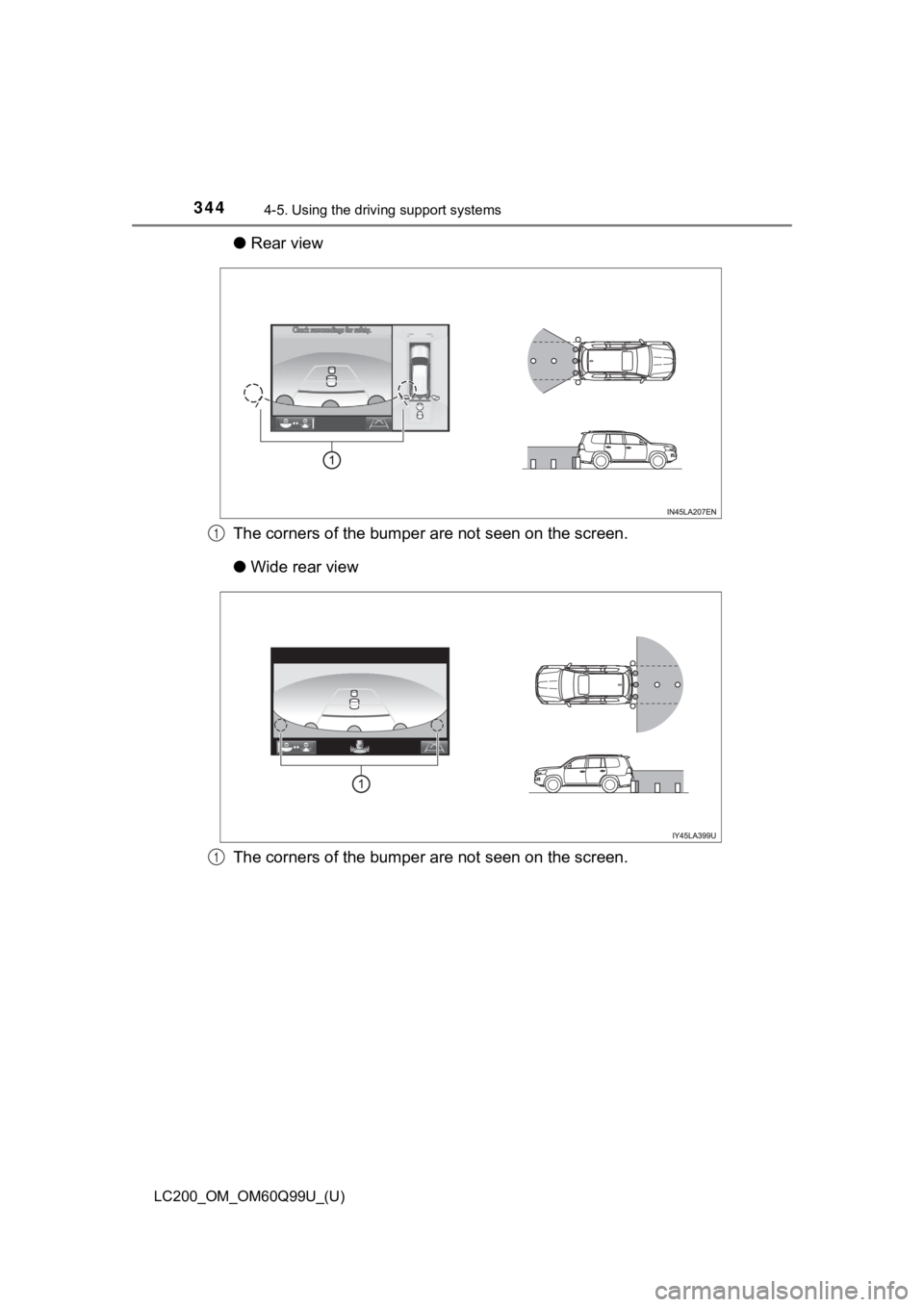

●Side views
The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
● Side view
The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
1
2
3
1
2
3

344
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
●Rear view
The corners of the bumper ar e not seen on the screen.
● Wide rear view
The corners of the bumper ar e not seen on the screen.
1
1
