2019 TOYOTA LAND CRUISER Owners Manual (in English)

LC200_OM_OM60Q99U_(U)
3454-5. Using the driving support systems
4
Driving

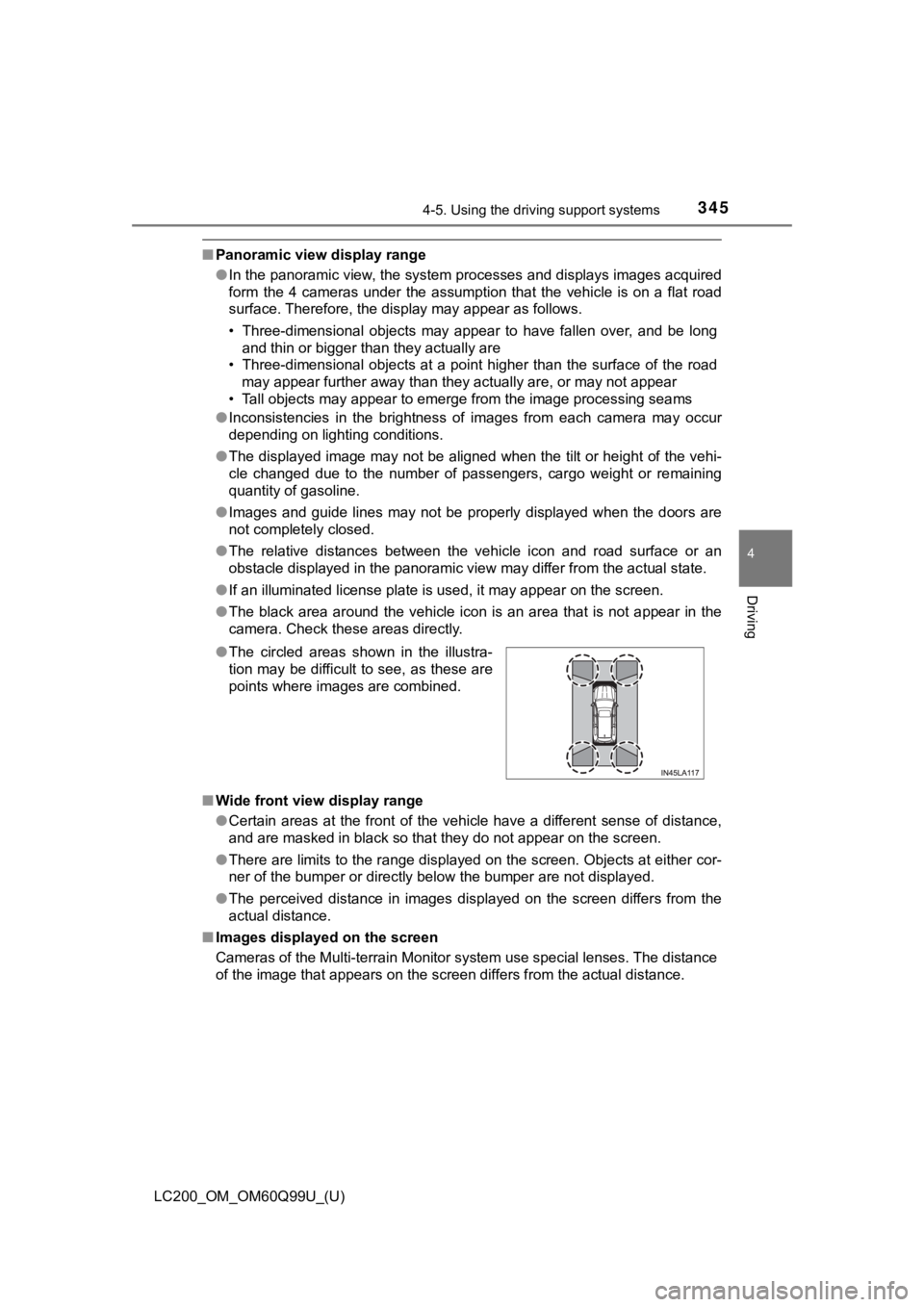

■Panoramic view display range
●In the panoramic view, the system processes and displays images acquired
form the 4 cameras under the assumption that the vehicle is on a flat road
surface. Therefore, the display may appear as follows.
• Three-dimensional objects may appear to have fallen over, and be long and thin or bigger than they actually are
• Three-dimensional objects at a point higher than the surface o f the road
may appear further away than they actually are, or may not appe ar
• Tall objects may appear to emerge from the image processing se ams
● Inconsistencies in the brightness of images from each camera may occur
depending on lighting conditions.
● The displayed image may not be aligned when the tilt or height of the vehi-
cle changed due to the number of passengers, cargo weight or re maining
quantity of gasoline.
● Images and guide lines may not be properly displayed when the d oors are
not completely closed.
● The relative distances between the vehicle icon and road surfac e or an
obstacle displayed in the panoramic view may differ from the ac tual state.
● If an illuminated license plate is used, it may appear on the s creen.
● The black area around the vehicle icon is an area that is not a ppear in the
camera. Check these areas directly.
■ Wide front view display range
●Certain areas at the front of the vehicle have a different sense of distance,
and are masked in black so that they do not appear on the scree n.
● There are limits to the range displayed on the screen. Objects at either cor-
ner of the bumper or directly below the bumper are not displaye d.
● The perceived distance in images displayed on the screen differ s from the
actual distance.
■ Images displayed on the screen
Cameras of the Multi-terrain Monitor system use special lenses. The distance
of the image that appears on the screen differs from the actual distance.
●
The circled areas shown in the illustra-
tion may be difficult to see, as these are
points where images are combined.

346
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

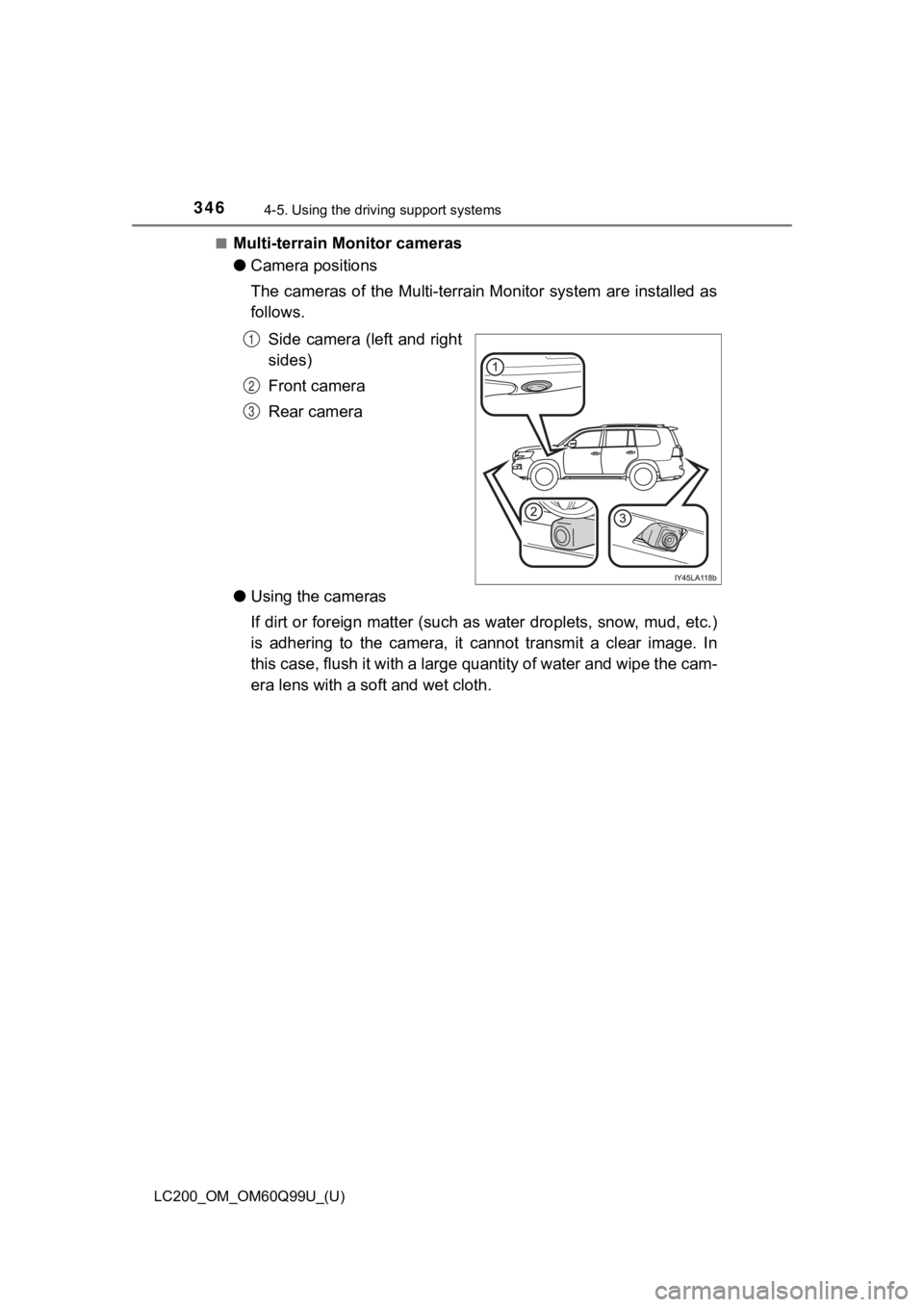

■Multi-terrain Monitor cameras
●Camera positions
The cameras of the Multi-terrain Monitor system are installed a s
follows.
Side camera (left and right
sides)
Front camera
Rear camera
● Using the cameras
If dirt or foreign matter (such as water droplets, snow, mud, e tc.)
is adhering to the camera, it cannot transmit a clear image. In
this case, flush it with a large quantity of water and wipe the cam-
era lens with a so ft and wet cloth.
1
2
3

LC200_OM_OM60Q99U_(U)
3474-5. Using the driving support systems
4
Driving
NOTICE
■How to use the cameras
● Observe the following precautions. Failure to do so may prevent the Multi-
terrain Monitor from operating properly.
• Do not strike the camera area, or allow any objects to bump in to it
If the camera or surrounding area has received a strong impact, the
camera position, installation angle, etc., may deviate. If the camera is
accidentally subjected to an impact, have the vehicle inspected at your
Toyota dealer.
• Do not remove, disassemble or modify the camera or surrounding parts
Doing so may result in the camera malfunctioning. This also may result
in a loss of waterproof performance.
• If the camera lens is dirty, follow the above procedures to cl ean it
If the camera lens is damaged it cannot transmit a clear image.
Do not allow organic solvent, car wax, oil film remover, glass coating,
etc. to contact the camera cover
Doing so will negatively affect the camera cover (resin). If th is happens,
wipe it off immediately.
• When the outside temperature is cold, do not cause any sudden changes in temperature, such as by applying hot water
● When washing the vehicle, do not apply water with a high-pressu re
washer to the camera or surrounding area. Doing so may cause th e cam-
era to receive a strong impact, and the camera may not operate properly

348
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

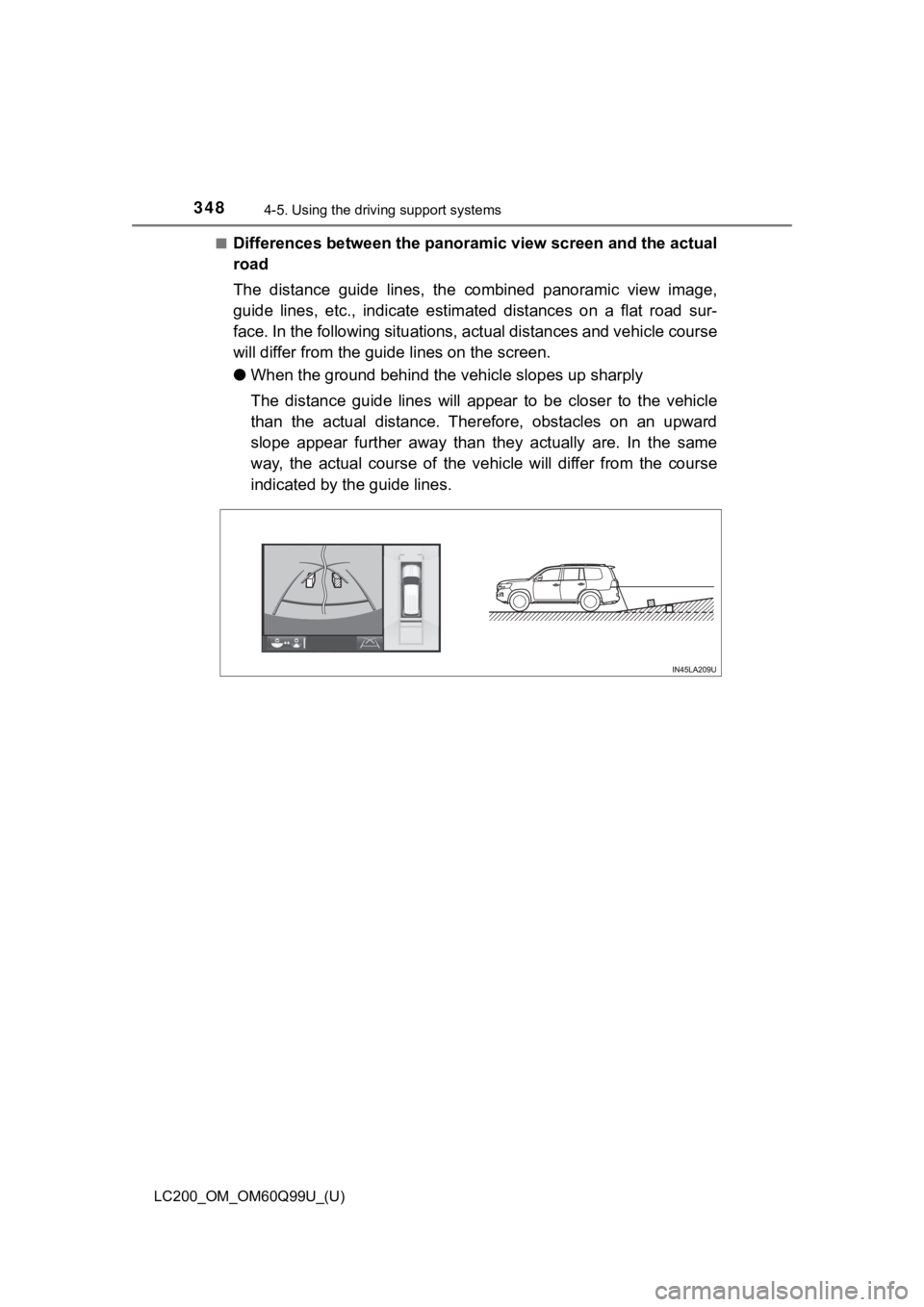

■Differences between the panoramic view screen and the actual
road
The distance guide lines, the combined panoramic view image,
guide lines, etc., indicate estimated distances on a flat road sur-
face. In the following situations, actual distances and vehicle course
will differ from the guide lines on the screen.
● When the ground behind the vehicle slopes up sharply
The distance guide lines will appear to be closer to the vehicl e
than the actual distance. Ther efore, obstacles on an upward
slope appear further away than they actually are. In the same
way, the actual course of the ve hicle will differ from the course
indicated by the guide lines.

LC200_OM_OM60Q99U_(U)
3494-5. Using the driving support systems
4
Driving

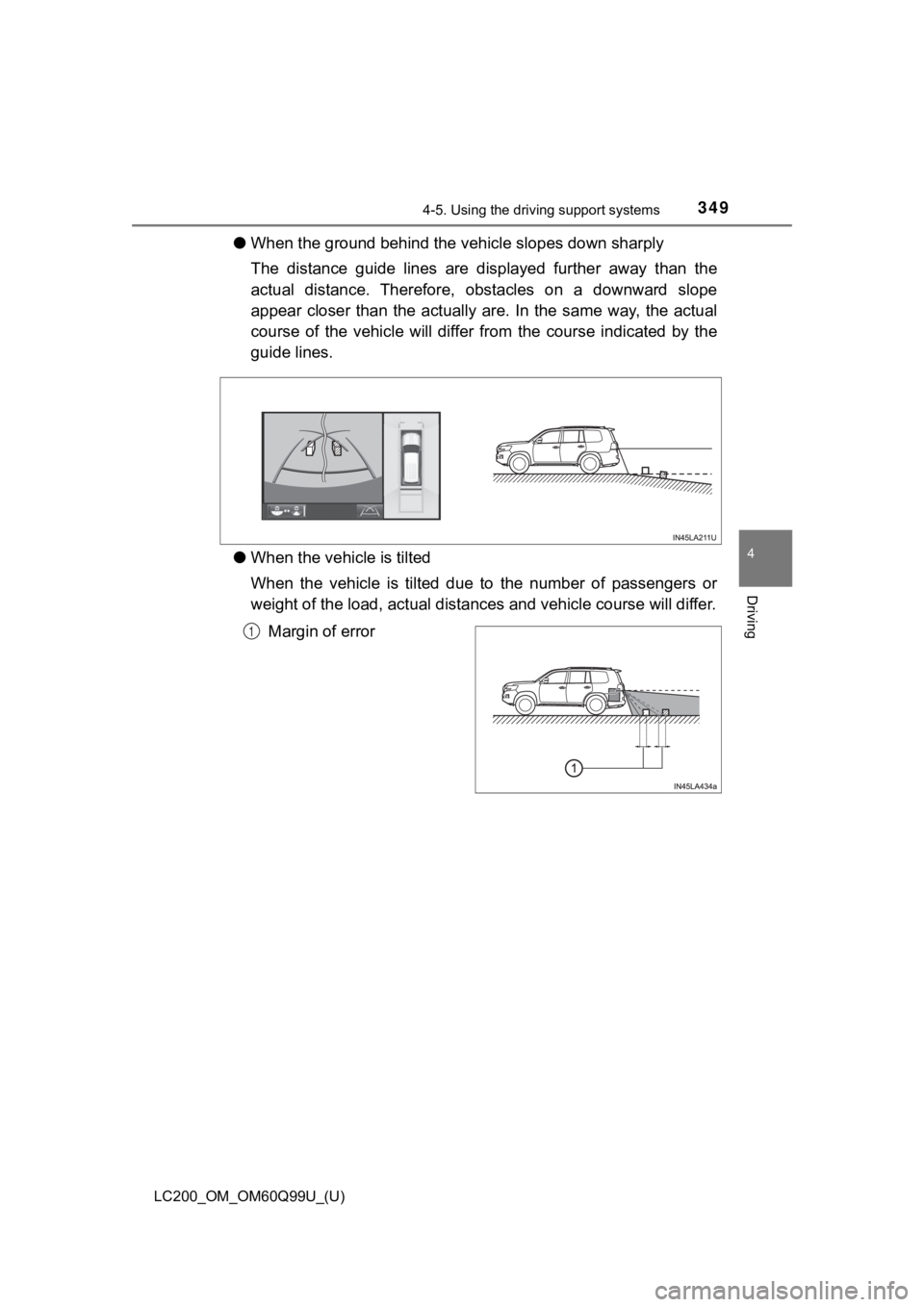

●When the ground behind the ve hicle slopes down sharply
The distance guide lines are displayed further away than the
actual distance. Ther efore, obstacles on a downward slope
appear closer than the actually are. In the same way, the actua l
course of the vehicle will differ from the course indicated by the
guide lines.
● When the vehicle is tilted
When the vehicle is tilted due to the number of passengers or
weight of the load, ac tual distances and vehicle course will di ffer.
Margin of error
1

350
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

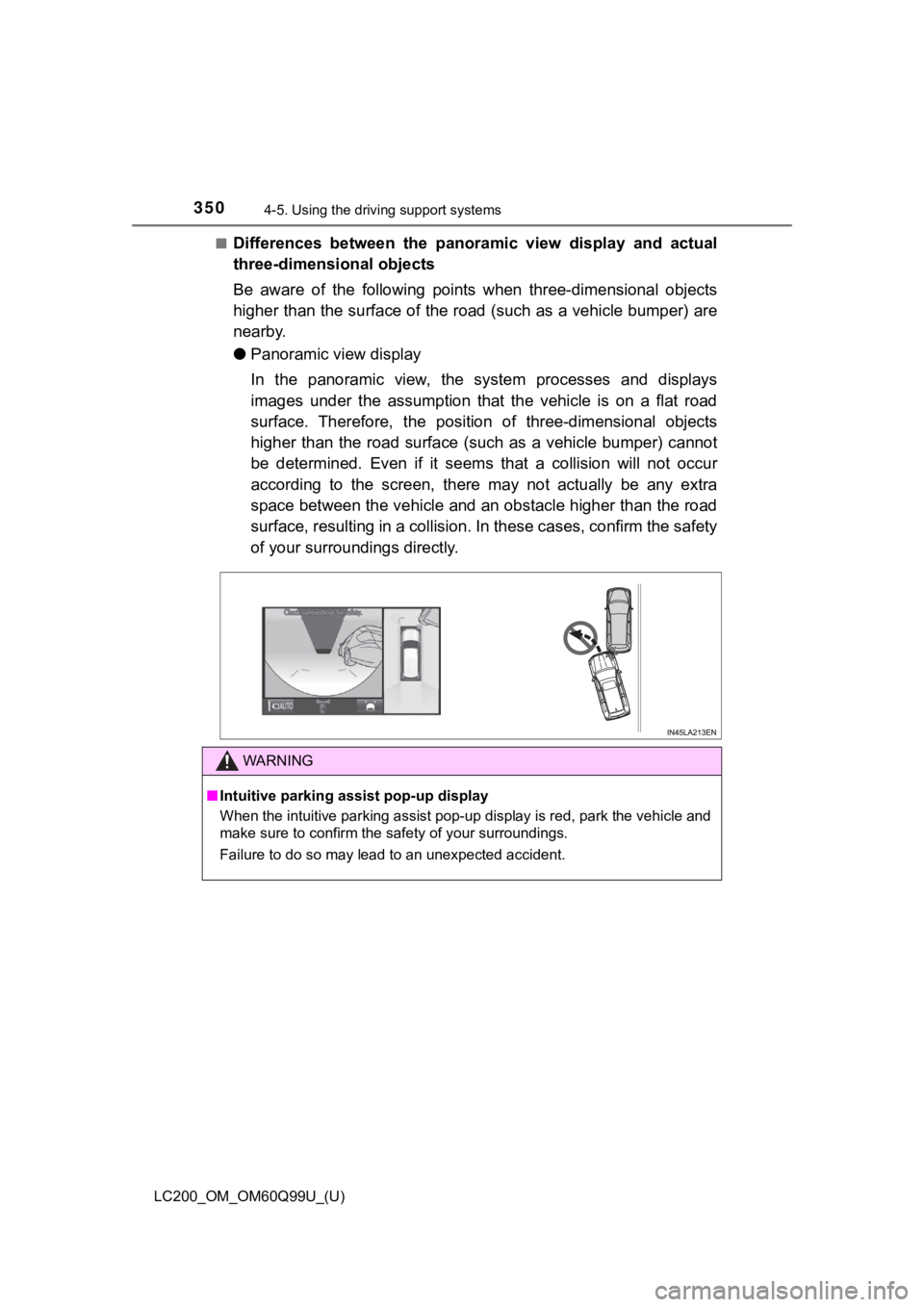

■Differences between the panoramic view display and actual
three-dimensional objects
Be aware of the following points when three-dimensional objects
higher than the surface of the road (such as a vehicle bumper) are
nearby.
● Panoramic view display
In the panoramic view, the system processes and displays
images under the assumption that the vehicle is on a flat road
surface. Therefore, the position of three-dimensional objects
higher than the road surface (such as a vehicle bumper) cannot
be determined. Even if it seems that a collision will not occur
according to the screen, there may not actually be any extra
space between the vehicle and an obstacle higher than the road
surface, resulting in a collisi on. In these cases, confirm the safety
of your surroundings directly.
WARNING
■ Intuitive parking assist pop-up display
When the intuitive parking assist pop-up display is red, park t he vehicle and
make sure to confirm the safety of your surroundings.
Failure to do so may lead to an unexpected accident.

LC200_OM_OM60Q99U_(U)
3514-5. Using the driving support systems
4
Driving

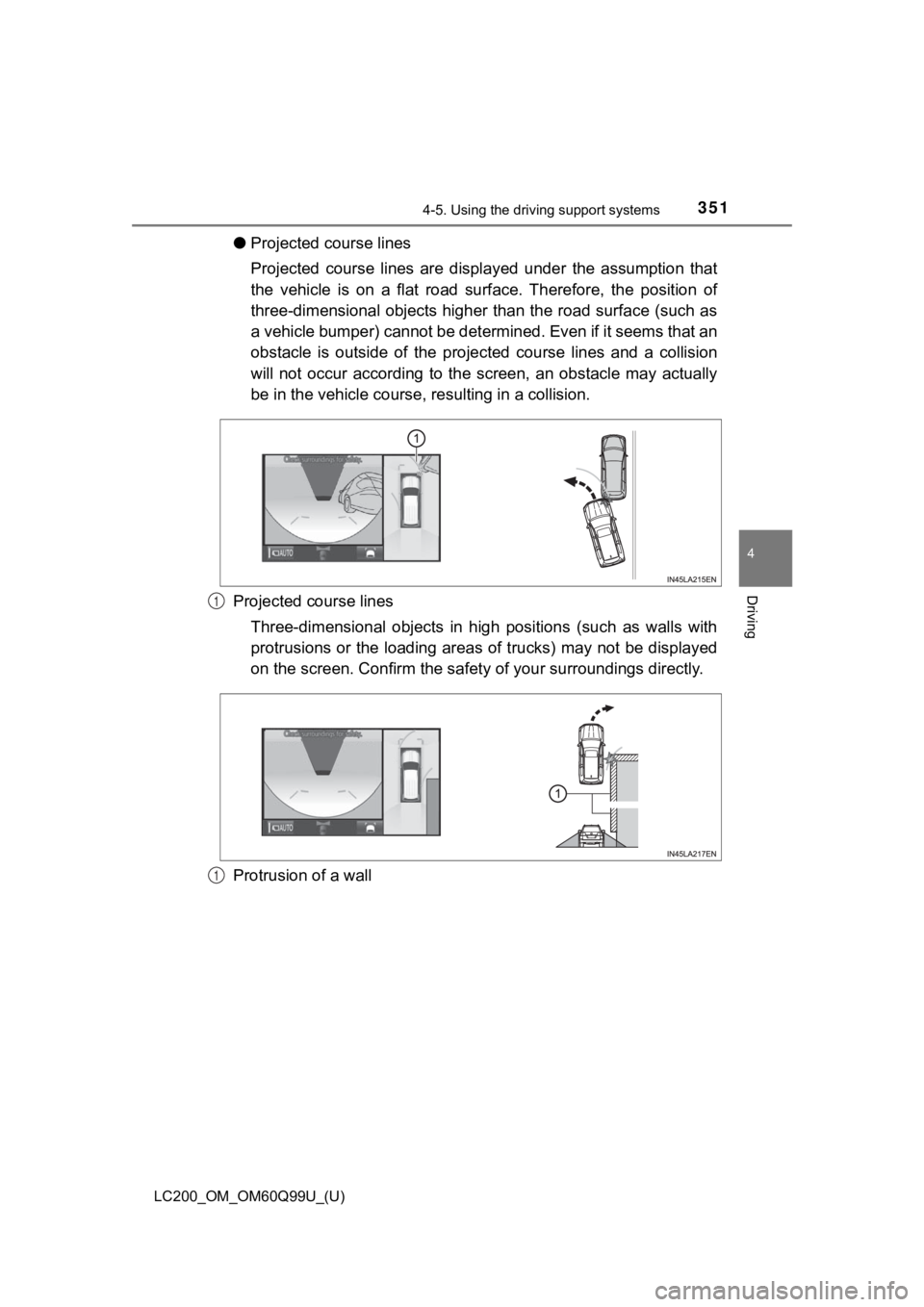

●Projected course lines
Projected course lines are displ ayed under the assumption that
the vehicle is on a flat road surface. Therefore, the position of
three-dimensional objects higher than the road surface (such as
a vehicle bumper) cannot be det ermined. Even if it seems that an
obstacle is outside of the proje cted course lines and a collision
will not occur according to the sc reen, an obstacle may actually
be in the vehicle course, resulting in a collision.
Projected course lines Three-dimensional objects in high positions (such as walls with
protrusions or the loading areas of trucks) may not be displayed
on the screen. Confirm the safet y of your surroundings directly.
Protrusion of a wall
1
1

352
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

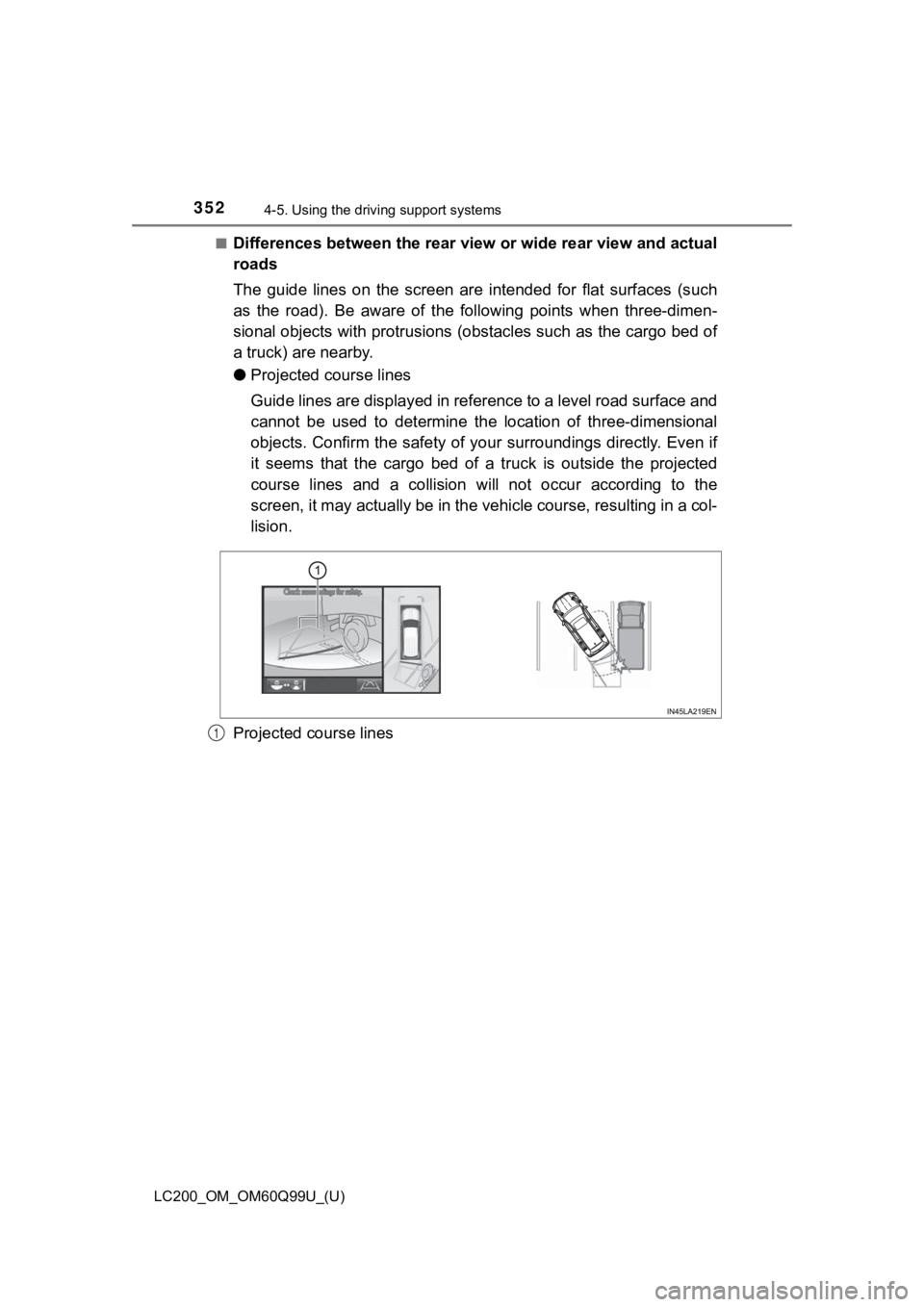

■Differences between the rear view or wide rear view and actual
roads
The guide lines on the screen are intended for flat surfaces (s uch
as the road). Be aware of the following points when three-dimen -
sional objects with protrusions ( obstacles such as the cargo bed of
a truck) are nearby.
● Projected course lines
Guide lines are displayed in reference to a level road surface and
cannot be used to determine the location of three-dimensional
objects. Confirm the safety of y our surroundings directly. Even if
it seems that the cargo bed of a t ruck is outside the projected
course lines and a collision w ill not occur according to the
screen, it may actually be in the vehicle course, resulting in a col-
lision.
Projected course lines
1
