Light bulbs
Check the wattage and color of the light bulb being replaced.
(  P. 571)
 P. 4 6 1
■Front
Front side marker light
Front turn signal light
You may replace the following bu lbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Removing the engine c ompartment covers

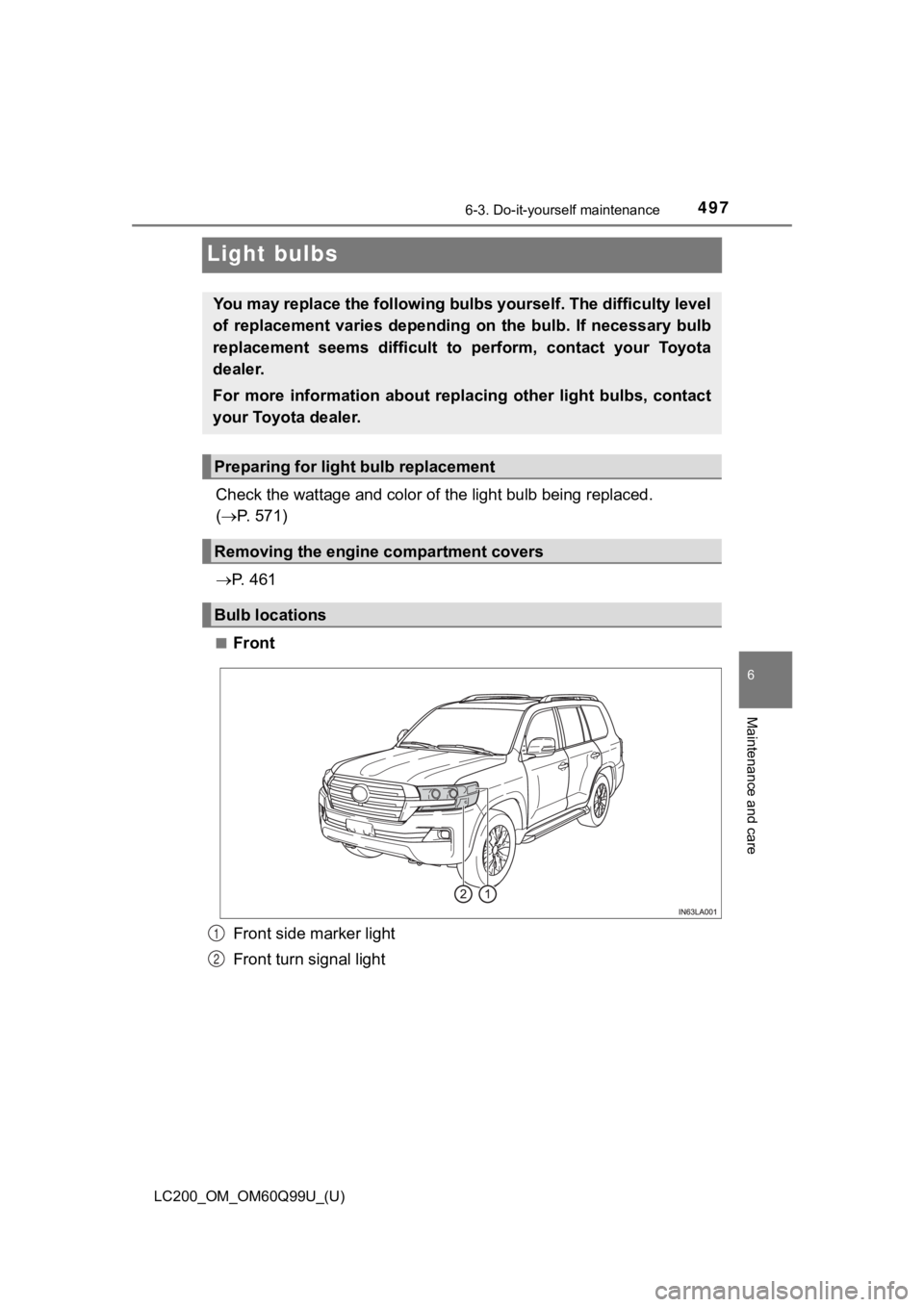

Bulb locations
1
2

498
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

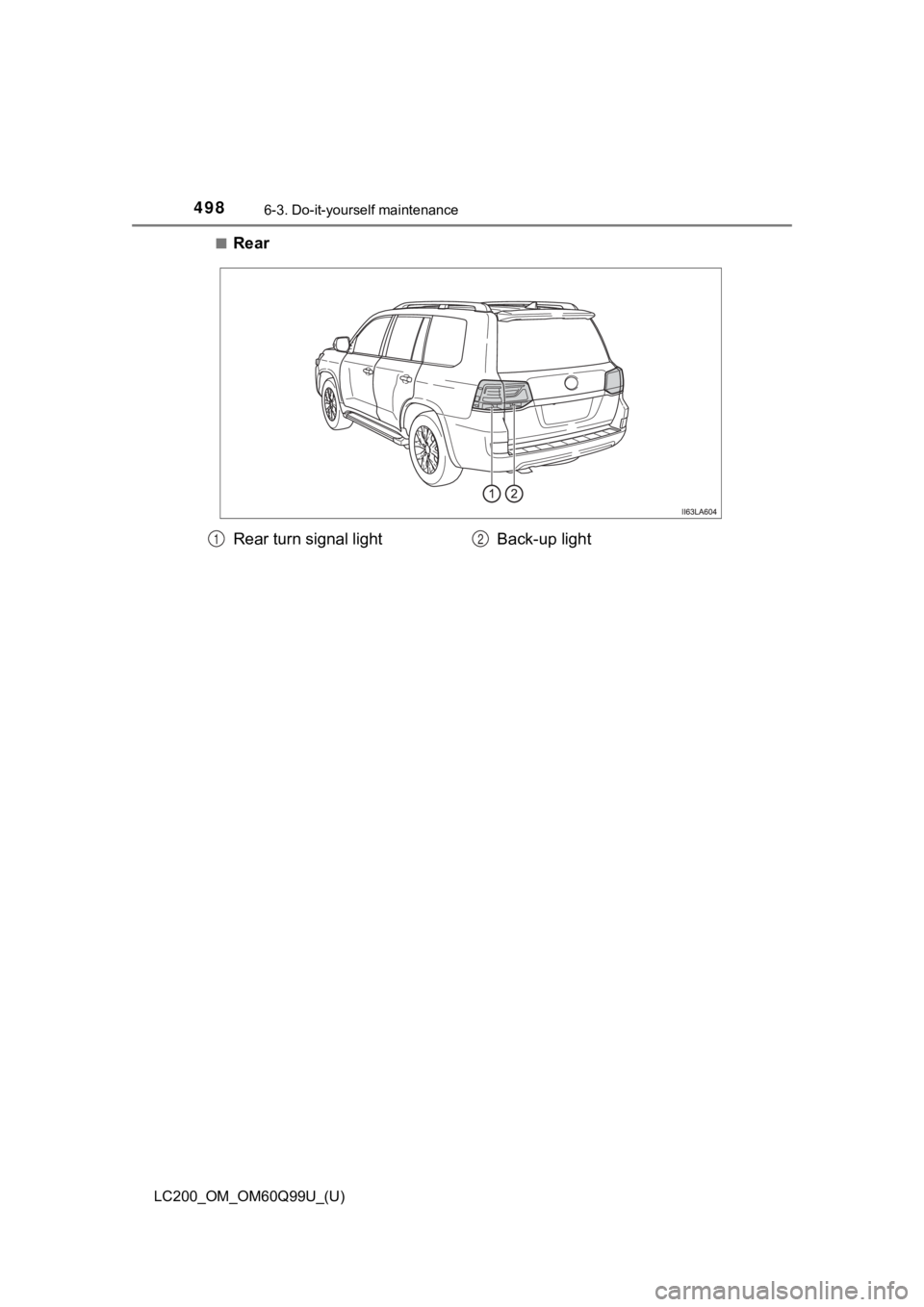

■Rear
Rear turn signal lightBack-up light12

LC200_OM_OM60Q99U_(U)
4996-3. Do-it-yourself maintenance
6
Maintenance and care
■Front side marker lightFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

500
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Front turn signal lightsFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
To allow enough working
space, remove the bulb base
of the front side marker light.
Wrap the removed bulb base
with cloth to prevent damage to
the bulb base.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4

LC200_OM_OM60Q99U_(U)
5016-3. Do-it-yourself maintenance
6
Maintenance and care

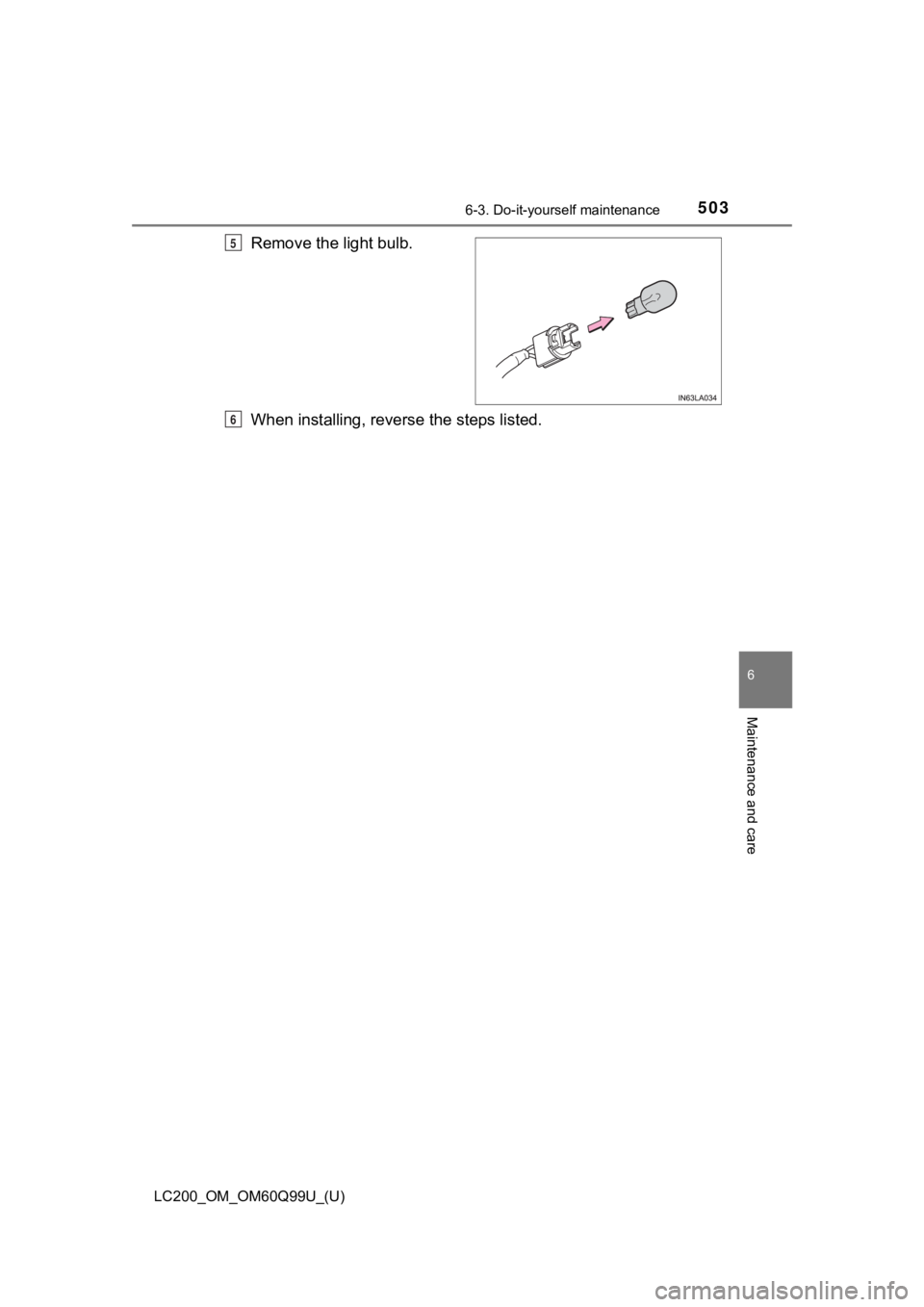

Remove the light bulb.
When installing, reverse the steps listed.5
6

502
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

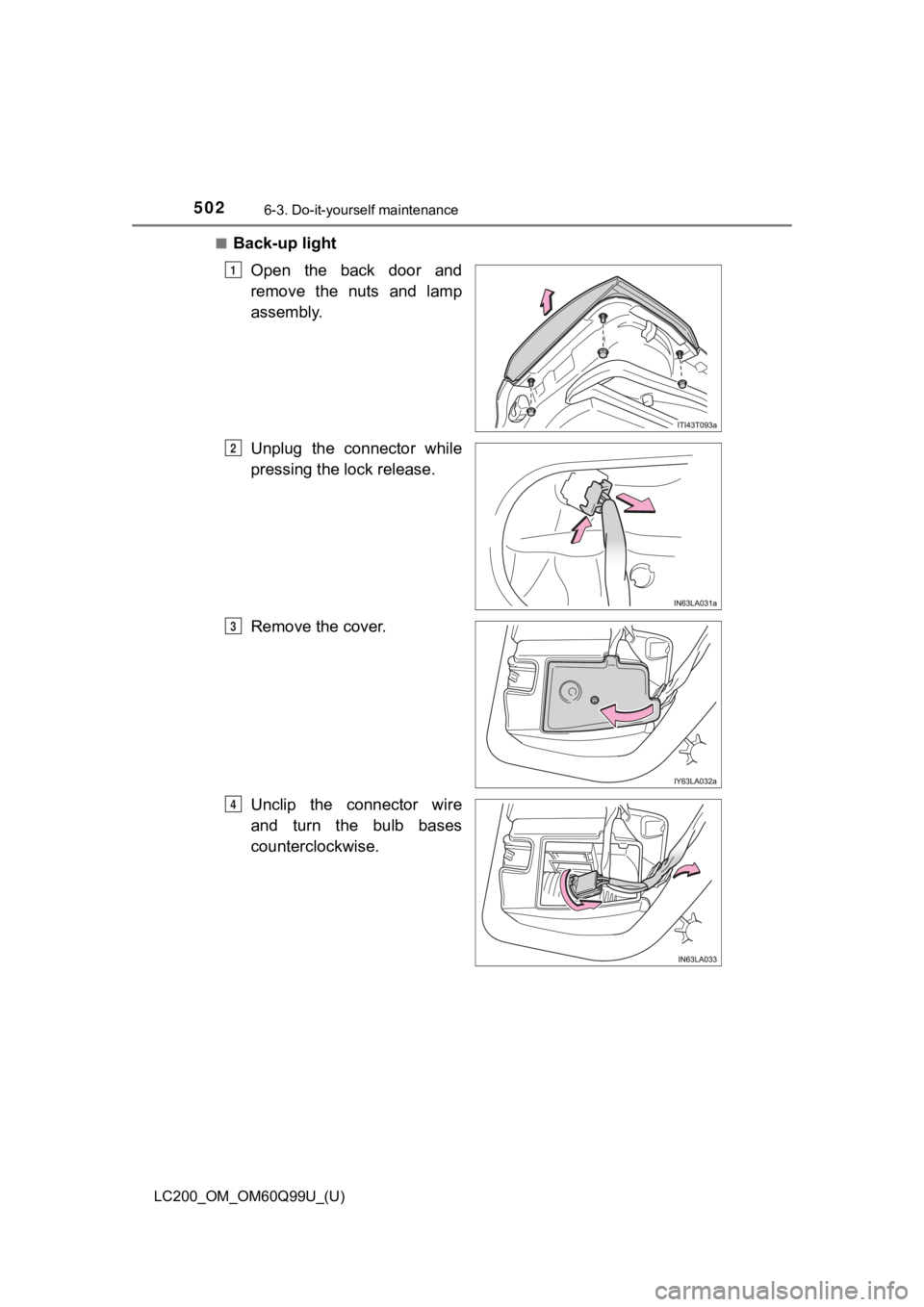

■Back-up lightOpen the back door and
remove the nuts and lamp
assembly.
Unplug the connector while
pressing the lock release.
Remove the cover.
Unclip the connector wire
and turn the bulb bases
counterclockwise.
1
2
3
4

LC200_OM_OM60Q99U_(U)
5036-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6

504
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

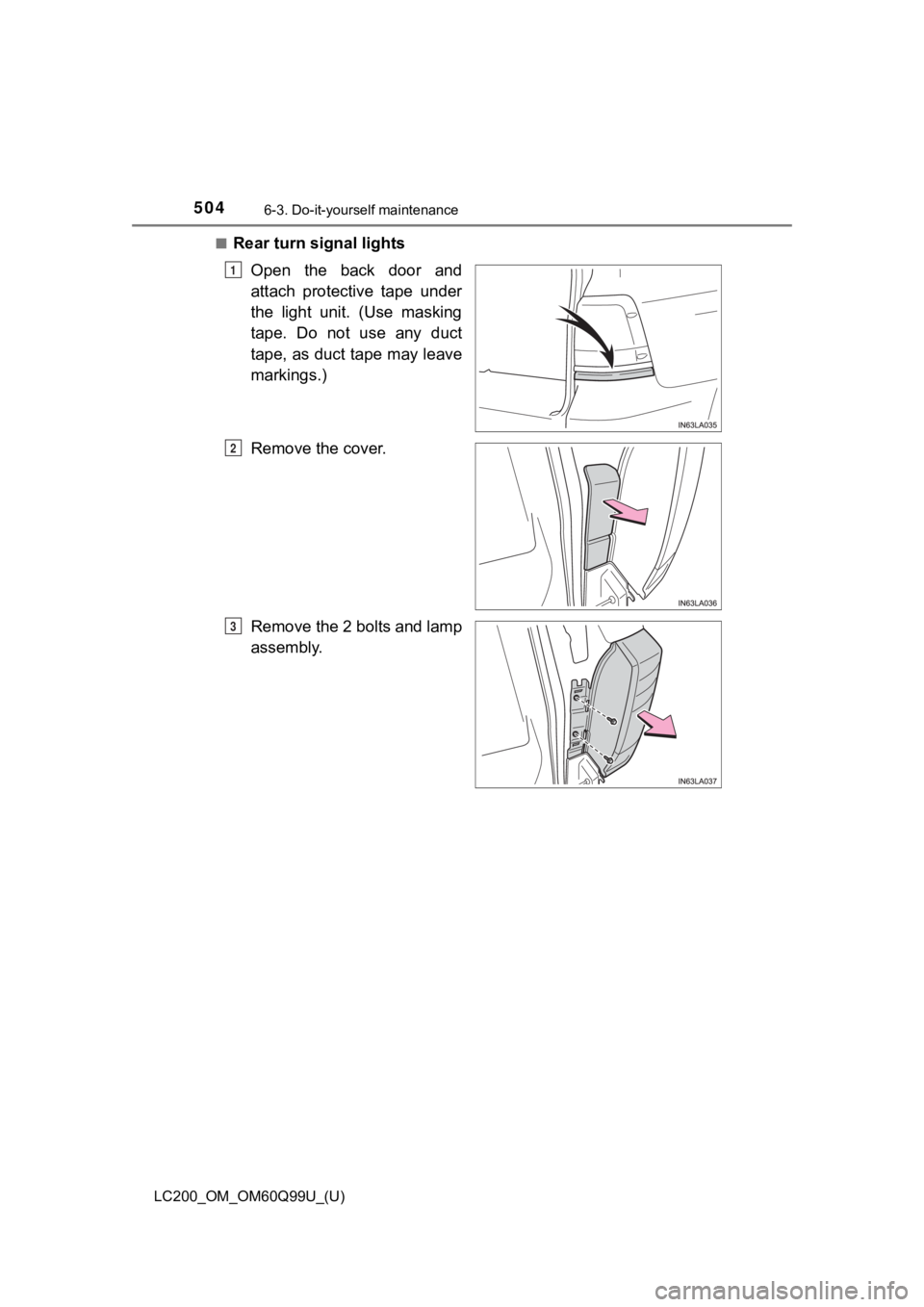

■Rear turn signal lightsOpen the back door and
attach protective tape under
the light unit. (Use masking
tape. Do not use any duct
tape, as duct tape may leave
markings.)
Remove the cover.
Remove the 2 bolts and lamp
assembly.
1
2
3
