2019 SUBARU BRZ Owners Manual

Page 505 of 560

SUBARU BRZ 2019  Owners Manual 505
6-1. Specifications
6
Vehicle specifications
BRZ_U
Tire size
■ Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Sectio

Page 506 of 560

SUBARU BRZ 2019  Owners Manual 506 6-1. Specifications
BRZ_U
Tire section namesBead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform Tire Quality GradingThis information has be

Page 507 of 560

SUBARU BRZ 2019  Owners Manual 507
6-1. Specifications
6
Vehicle specifications
BRZ_U
■
Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-

Page 508 of 560

SUBARU BRZ 2019  Owners Manual 508 6-1. Specifications
BRZ_U
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rat

Page 509 of 560

SUBARU BRZ 2019  Owners Manual 509
6-1. Specifications
6
Vehicle specifications
BRZ_U
Tire related termMeaning
Normal occupant
weight 150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that

Page 510 of 560

SUBARU BRZ 2019  Owners Manual 510 6-1. Specifications
BRZ_U
Tire related termMeaning
Vehicle normal load
on the tire The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, acces

Page 511 of 560

SUBARU BRZ 2019  Owners Manual 511
6-1. Specifications
6
Vehicle specifications
BRZ_U
Tire related termMeaning
Extra load tire A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding s

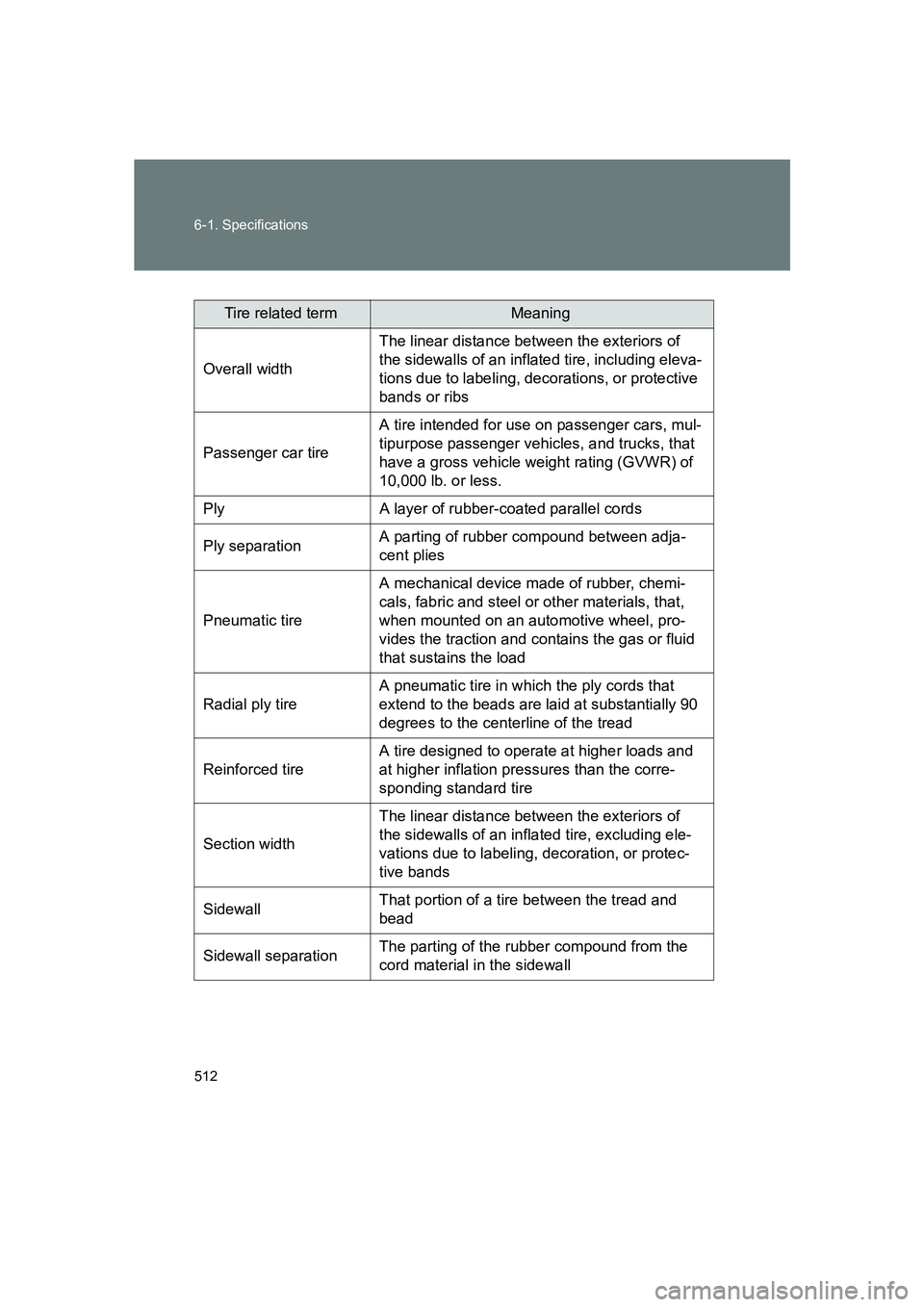

Page 512 of 560

SUBARU BRZ 2019  Owners Manual 512 6-1. Specifications
BRZ_U
Tire related termMeaning
Overall width The linear distance between the exteriors of
the sidewalls of an inflated tire, including eleva-
tions due to labeling, decoration
